ENVY


ENVY COMPLETE BIKE

The mother of all bikes. The Envy is a testament to just how far BMX design has come. Every year we unviel this bike, we want to show the world how far we've come as a brand and what happens when you put together only the very best of our products. All the components on the Envy are carefully hand picked to ensure it’s the perfect bike for street and park riders, and just about everything in between. What we're calling "Burnt Metal", for 2019 we wanted the Envy to have a paint job unlike anything ever seen before.

As always, the Envy is backed up by another jaw dropping parts list including the WETHEPEOPLE Supreme hubs, Patron 25mm Invest Casted fork and the new Felix Prangenberg signature 8mm thick Pathfinder sprocket. On top of this you'll find only the best parts from ECLAT including the high performance Mirage 2.45”/2.35" tires, BIOS Pivotal seat and the new 4.8" Venom plastic pegs. Available in 20.5” and 21” toptube lengths, the Envy is the very best BMX bike your money can buy.

INCLUDES LIFETIME GUARANTEE ON THE FRAME & FORK

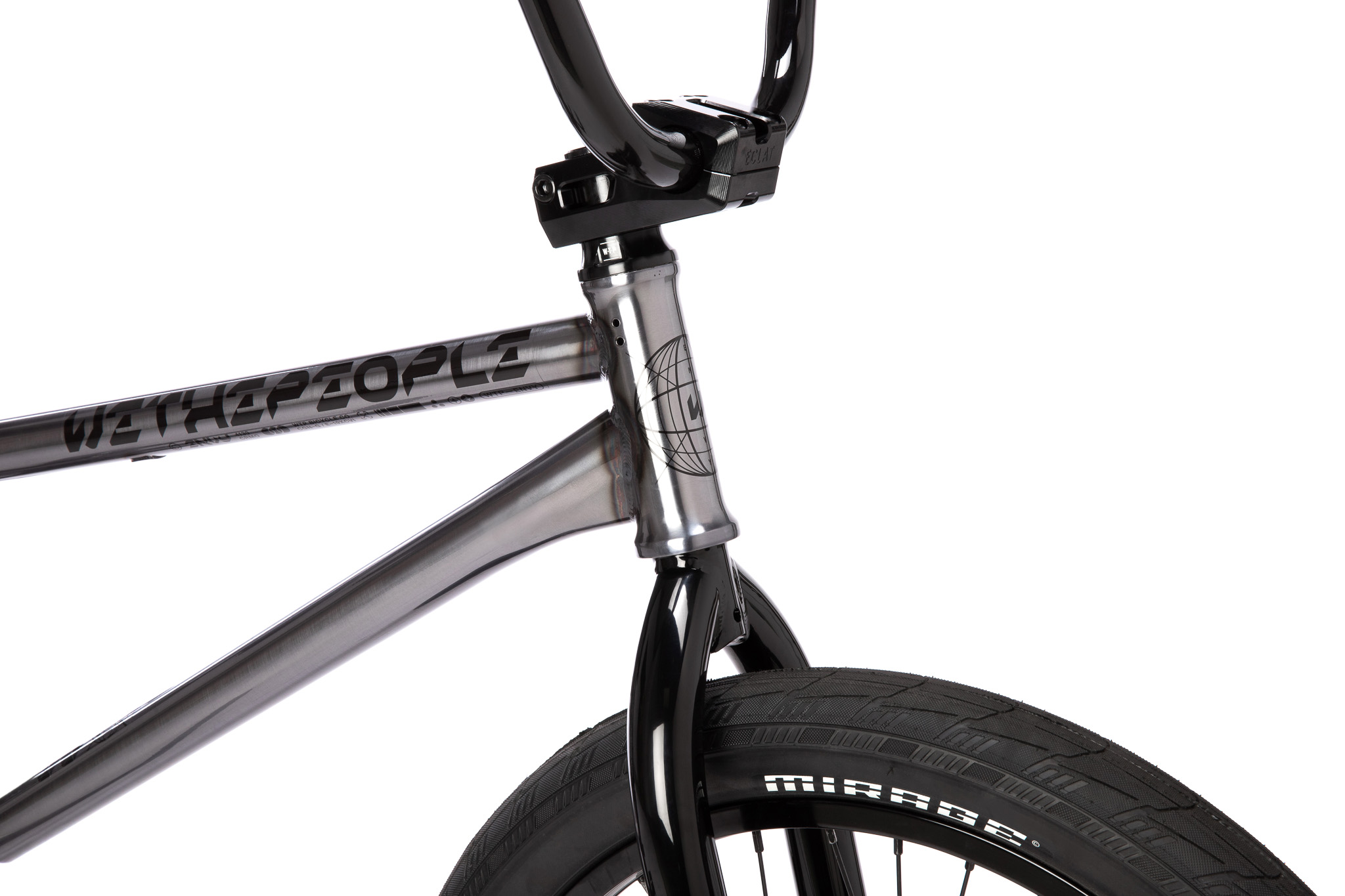

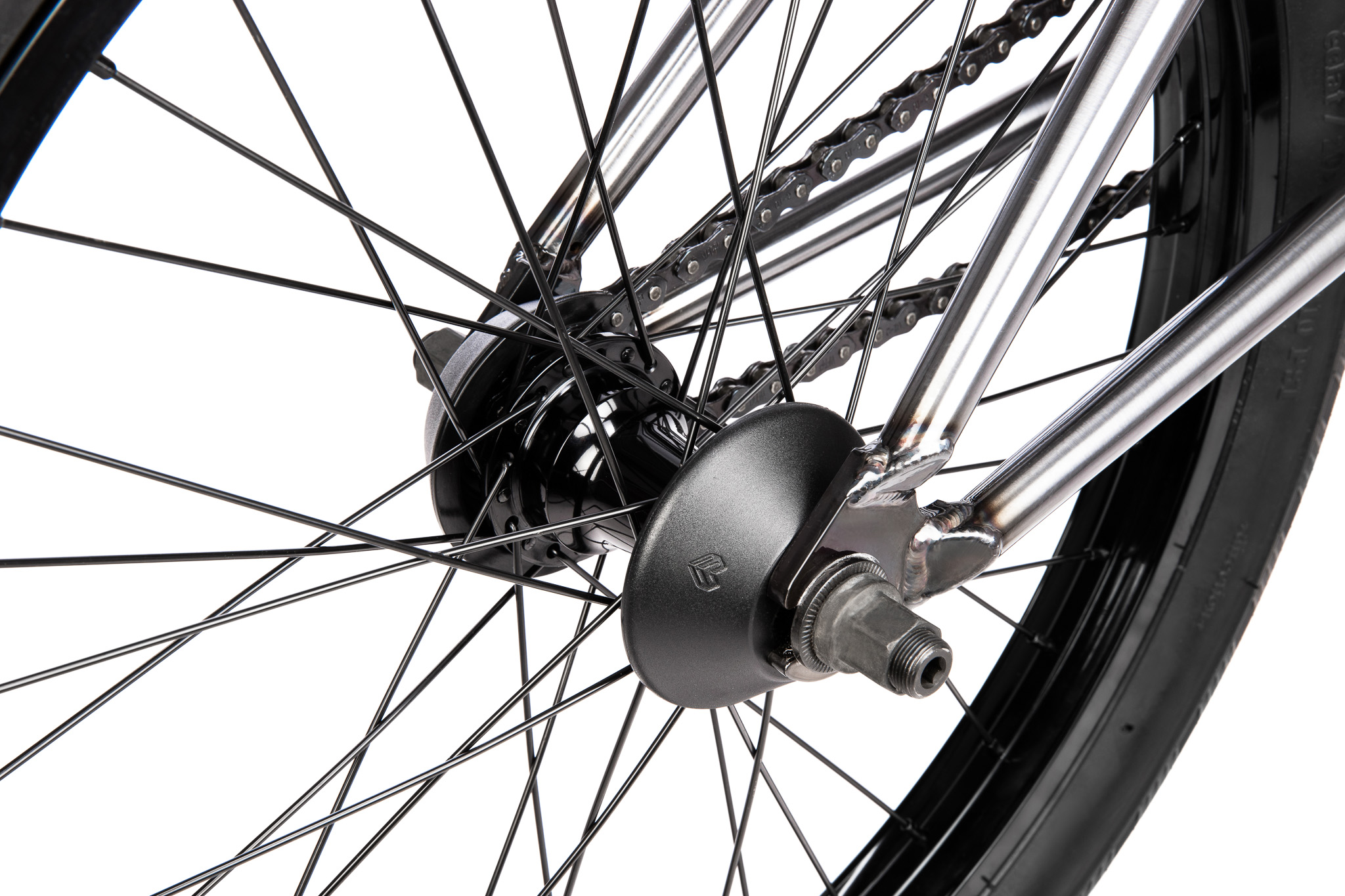

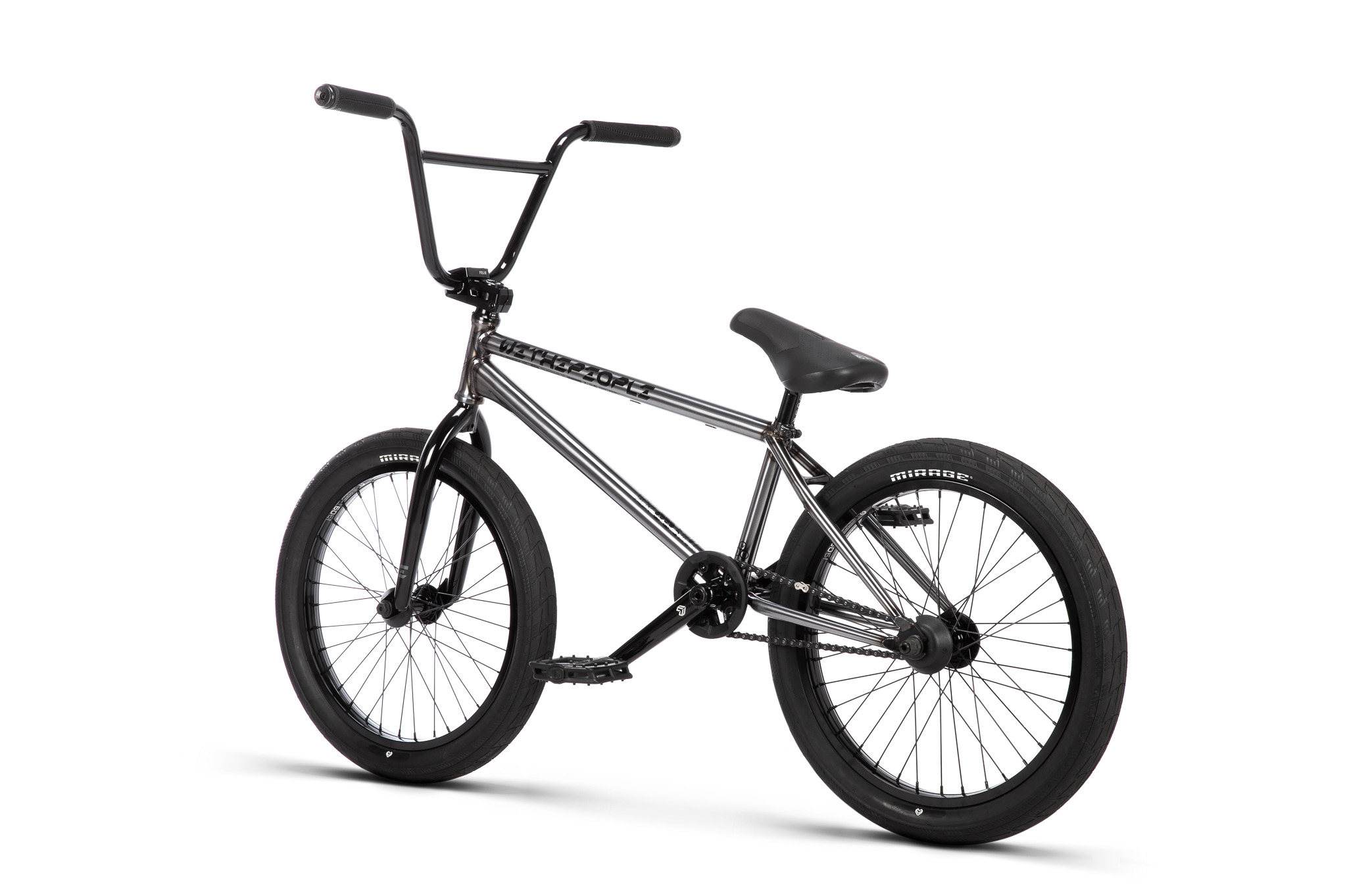

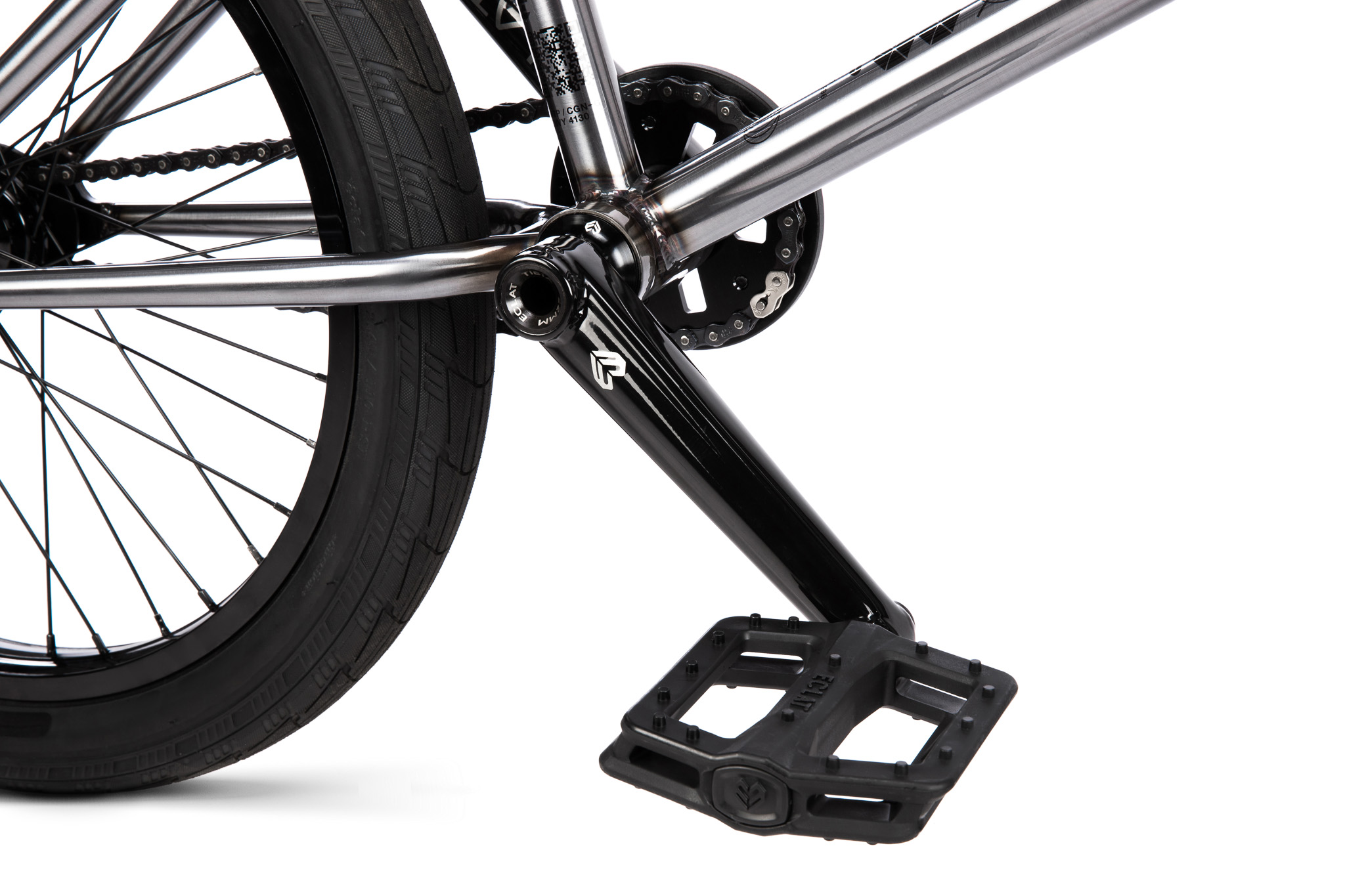

GALLERY

COLORWAY: BURNT METAL

CLICK IMAGE FOR FULL SIZE GALLERY


SPECIFICATIONS

Frame: WETHEPEOPLE "Envy" frame, 4130 full sanko, tapered CS and SS, removable pivots & guides , invest cast dropouts with intg. chain tensioner

Fork: WETHEPEOPLE “Patron” fork, full 4130 sanko with post liquid heat-treated, 1pc cnc steerer, invest cast dropouts, 25mm offset

Bars: WETHEPEOPLE "Envy" bars full 4130 sanko, post liquid heat-treated, 25.4mm clamping

Grips: WETHEPEOPLE “Remote” flangeless grips, ÉCLAT "Tech-Bolt" barends

Stem: WETHEPEOPLE “Hydra” cnc alloy top loading stem, 25.4mm clamp, 30mm rise, 50mm reach

Headset: WETHEPEOPLE “Compact” int. headset, sealed bearing

Gyro: no / holes for removable gyro tabs

Lever: ÉCLAT “Sniper” hinged alloy brake lever, two finger version

Brakes: ÉCLAT “Talon” u-brake and bridge cable rear

Cranks: WETHEPEOPLE “Leagcy” 22mm tubular 3pc crank crmo, 170mm, 48 spline

BB:  WETHEPEOPLE “Compact” 22mm, press fit, sealed bearing

Pedals: WETHEPEOPLE “Logic” nylon/fiberglass pedals

Chain: SALTPLUS “WARLOCK” halflink chain

Sprocket  WETHEPEOPLE “Pathfinder” 8mm thick, 6061-T6 alloy, 26t cnc sprocket

Driver: 9t, 1pc cassette driver, R&L switch driver, IGUS bushing

Front Hub:  WETHEPEOPLE “Supreme" hub, 3/8s" female bolts, 36h

Rear Hub:  WETHEPEOPLE “Supreme” cassette hub, sb, 9T, 12mm female bolt, 36h

Hubguards: WETHEPEOPLE "Supreme" Nylon/Fiberglass (x2) front & (x2) rear hub guards

Front Rim:  ÉCLAT "Camber” straight double wall rim, 36h, flash welded

Rear Rim:  ÉCLAT "Camber” straight double wall rim, 36h, flash welded

Seat:  ÉCLAT “BIOS” fat padded pivotal seat

Seat Post: ÉCLAT "Torch" alloy pivotal seat post 230mm

Seat Clamp: integrated seat clamp

Tires: ÉCLAT “Mirage” 2.45" front & 2.35" rear

Pegs:  ÉCLAT "Venom" 4.8", nylon-fibreglass x2

Weight: 11.66kg / 25.74lbs


FRAME GEOMETRY

A: Top Tube Length:  20.5” | 21”

B: Chain Stay Length: 13.1” (12.9" - 13.4")

C: Head Tube Angle: 75.5°

D: Seat Tube Angle: 71°

E: Bottom Bracket Height: 11.7”

F: Stand Over Height: 8.6” | 9"


BAR GEOMETRY

G: Bar Rise: 9.4“

H: Bar Width: 29.8”

I: Bar Back Sweep: 10.5°

J: Bar Up Sweep: 2.5°
