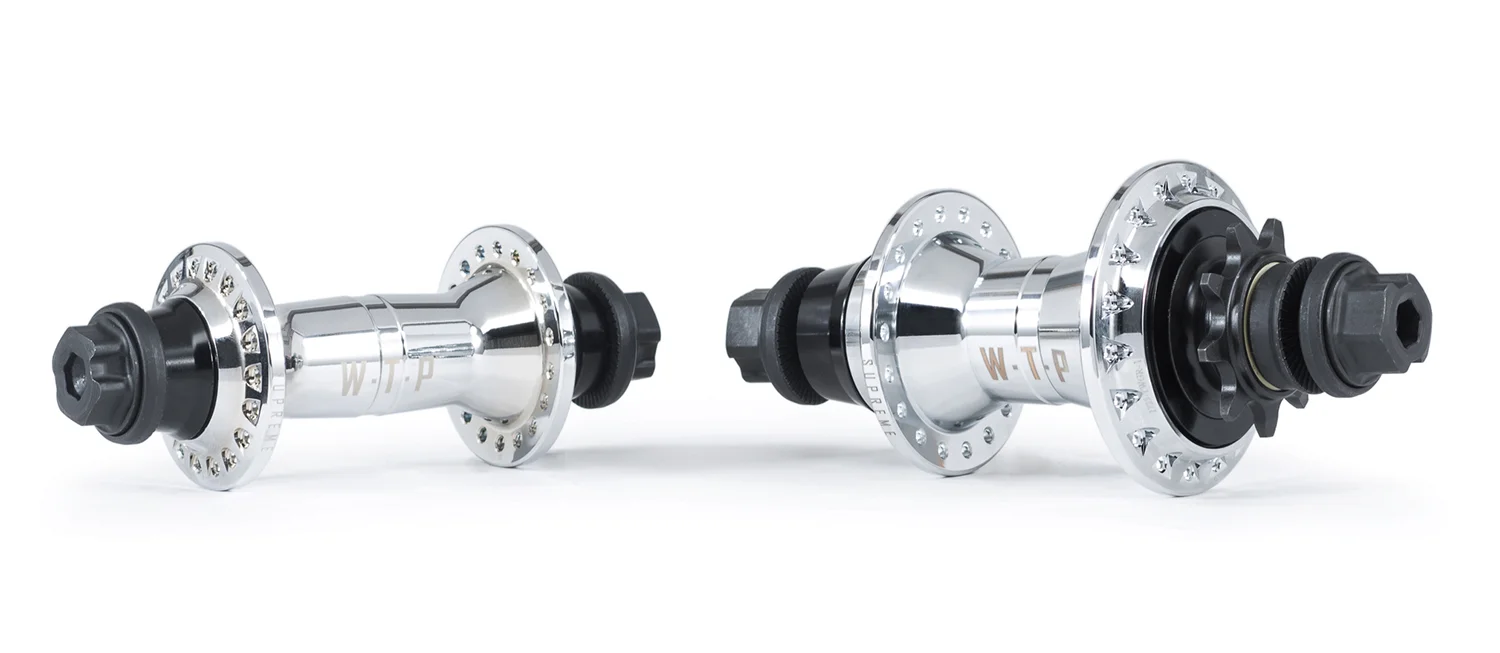

SUPREME CASSETTE HUB

A long time in the making, our Supreme hubs ARE HERE.

We really went back to the drawing board and introduced a bunch of new features for this latest incarnation, including a peg friendly 12mm female bolt system, twin bearings in the non-drive side and an new IGUS bushing Switch Drive Q-lite driver.

THE 12mm female bolt system givES you a stronger peg interface and A bombproof axle. Pair it up with our Supreme hub guards and you have a super dependable cassette hub ready for battle.



SPECIFICATIONS

MATERIAL:

6061-T6 alloy refined hub-shell

AXLE:

17mm 4130 crmo female axle, fully heat-treated

BOLTS:
super tough 12mm crmo bolt with 14mm extension

BEARINGS:
3 high quality sealed bearings in hub shell

full IGUS bushing driver system

SPECIAL FEATURES:

Q-LITE internals, ratchet is machined into 1pc driver for maximum strength

unique 12mm female bolt system, cnc cones

two bearings on non-drive side to increase hub life

switch drive system, RSD/LSD switchable, new one piece pawl & spring system

COLOR:
black, c.p., red, oilslick

WEIGHT:

(estd.) 391g (13.79oz)



SWITCH DRIVE SYSTEM

The Supreme uses our Q-Lite inverted system. The Q-Lite system uses pawls and springs inside of the hub body, instead of on the driver. This allows us to double the amount of pawls, which not only makes the hub much more reliable, but also puts less stress on the pawls and springs, allowing the hub to roll smoother and for longer. This system has the benefit of letting you switch the drive side of the hub very easily.


IGUS BUSHING DRIVER

The hub uses an IGUS bushing driver; a German made bushing that has far less resistance and more durability than most bushings. The bushing driver eliminates the need for bearings, allowing us to use a larger diameter 17mm axle all the way through the driver, a part where most hubs go down to a smaller diameter to accommodate the bearing. This makes the hub incredibly strong, and perfect for use with pegs.


REVOLUTIONARY DESIGN

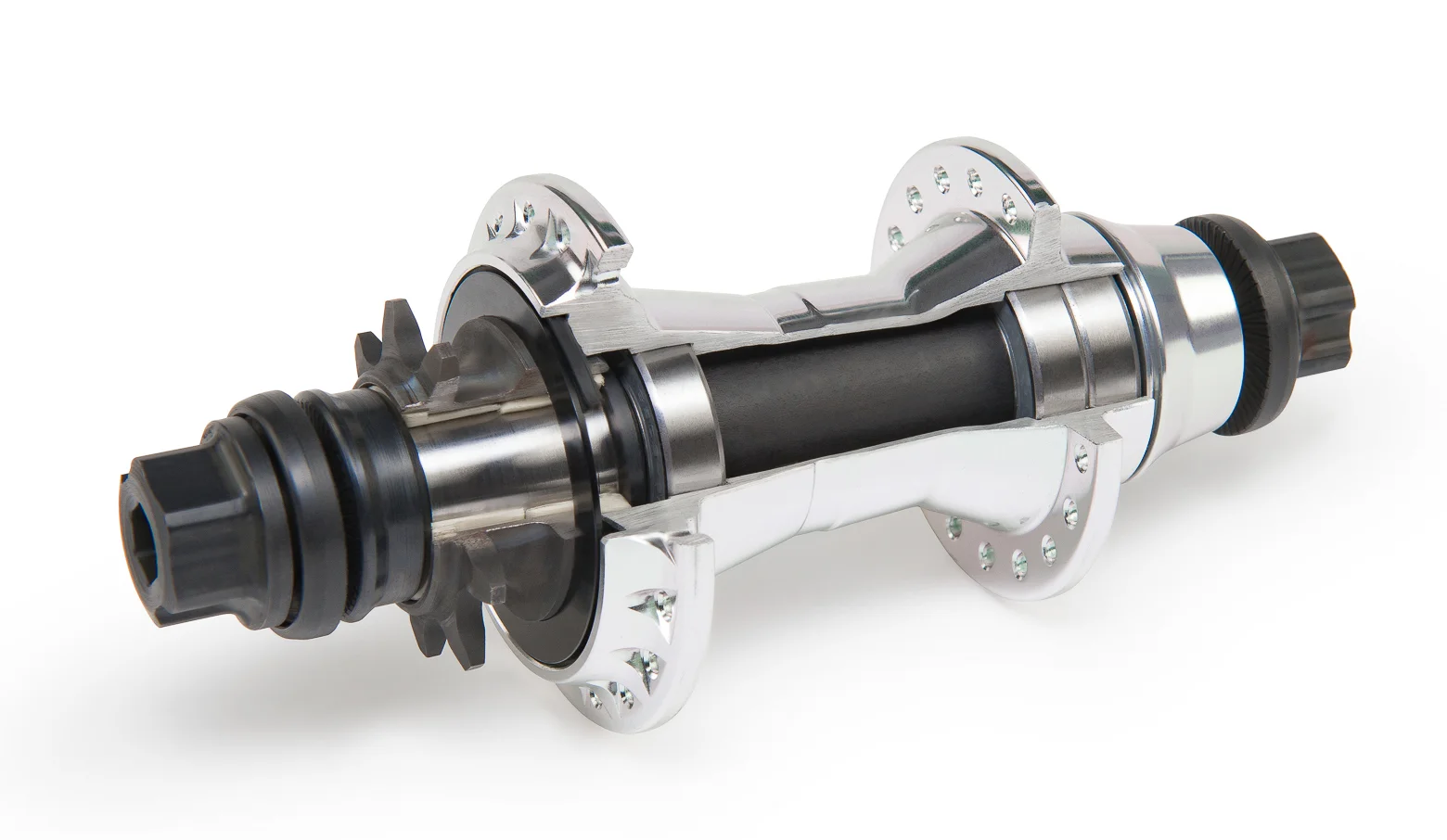

Another unique feature on the Supreme Cassette hub is the extra hub bearing on the non-drive side, this technology is used in downhill mountain biking, and allows the hub to roll much smoother, for much longer, despite big impacts and long-term stress.

The Supreme hub uses a very unique axle setup. We use a 12mm bolt instead of a 14mm bolt that other brands are using. We found that by using a 14mm female bolt, although the axle is bigger in diameter (17mm) it has to be much thinner to accept the larger 14mm bolt. This often causes the axle to break and snap. By using a 12mm bolt, the 17mm axle gains an extra 2mm of thickness and becomes near unbreakable. Because of this we need a special 12mm female bolt with a 14mm head to sit in the dropouts.

The hub comes with 2 kinds of bolts, one set for pegless use, and one set for peg use, where the 14mm step is larger to accept plastic pegs.
