ARCADE



ARCADE COMPLETE BIKE

Totally re-deisgned for 2019, this year's Arcade now features full sealed bearings throughout and an injection of brand new hardware. This dialled machine now rolls on SALT's super wide 36mm Valon rims and sealed EX hubs with SALTPLUS Burn tires, making for an incredibly durable and dependable wheelset and tire combo.

 Available in both a 20.5” and a longer 21” option, the Arcade allows larger or senior riders the ability to ride one of the most popular bikes in our line. On top of this you’ll find some truly bombproof components including the SALT Zion topload stem and ECLAT Talon brake and Slash pedals. Between the motorcycle inspired Matt Black / Silver version, and the gorgeous Translucent Green colourway, you’ll be left debating which one you want to take riding the most.


GALLERY

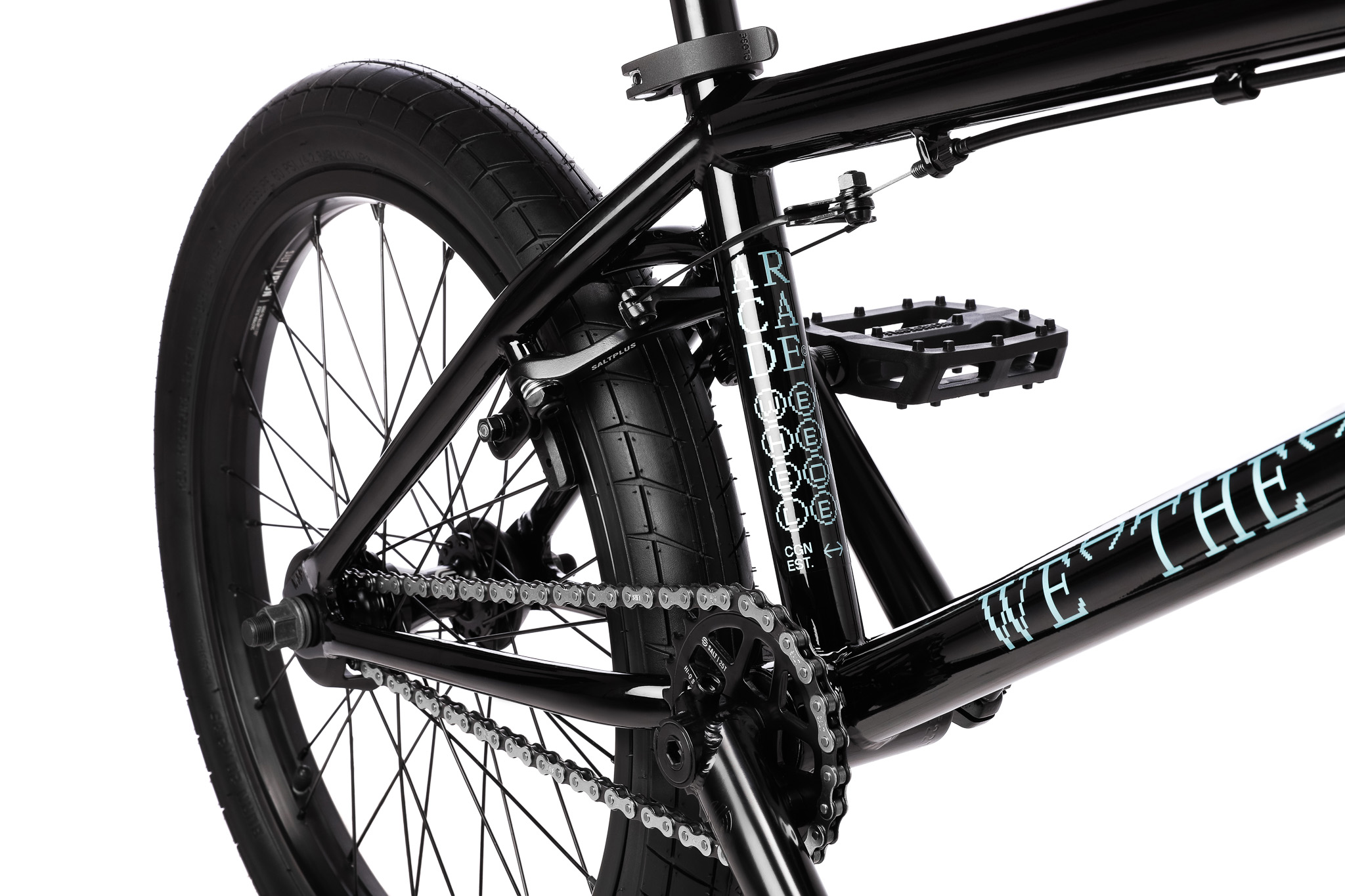

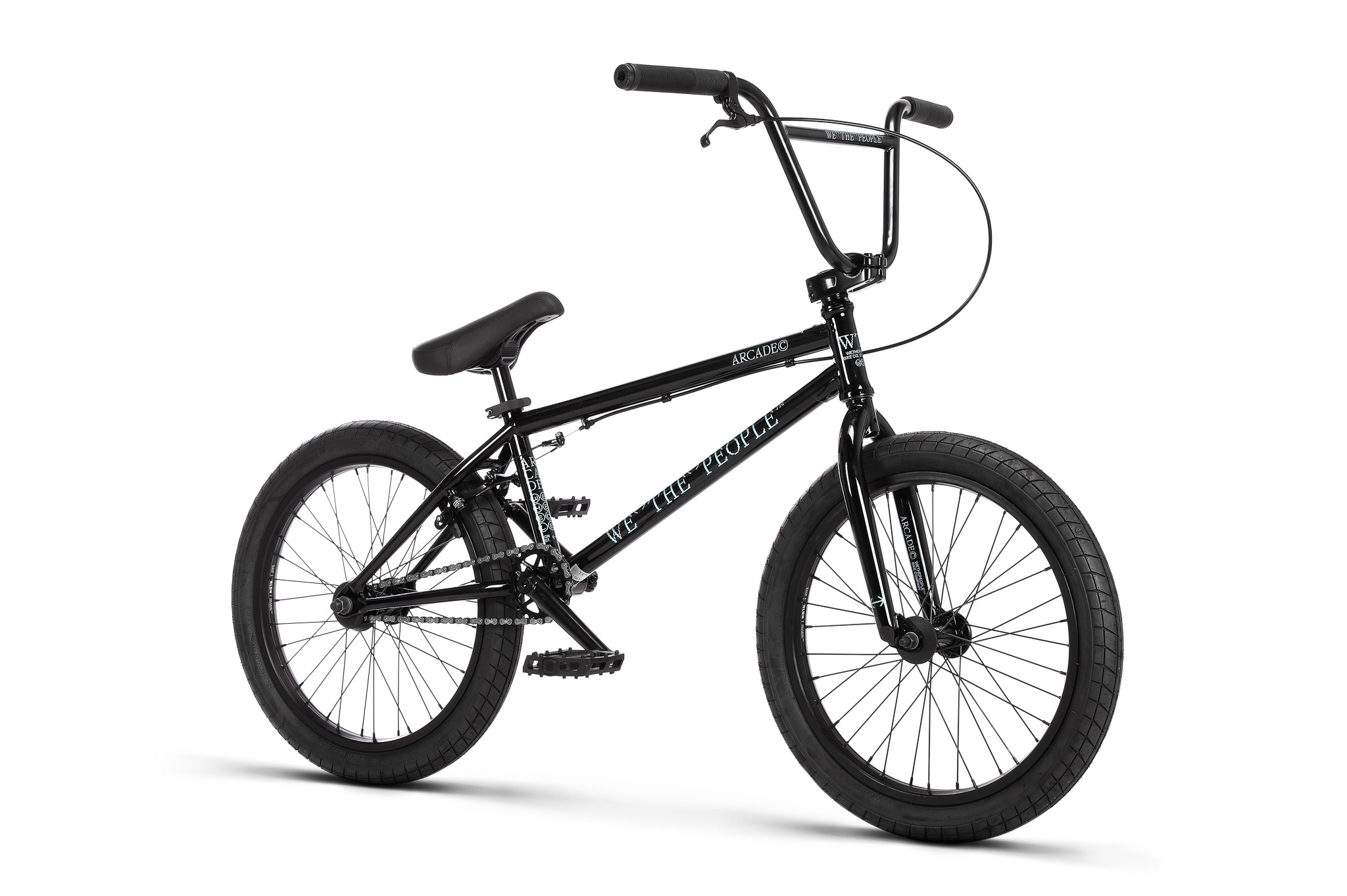

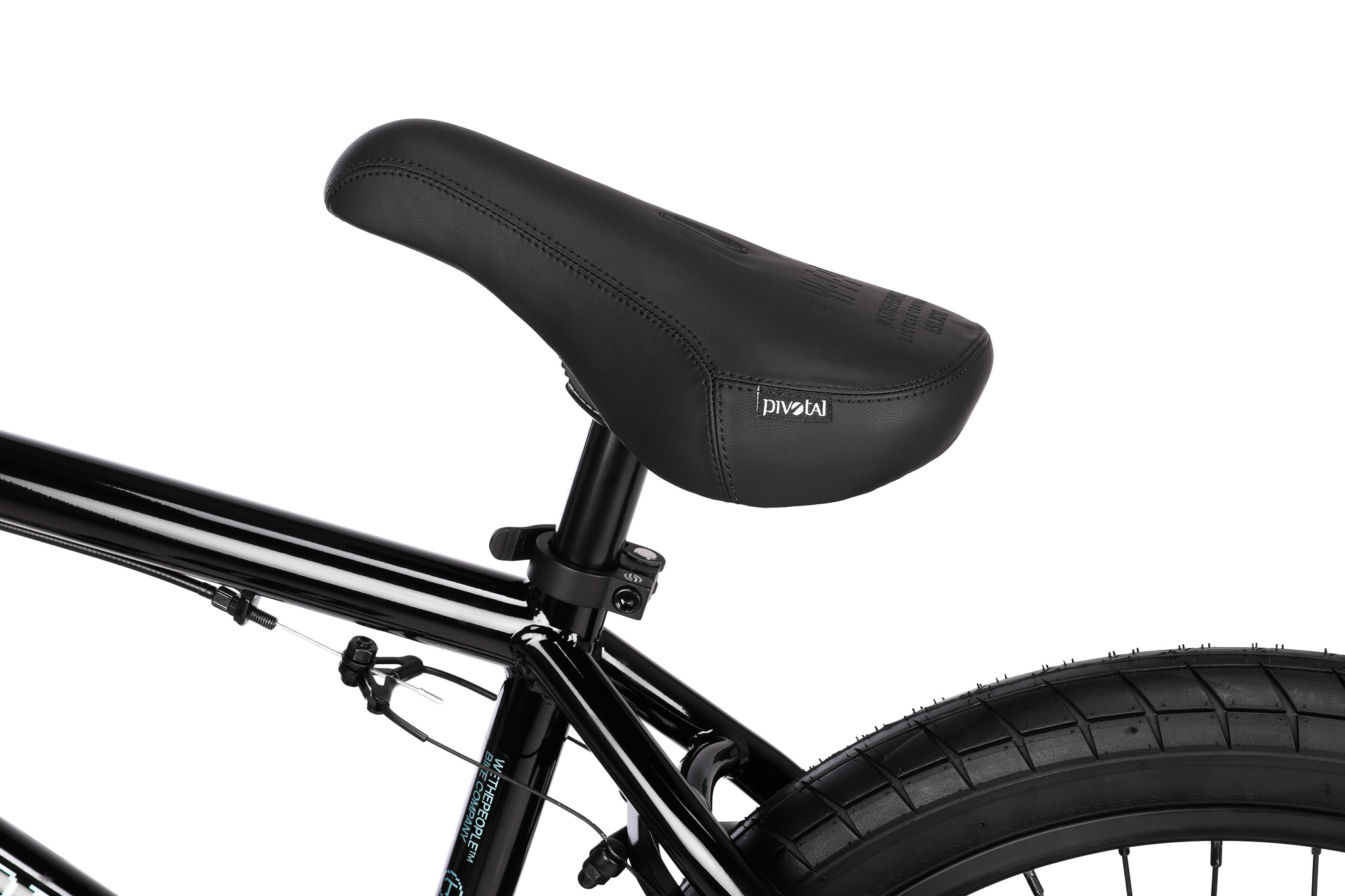

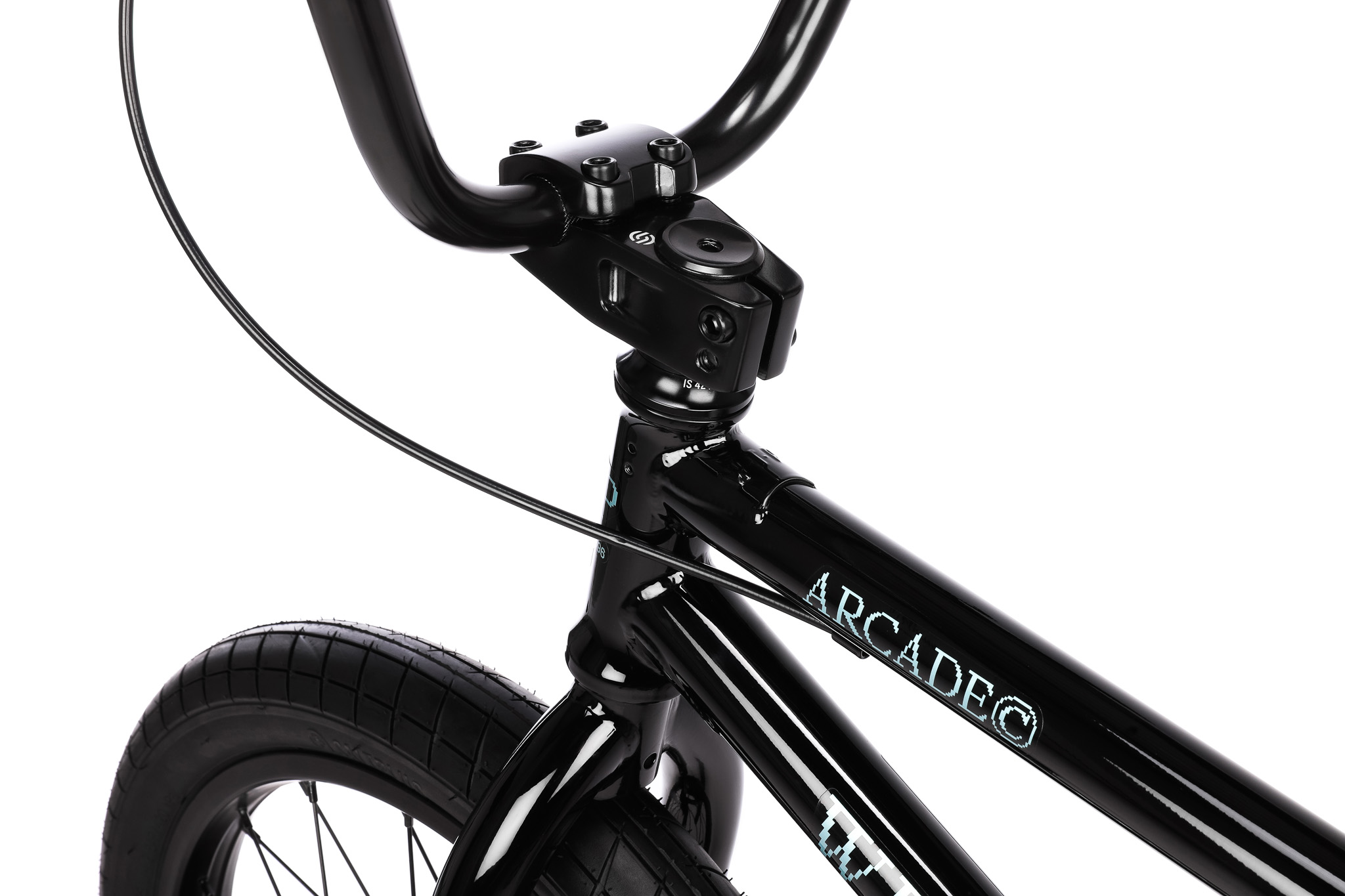

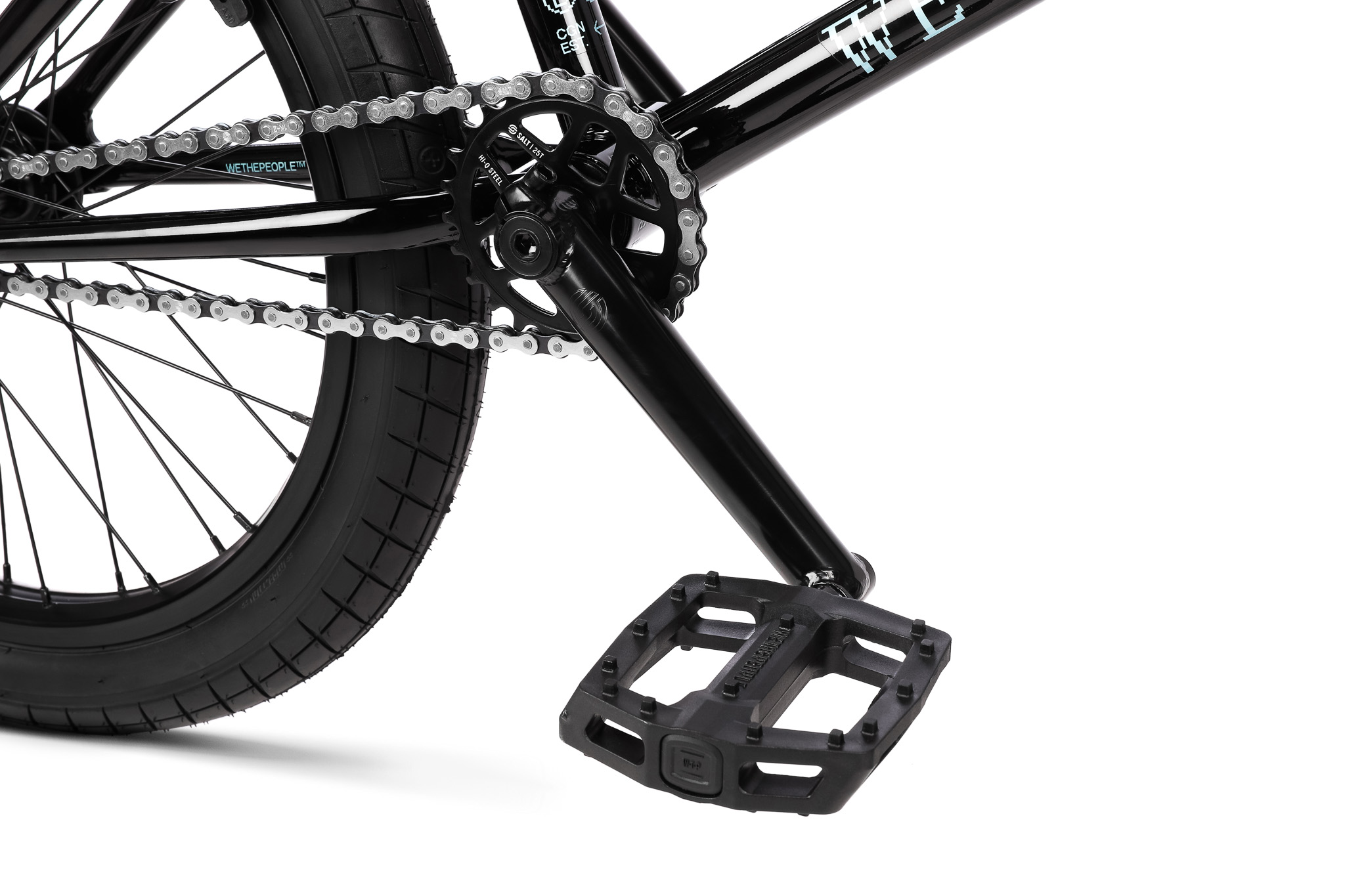

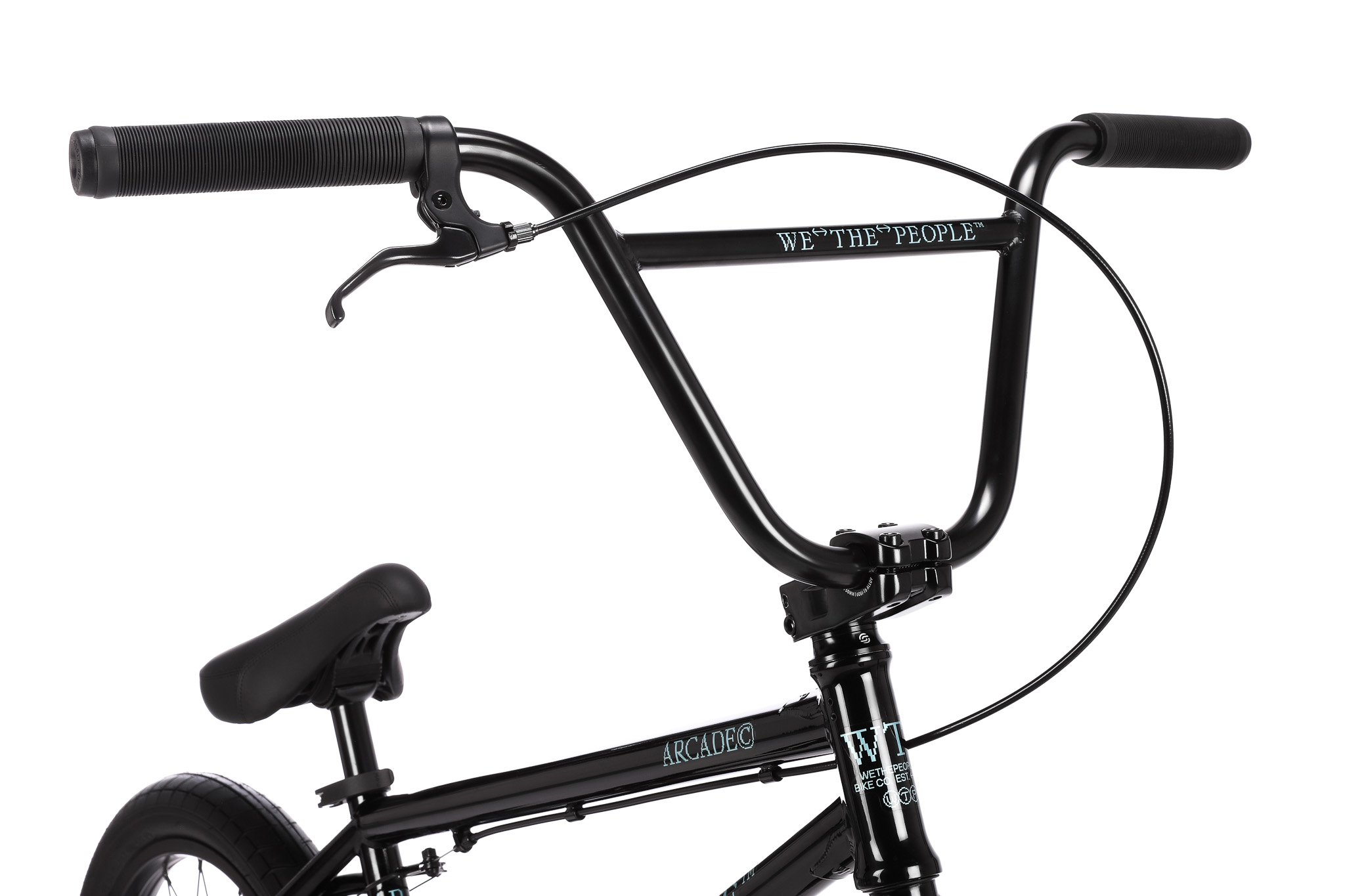

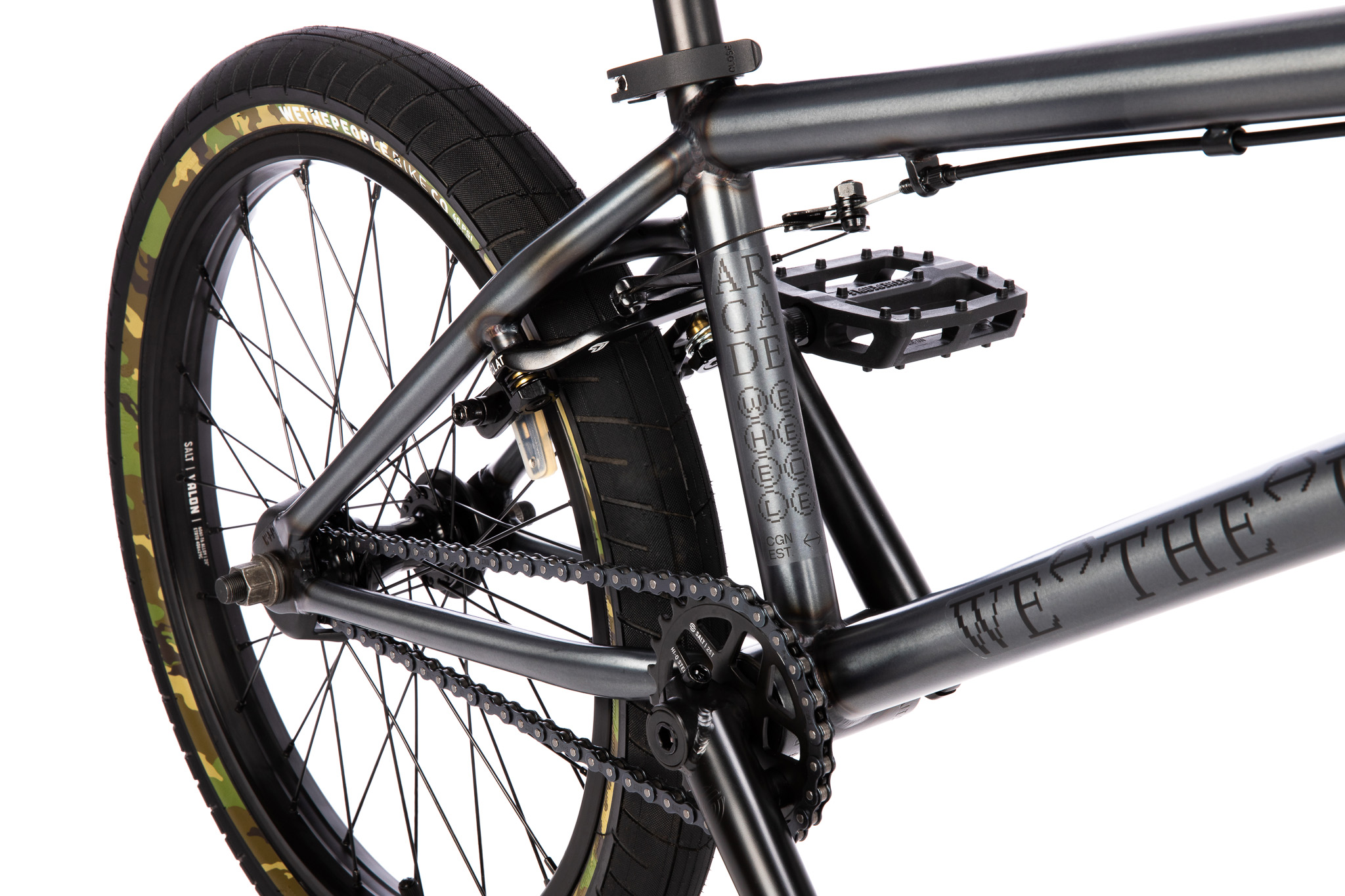

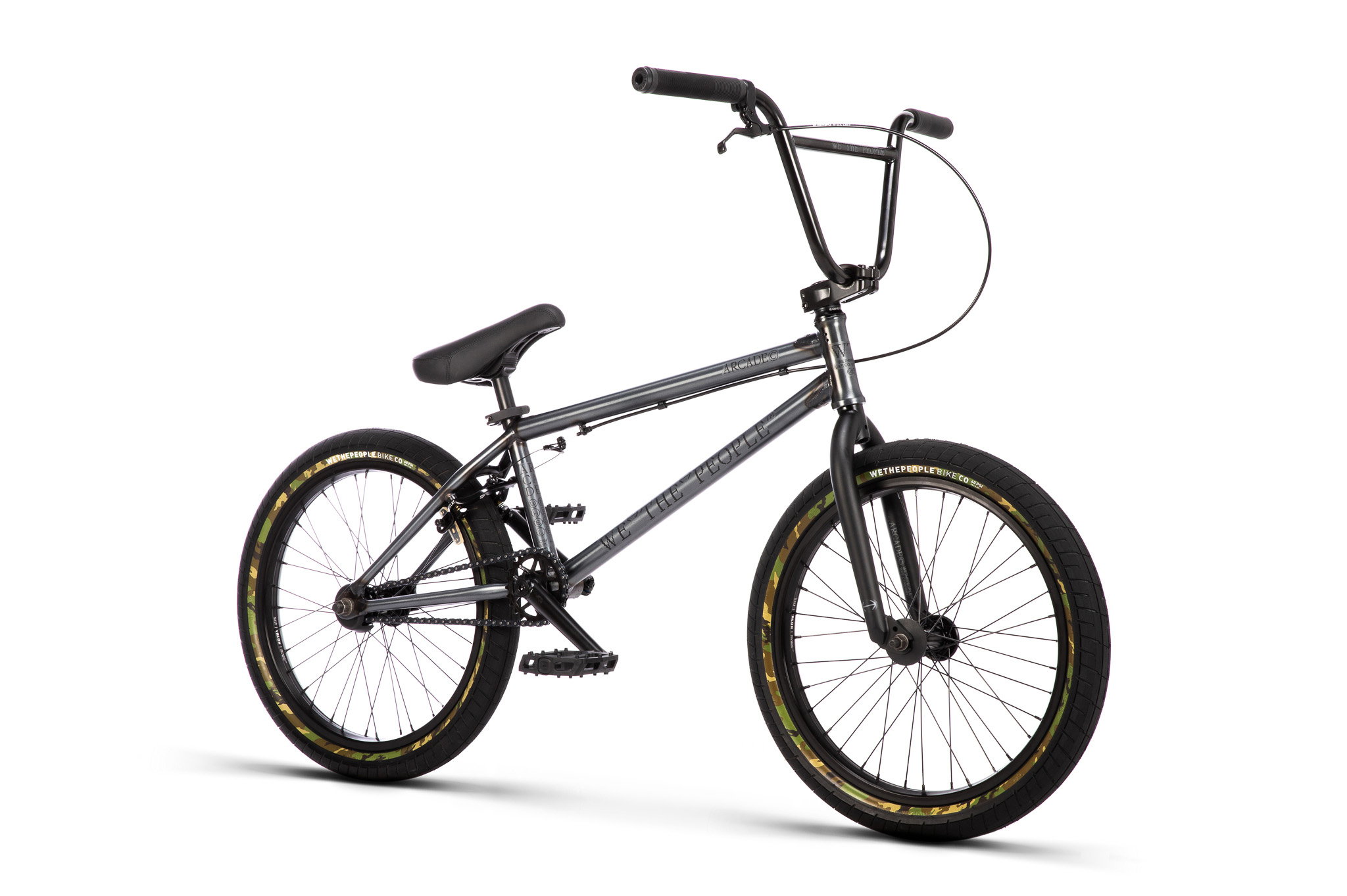

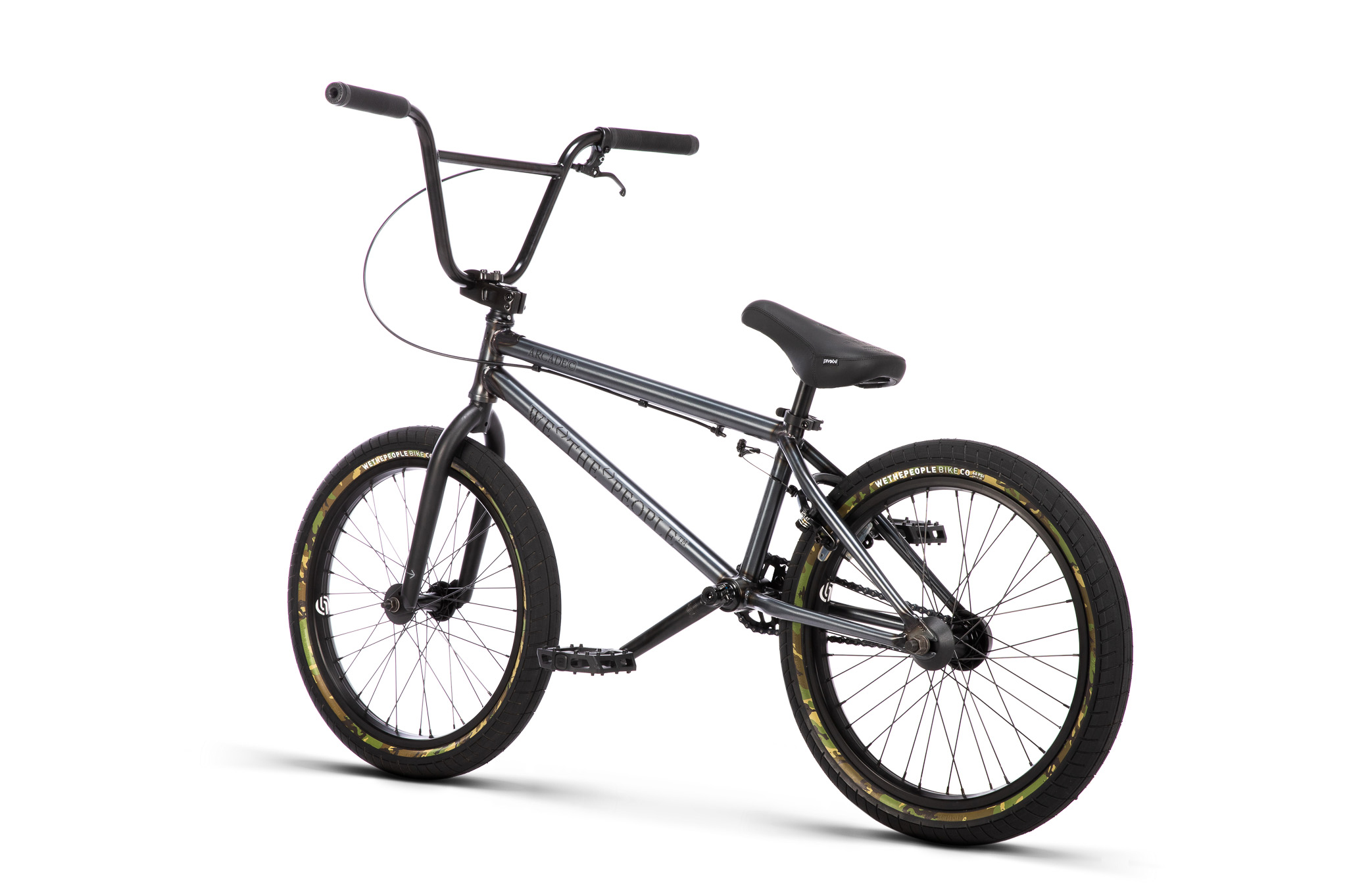

COLORWAY: MATT BLACK

CLICK IMAGE FOR FULL SIZE GALLERY

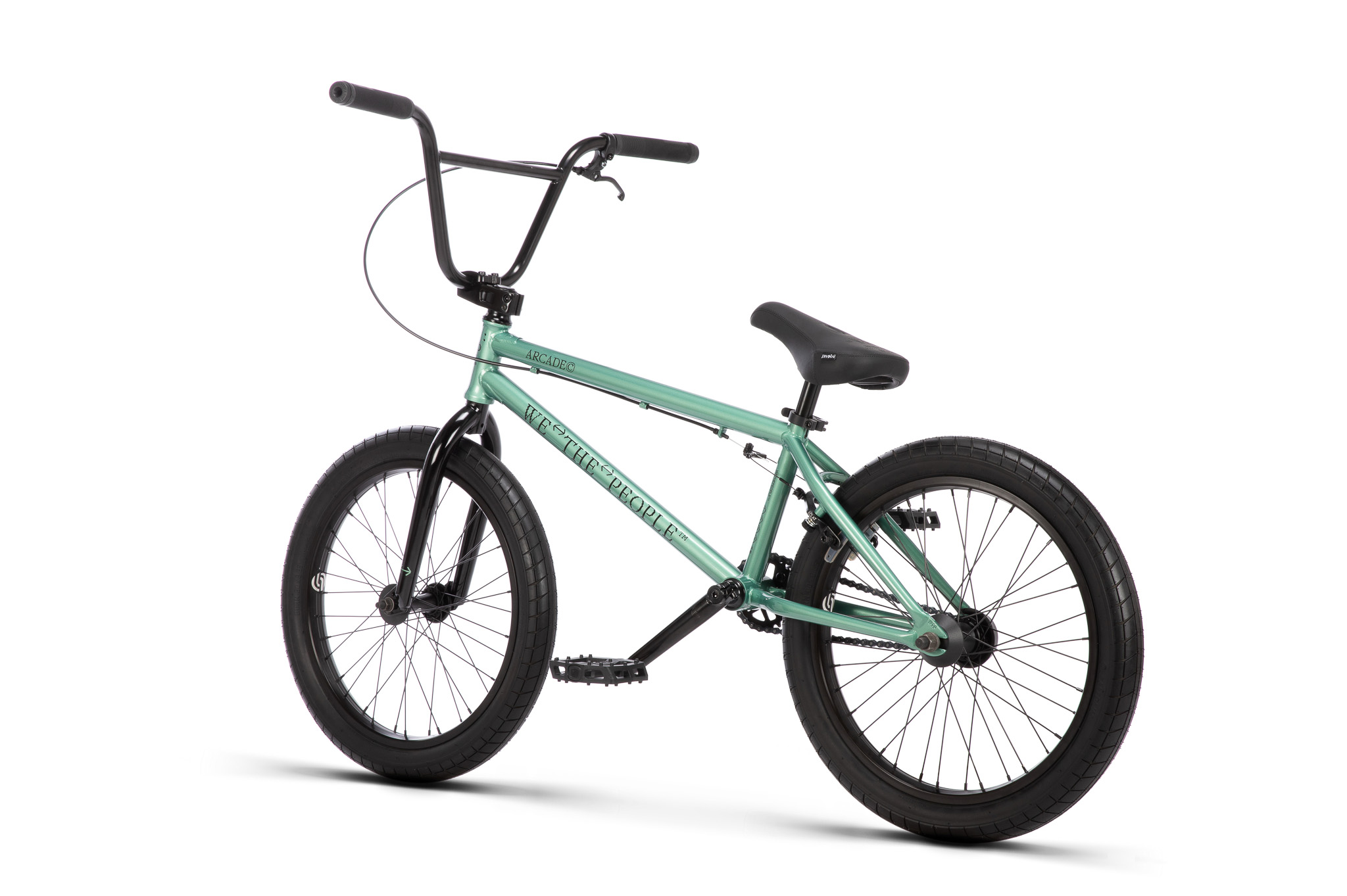

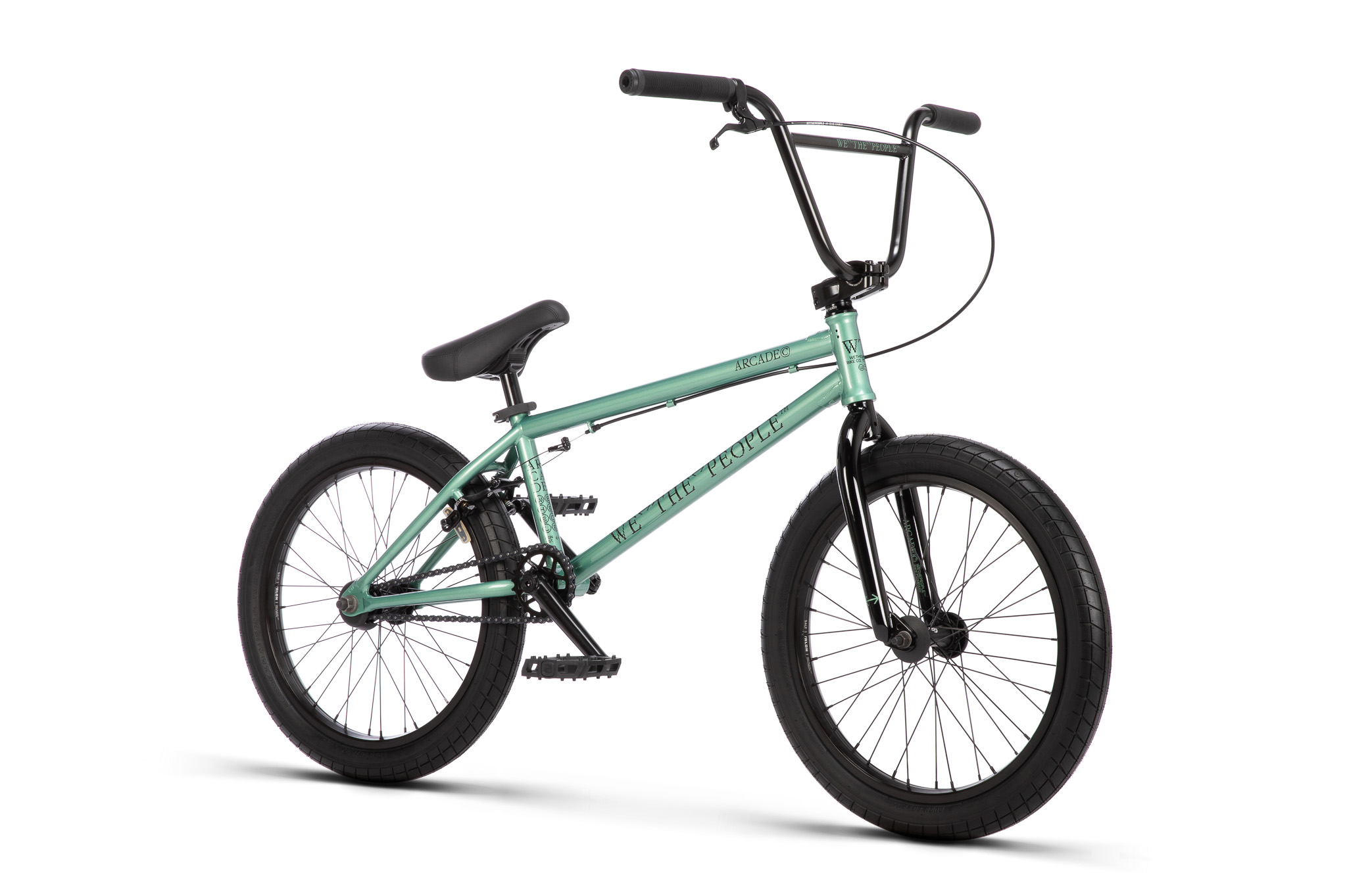

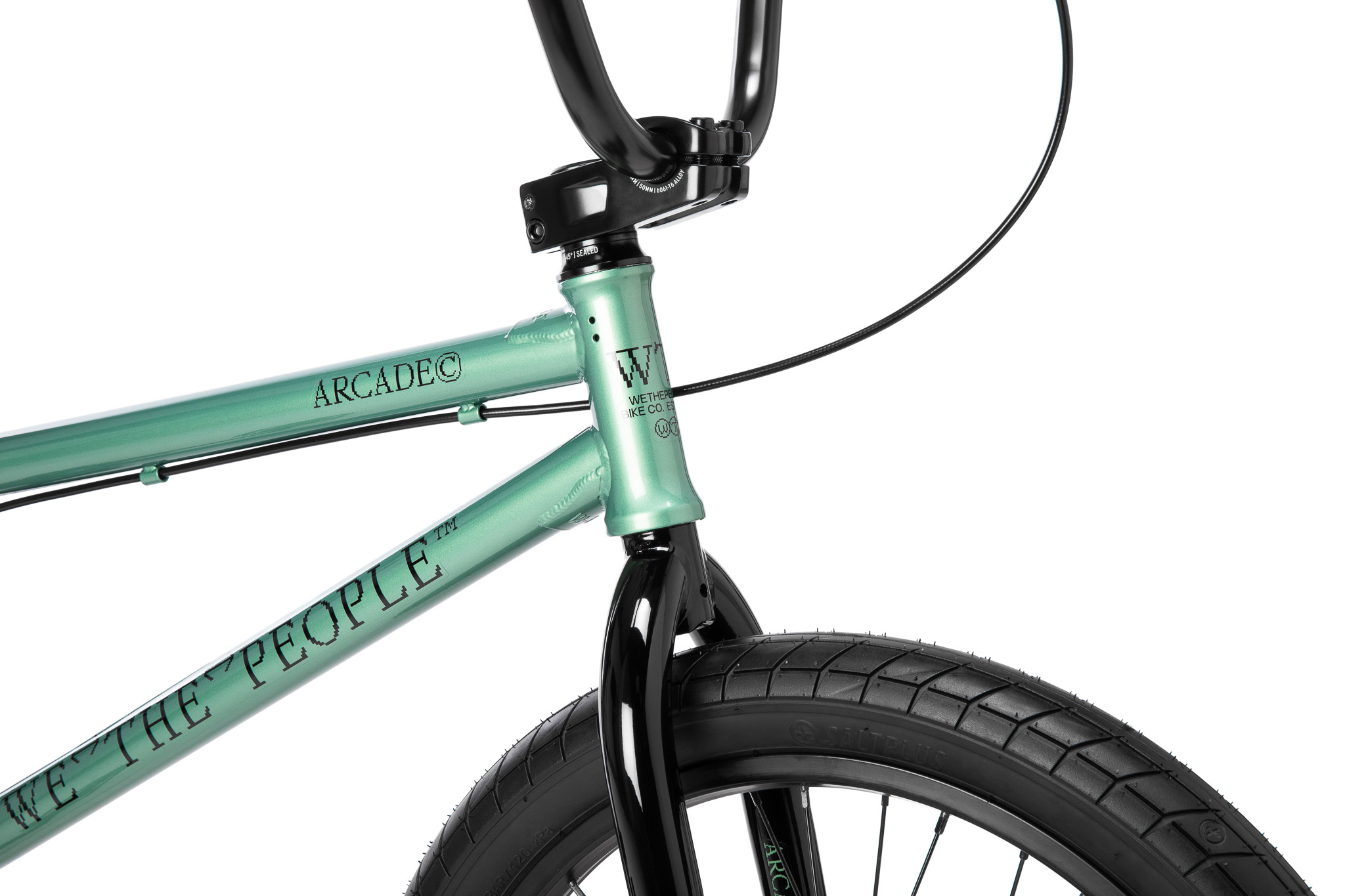

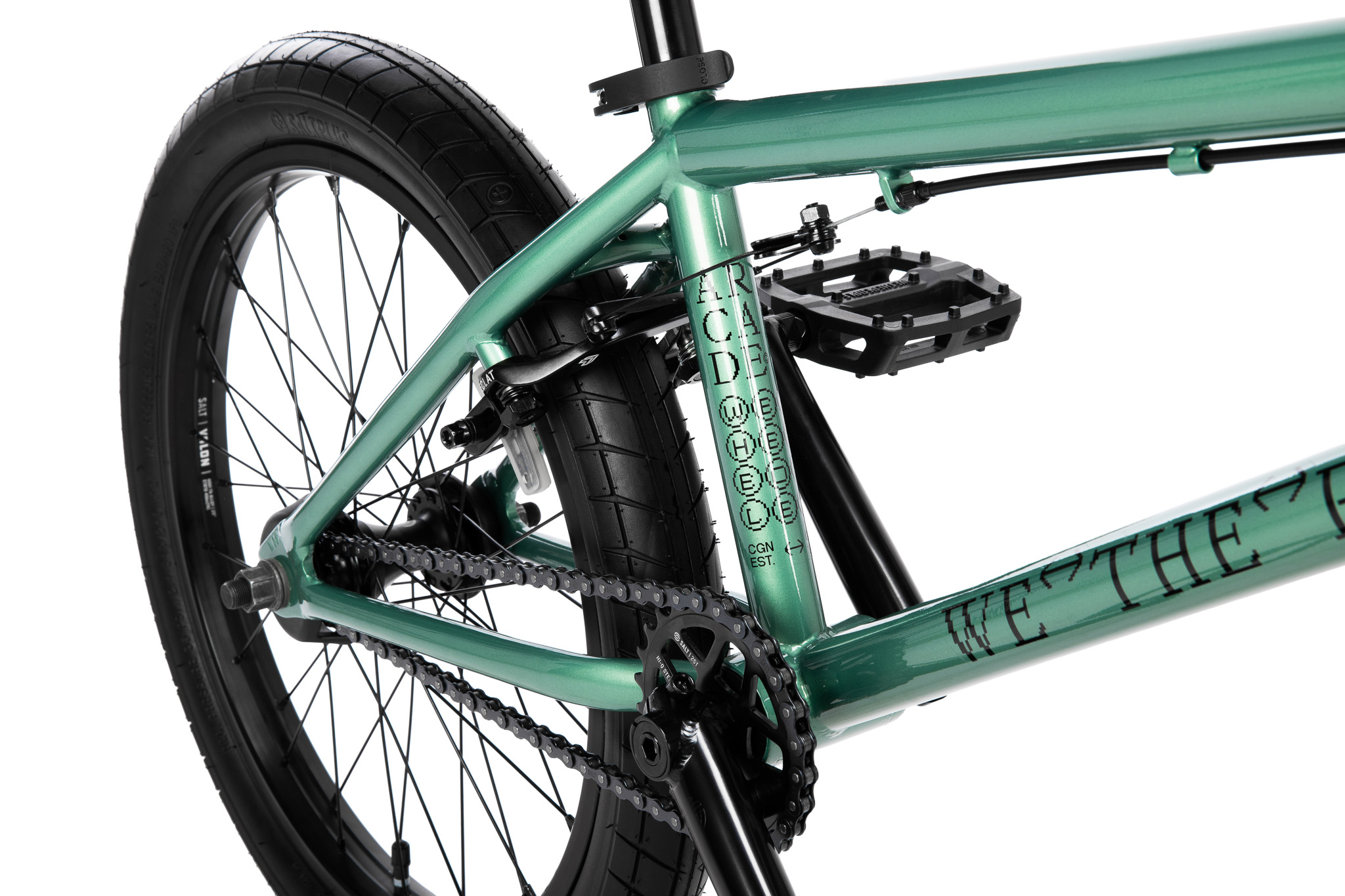

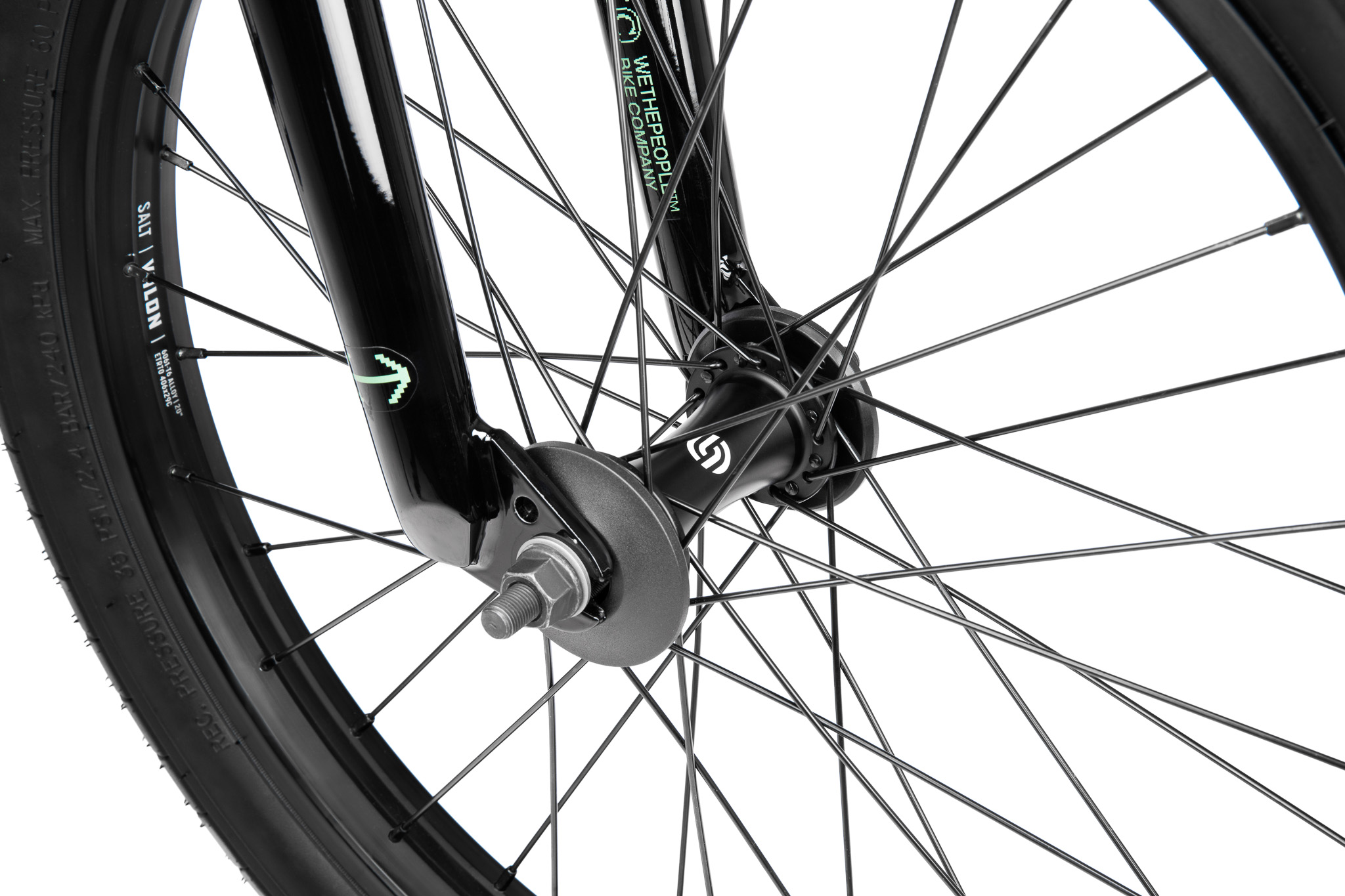

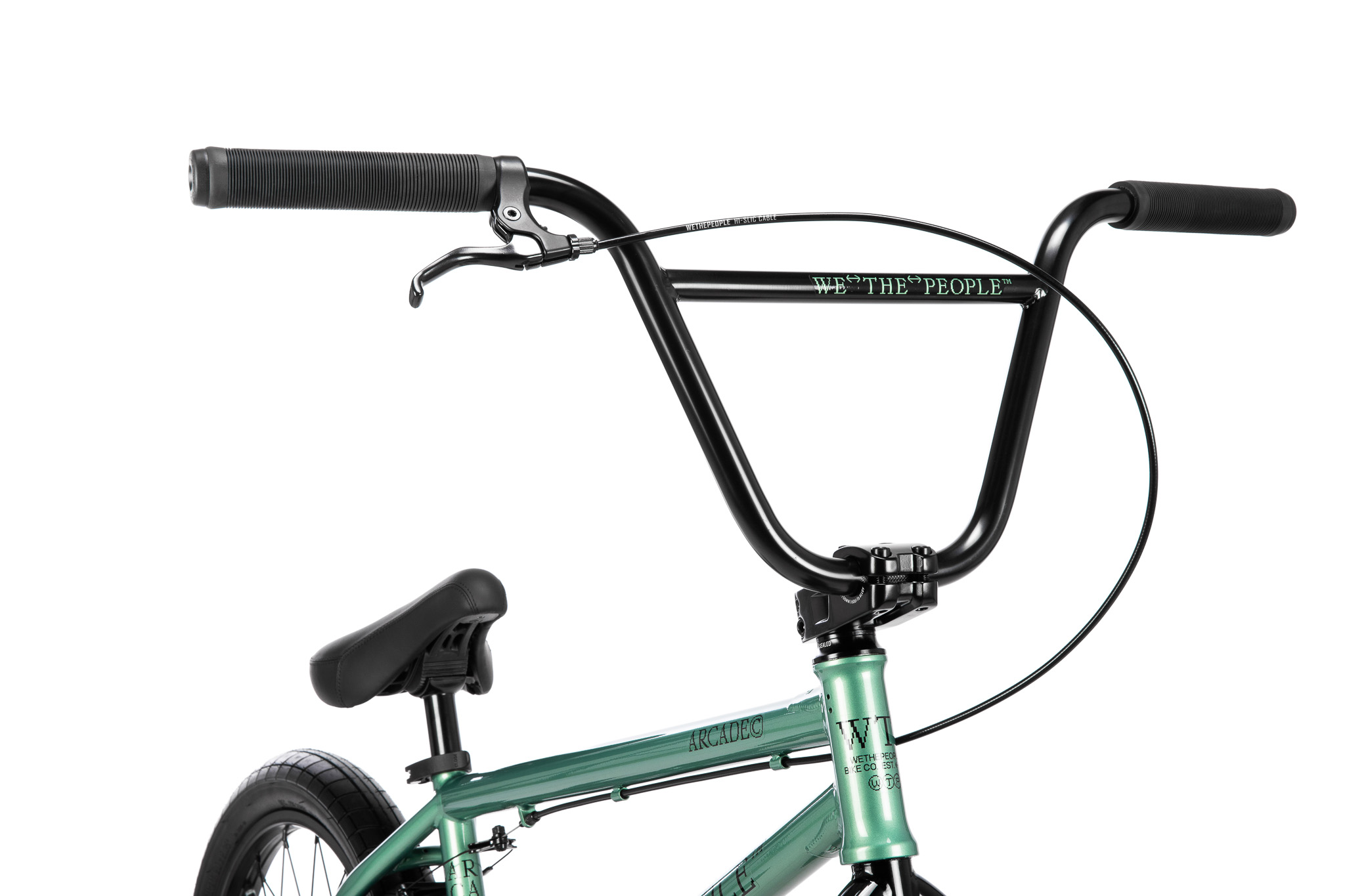

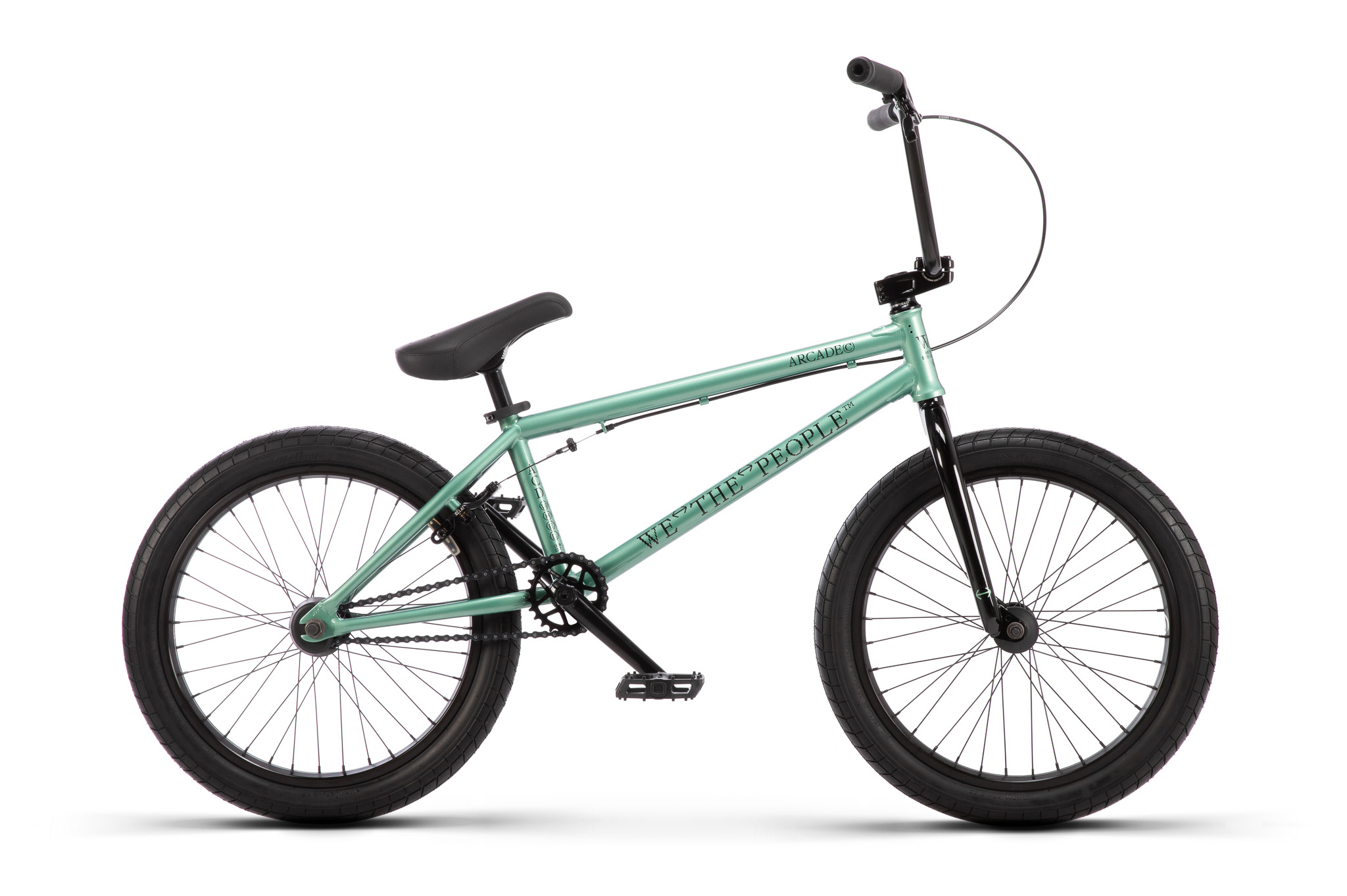

COLORWAY: TRANSLUCENT GREEN

CLICK IMAGE FOR FULL SIZE GALLERY


SPECIFICATIONS

Frame: 4130 crmo down tube, 1020 hi-ten

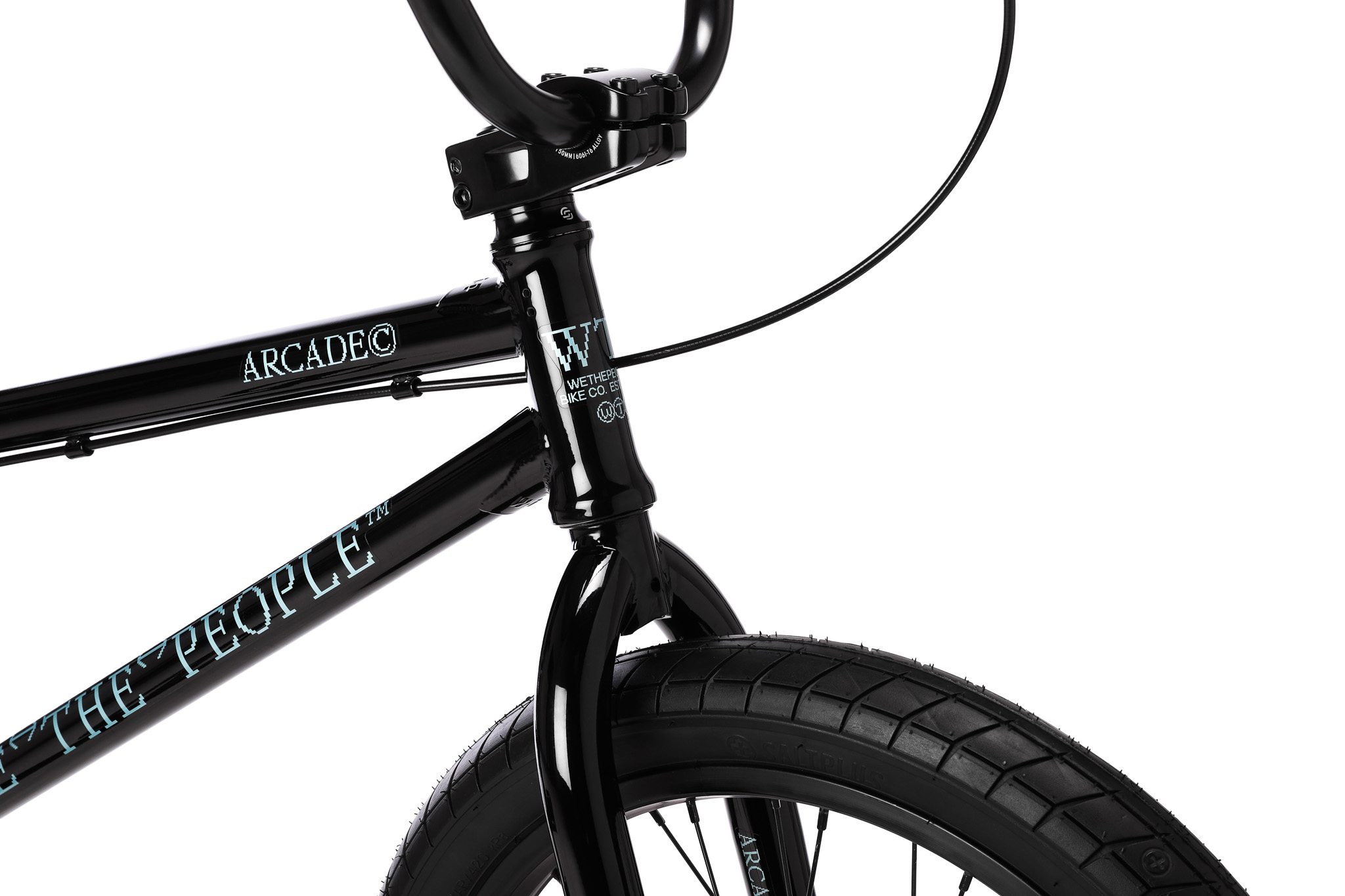

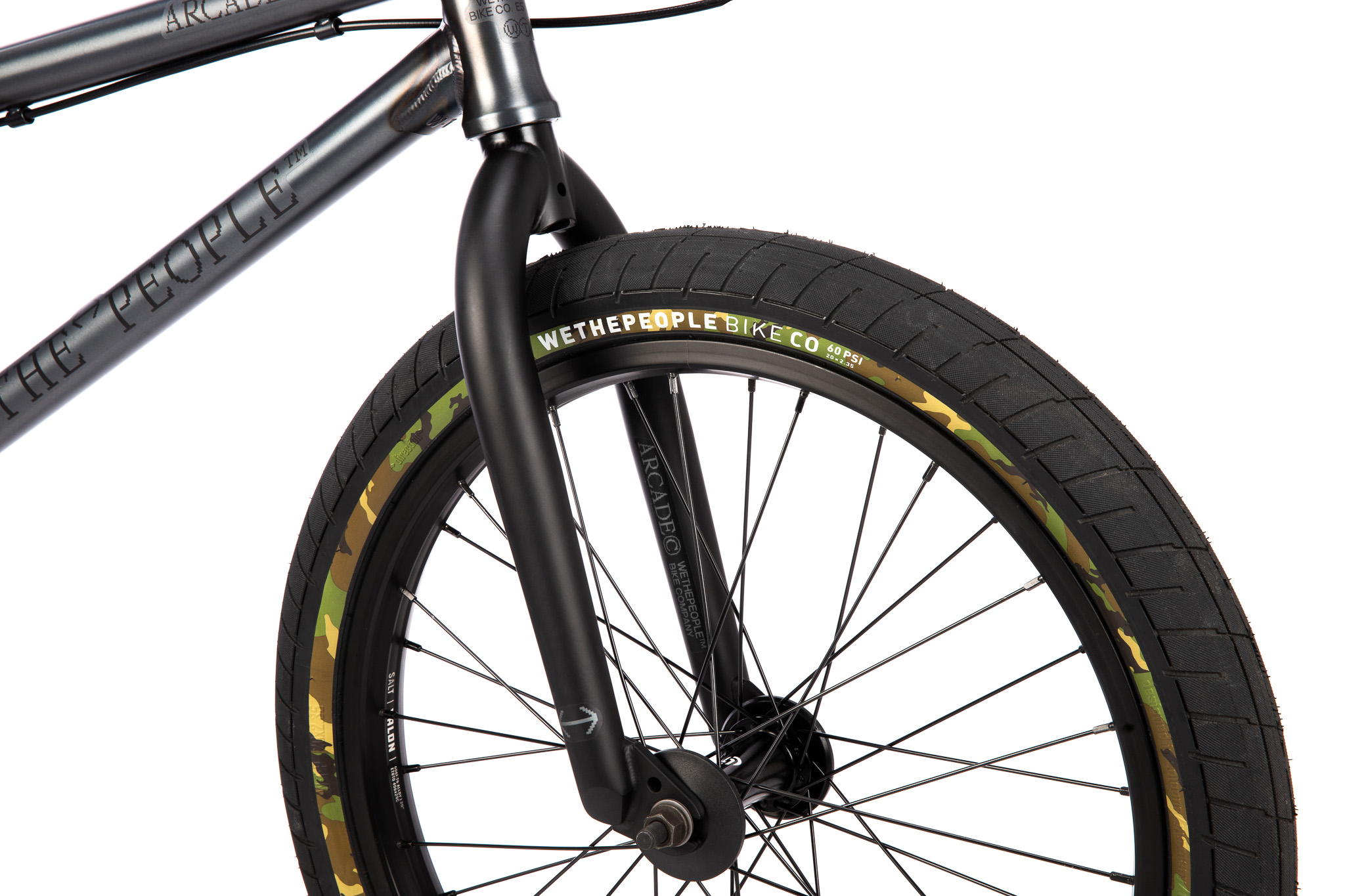

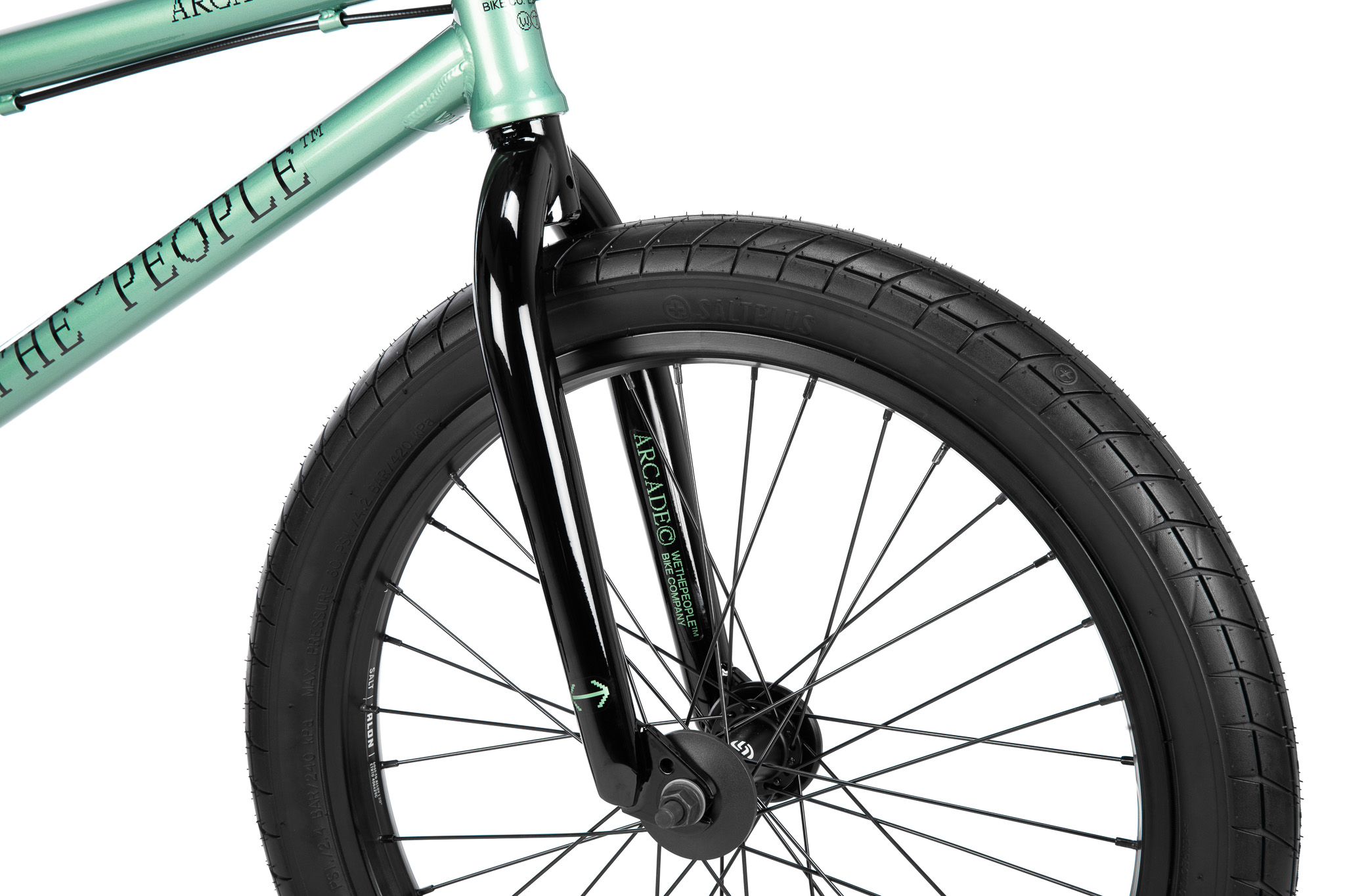

Fork: SALT “AM 20” fork, 1020 hi-ten , 4130 crmo steerer, 28mm offset

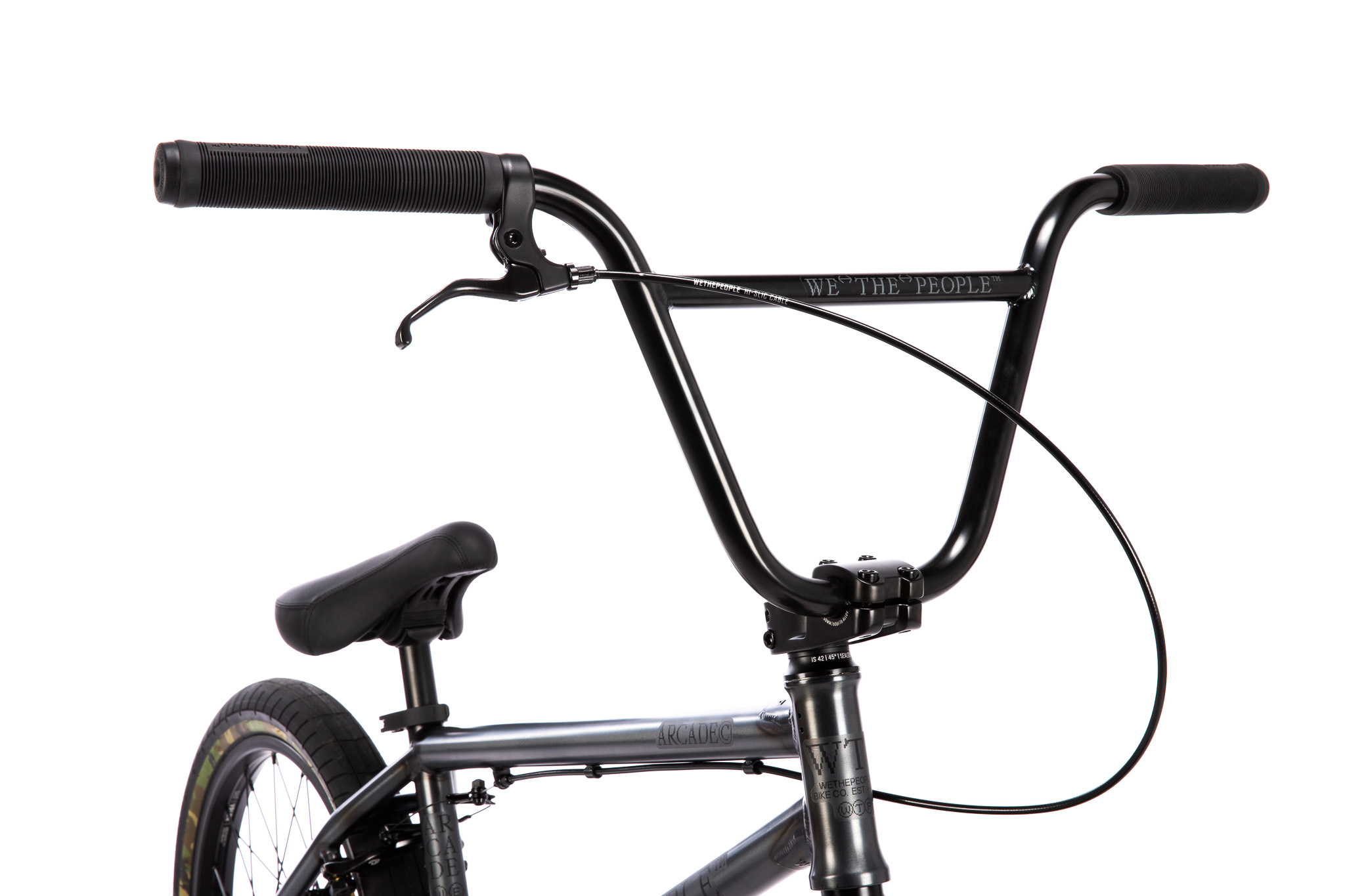

Bars: SALT "Arcade" bar, 1020 hi-ten

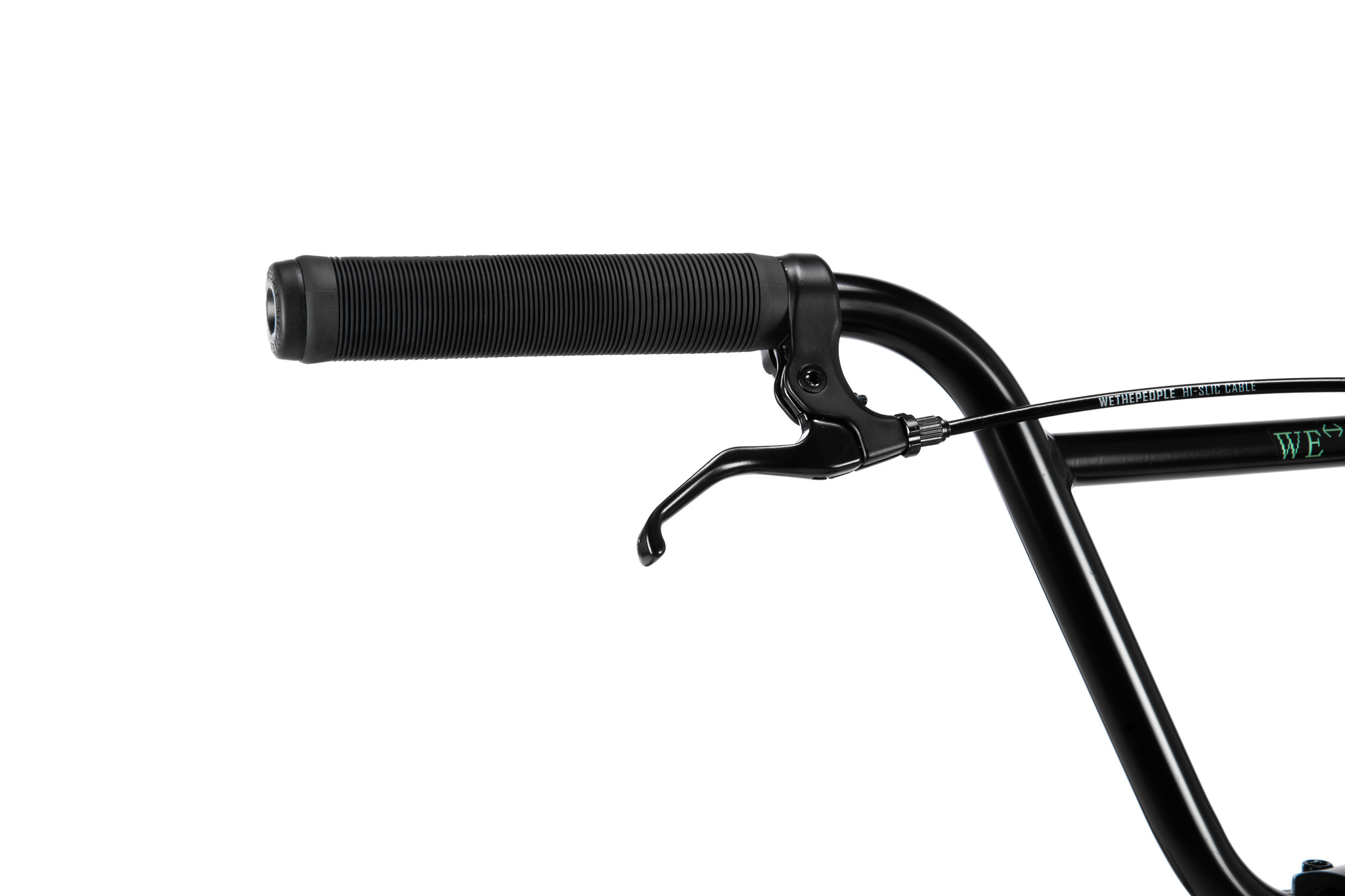

Grips: SALT “EX” flangeless grips

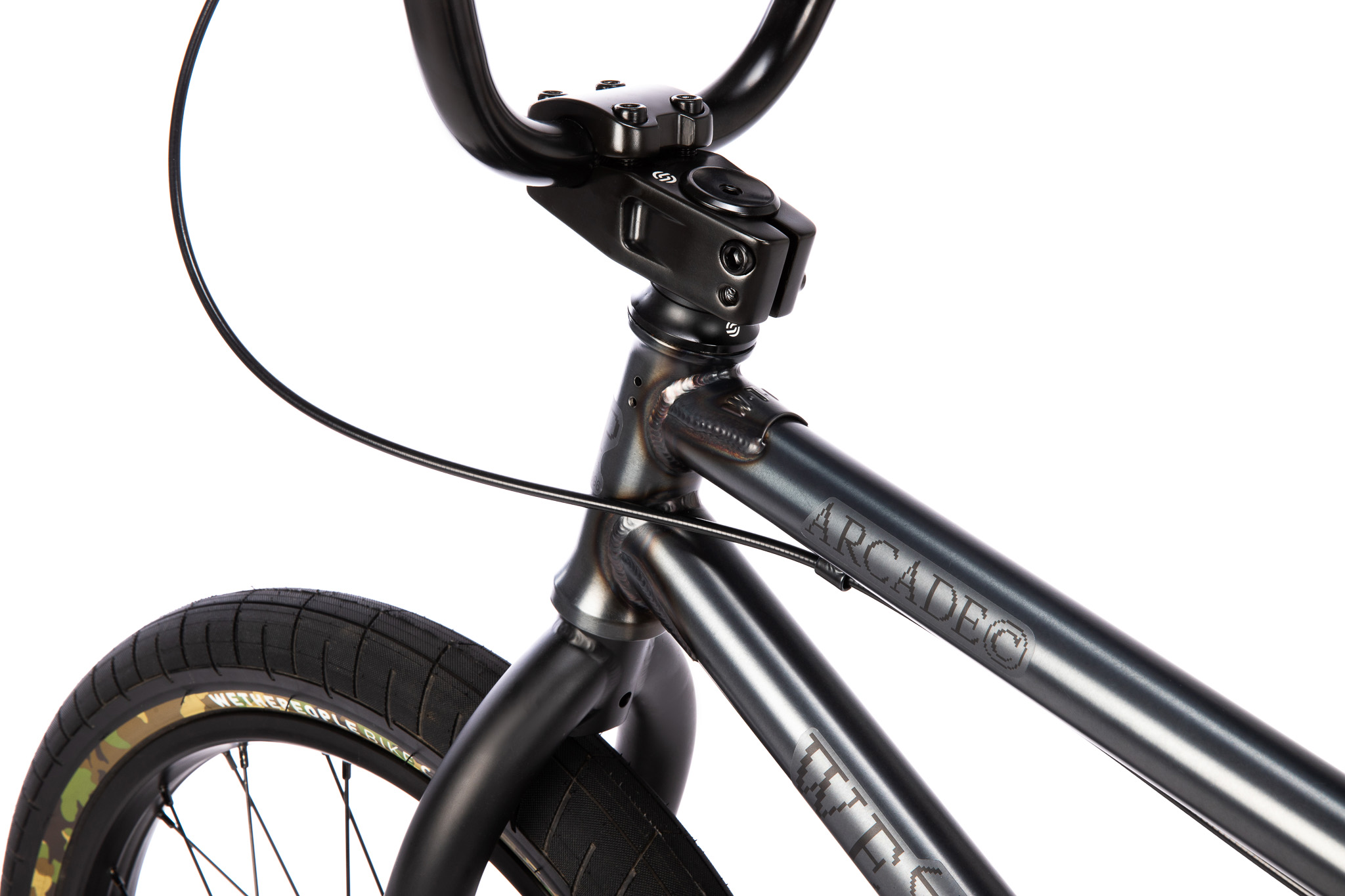

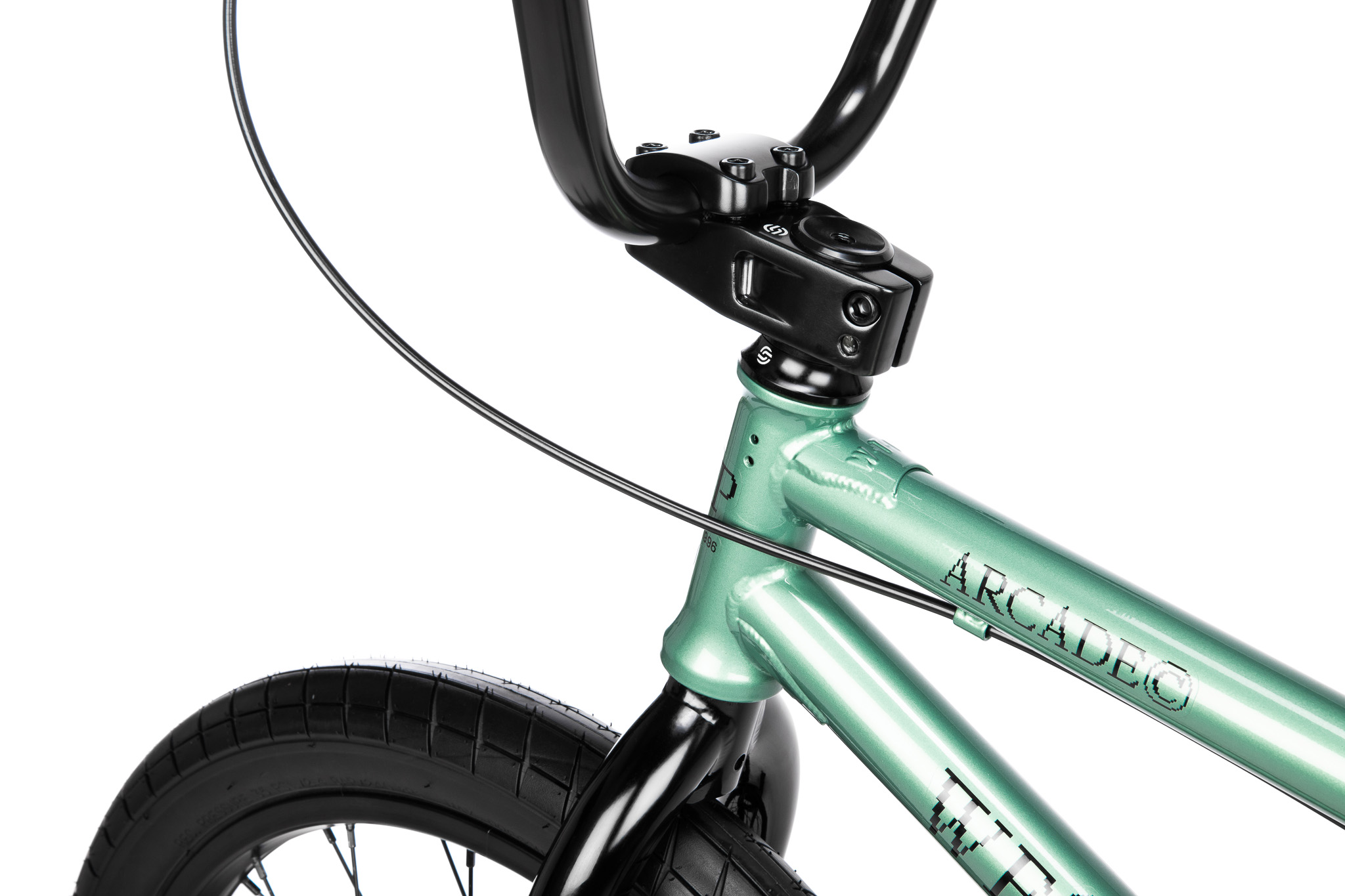

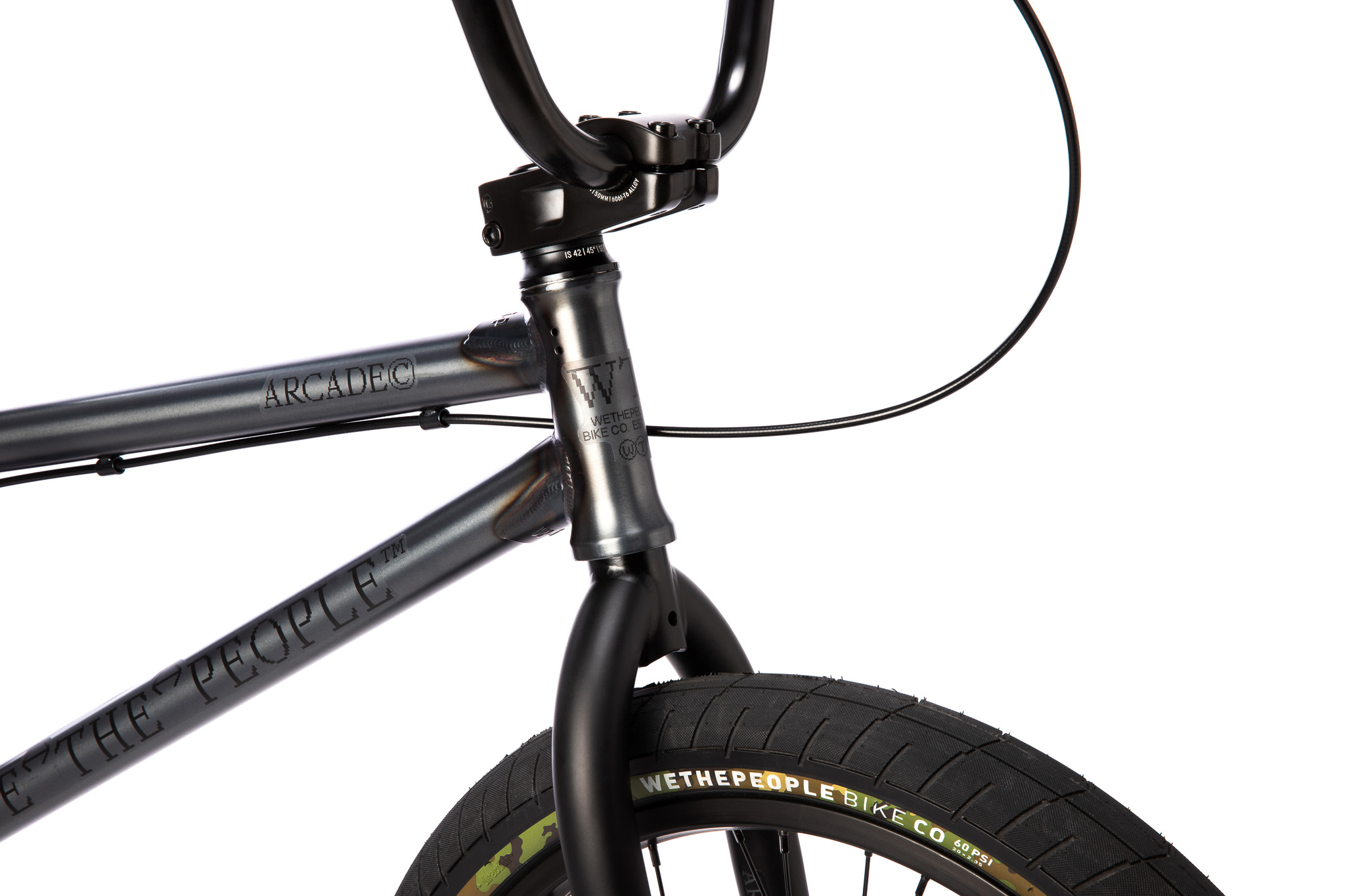

Stem: SALT “ZION” top loading stem, 50mm reach

Headset: SALT “PRO” int. headset, sealed bearing

Gyro: holes for removable gyro tabs

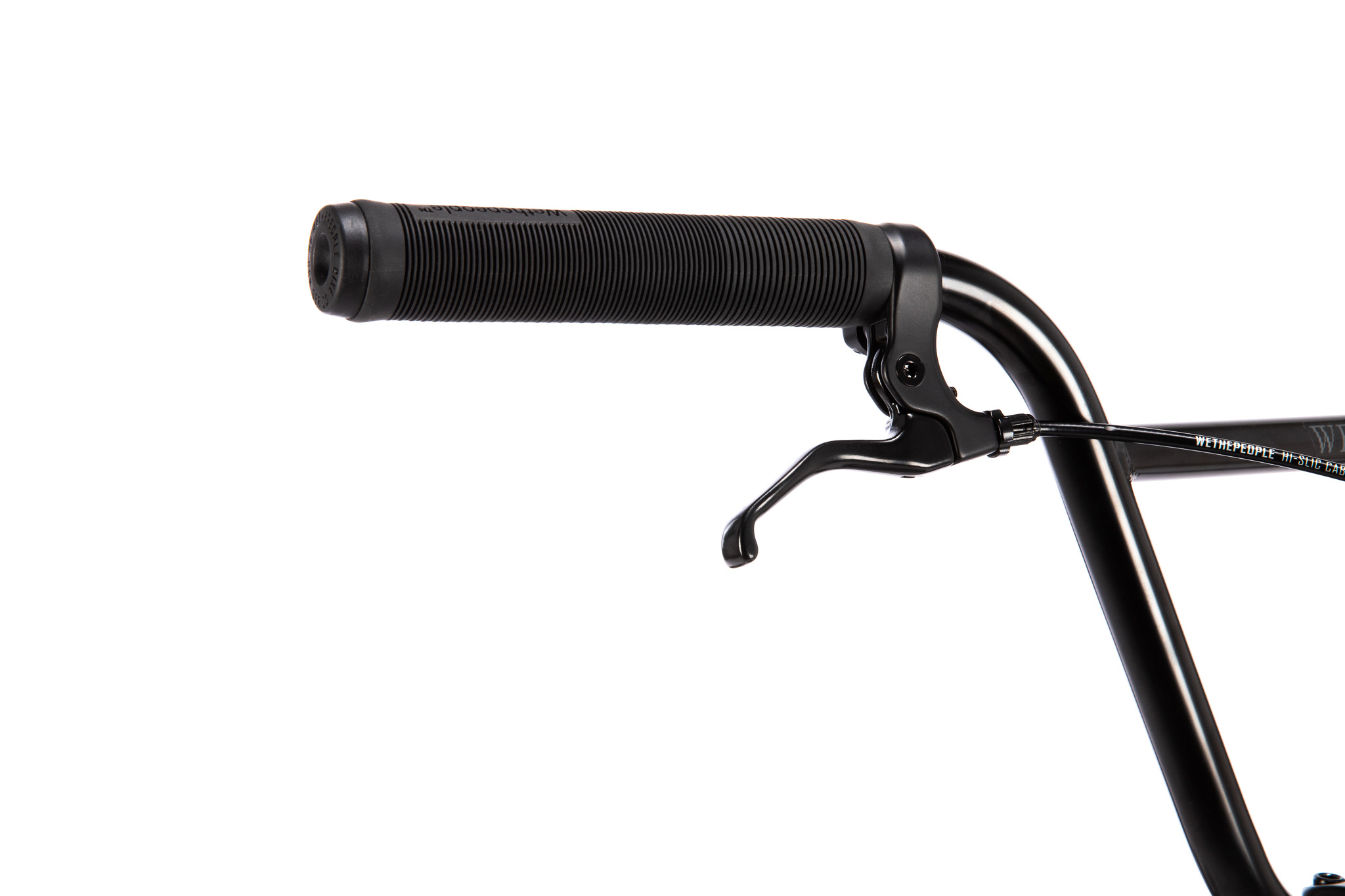

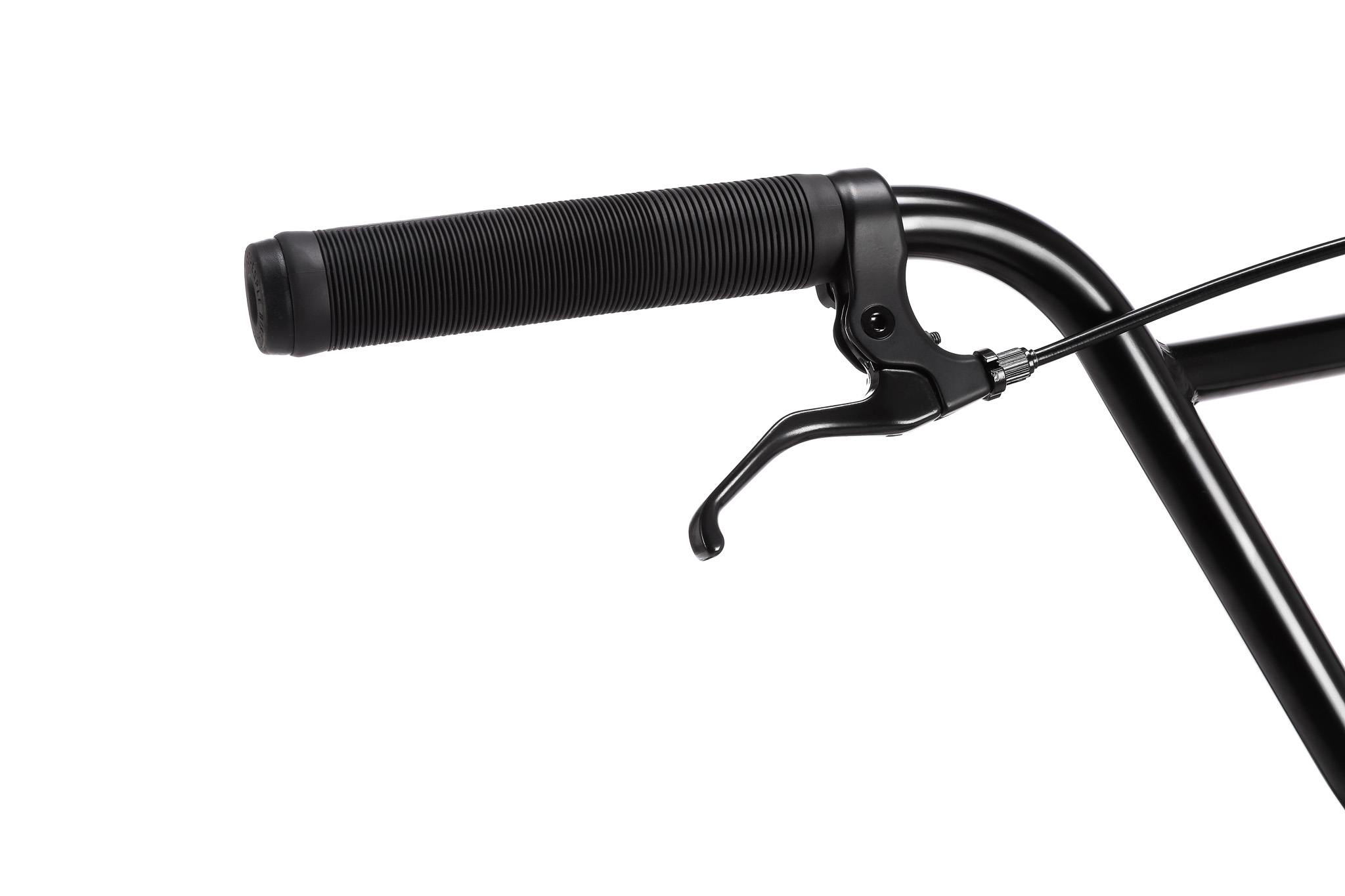

Lever: SALT “AM" alloy brake lever

Brakes: ECLAT “Talon” alloy u-brake rear

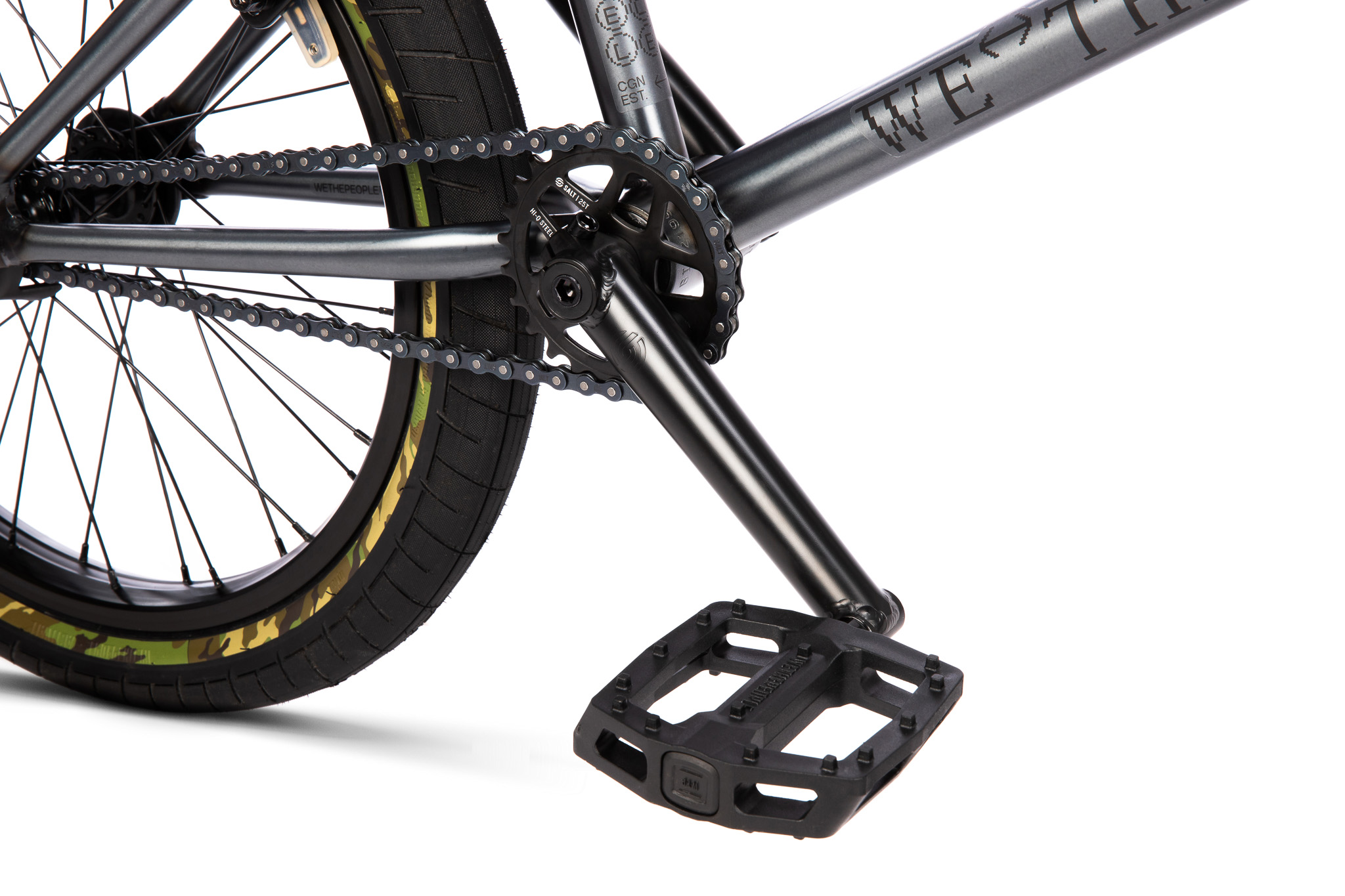

Cranks: SALT “AM” seamless tubular 3pc crank crmo 170mm, 8 Spline

BB: SALT “Mid” 19mm, press fit, sealed bearing

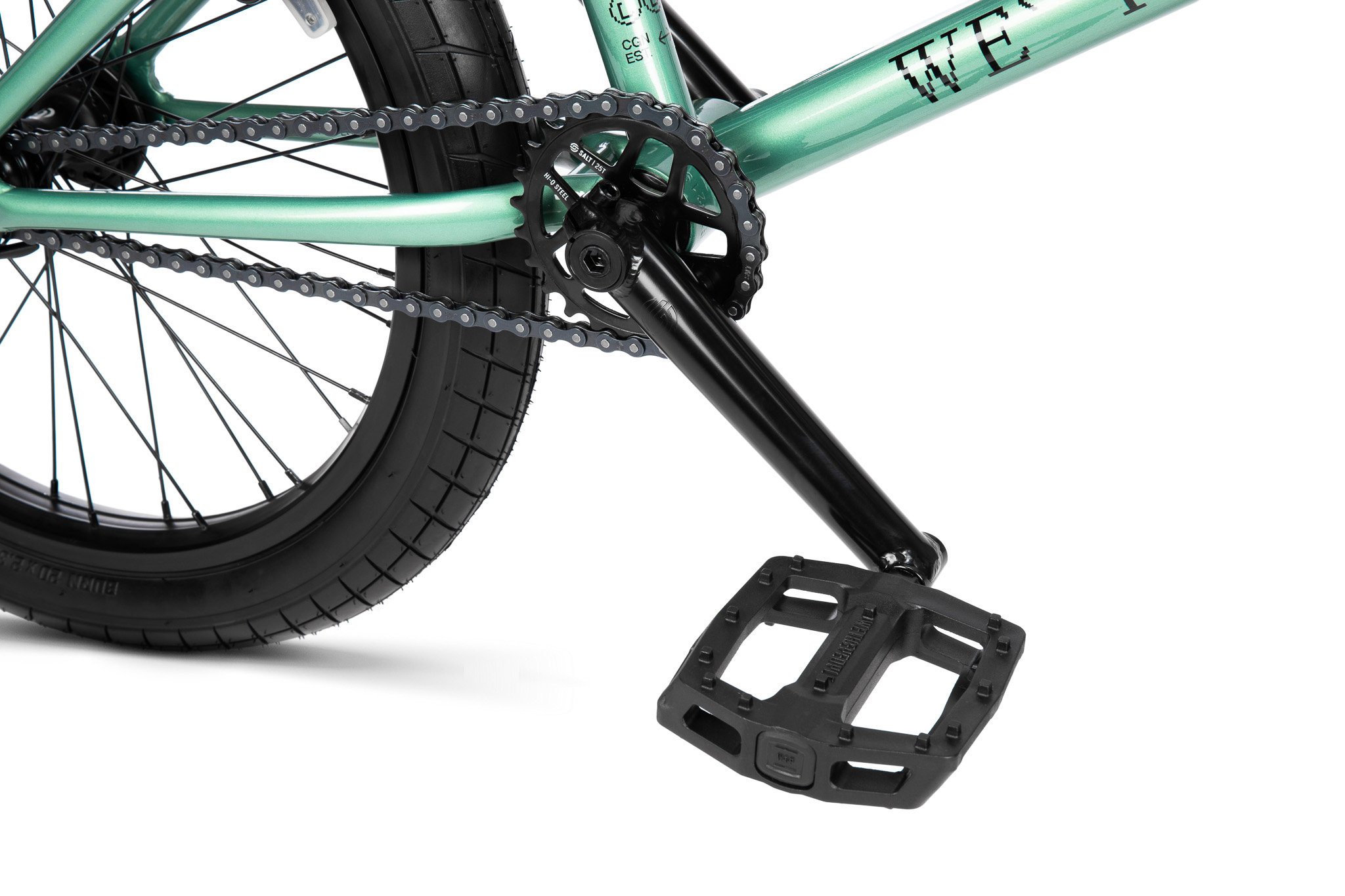

Pedals:  ECLAT “Slash”, nylon/fiberglass pedals

Chain: SALT “AM” chain, 510h type

Sprocket SALT “Comp” steel 25t sprocket

Driver: 9t, 1pc cassette driver, sealed bearing

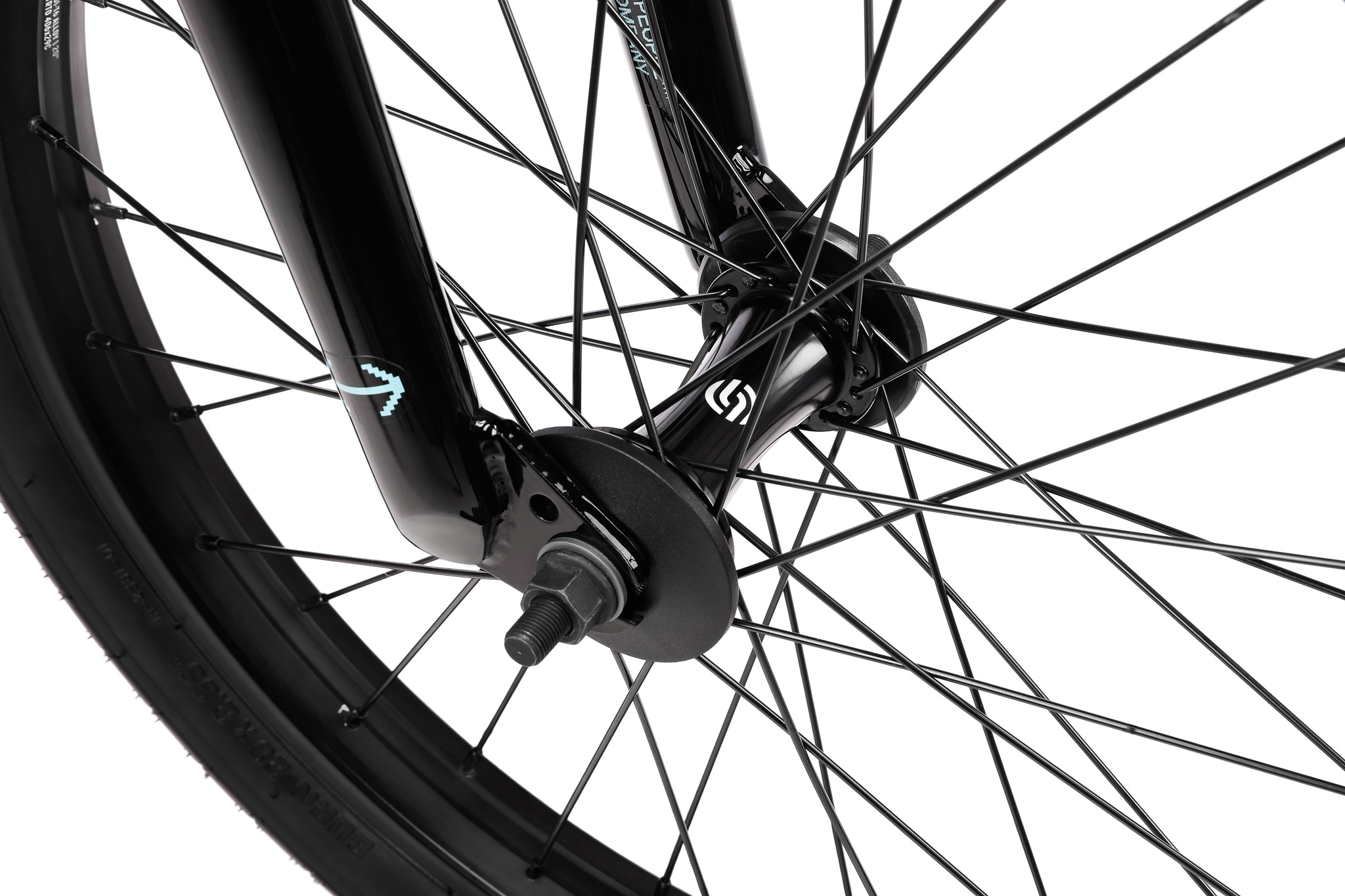

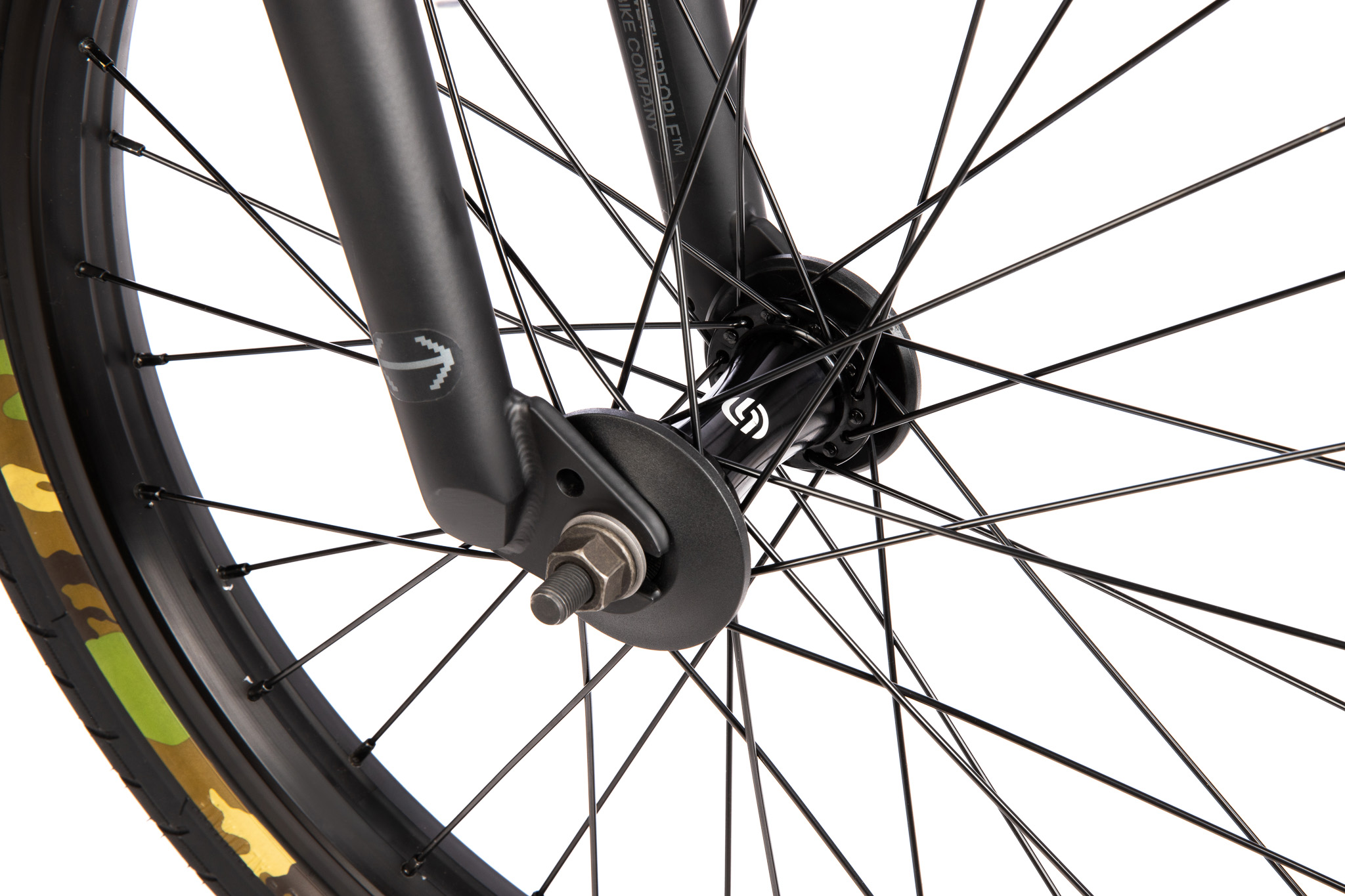

Front Hub: SALT “EX” alloy hub, sealed bearing, 3/8”s axle, 36h

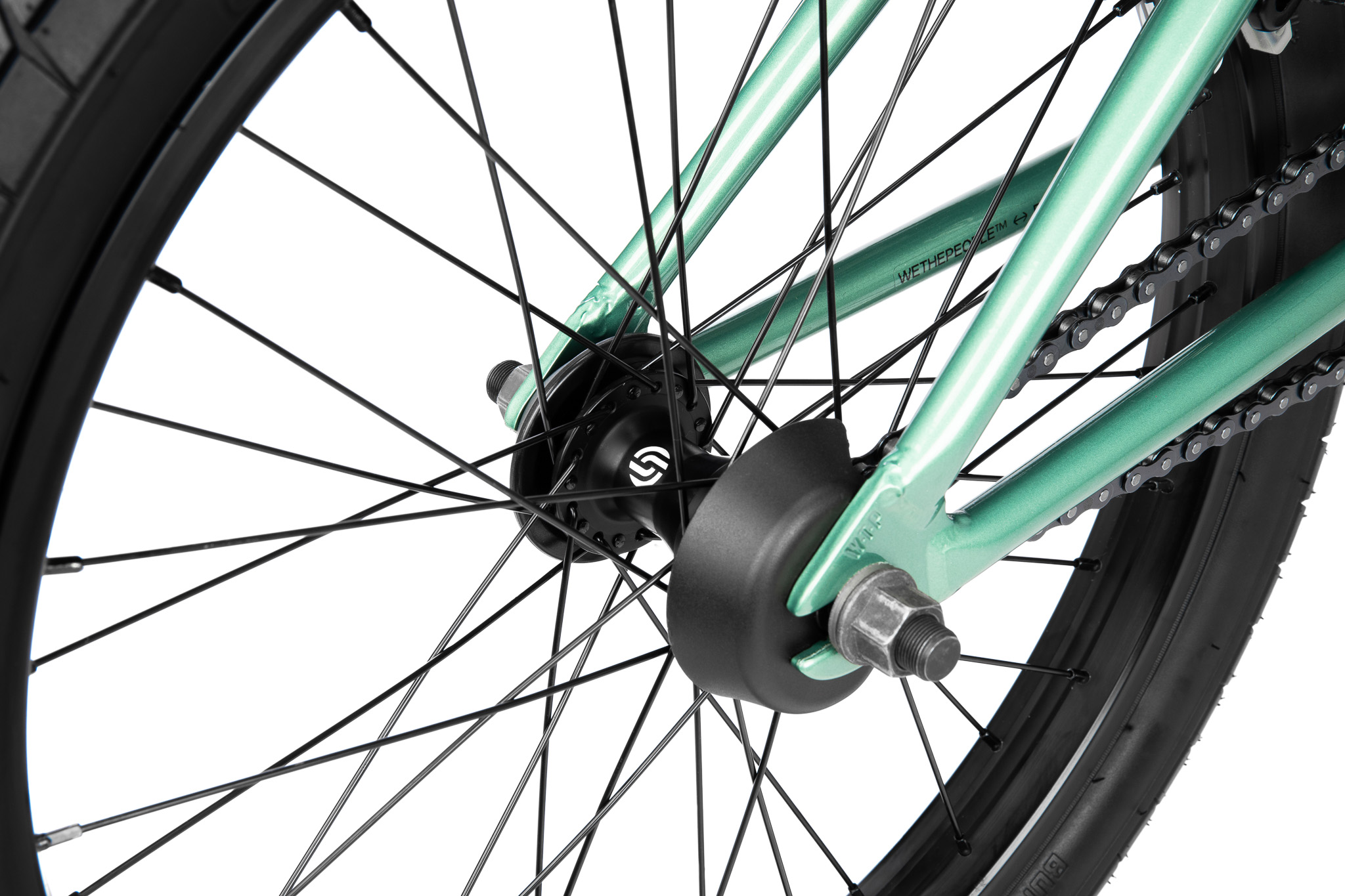

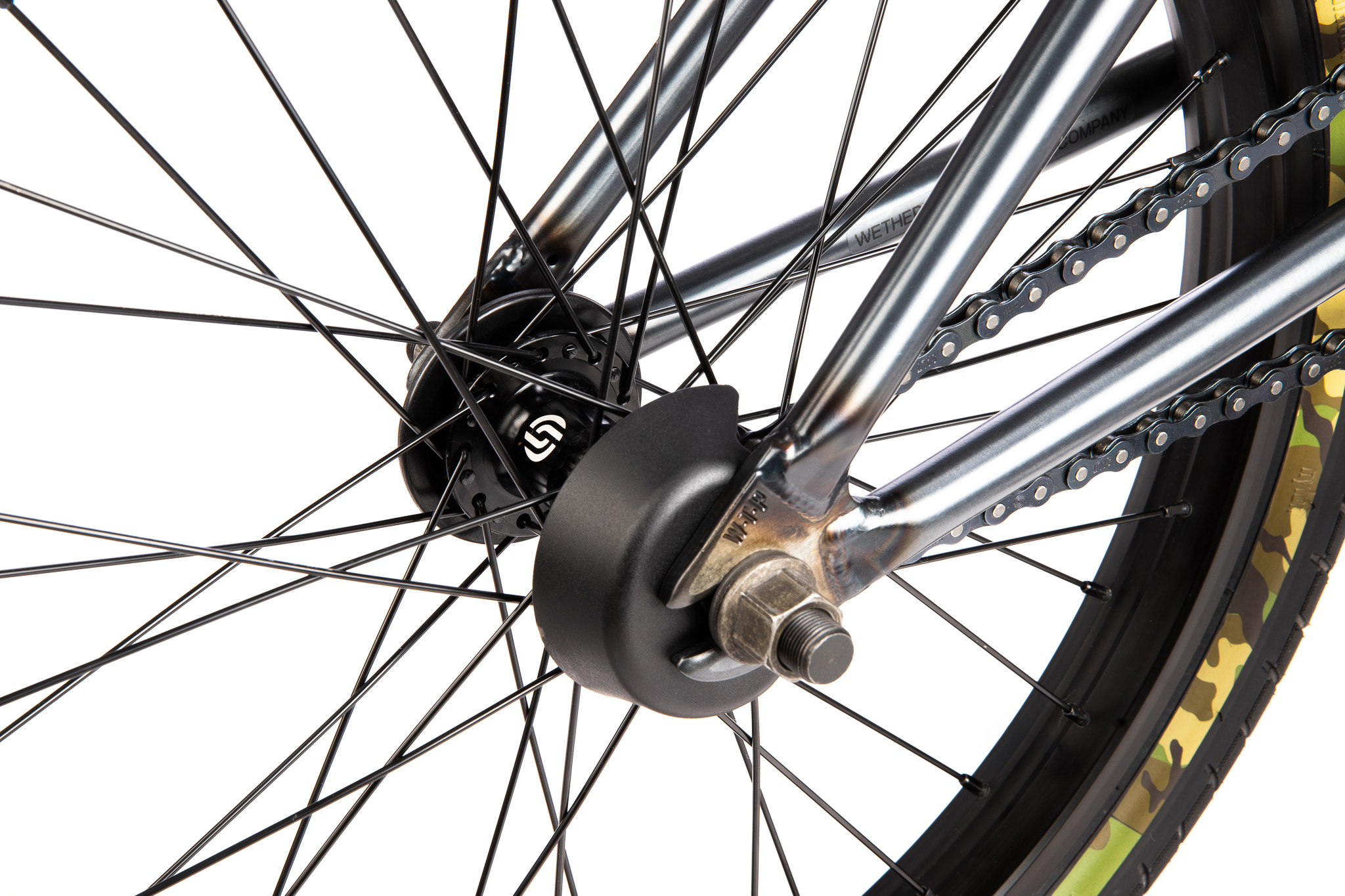

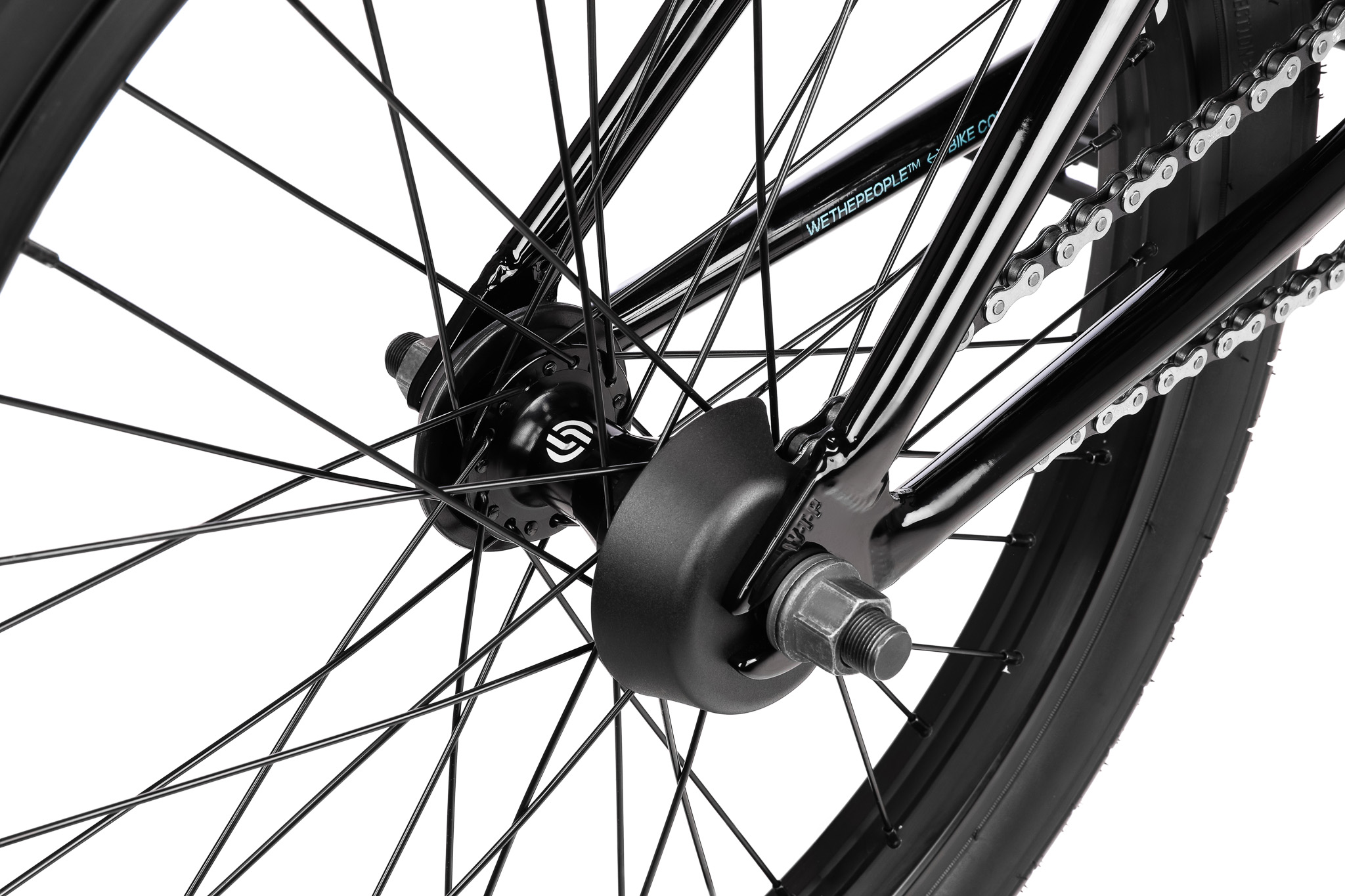

Rear Hub: SALT “EX” cassette hub, full sealed, 9t, 14mm axle, 36h

Hubguards: compatible with the SALTPLUS PRO nylon hubguards

Front Rim: SALT “Valon” 36mm rim, single wall, 36h

Rear Rim: SALT “Valon” 36mm rim, single wall, 36h

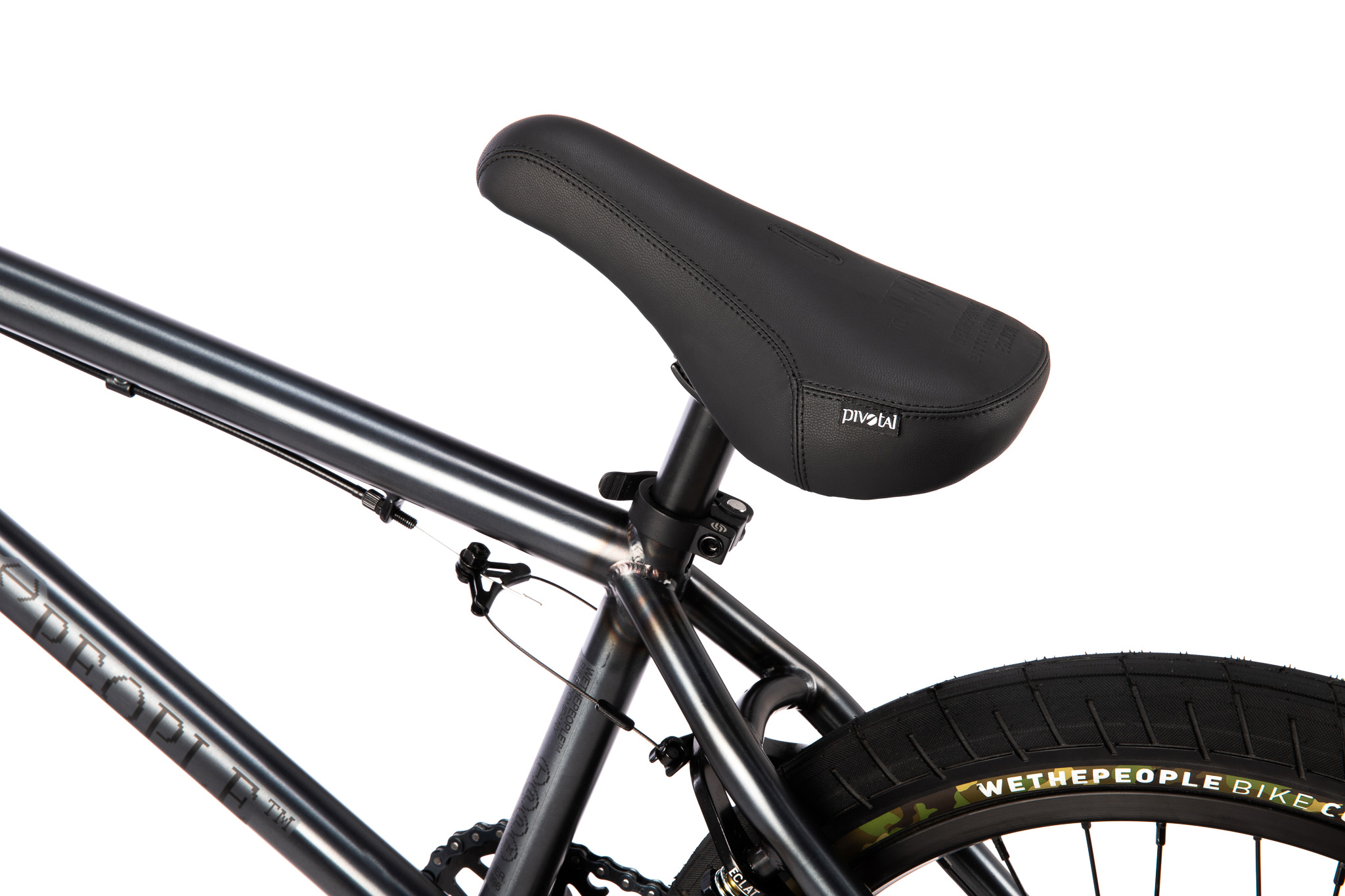

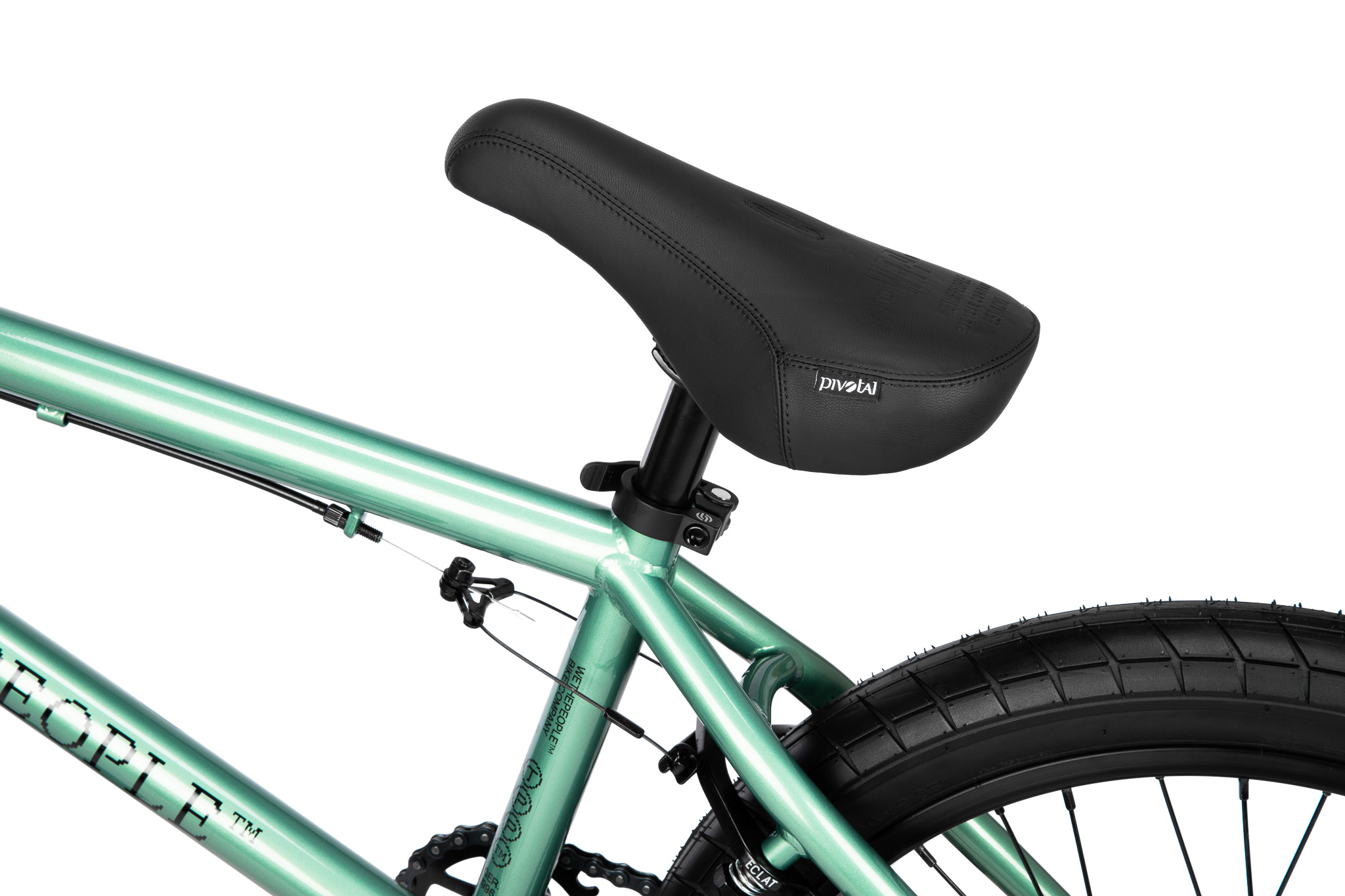

Seat: ECLAT "BIOS" mid padded Pivotal seat

Seat Post: SALT "AM" Pivotal seat post

Seat Clamp: integrated seat clamp

Tires: SALTPLUS “Burns” 2.40" front & 2.30" rear

Pegs: -

Weight: 12.77kg / 26.77lbs


FRAME GEOMETRY

A: Top Tube Length:  20.5” | 21"

B: Chain Stay Length: 13.2”

C: Head Tube Angle: 75°

D: Seat Tube Angle: 71°

E: Bottom Bracket Height: 11.75”

F: Stand Over Height: 8.5”


BAR GEOMETRY

G: Bar Rise: 8.75“ | 9"

H: Bar Width: 29.3" | 29.5"

I: Bar Back Sweep: 11° | 12°

J: Bar Up Sweep:
