SWAMP MASTER

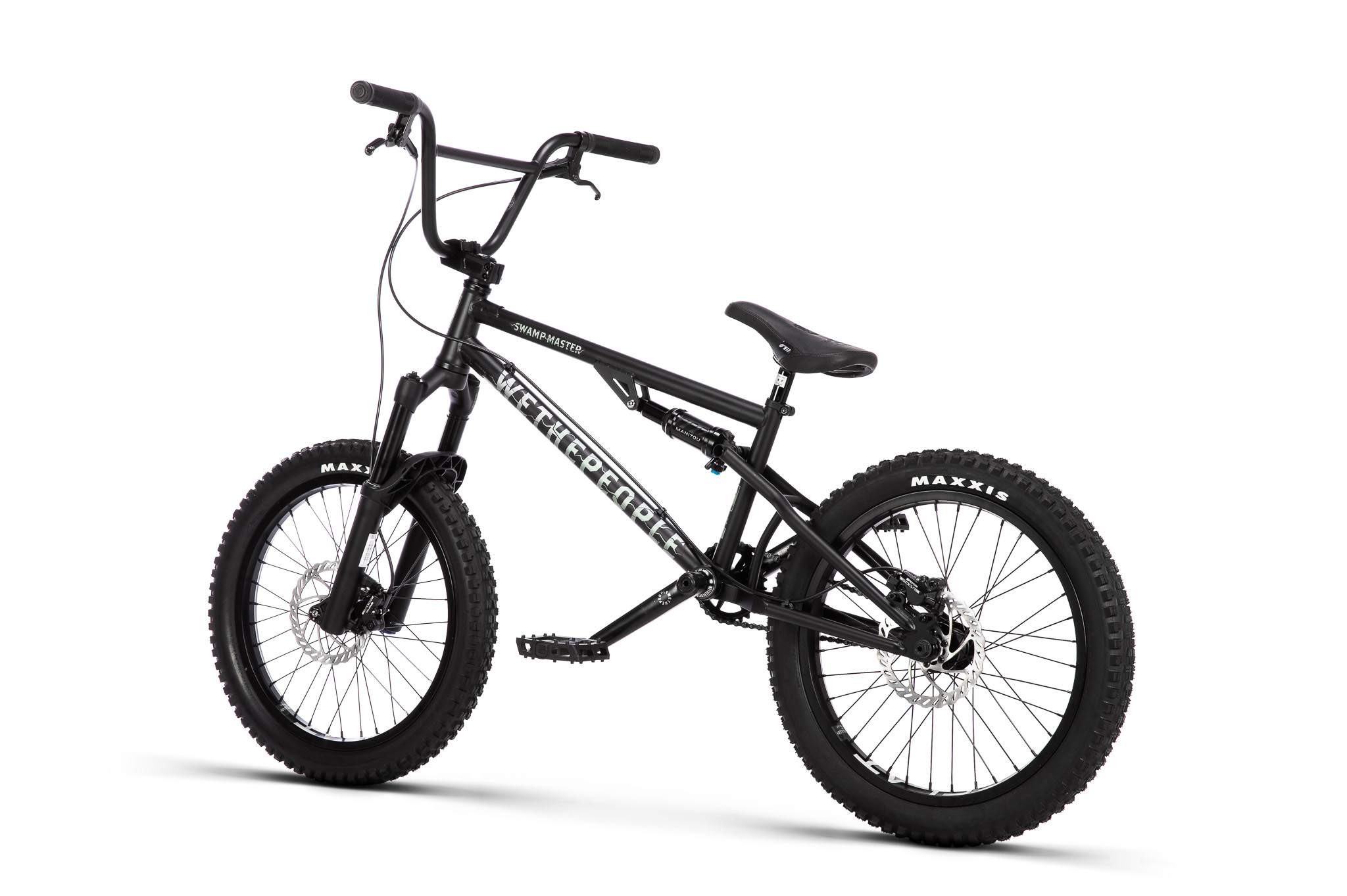

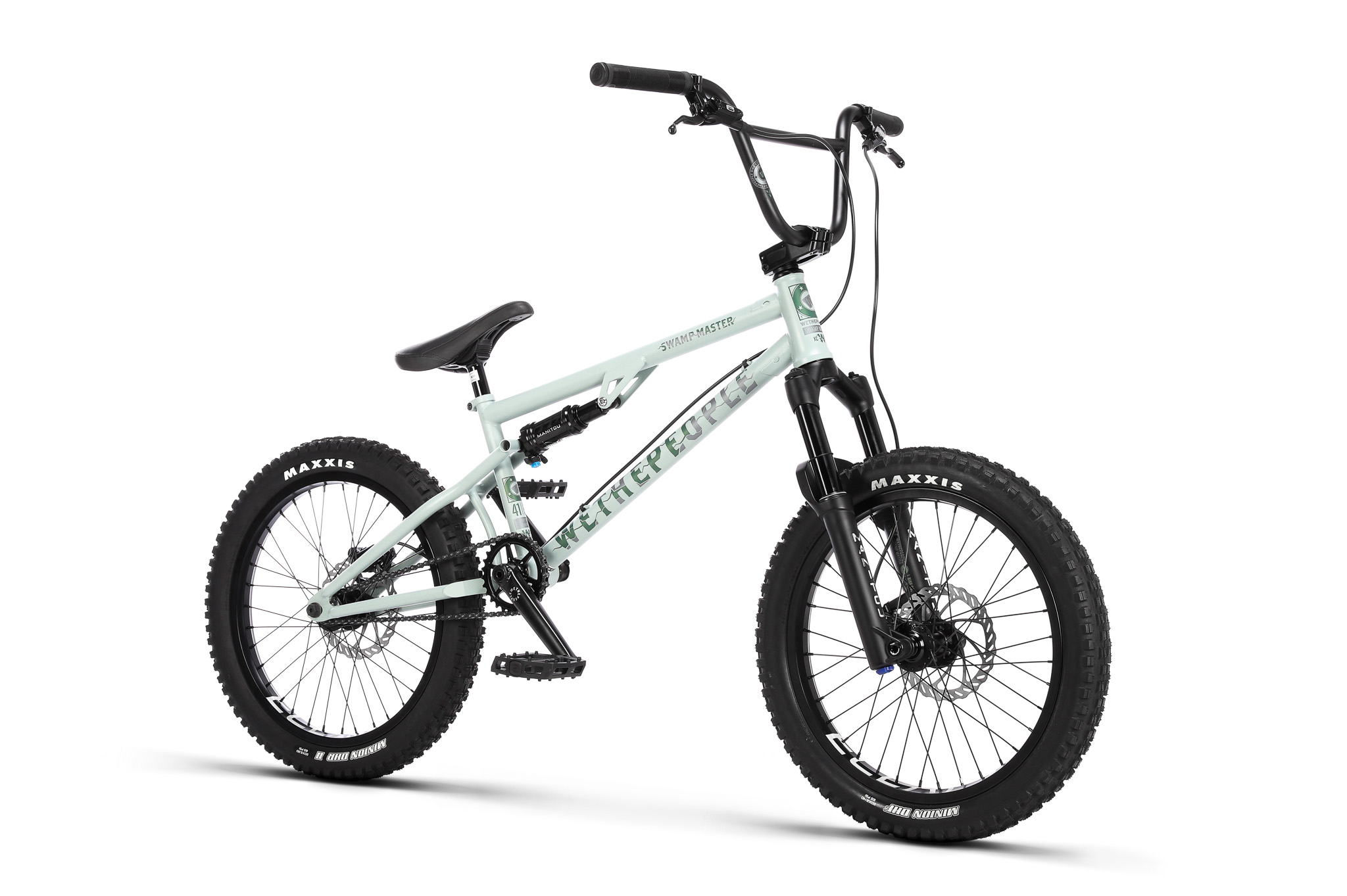

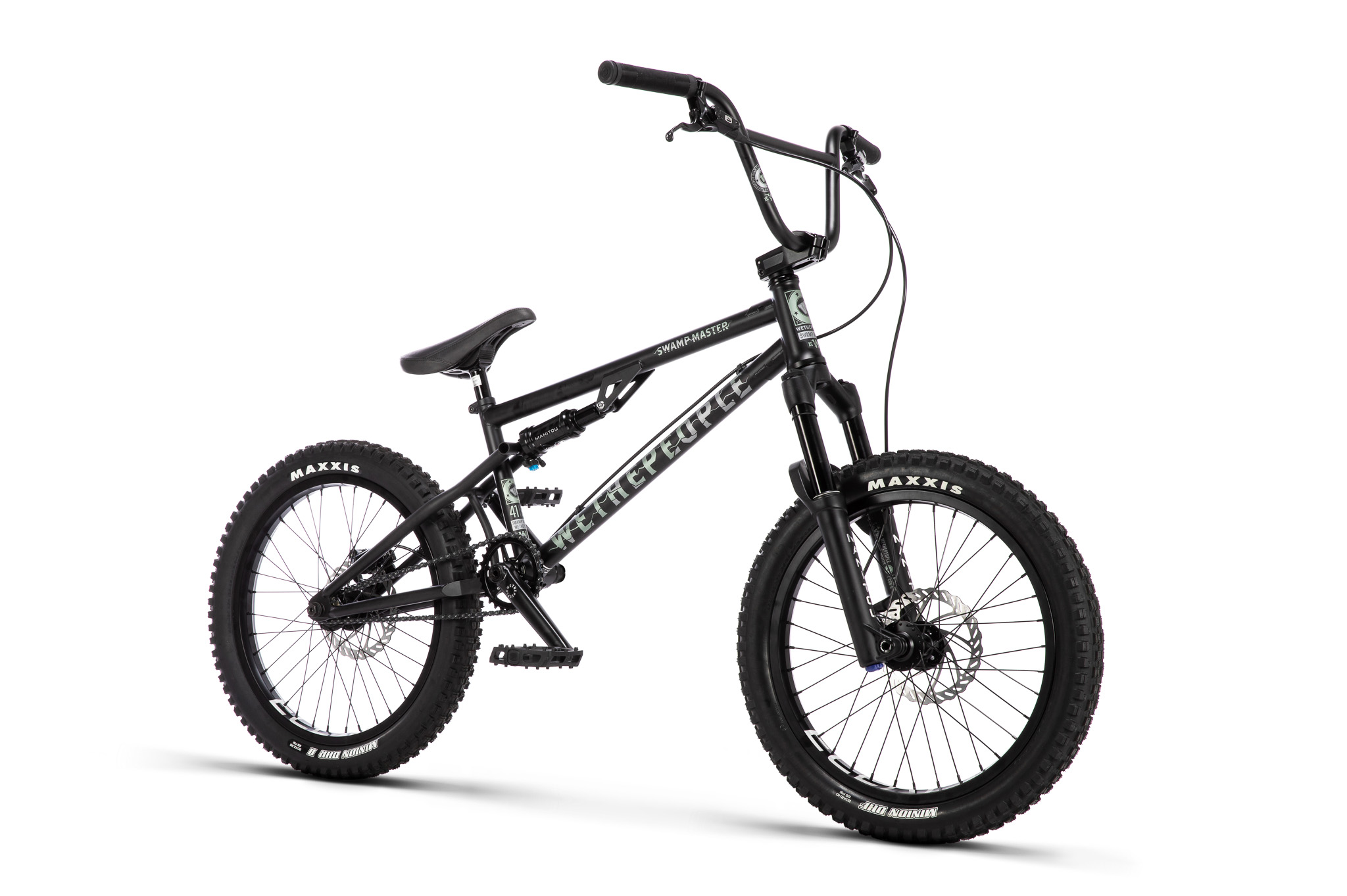

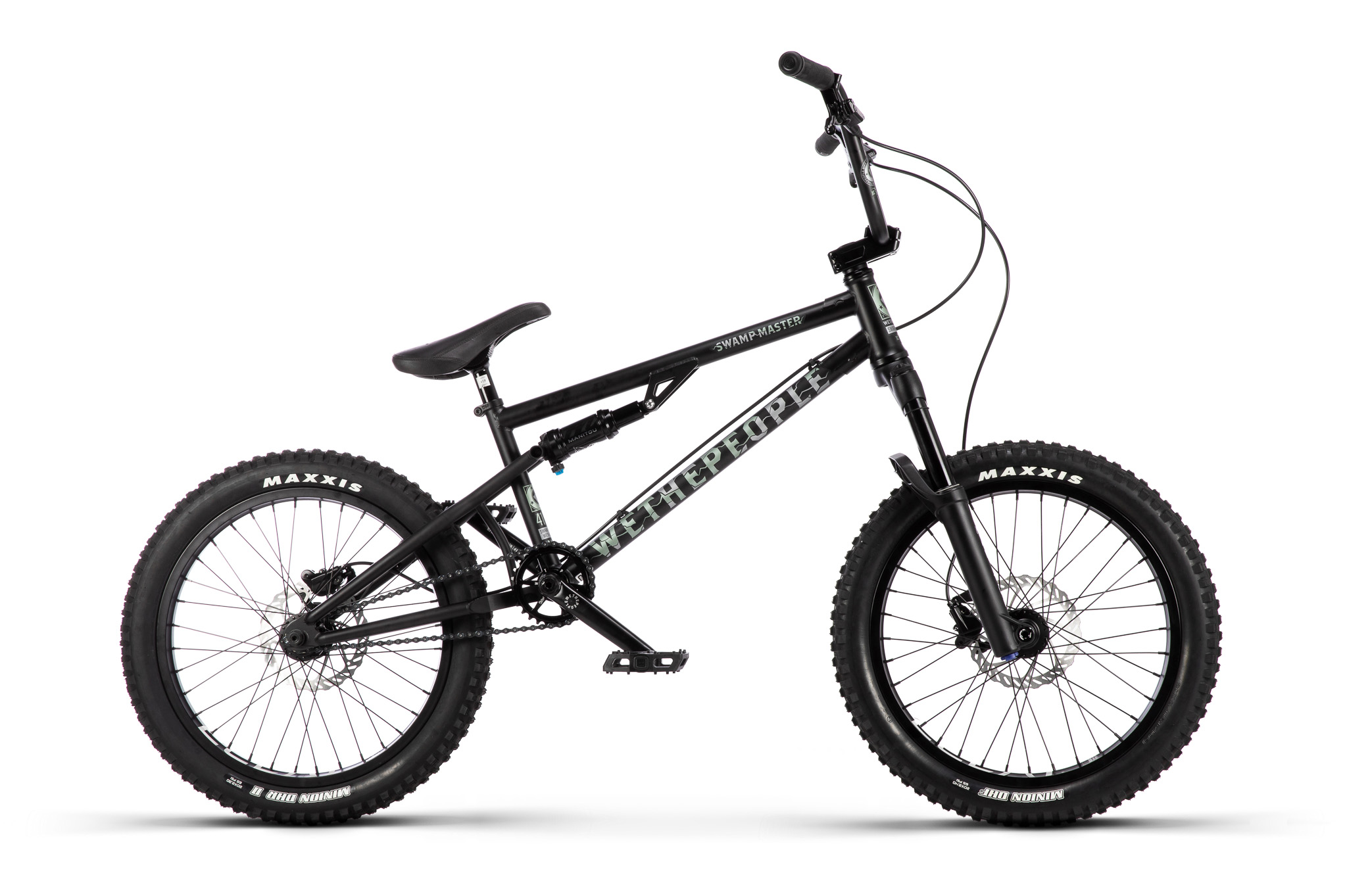

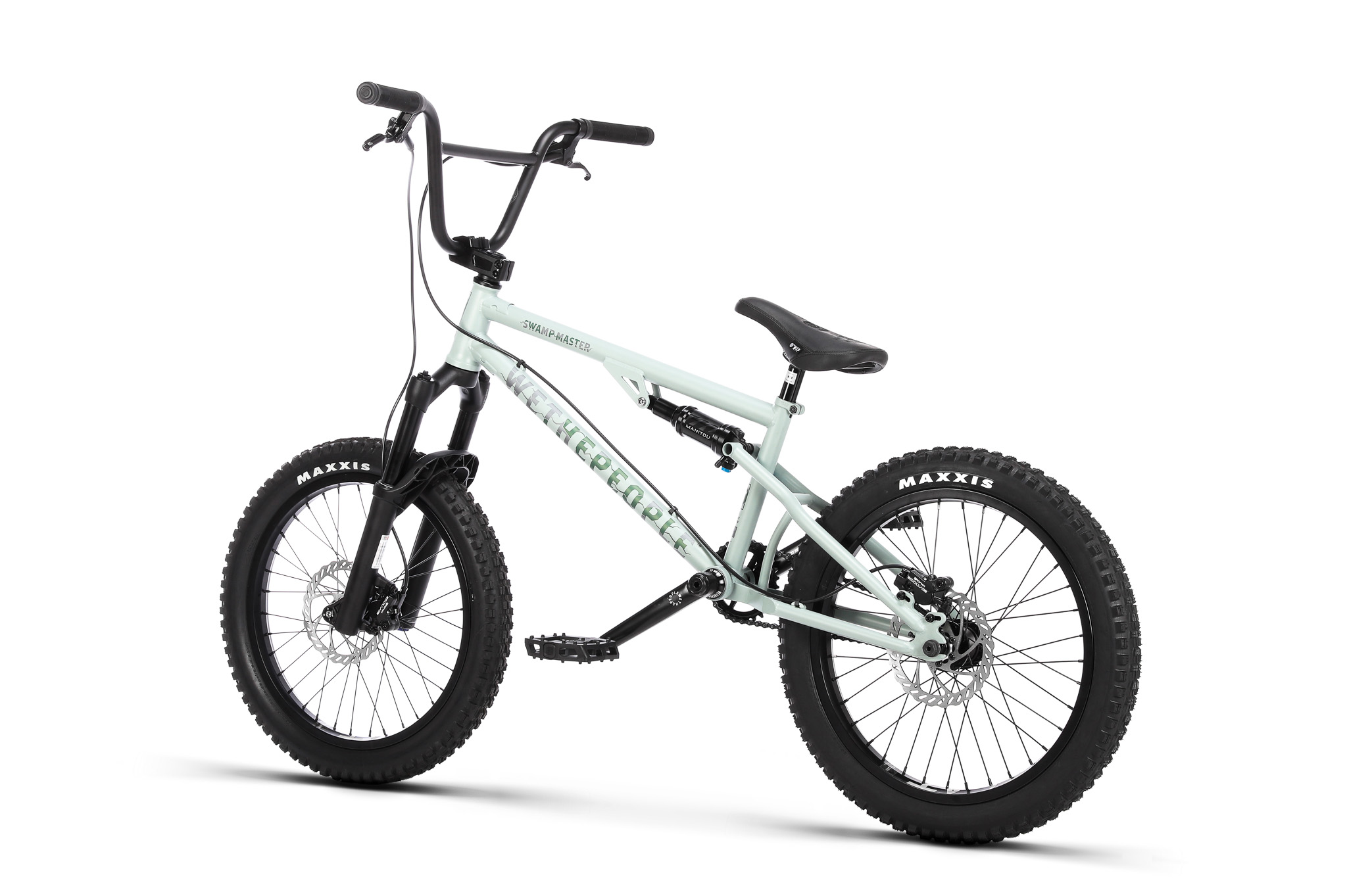

A whole new world of fun, the SWAMP MASTER is the first full suspension complete BMX bike. Inspired by the world of downhill mountain biking, mixed with classic BMX roots and fun, this bike is unique to say the least. Engineered in Cologne, Germany, the SWAMP MASTER is designed for serious downhill shredding whilst gaining the movement and freedom that a BMX bike offers. Spec’d with a mixture of our own aftermarket BMX components and genuine MTB parts from Kenda and Manitou, the SWAMP MASTER is the first production complete bike of its kind and is set to revolutionise a new chapter in BMX and MTB fusion.

SWAMP MASTER

CLICK IMAGE FOR GALLERY

SPECIFICATIONS

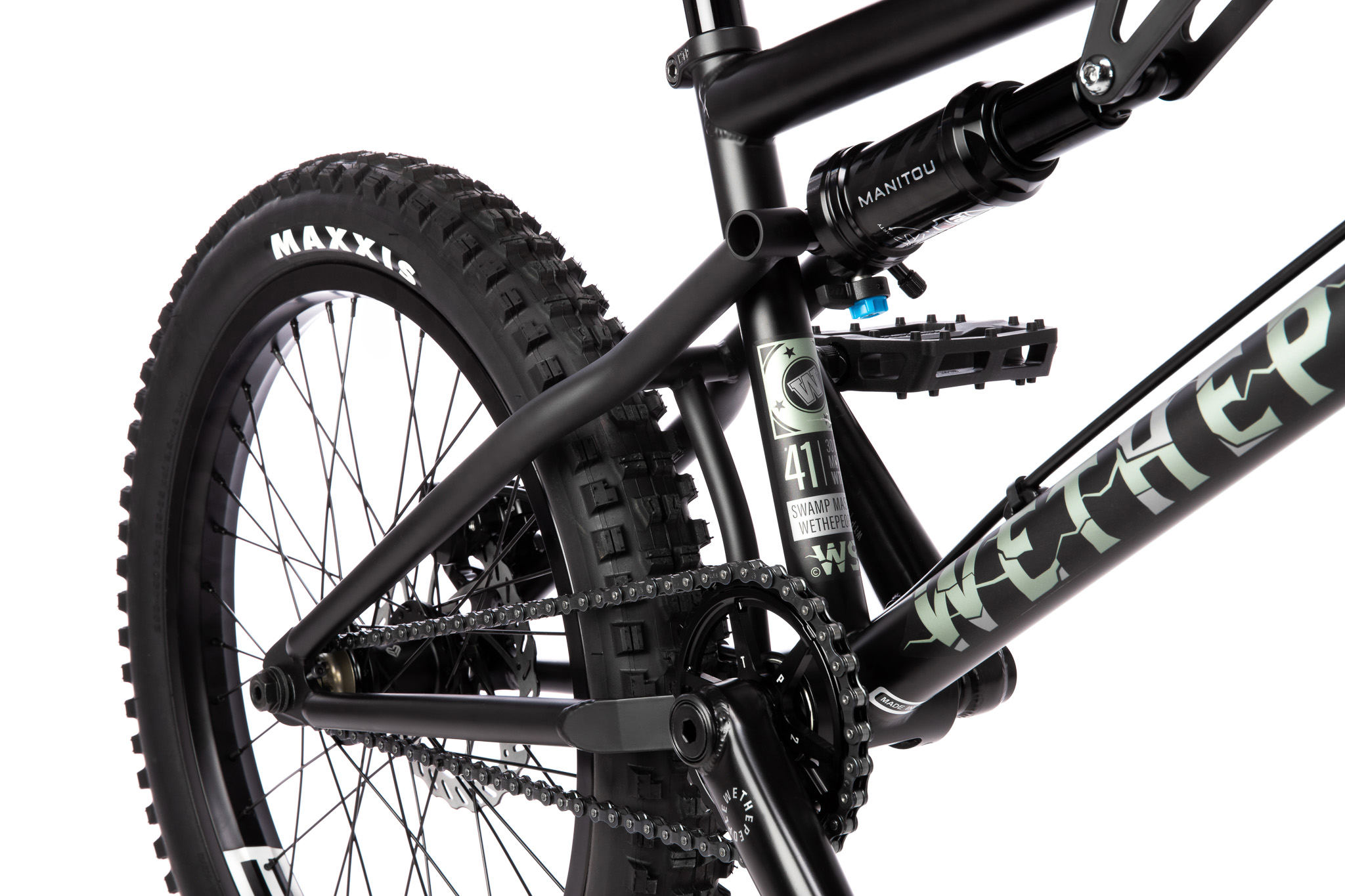

FRAME:

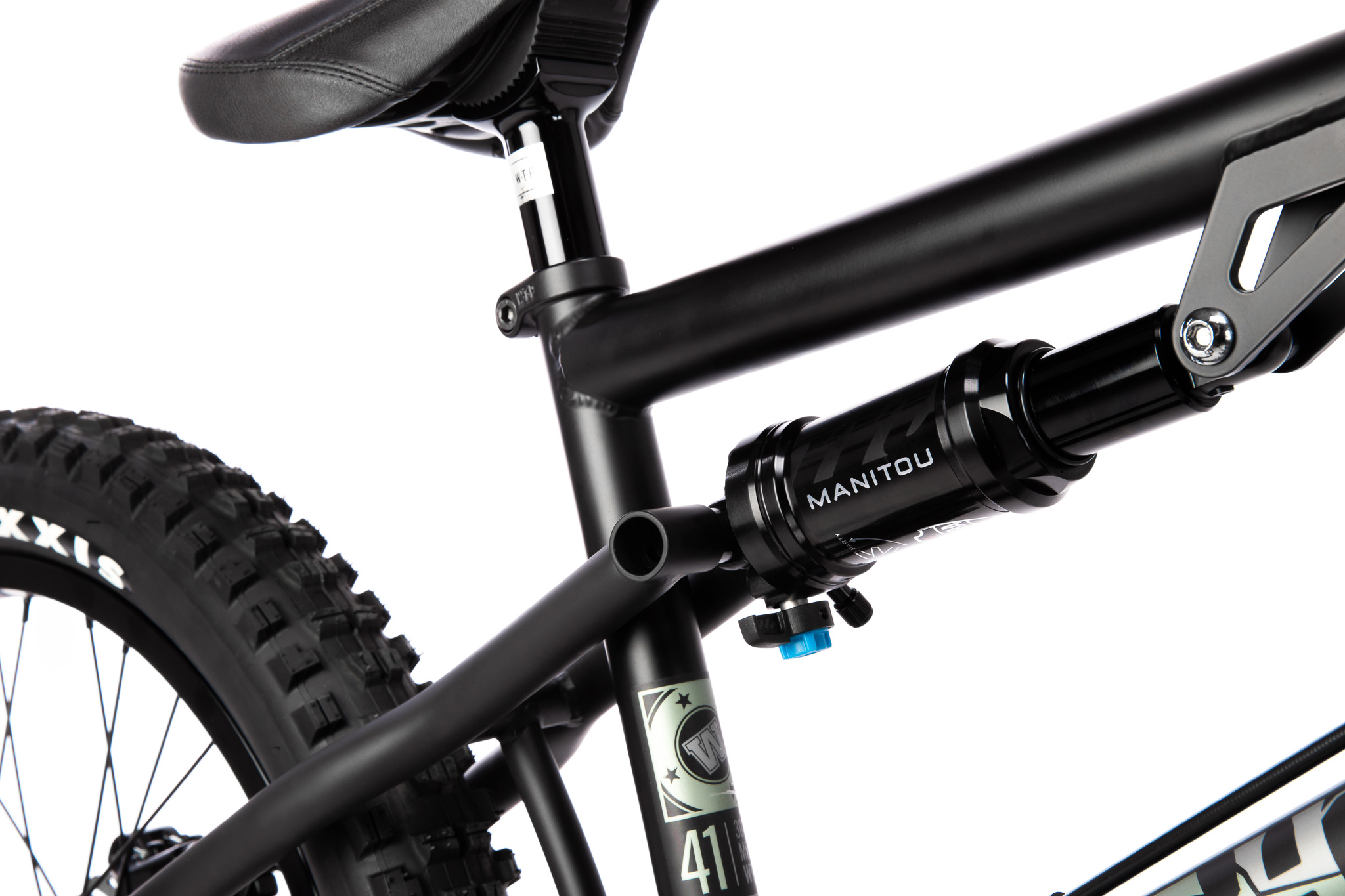

WETHEPEOPLE "SWAMP MASTER" frame, 4130 full crmo, Rockshox Monarch RL shock - 152x31

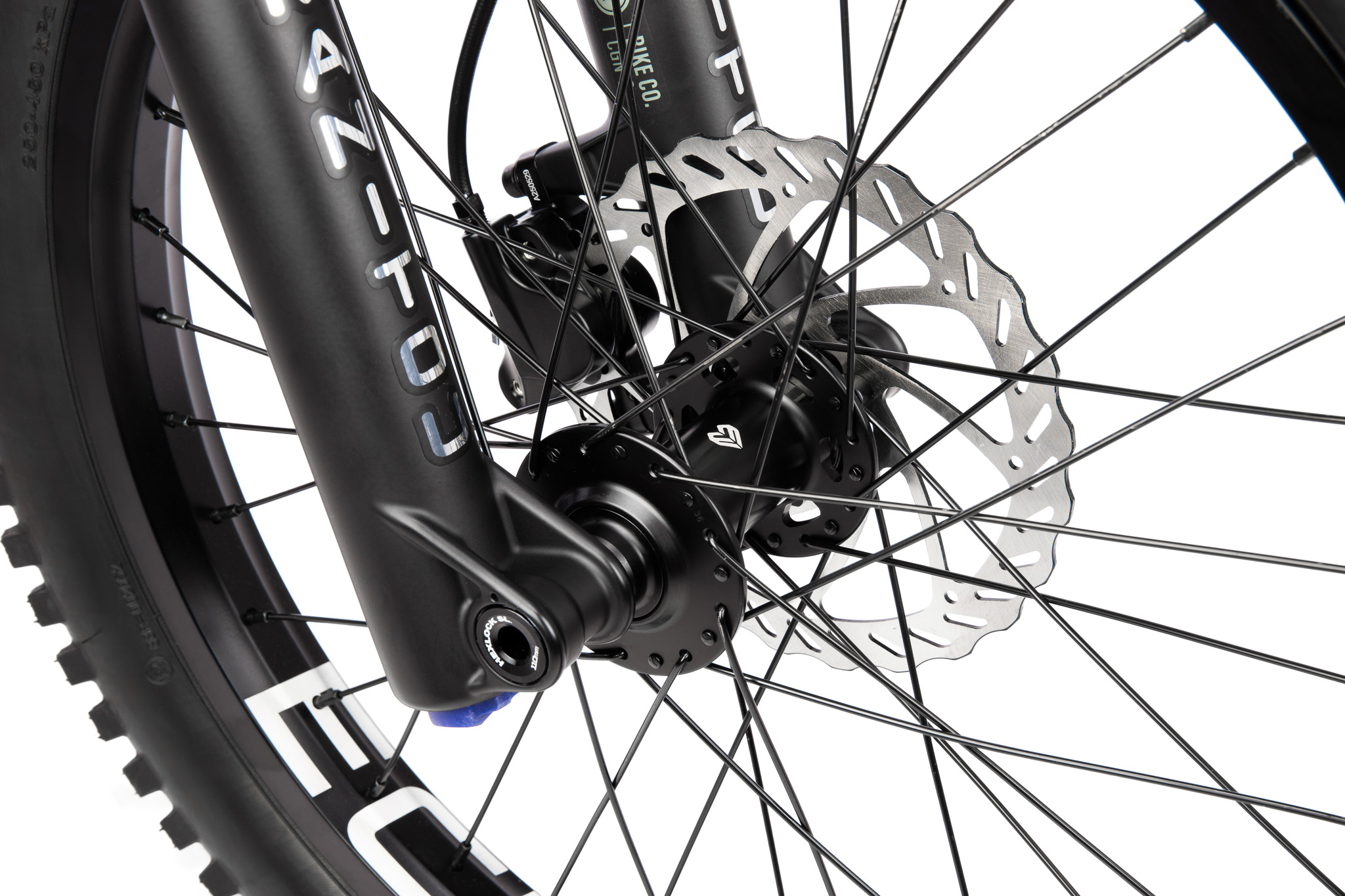

FORK:

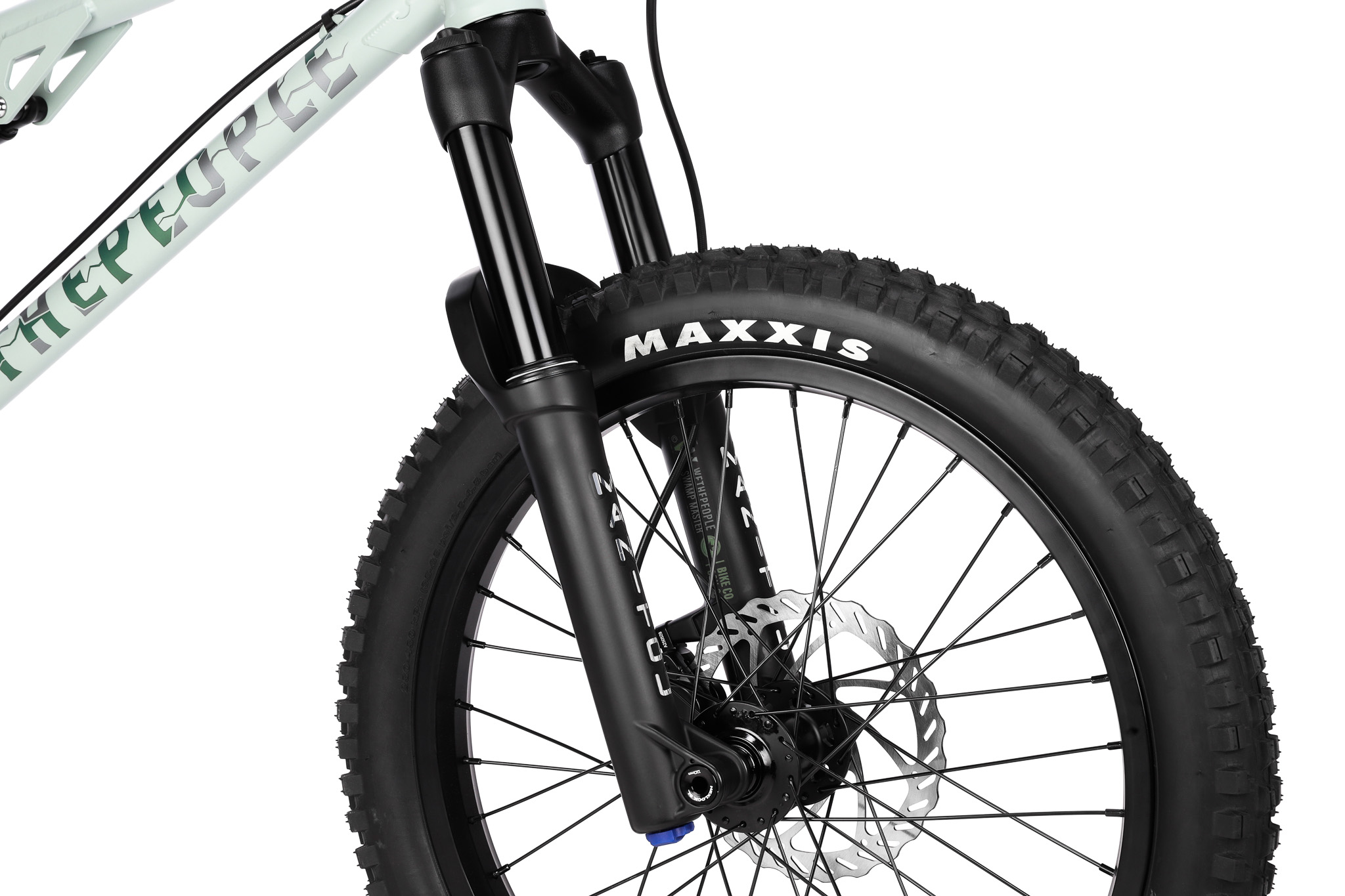

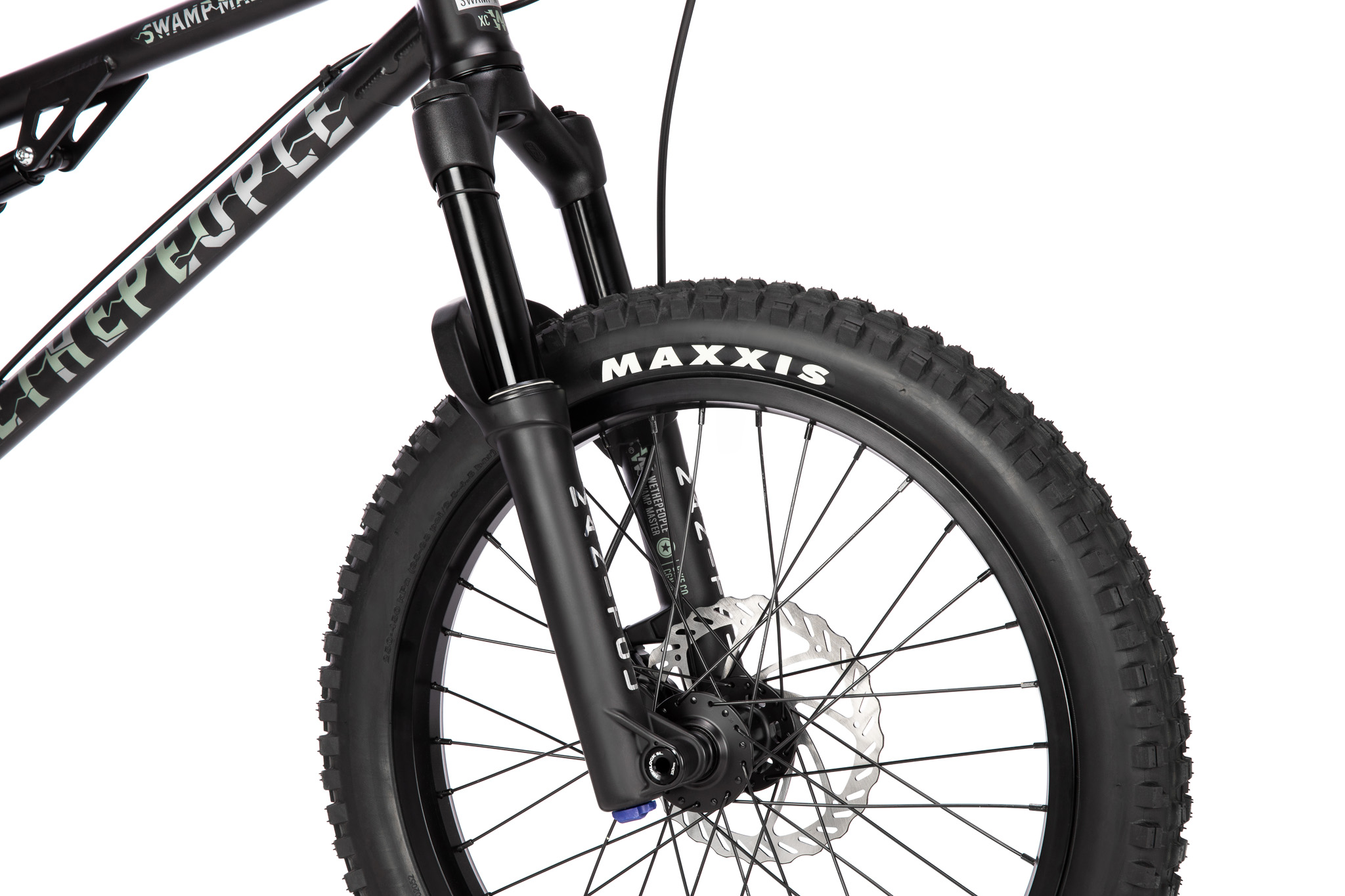

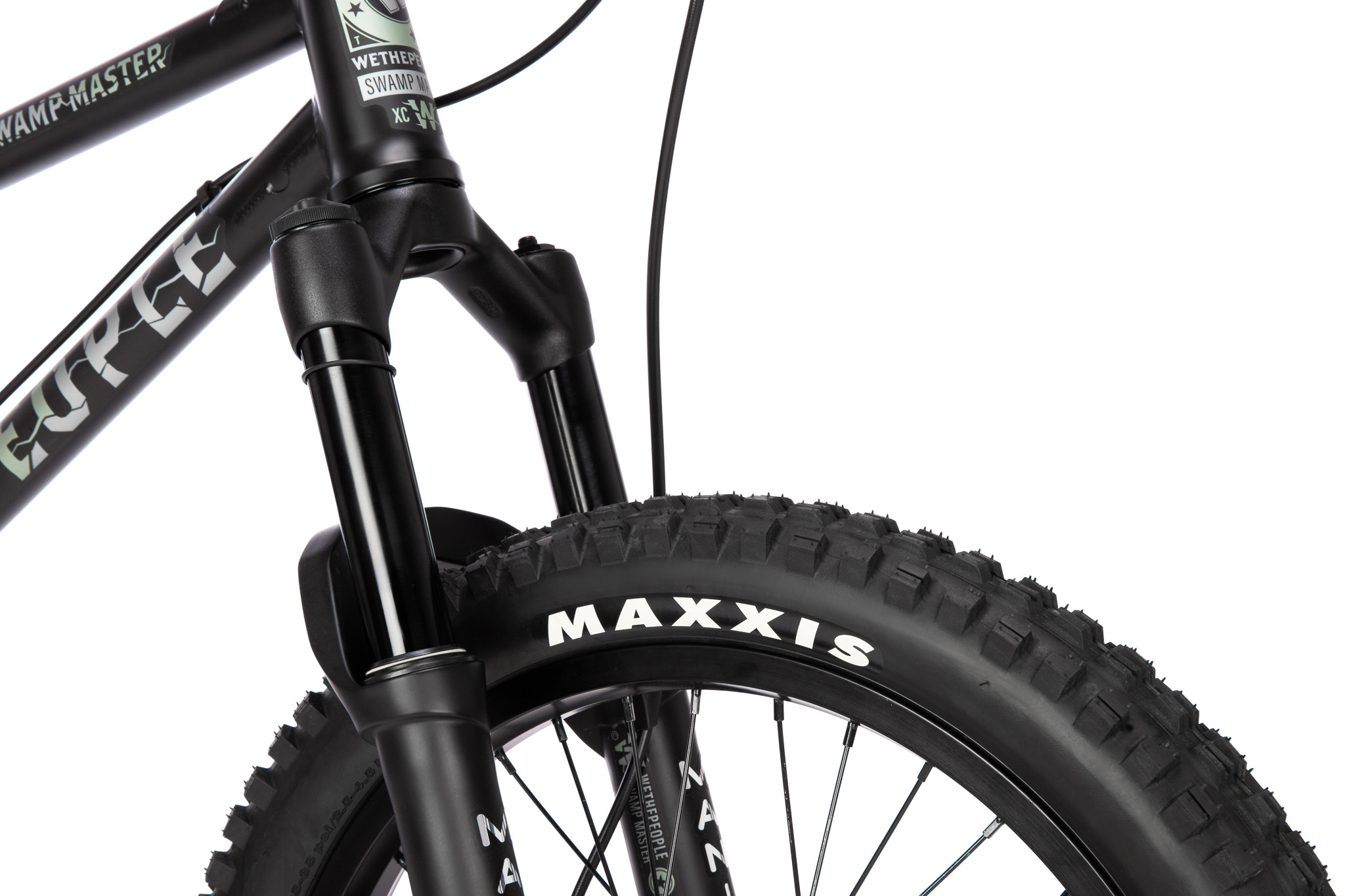

MANITOU "MACHETE J-UNIT EXPERT" fork, custom tuned, 100mm travel, thru-axle

BARS:

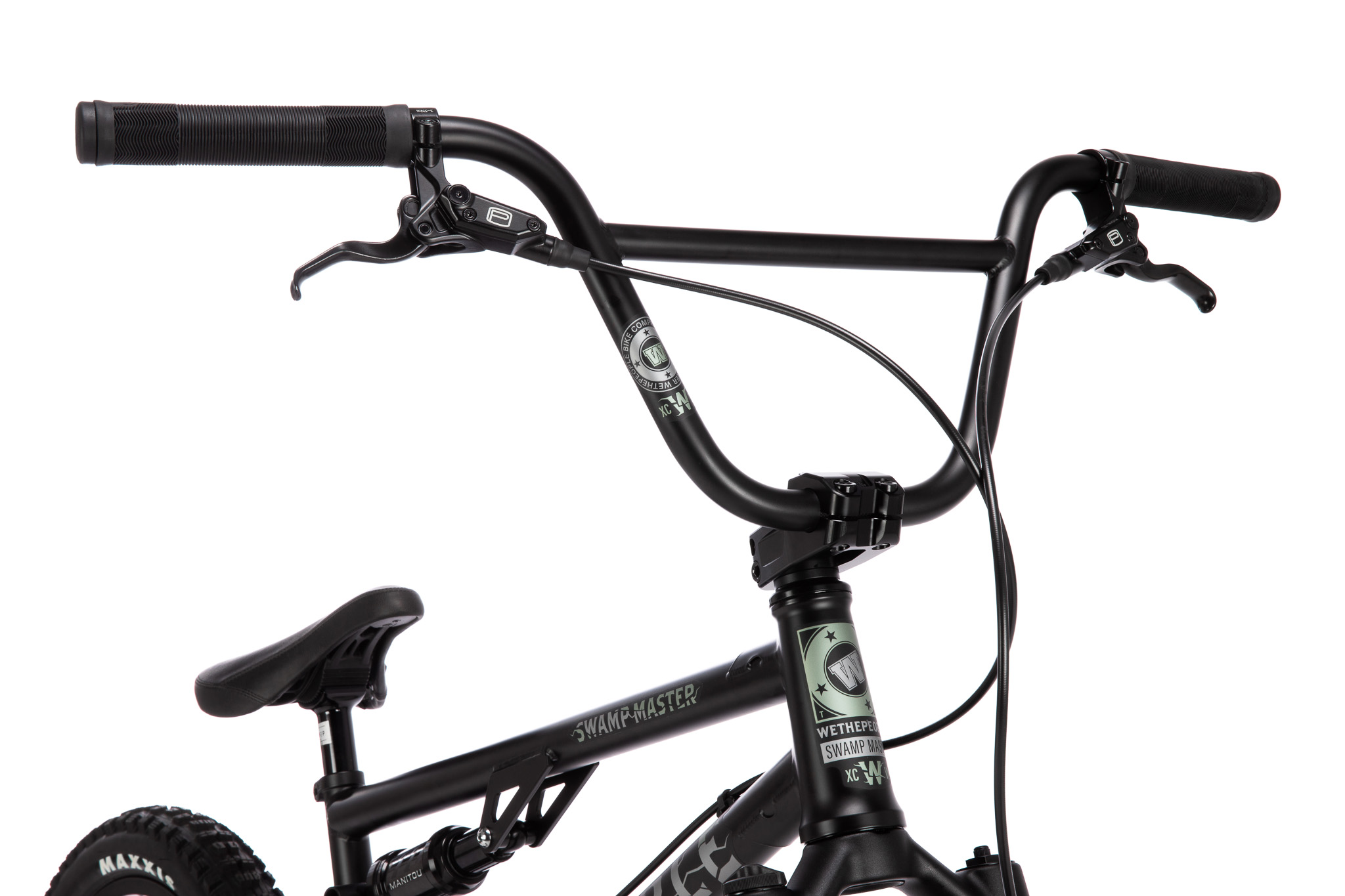

WETHEPEOPLE "SWAMP MASTER" bar, post liquid heat-treated 4130 crmo

Grips:

SALT "EX" grips, 154mm, flangless

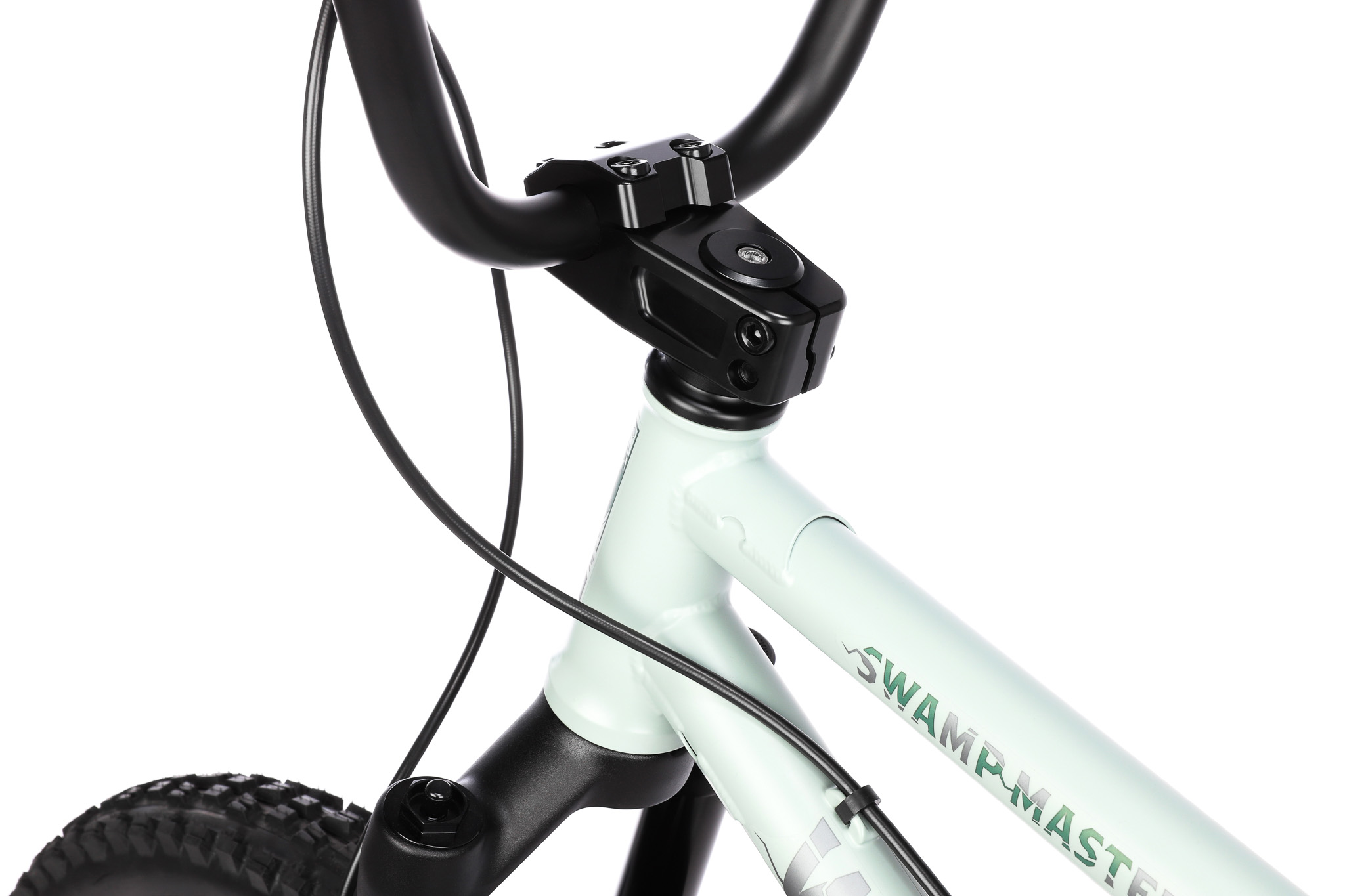

STEM:

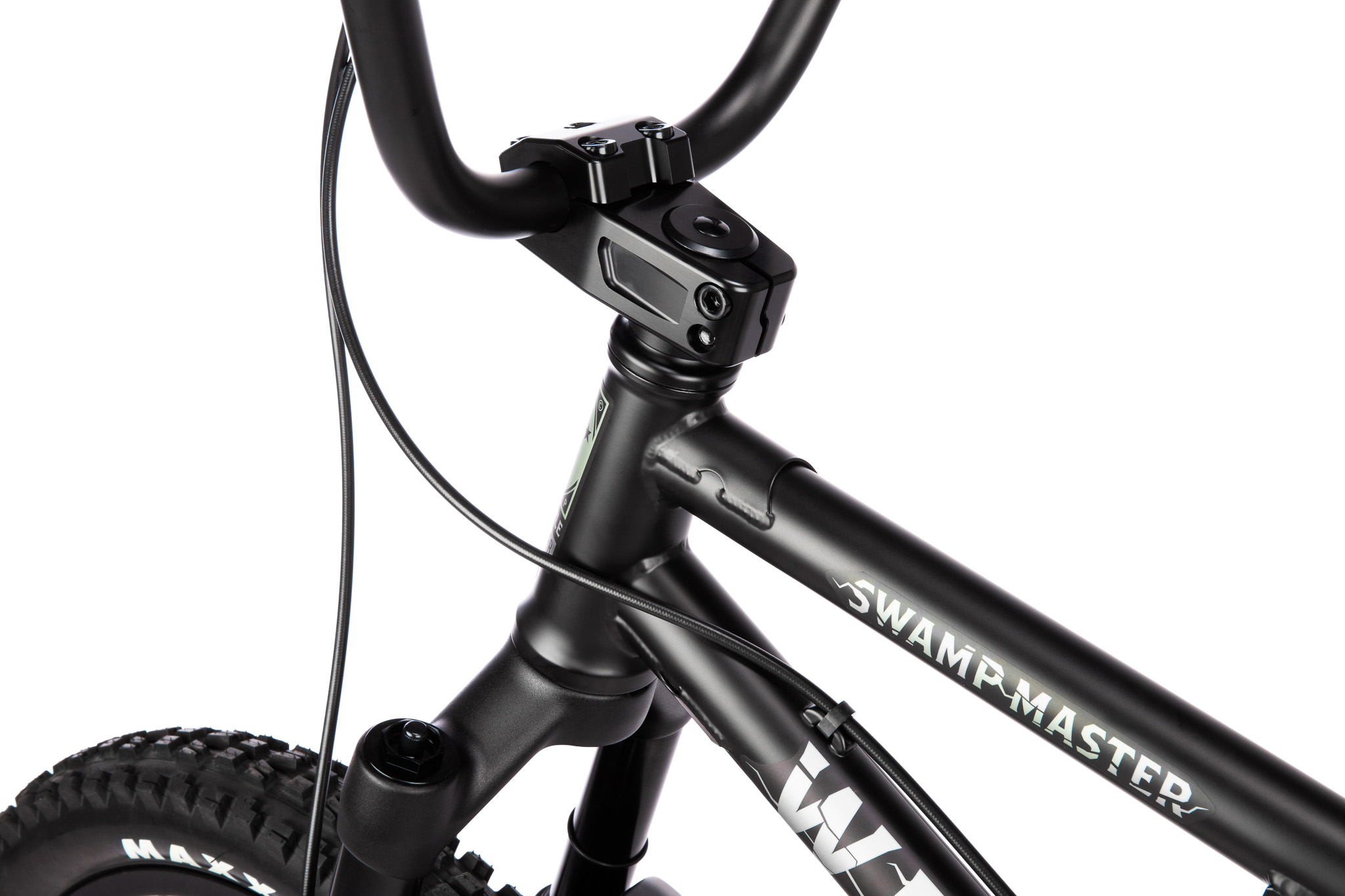

ÉCLAT "BURNS topload stem, cnc alloy, 51mm reach

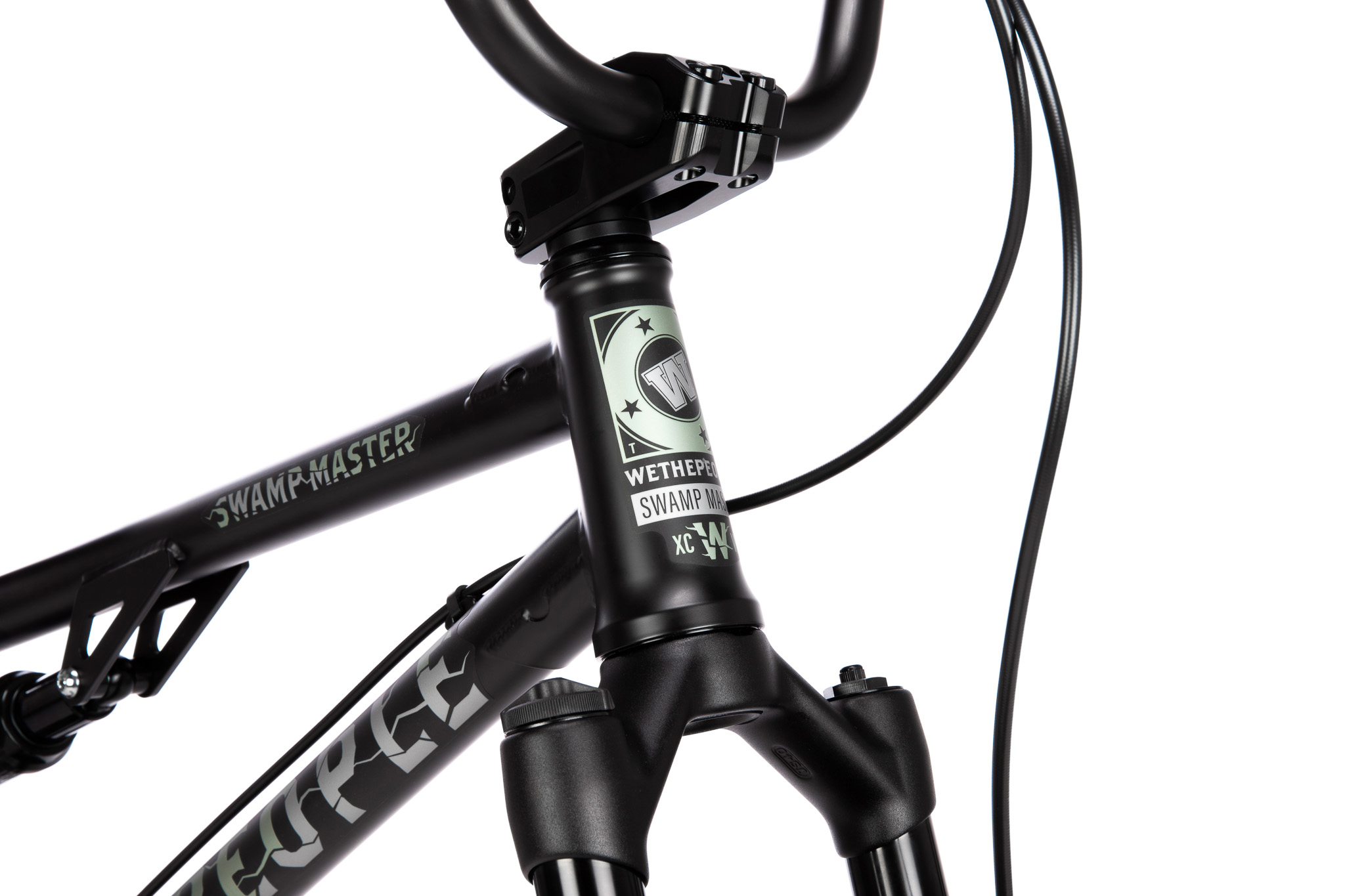

HEADSET:

WETHEPEOPLE "COMPACT" int. headset, sealed bearing

GYRO:

LEVER:

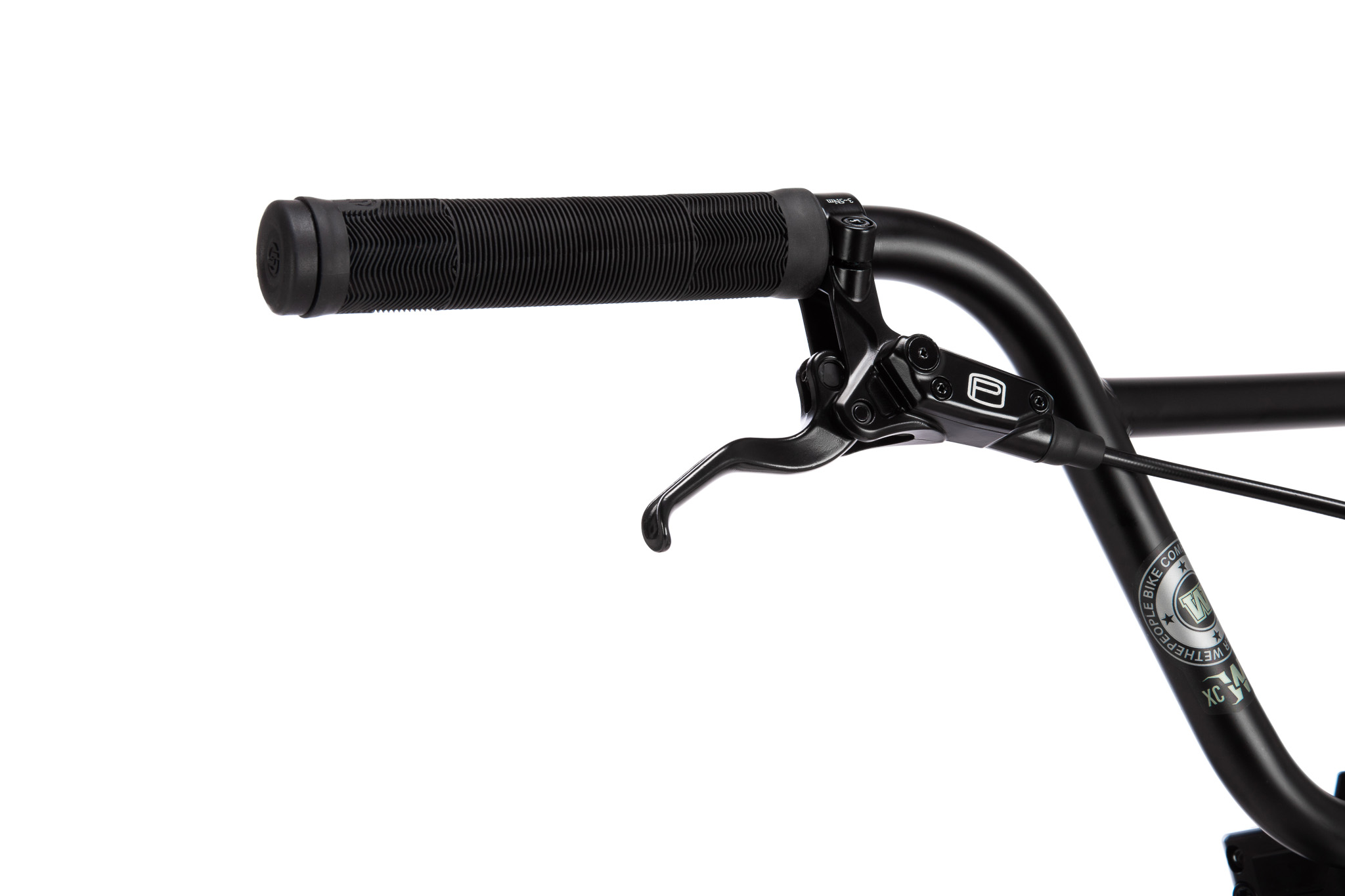

BENGAL "ARES 3" disc brake levers

BRAKES:

BENGAL "ARES 3" hydraulic disc brakes, 160 mm rotors

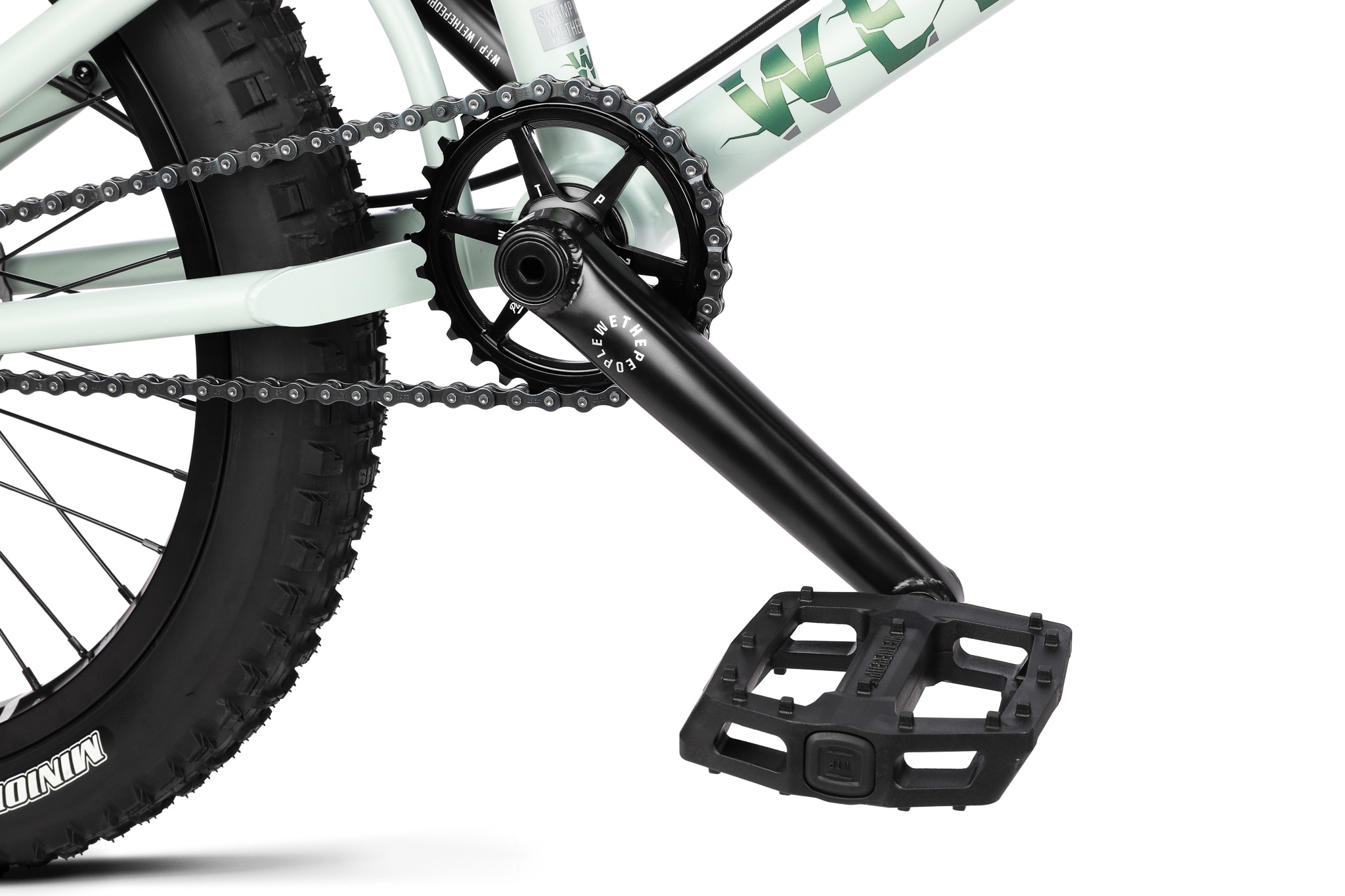

CRANKS

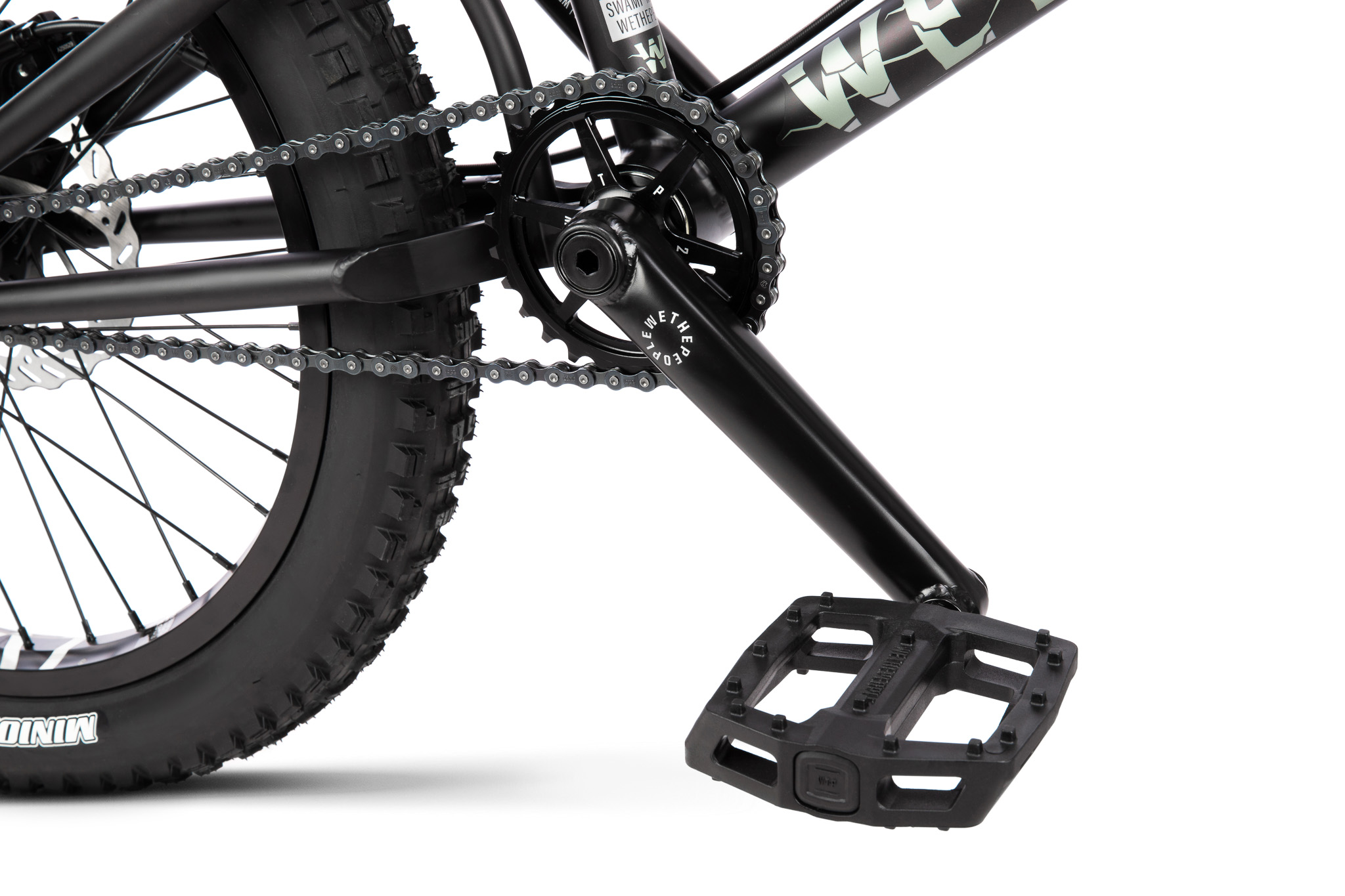

WETHEPEOPLE "LOGIC" tubular 3pc crank, 22mm, crmo, 175mm, 48 spline

BB:

WETHEPEOPLE "COMPACT" bb, 22mm, press fit, sealed bearing

PEDALS:

WETHEPEOPLE "LOGIC" pedals, nylon/fiberglass

CHAIN:

ÉCLAT "DIESEL" chain

SPROCKET:

WETHEPEOPLE "PATROL" sprocket, cnc, 6061-T6 alloy, 28t

DRIVER:

1pc cassette driver, 9t, sealed bearing, 6 pawl, 120 POE

FRONT HUB:

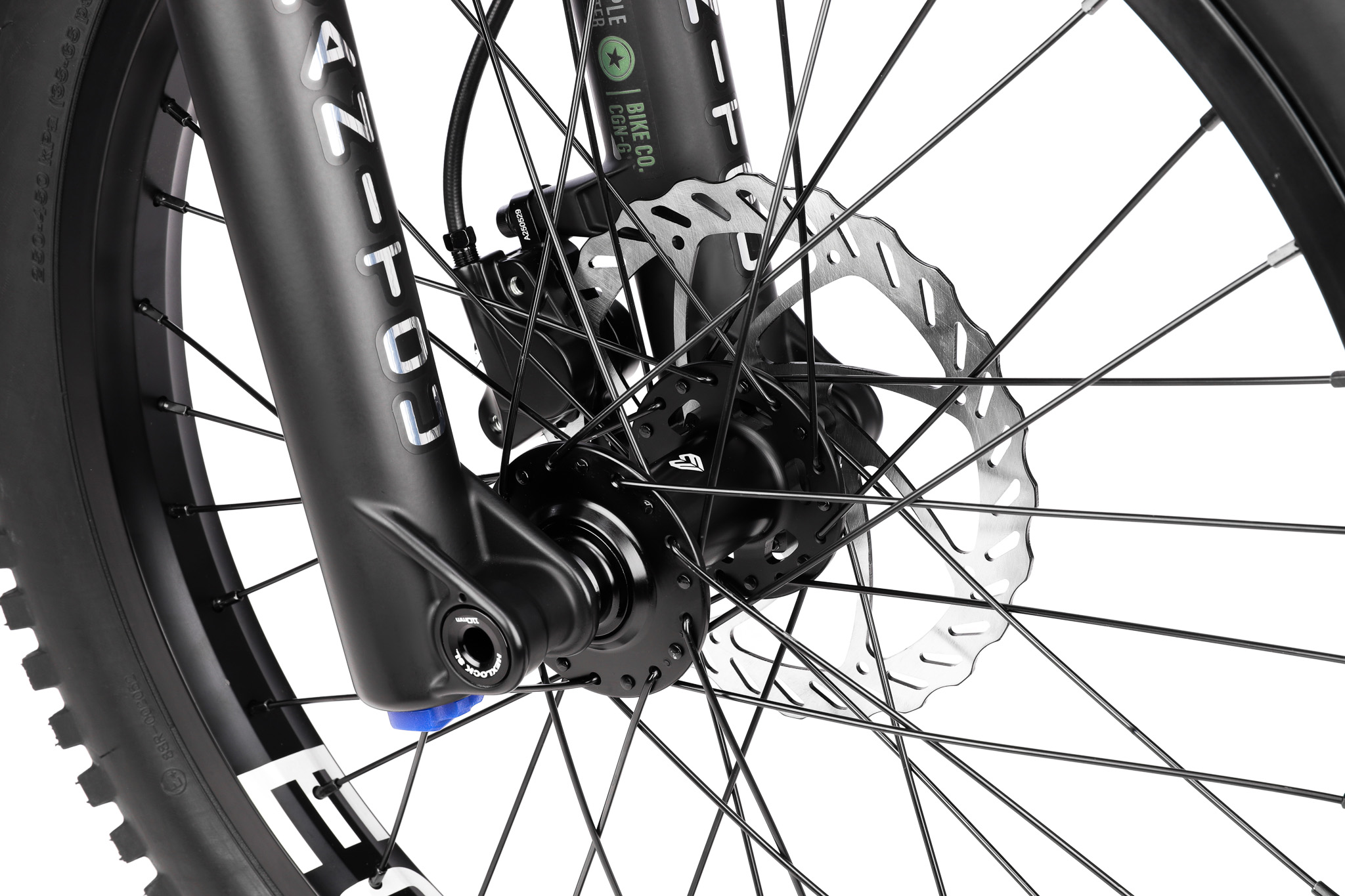

ÉCLAT "EXILE" disc front hub, BOOST 120mm, fully sealed, 15mm thru axle, 36h

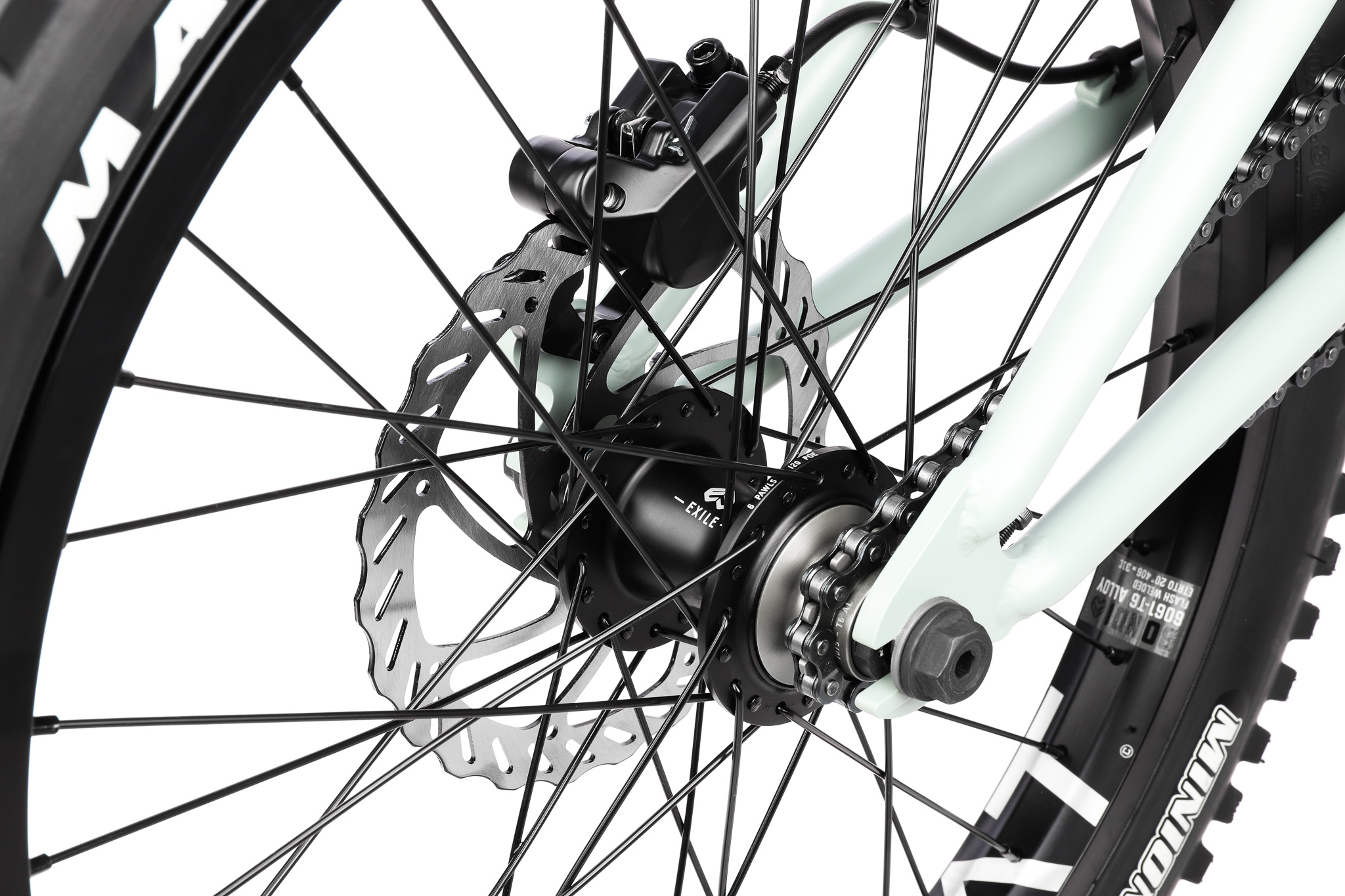

REAR HUB:

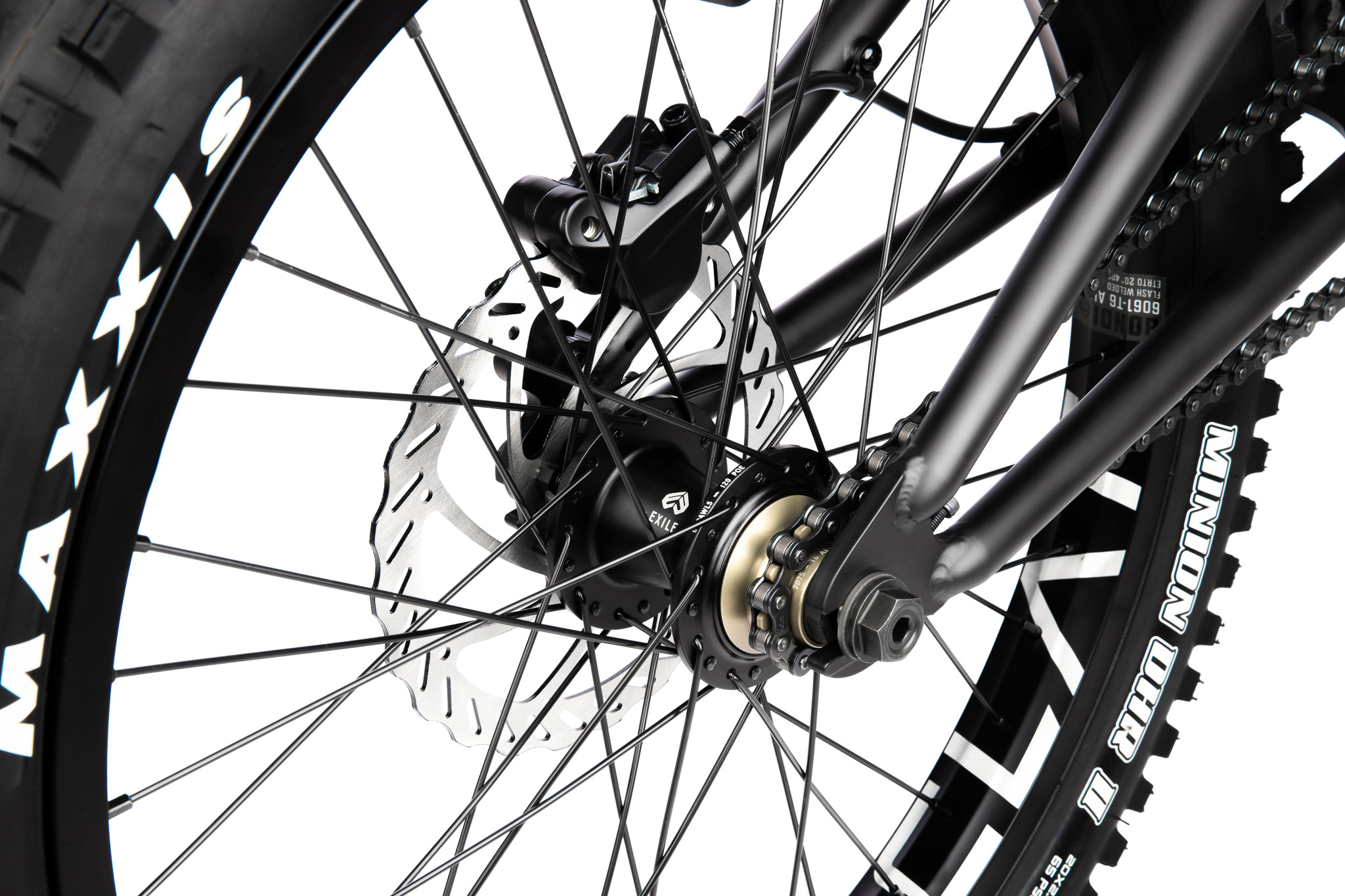

ÉCLAT "EXILE" disc cassette hub, fully sealed, 3/8" female bolts, 36h, 120 POE

HUBGUARDS:

FRONT RIM:

ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h

REAR RIM:

ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h

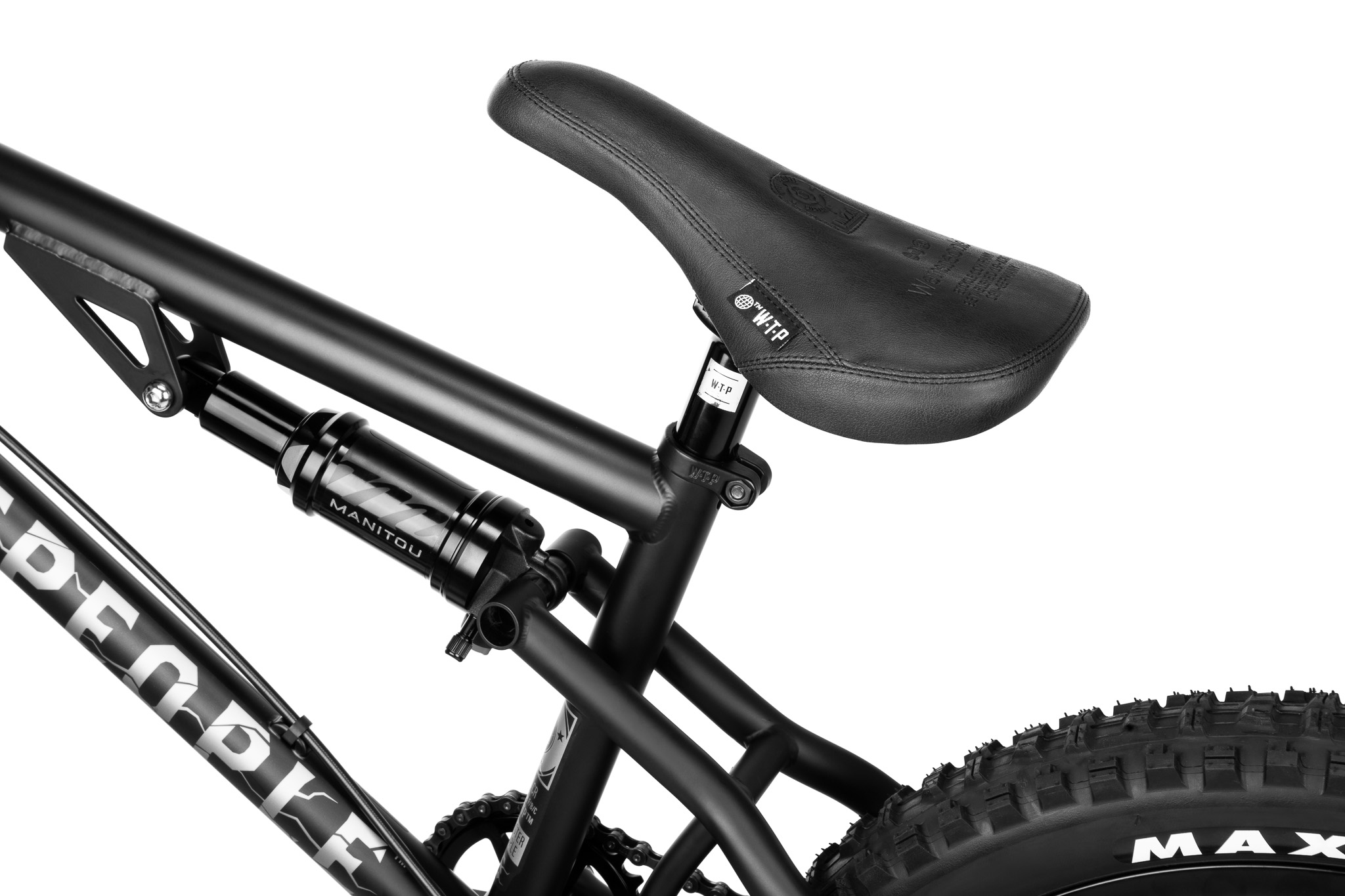

SEAT:

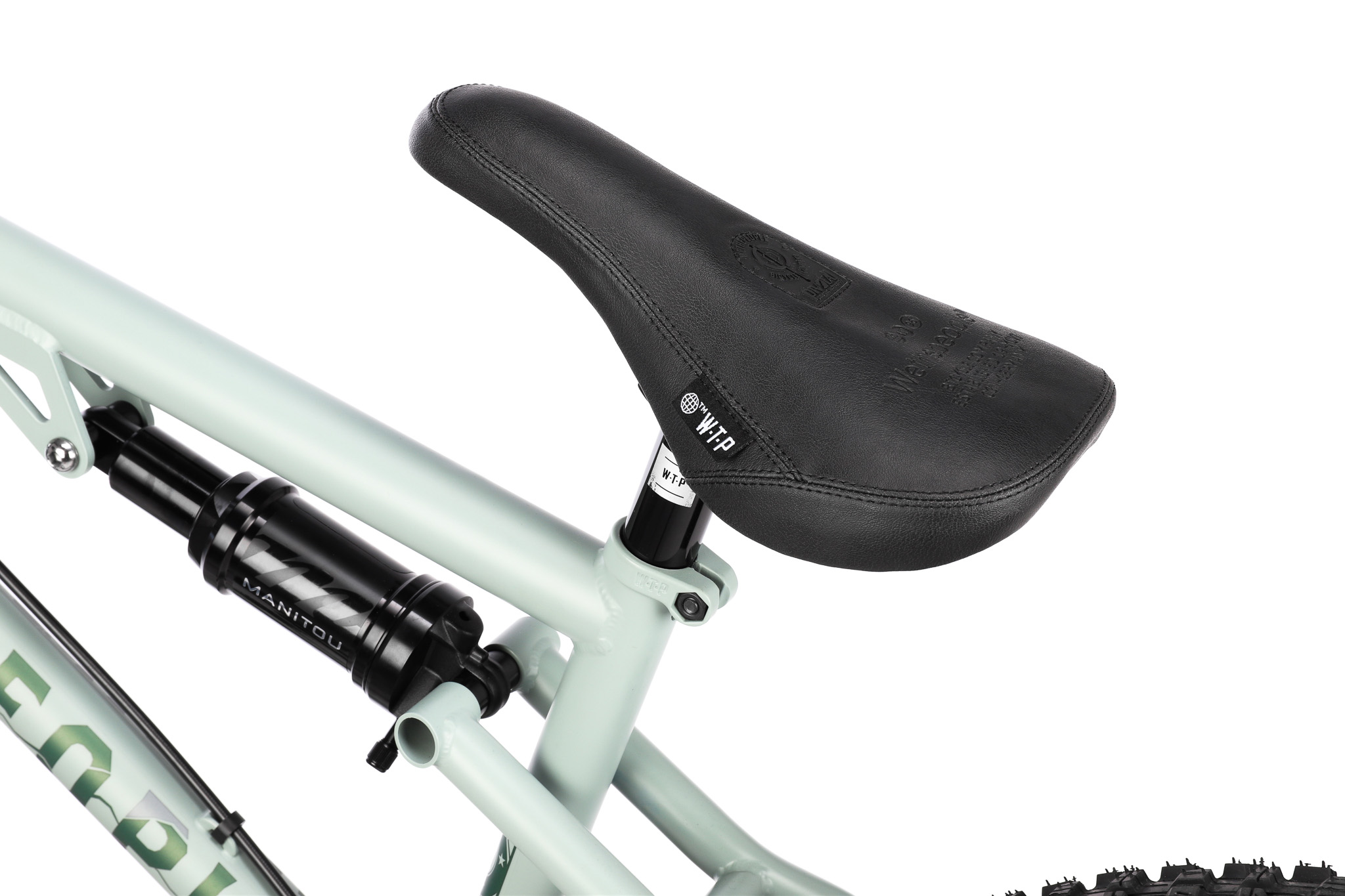

ÉCLAT "BIOS" pivotal seat, slim padded

SEAT POST:

WETHEPEOPLE "TEAM" pivotal seat post, 200mm long, 6061-T6 alloy

SEAT CLAMP:

integrated seat clamp

TIRES:

KENDA "KAOS" tires, 20"x 2.6", front & rear

PEGS:

WEIGHT:

14.5kg / 31.97lbs

COLORS:

matt black

GEOMETRY

FRAME

A - TOP TUBE LENGTH:

21.5"

B - CHAIN STAY LENGTH:

14.1"-14.8"

C - HEAD TUBE ANGLE:

71°

D - SEAT TUBE ANGLE:

70°

E - BB HEIGHT:

12.15"

F - STANDOVER HEIGHT:

9.5"

HANDLE BAR

G - BAR RISE:

H - BAR WIDTH:

29.15"

I - BAR BACK SWEEP:

11°

J - BAR UP SWEEP:

2.5°
