CRS 18"



CRS 18" COMPLETE BIKE

The CRS 18” is a stacked 18" machine which is available in two brand new jaw dropping colourways, and comes loaded with parts most bikes would dream about having. With Éclat (Surge) plastic pedals, a crmo down tube frame, a fully sealed Salt cassette hub and the NEW Salt (Tracer) 18” tires - the CRS 18” has never been so dialed.


GALLERY

COLORWAY: MATT ANTHRACITE

CLICK IMAGE FOR FULL SIZE GALLERY

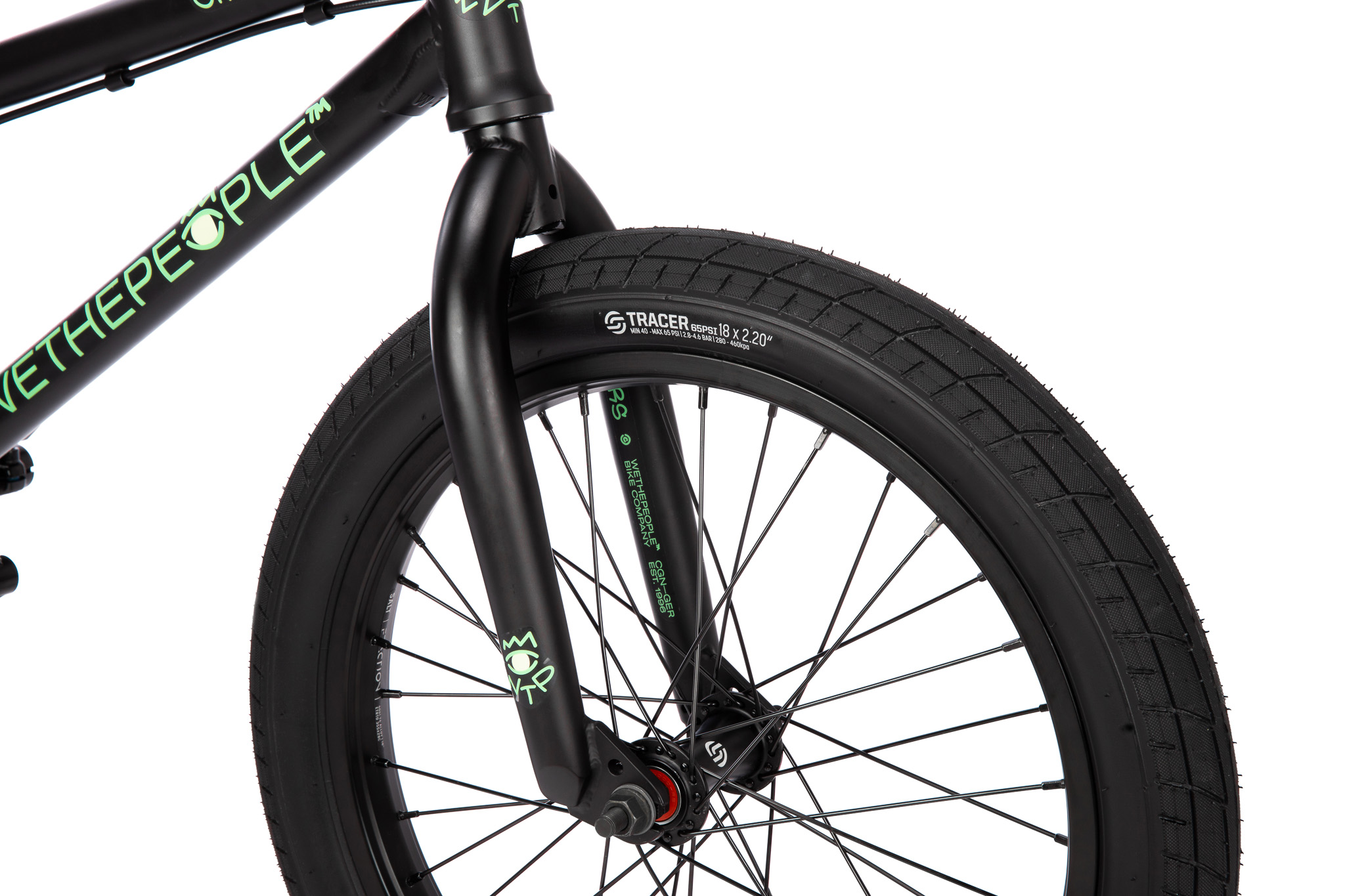

COLORWAY: MATT BLACK

CLICK IMAGE FOR FULL SIZE GALLERY


SPECIFICATIONS

Frame: 4130 crmo down tube, 1020 hi-ten

Fork: SALT “AM 18” fork, 1020 hi-ten , 4130 crmo steerer, 26mm offset

Bars: SALT "CRS 18" bar, 1020 hi-ten

Grips: WETHEPEOPLE “Arrow 146” grips

Stem: SALT “Rookie” top loading stem, 45mm reach

Headset: SALT “PRO” int. headset, sealed bearing

Gyro: holes for removable gyro tabs

Lever: SALT “AM” alloy brake lever

Brakes: SALT “AM” alloy u-brake rear

Cranks: SALT “Rookie” tubular 3pc crank crmo 152mm, 8 Spline

BB: SALT “Spanish” 19mm, press fit, sealed bearing

Pedals:  ÉCLAT “Surge” nylon/fiberglass pedals

Chain: SALT “AM” chain, 510h type

Sprocket SALT “Gateway” steel 25t sprocket

Driver: 9t, 1pc cassette driver, sealed bearing

Front Hub: SALT “AM” alloy hub, loose ball 3/8”s axle, 28h

Rear Hub: SALT “AM” cassette hub, full sealed, 9t, 14mm axle, 28h

Hubguards: -

Front Rim: SALT “Fraction” rim, straight single wall, 28h

Rear Rim: SALT “Fraction” rim, straight single wall, 28h

Seat: WETHEPEOPLE “CRS 18” pivotal seat

Seat Post: SALT "AM" pivotal seat post

Seat Clamp: SALT “AM” alloy seat clamp

Tires: SALT “Tracer” 2.2" front & rear

Pegs: -

Weight: 10.74kg / 23.69lbs


FRAME GEOMETRY

A: Top Tube Length:  18”

B: Chain Stay Length: 12.2”

C: Head Tube Angle: 75°

D: Seat Tube Angle: 71.5°

E: Bottom Bracket Height: 10.75”

F: Stand Over Height: 7.5”


BAR GEOMETRY

G: Bar Rise: 7.9“

H: Bar Width: 26.5”

I: Bar Back Sweep: 10°

J: Bar Up Sweep:
