CRS FC



CRS FC COMPLETE BIKE

A full freecoaster upgrade on our already stacked CRS complete in the form of a Salt (PRO) sealed freecoaster hub. Laced together with all the amazing new Salt parts like the Tracer tires and EX grips that have made the CRS such a winner, this unstoppable fakie machine is ready for pretty much any trick you can throw at it.

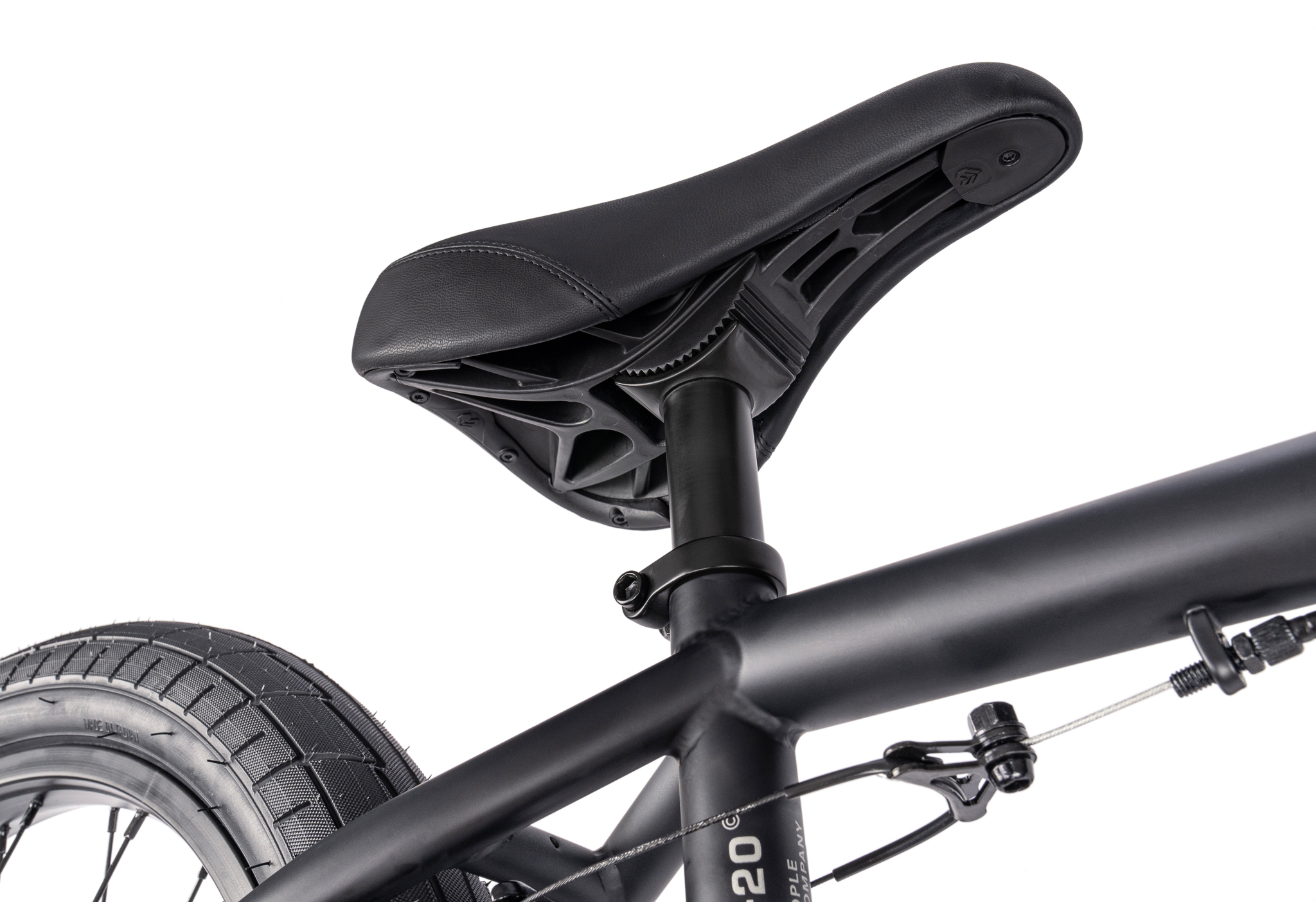

GALLERY

COLORWAY: TOOTHPASTE GREEN

CLICK IMAGE FOR FULL SIZE GALLERY


SPECIFICATIONS

Frame: 4130 crmo down tube, 1020 hi-ten

Fork: SALT “AM 20” fork, 1020 hi-ten , 4130 crmo steerer, 26mm offset

Bars: SALT "CRS 20" bar, 1020 hi-ten

Grips: SALT "EX" 154mm flangeless grips

Stem: SALT “PRO” top load stem, 50mm reach

Headset: SALT “PRO” int. headset, sealed bearing

Gyro:  holes for removable gyro tabs

Lever: SALT “AM” alloy brake lever

Brakes: SALTPLUS “Geo XL” alloy u-brake rear

Cranks: SALT “ROOKIE” tubular 3pc crank crmo 165mm, 8 Spline

BB: SALT “MID” 19mm, press fit, sealed bearing

Pedals:  ÉCLAT “SURGE” nylon/fiberglass pedals

Chain: SALT “AM” chain, Z1 type

Sprocket SALT “GATEWAY” steel 25t sprocket

Driver: 9t, 1pc freecoaster driver, sealed bearing

Front Hub: SALT “AM” alloy hub, loose ball 3/8”s axle, 36h

Rear Hub: SALT “PRO” freecoaster hub, full sealed, 9t, 14mm axle, 36h

Hubguards: none, rear hub compatible with Wethepeople Helix Freecoaster guards

Front Rim: SALT “FRACTION” rim, straight single wall, 36h

Rear Rim: SALT “FRACTION” rim, straight single wall, 36h

Seat: ECLAT “BIOS” Mid padded pivotal seat

Seat Post: SALT "AM" pivotal seat post

Seat Clamp: ÉCLAT “PURGE” 6061-T6 forged alloy seat clamp

Tires: SALT “TRACER” 2.35" front & rear

Pegs: -

Weight: 26.67lbs / 12.1kg


FRAME GEOMETRY

A: Top Tube Length:  20.25”

B: Chain Stay Length: 12.75”

C: Head Tube Angle: 75°

D: Seat Tube Angle: 71.5°

E: Bottom Bracket Height: 11.75”

F: Stand Over Height: 8.25”


BAR GEOMETRY

G: Bar Rise: 8.8“

H: Bar Width: 29.1”

I: Bar Back Sweep: 11°

J: Bar Up Sweep:
