SEED 16"



SEED COMPLETE BIKE

A carefully designed and well spec’d 16” bike, designed to make those first years in the sport as fun as they can possibly be. This scaled down machine has been lightened up this year to make it as easy as possible for a younger rider to reach their goals. The Seed is packed full of the latest Salt components like a Salt (Junior) 40mm reach stem, and Salt (Tracer) tires as well as the (AM) integrated headset and tapered fork. Two fantastic colour schemes round off what is without a doubt the best 16” complete bike we’ve ever made.


GALLERY

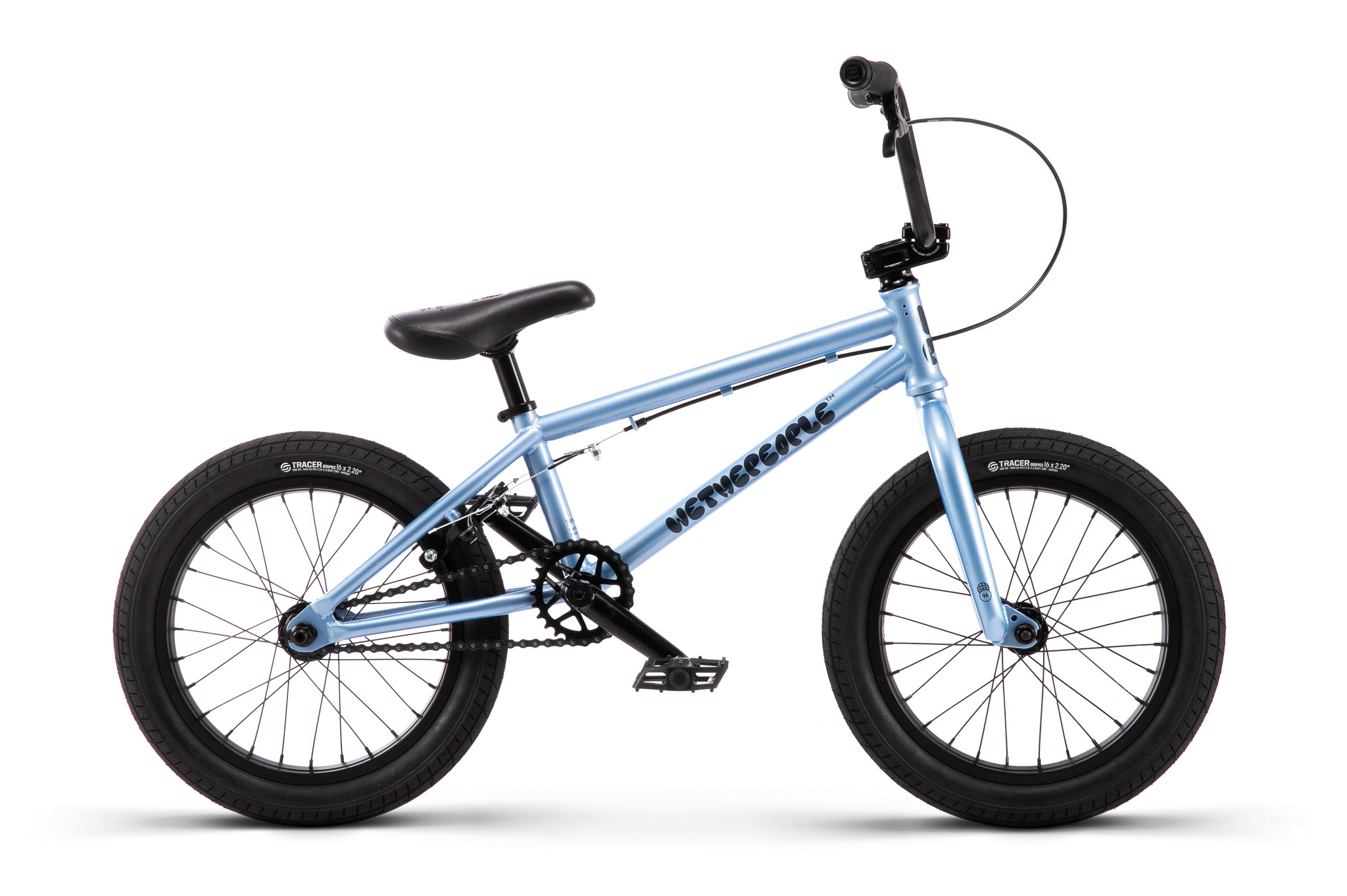

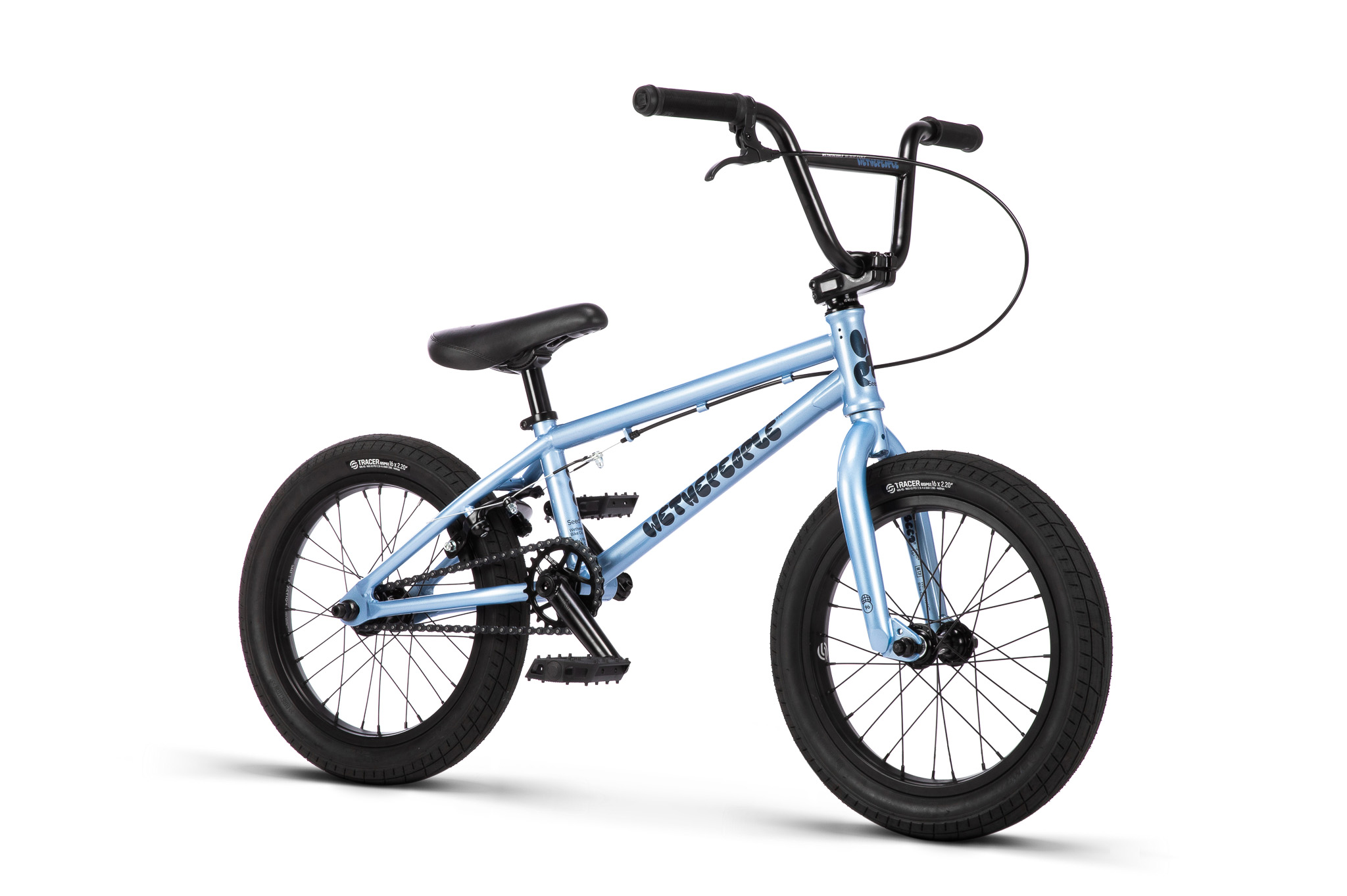

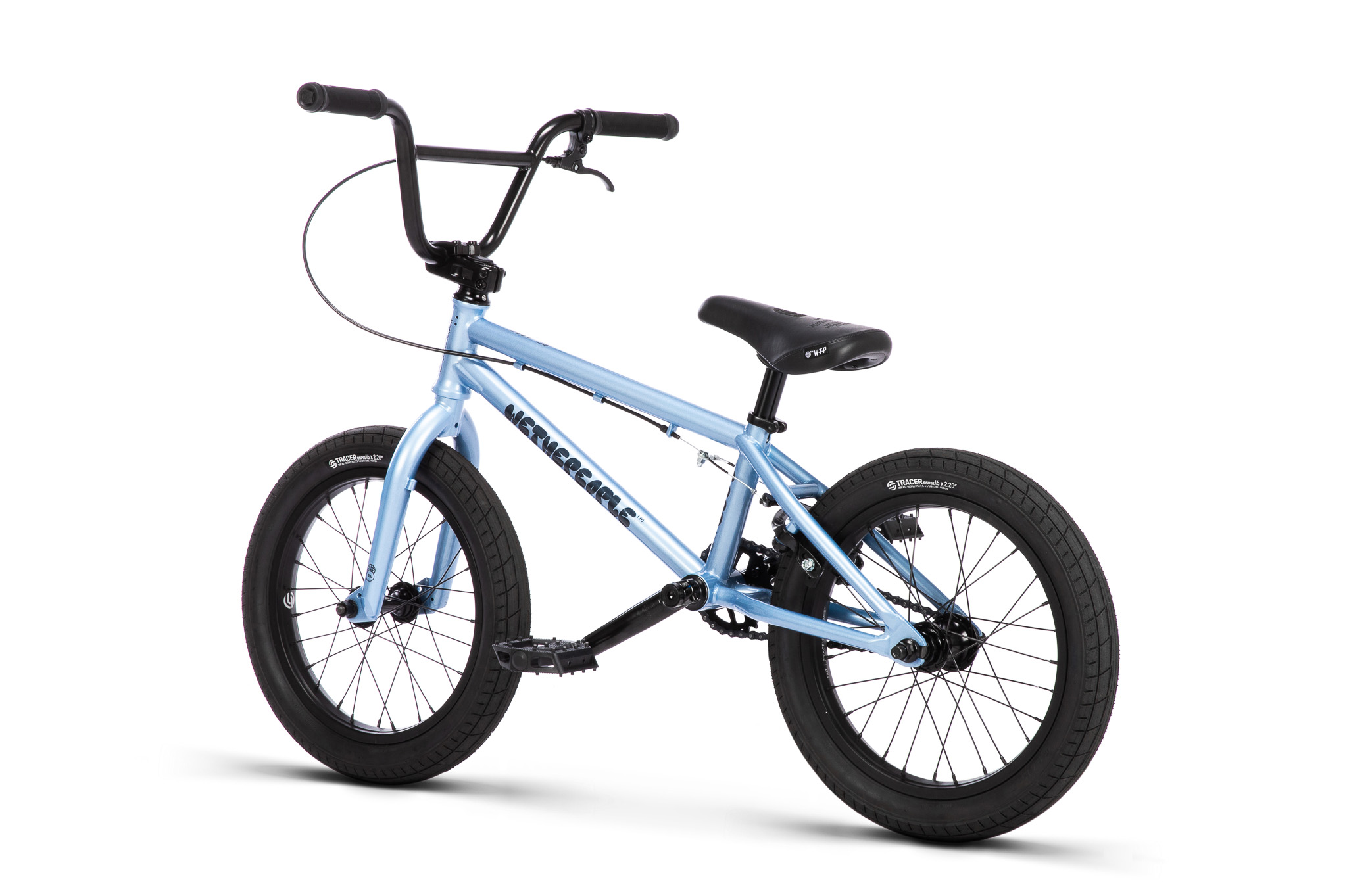

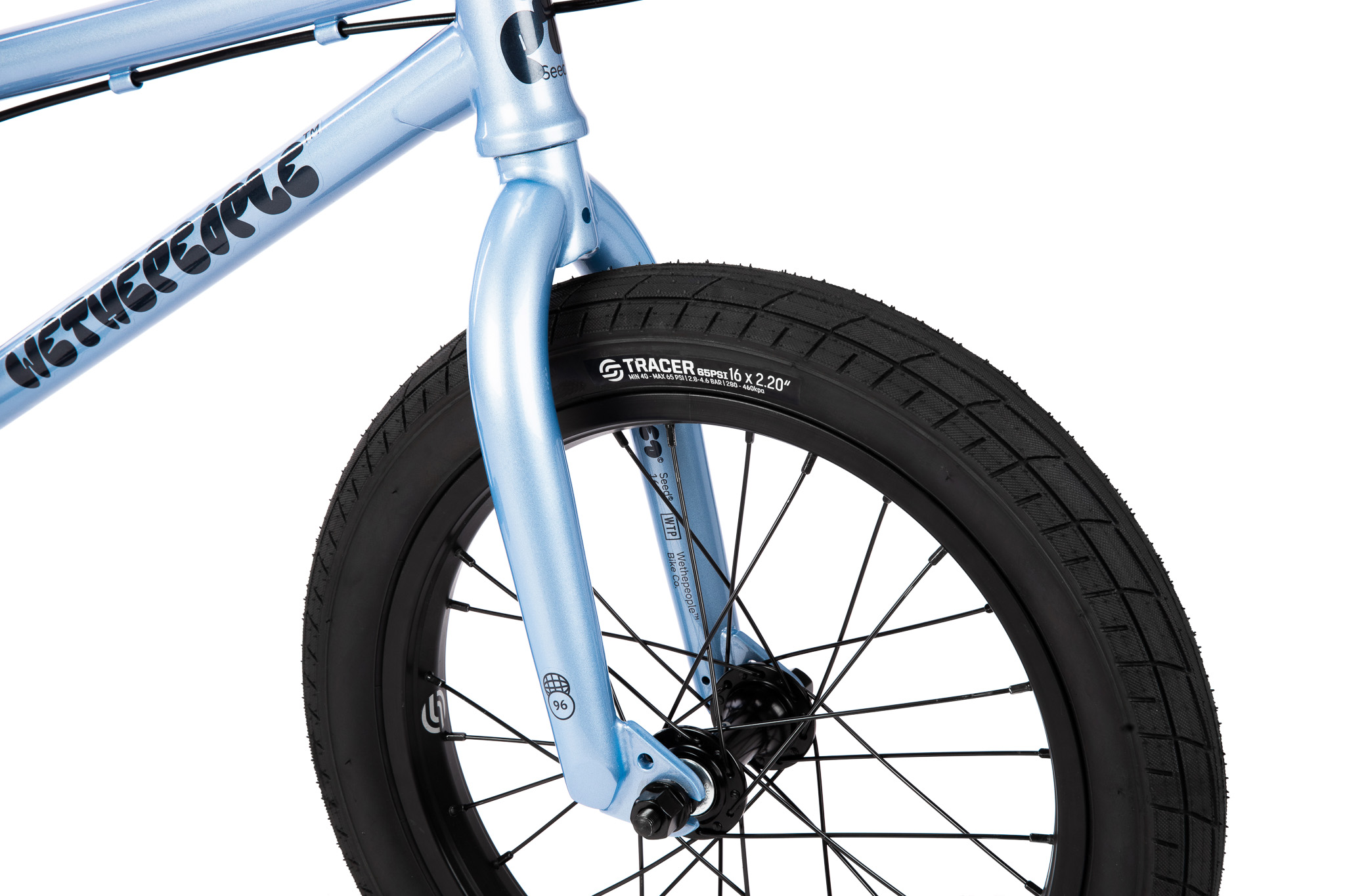

COLORWAY: METALLIC MINT

CLICK IMAGE FOR FULL SIZE GALLERY

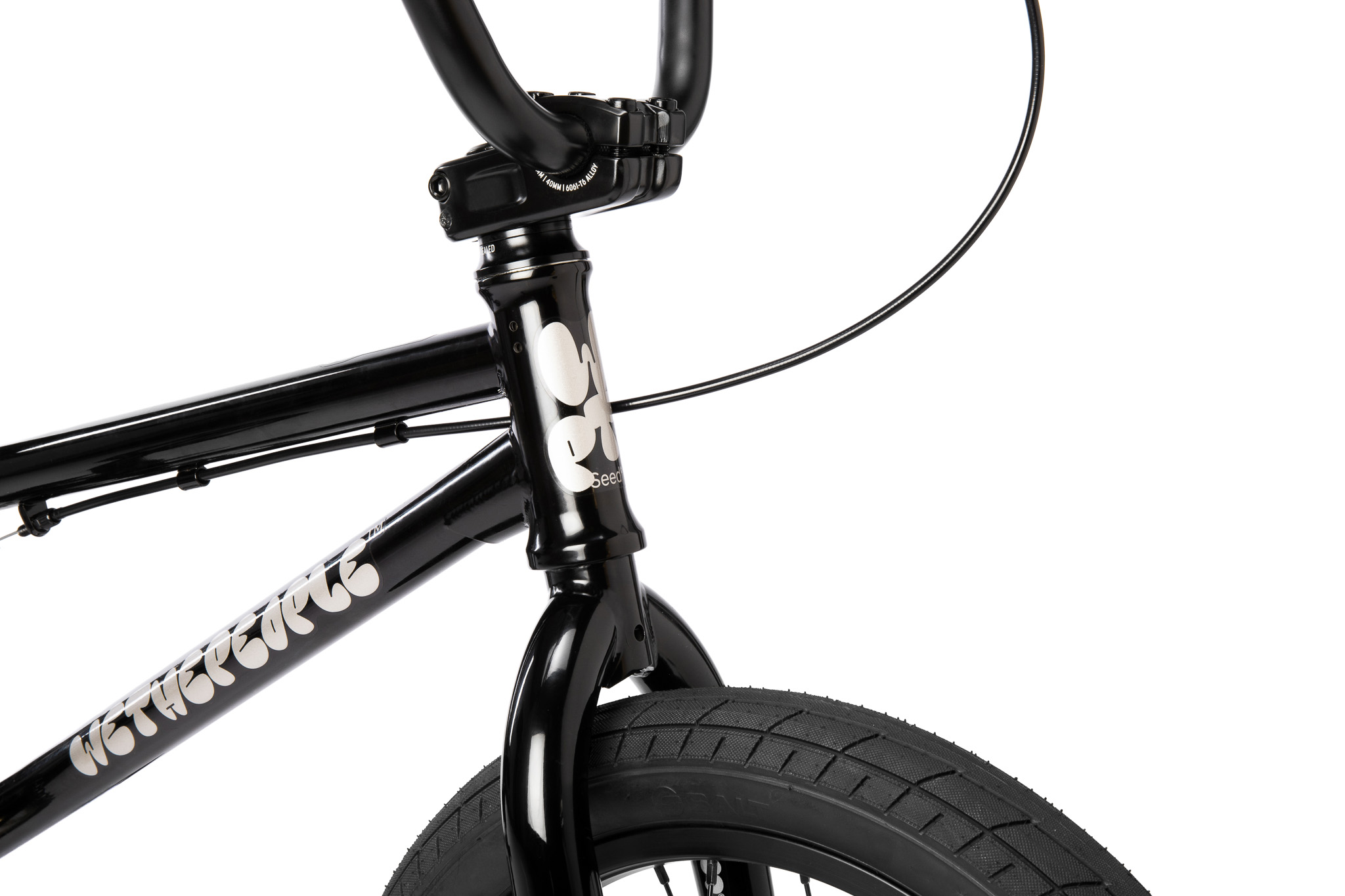

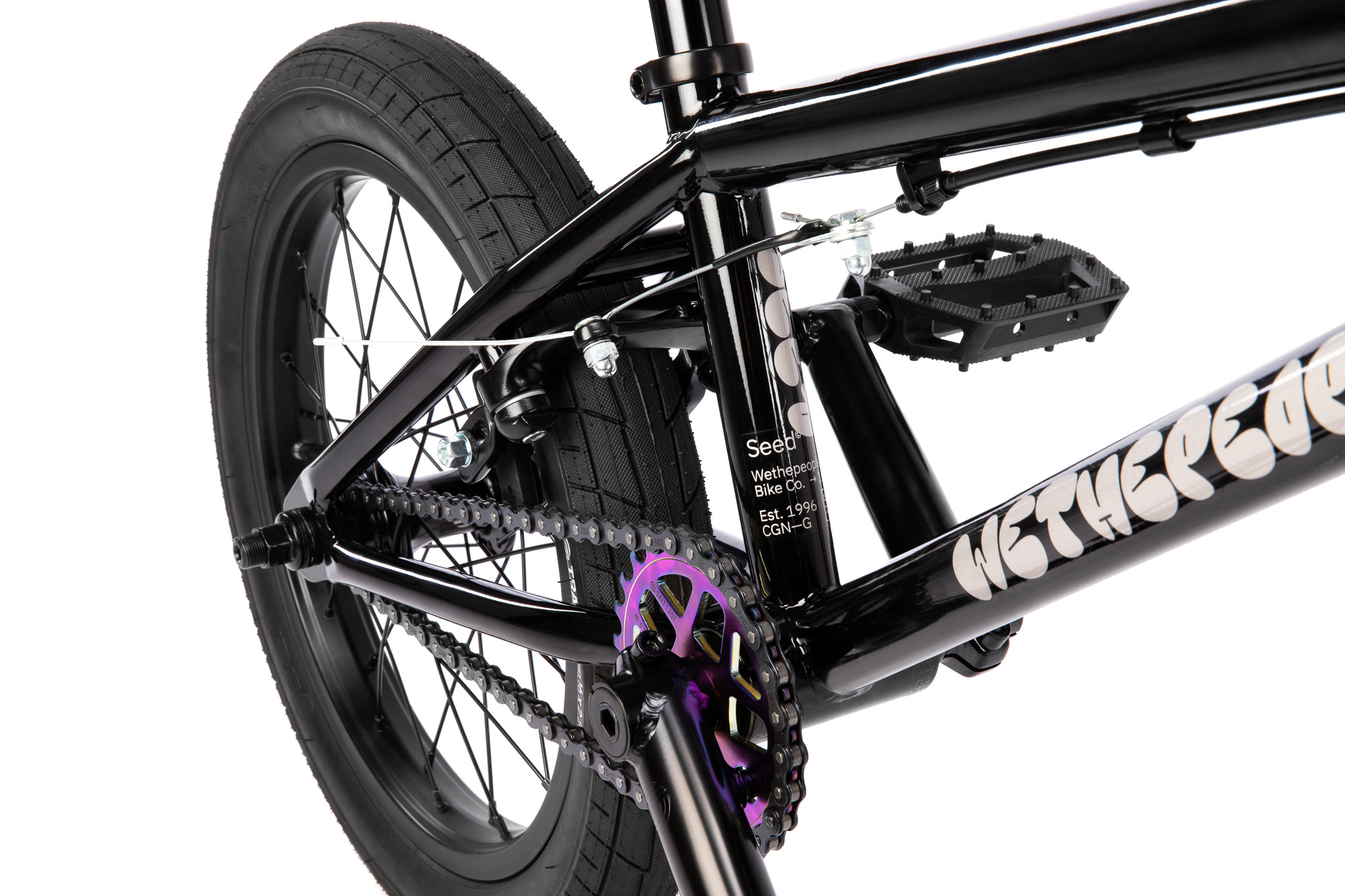

COLORWAY: MATT BLACK

CLICK IMAGE FOR FULL SIZE GALLERY


SPECIFICATIONS

Frame: 1020 hi-ten frame

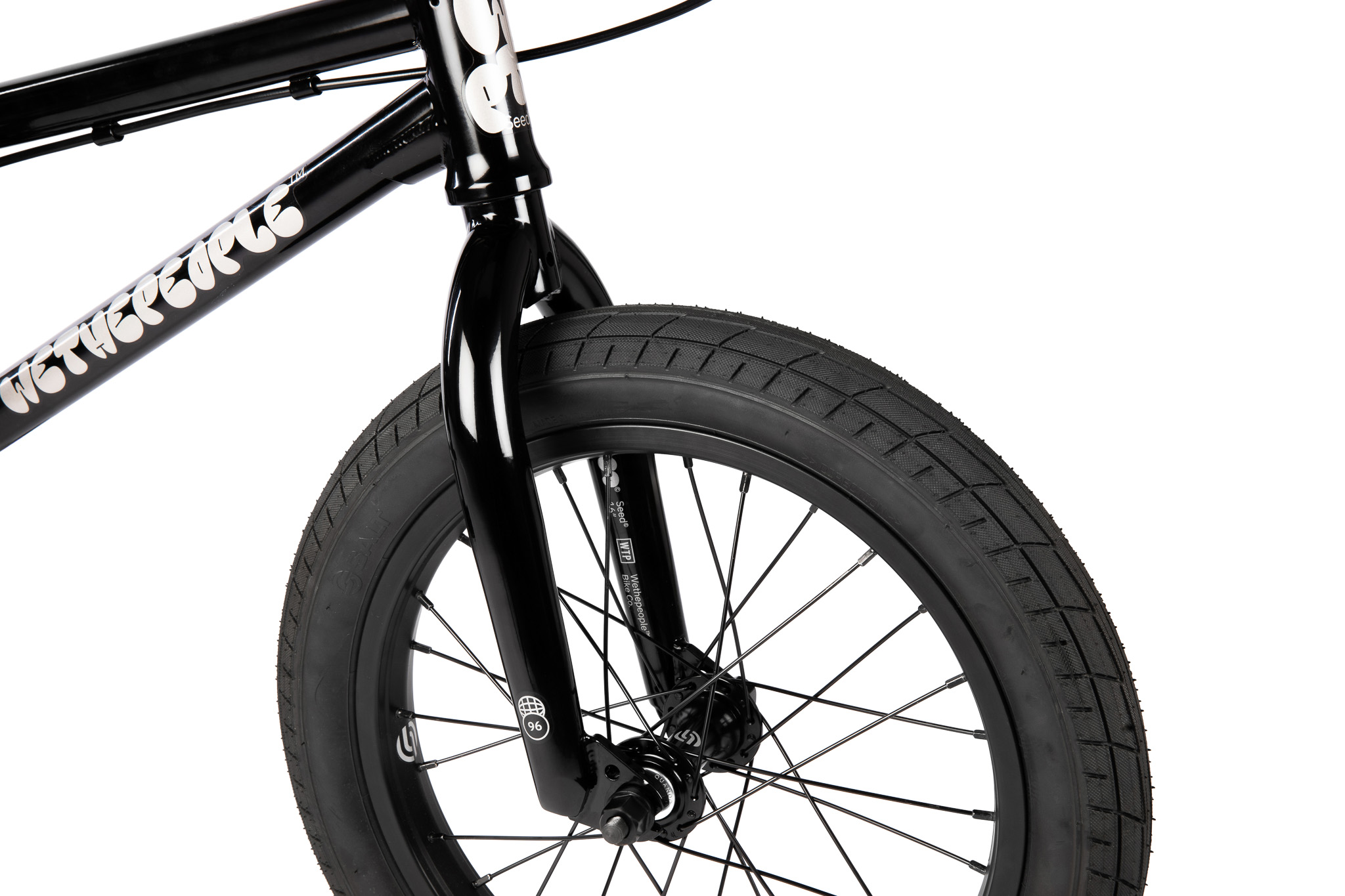

Fork: SALT “AM 16” fork, 1020 hi-ten, 4130 crmo steerer, 28mm offset

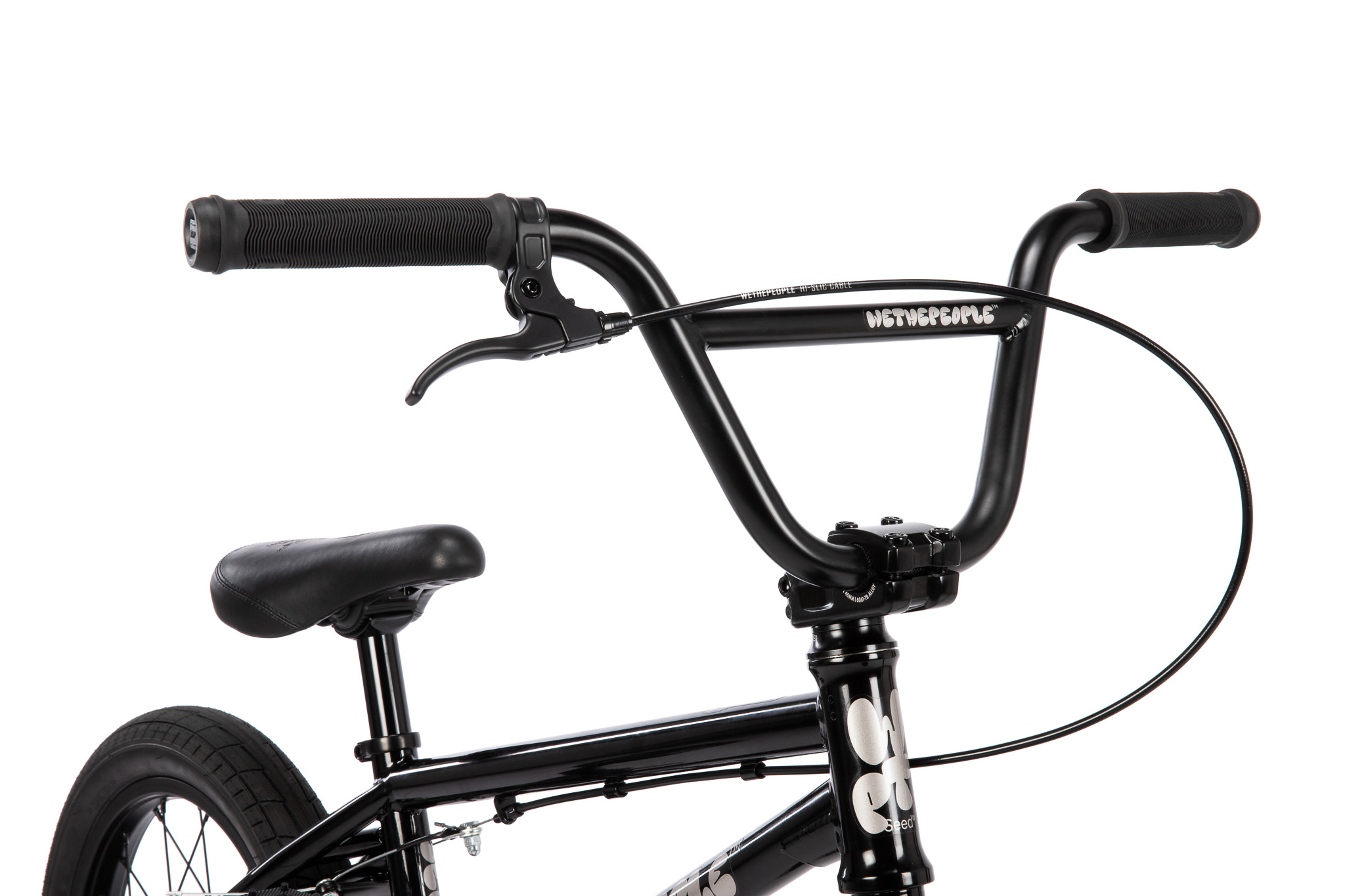

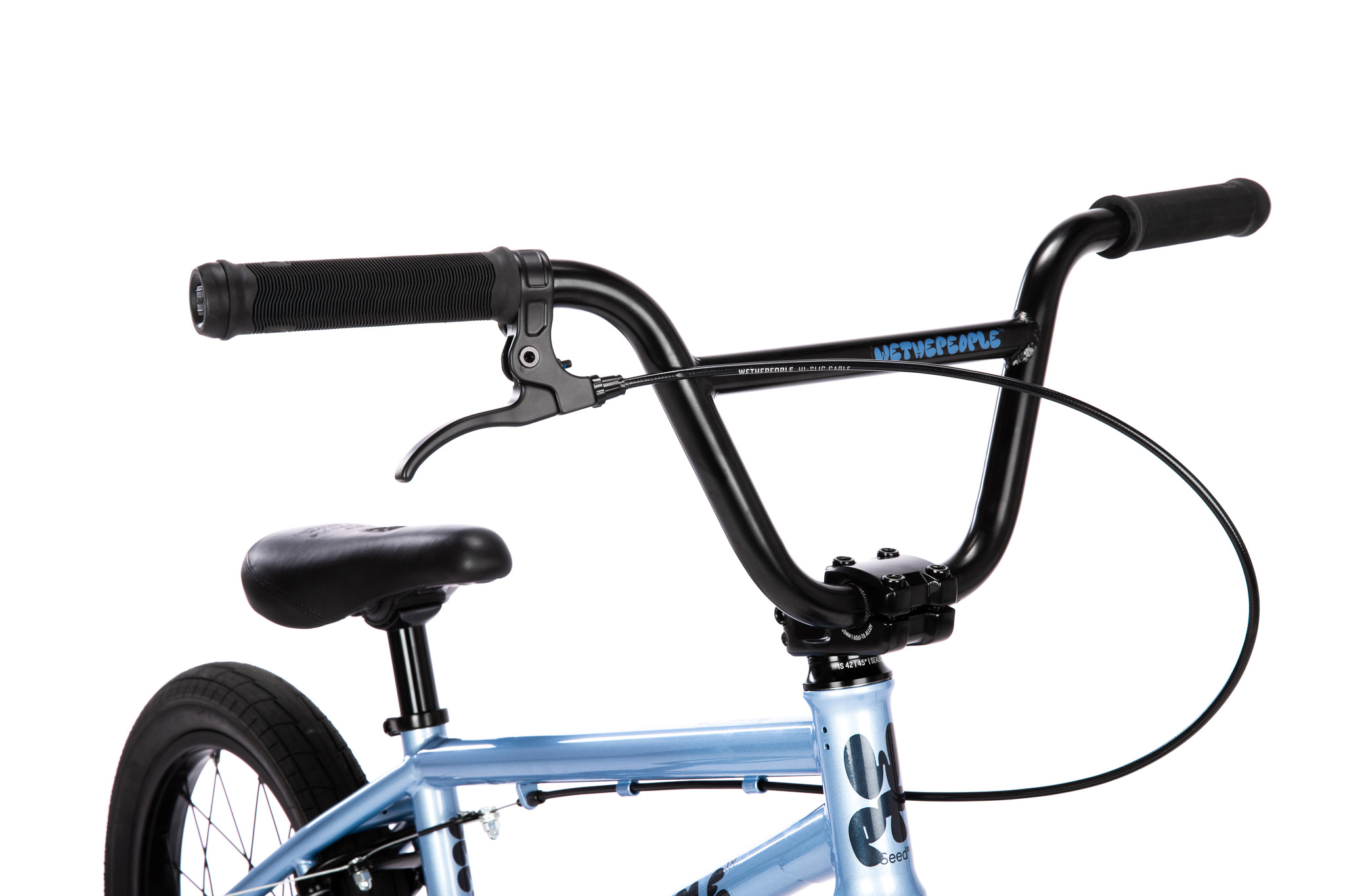

Bars: SALT "SEED" bar, 1020 hi-ten

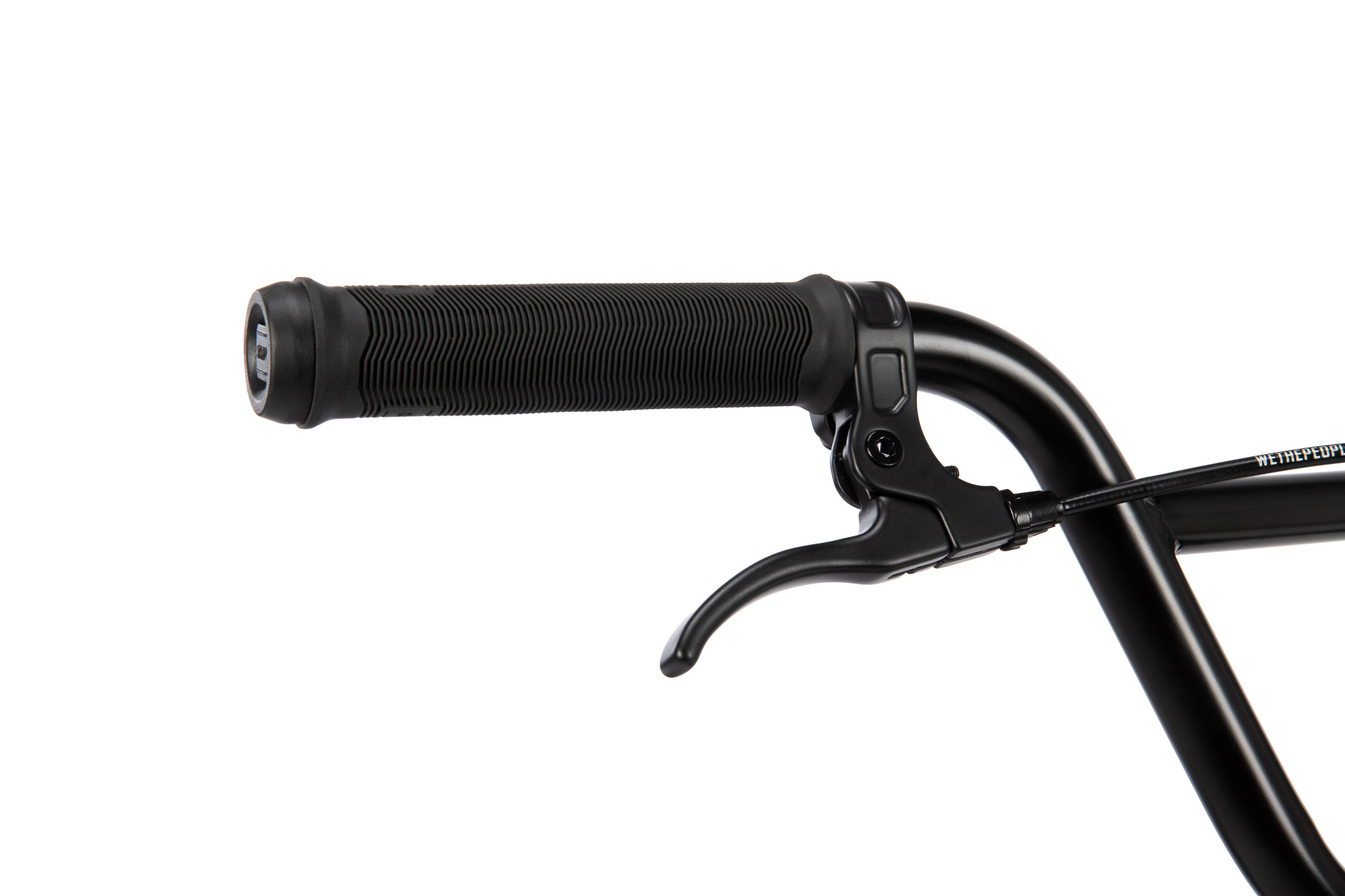

Grips: WETHEPEOPLE “Arrow 115” grips

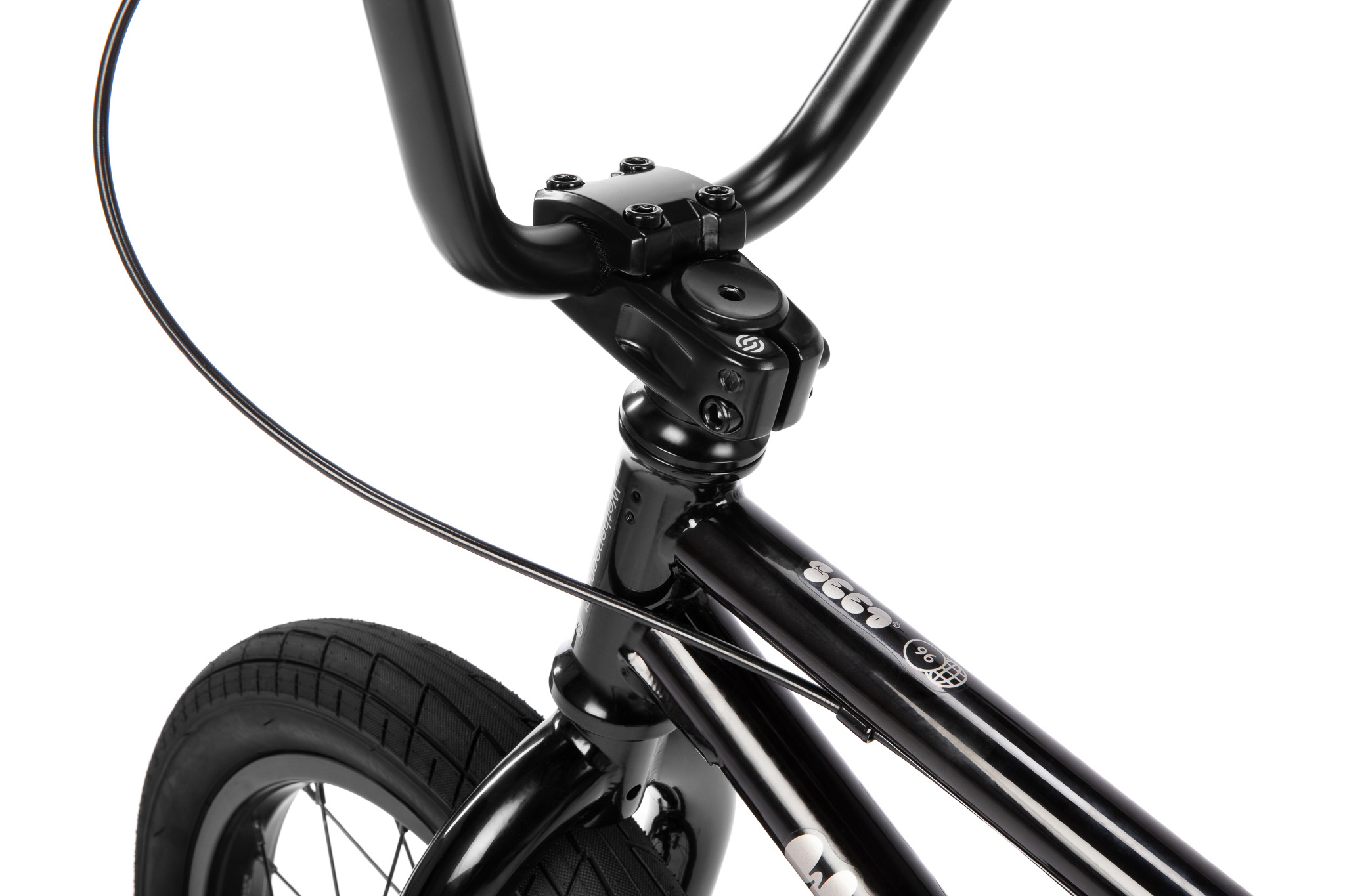

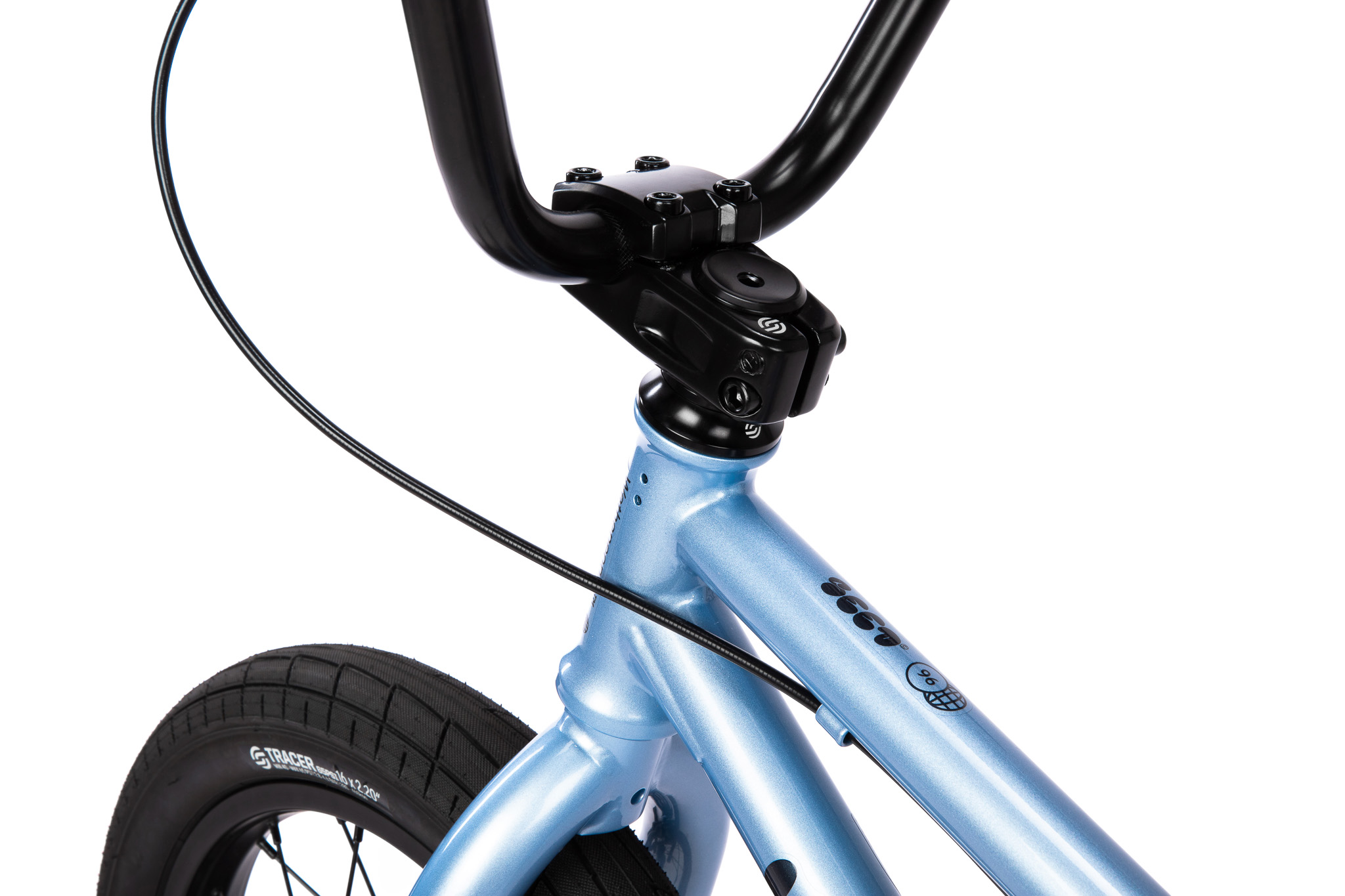

Stem: SALT “JUNIOR” top load stem, 40mm reach

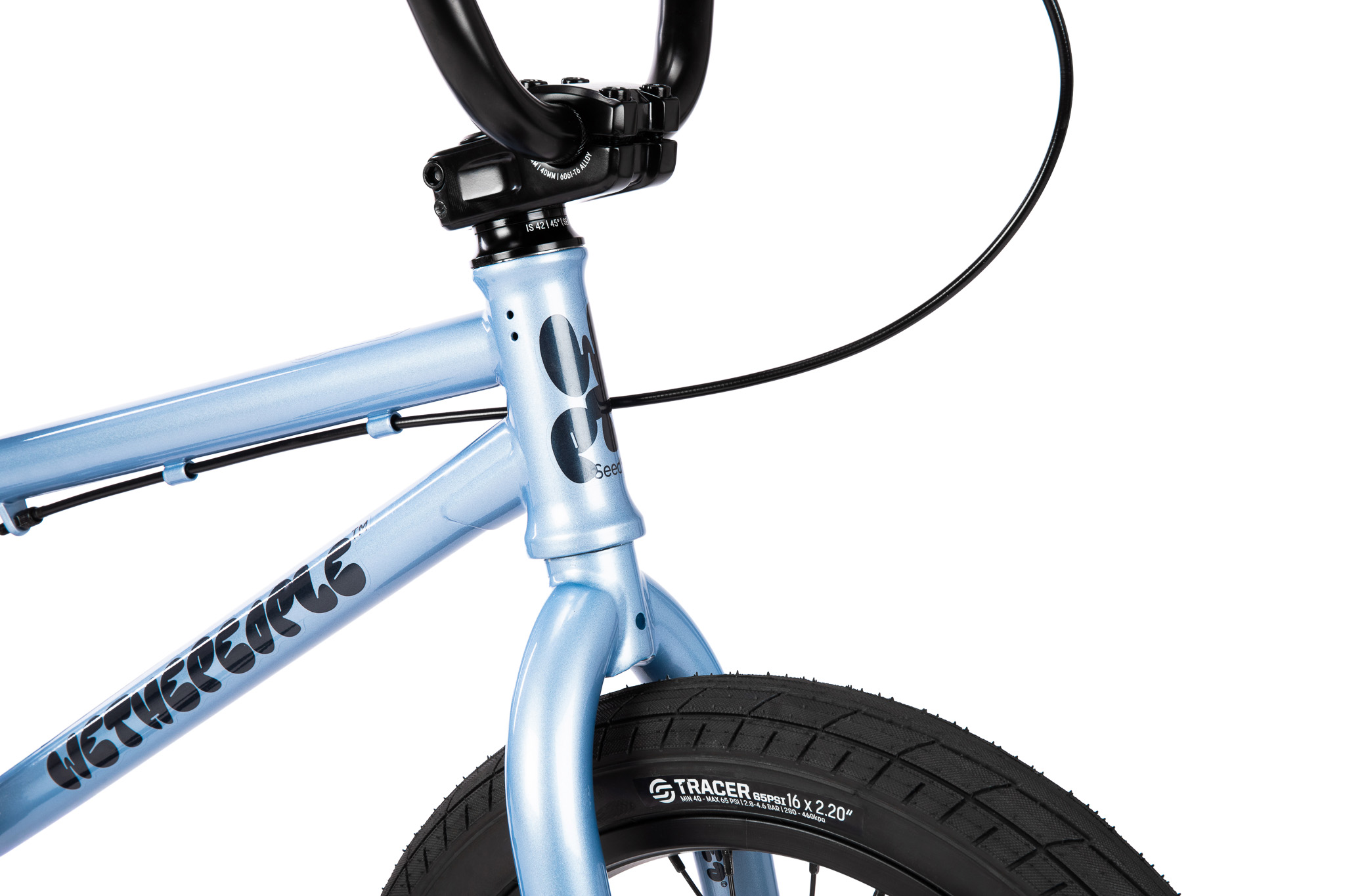

Headset: SALT “PRO” int. headset, sealed bearing

Gyro: holes for removable gyro tabs

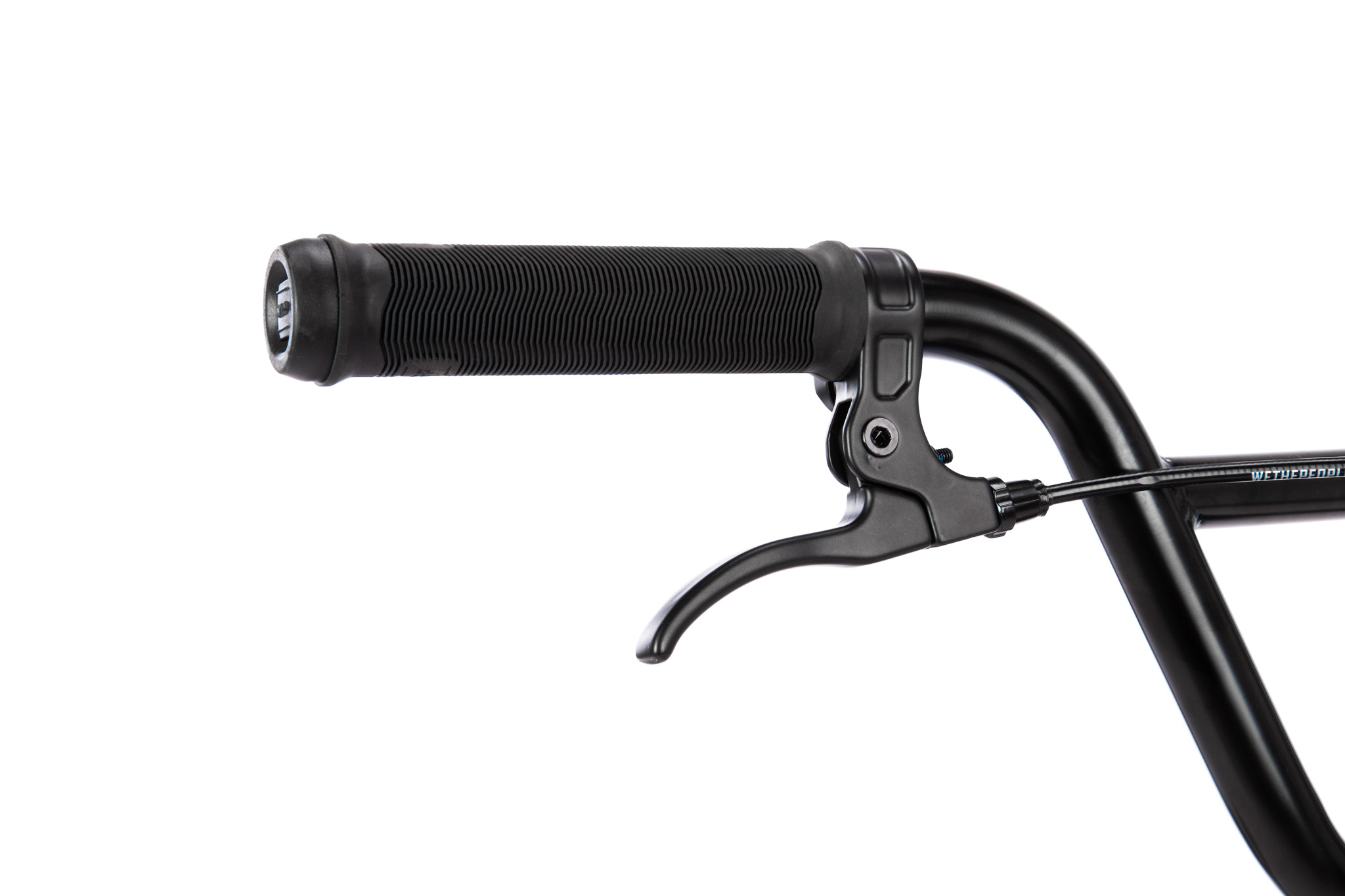

Lever: SALT “SEED” alloy brake lever

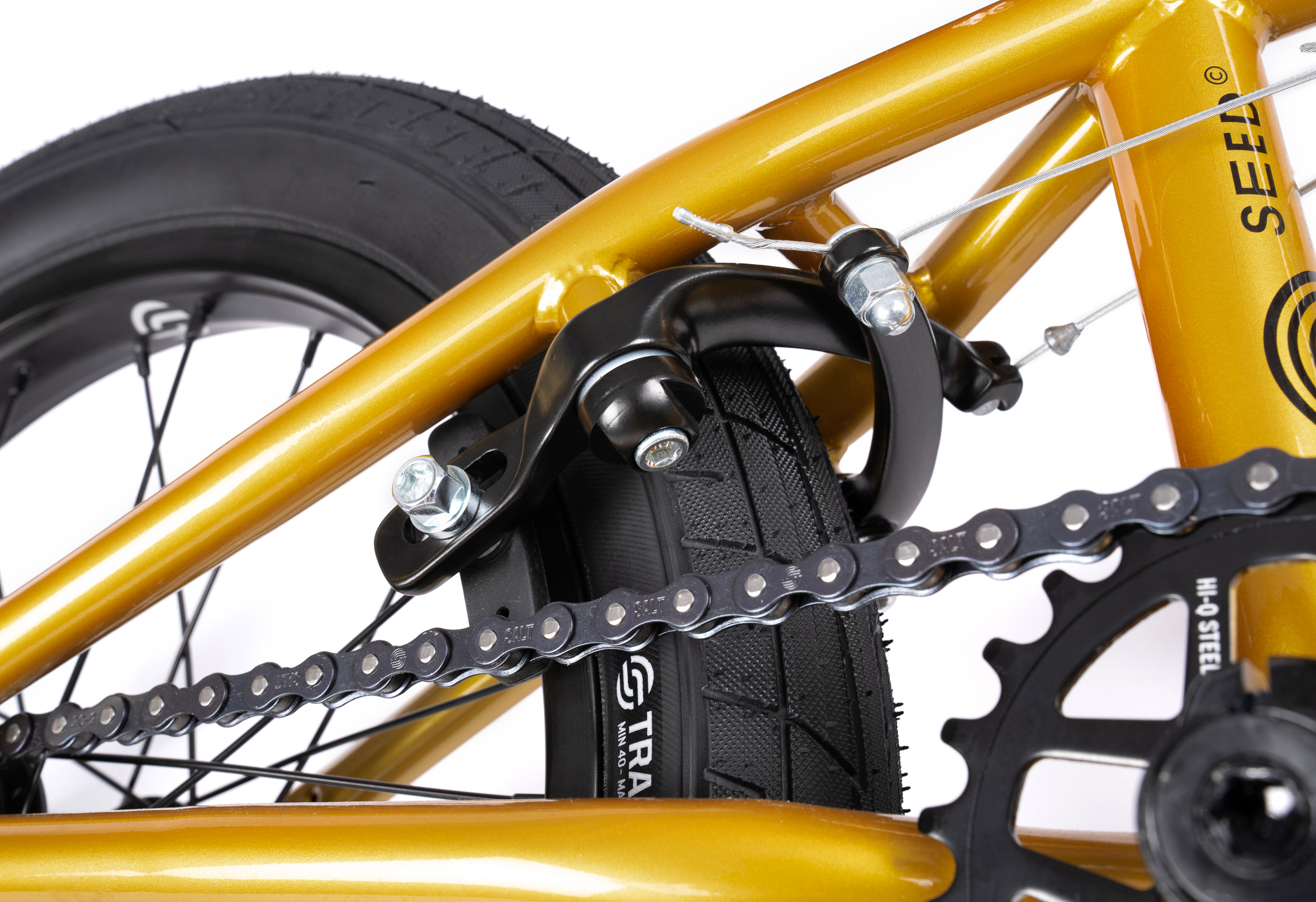

Brakes: SALT “AM” alloy caliper brake front / SALT “AM” alloy u-brake rear

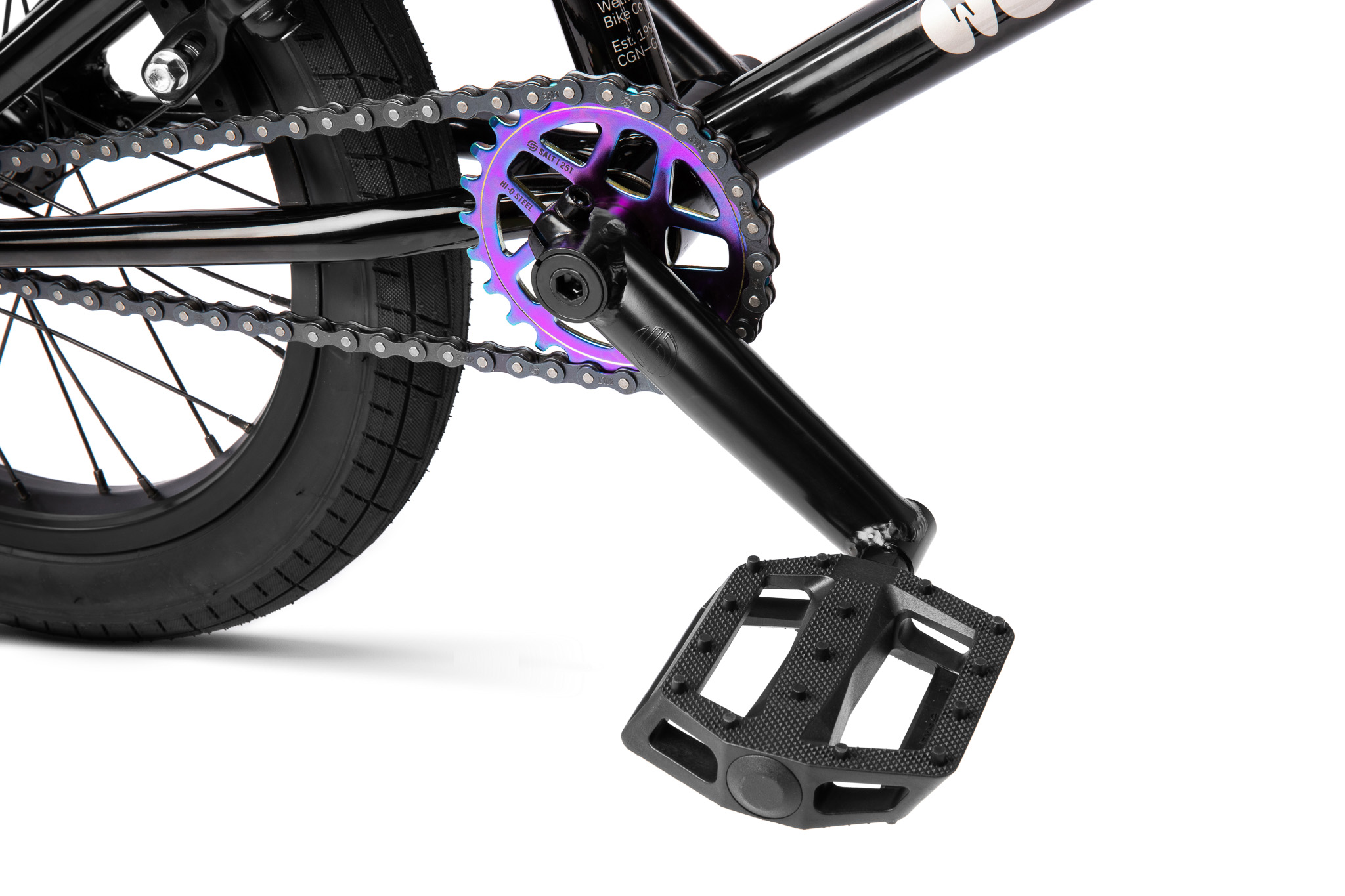

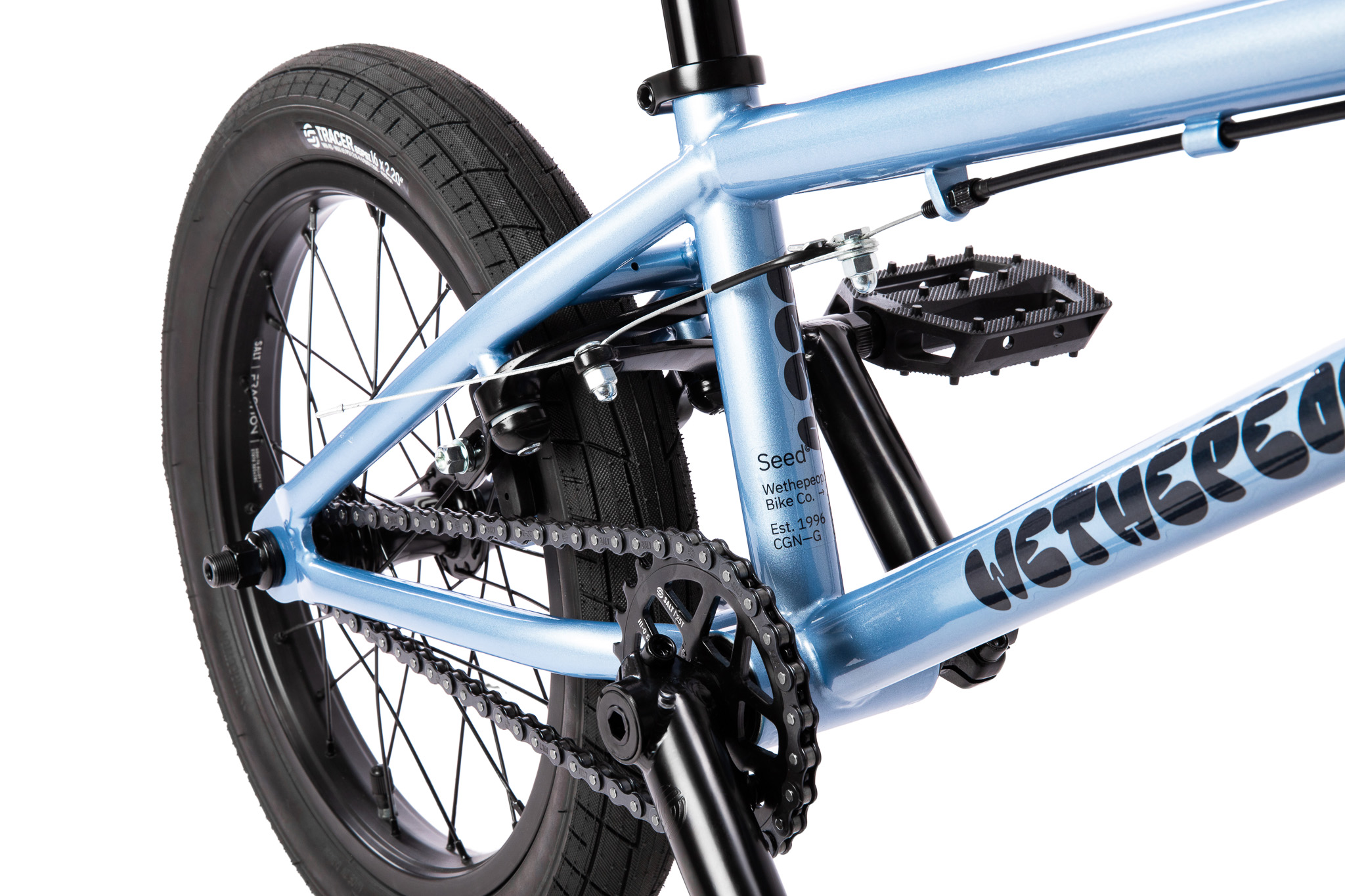

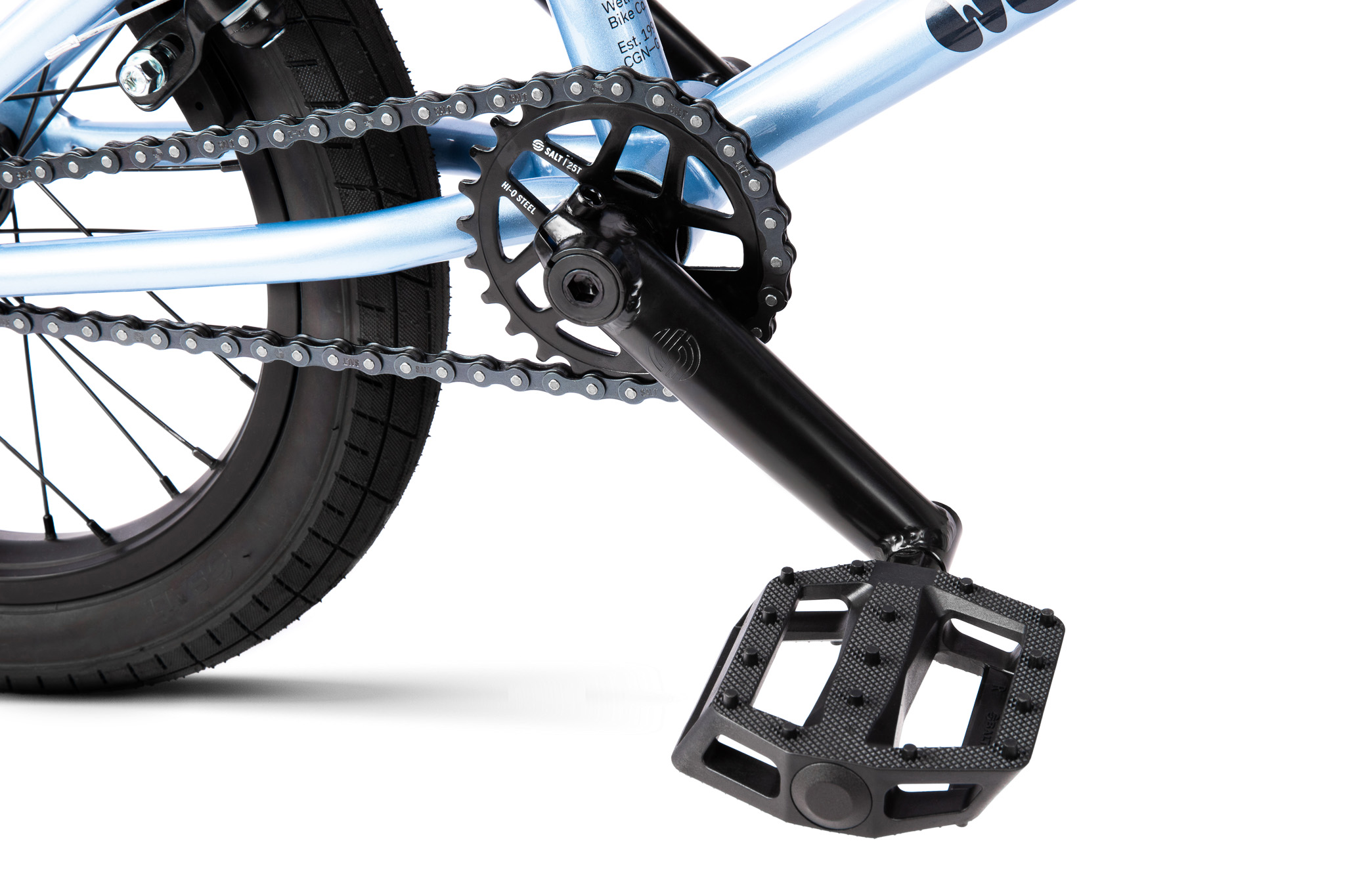

Cranks: SALT “ROOKIE” tubular 3pc, 8 spline, full crmo, 127mm

BB: SALT “SPANISH” 19mm, press fit, sealed bearing

Pedals: SALT “JUNIOR PRO” nylon/fiberglass pedals

Chain: SALT “AM” chain, Z1 type

Sprocket SALT "COMP" alloy 25t sprocket

Driver: 10t, 1pc cassette driver, loose ball bearing

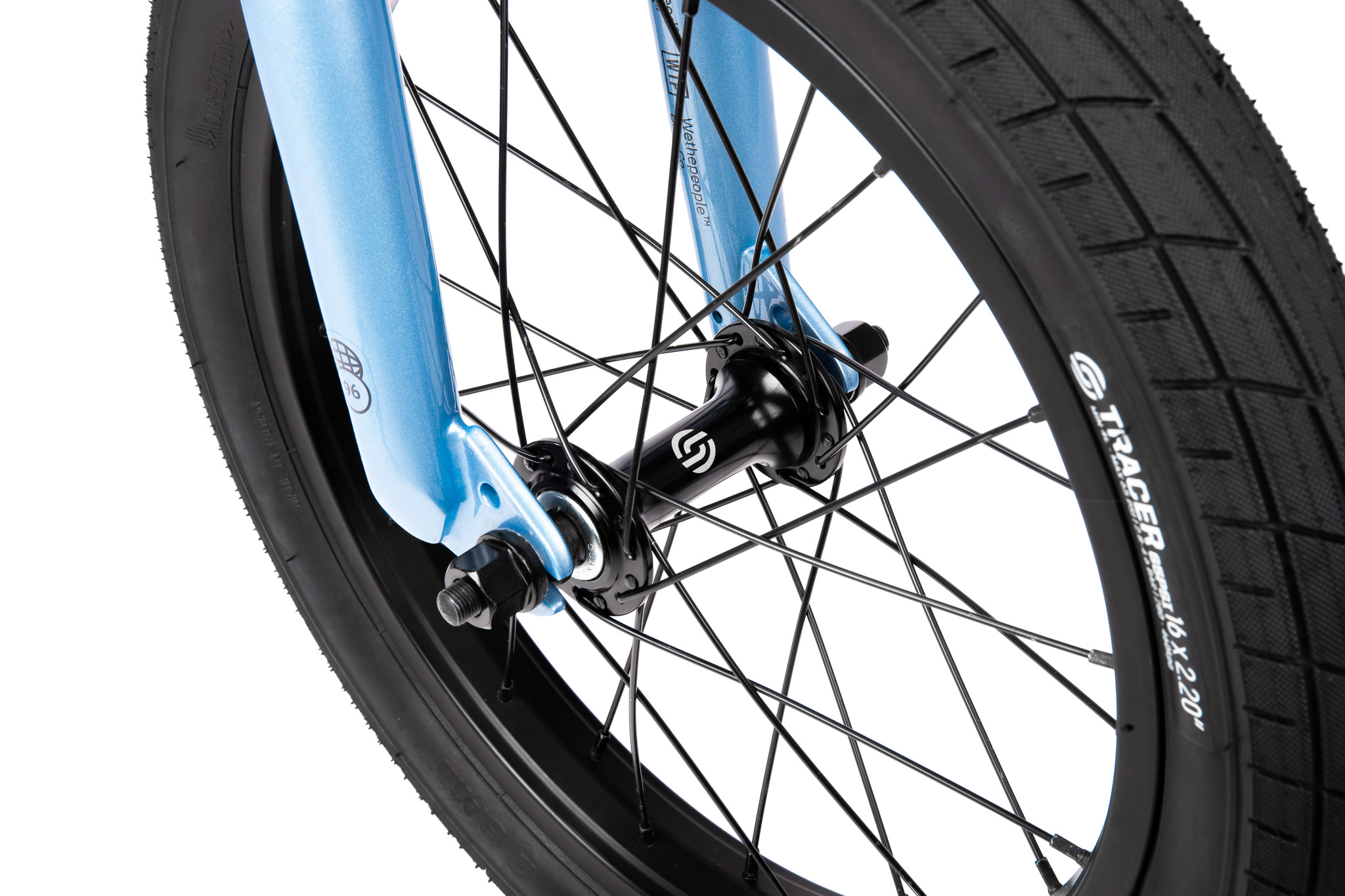

Front Hub: SALT “AM” alloy hub, loose ball 3/8”s axle, 28h

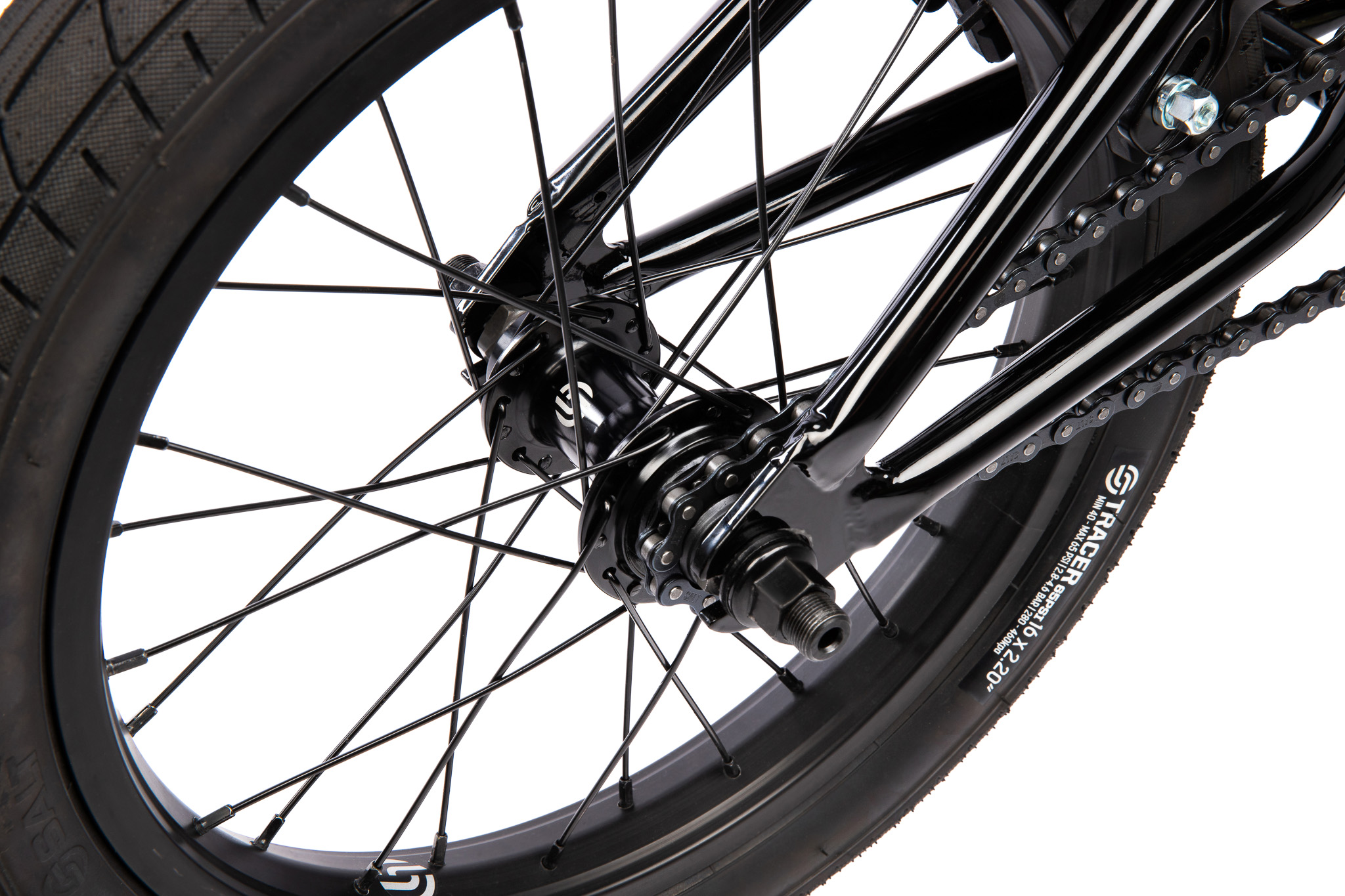

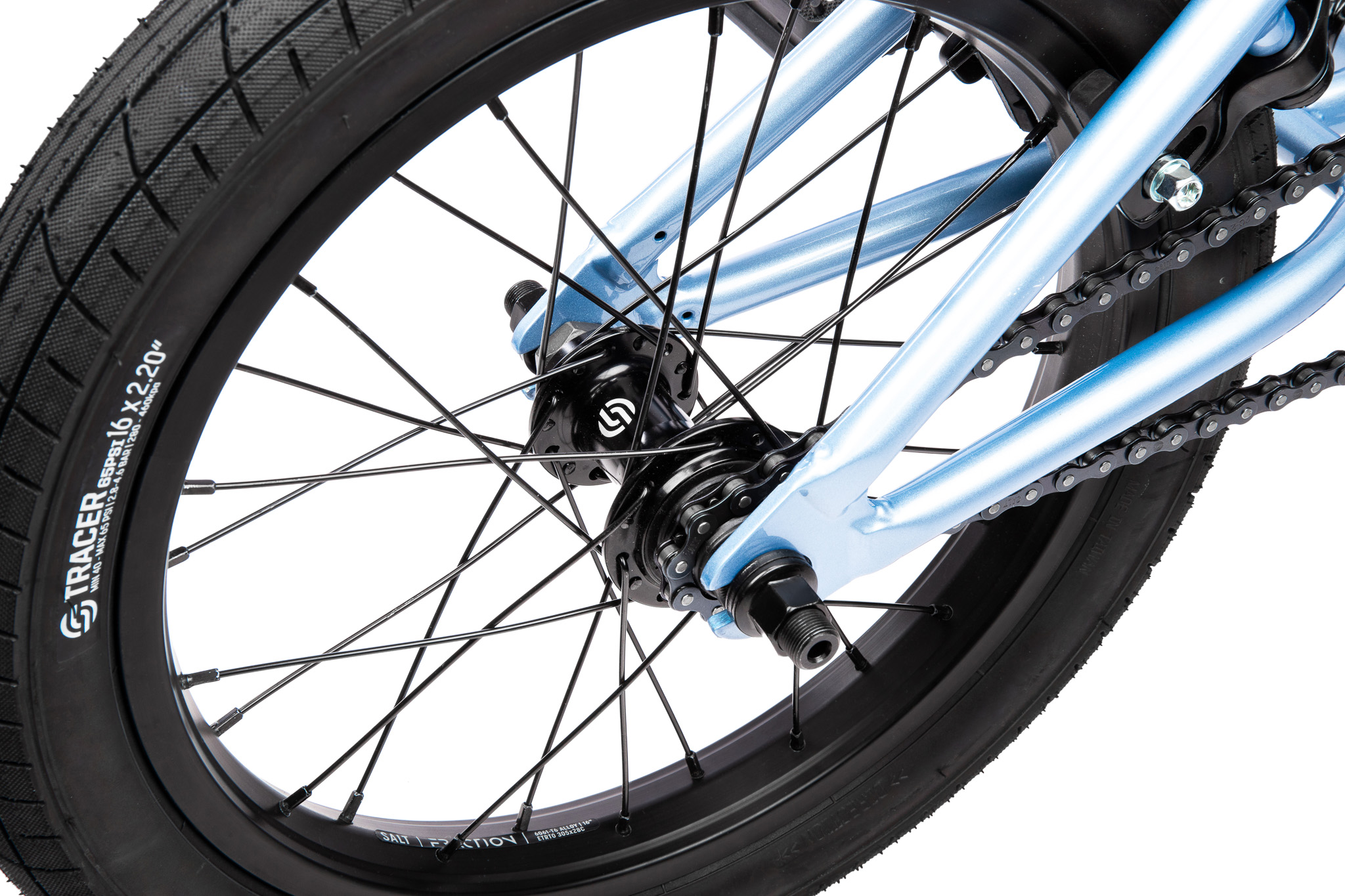

Rear Hub: SALT “AM” cassette hub, semi sealed,10t, 14mm hollow axle, 28h

Hubguards: -

Front Rim: SALT “FRACTION” rim, straight single wall, 28h

Rear Rim: SALT “FRACTION” rim, straight single wall, 28h

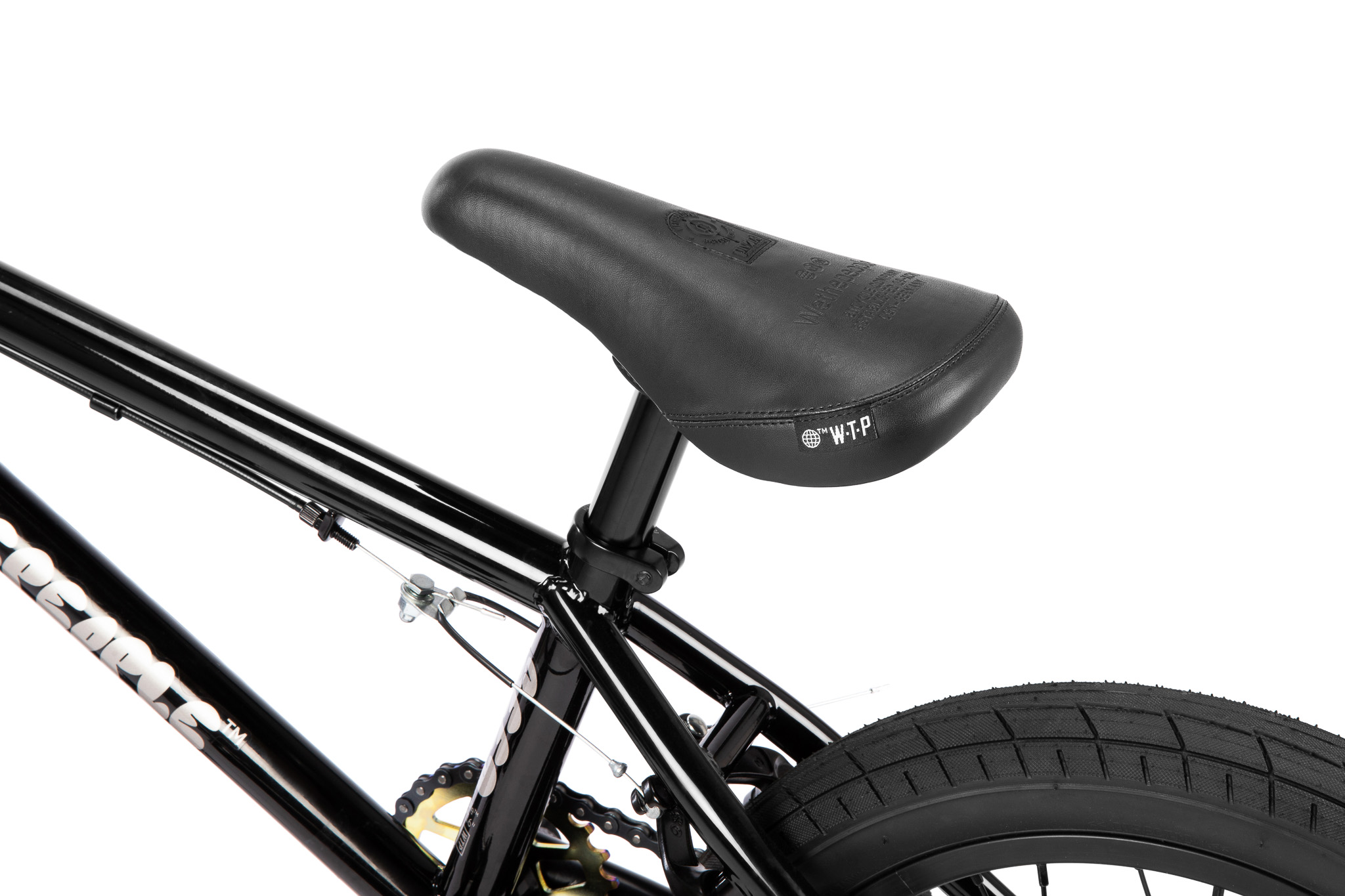

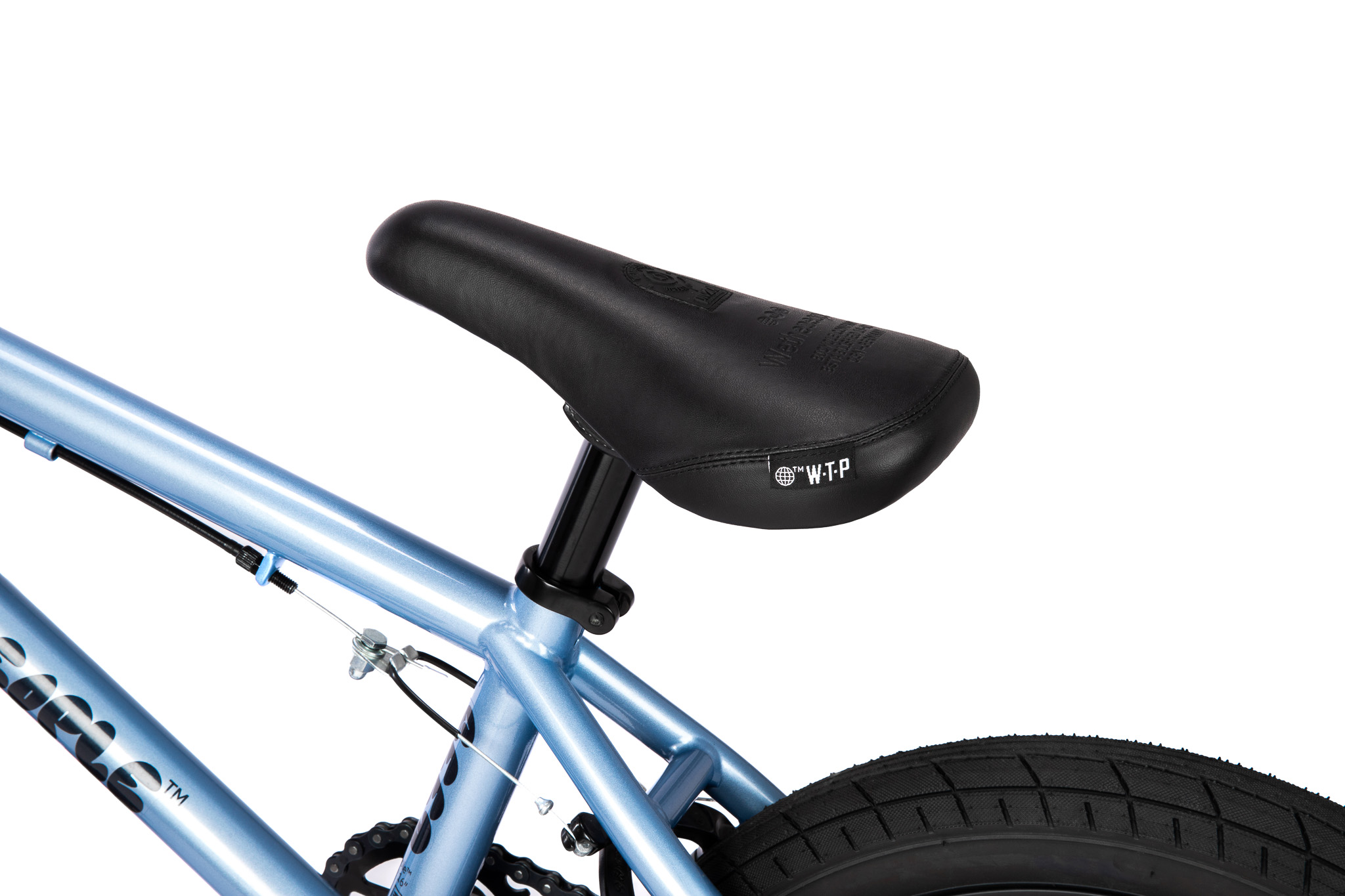

Seat: WETHEPEOPLE “SEED” Pivotal seat

Seat Post: SALT "AM" pivotal seat post

Seat Clamp: ECLAT “PURE” 6061-T6 forged alloy seat clamp

Tires: SALT “TRACER” tires 2.2" front & rear

Pegs: -

Weight: 9.46kg / 20.87lbs


FRAME GEOMETRY

A: Top Tube Length:  16”

B: Chain Stay Length: 11”

C: Head Tube Angle: 75°

D: Seat Tube Angle: 71.5°

E: Bottom Bracket Height: 9.75”

F: Stand Over Height: 6.67”


BAR GEOMETRY

G: Bar Rise: 6.77“

H: Bar Width: 23.6”

I: Bar Back Sweep: 10°

J: Bar Up Sweep:
