SWAMP MASTER

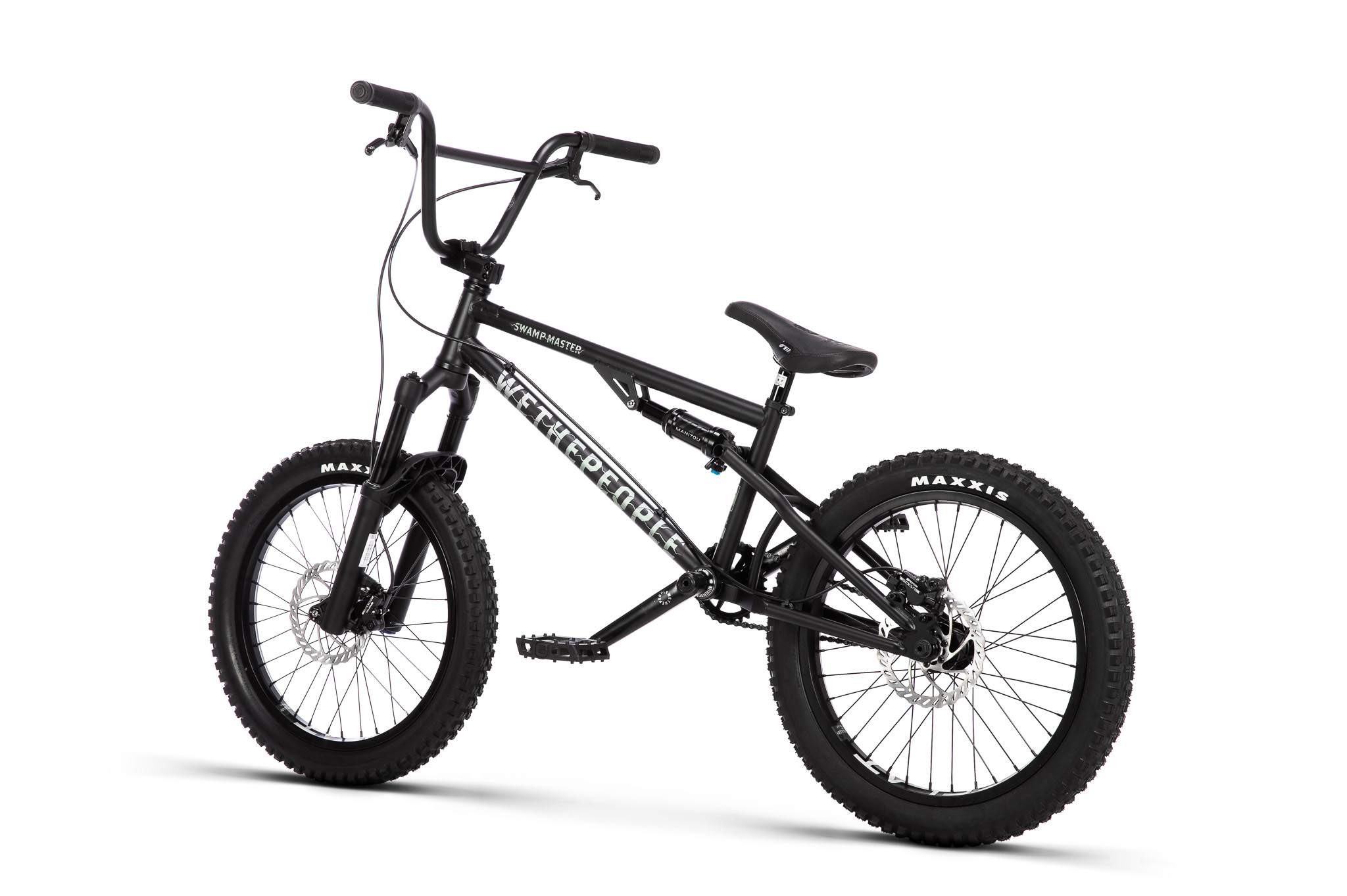

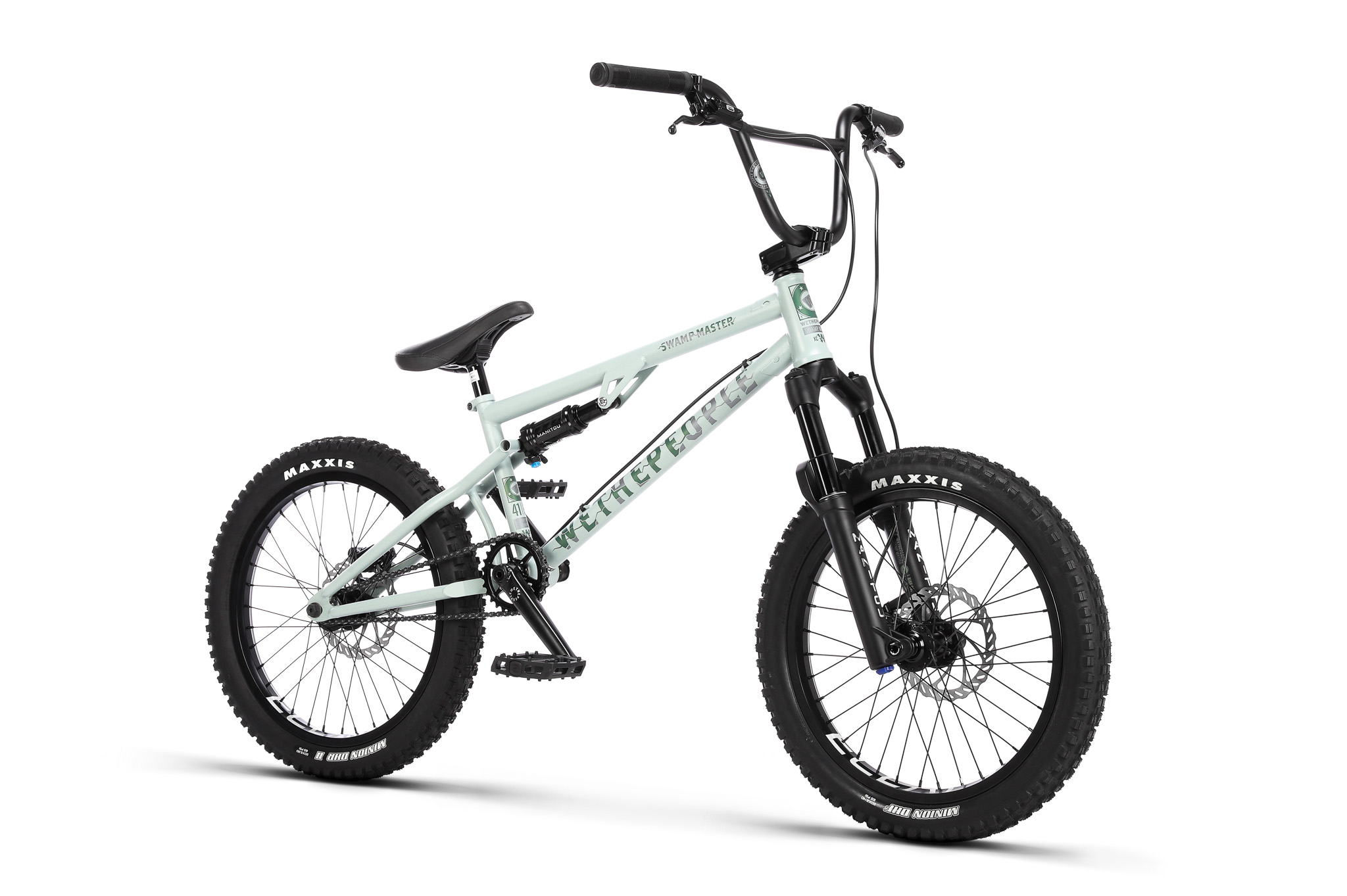

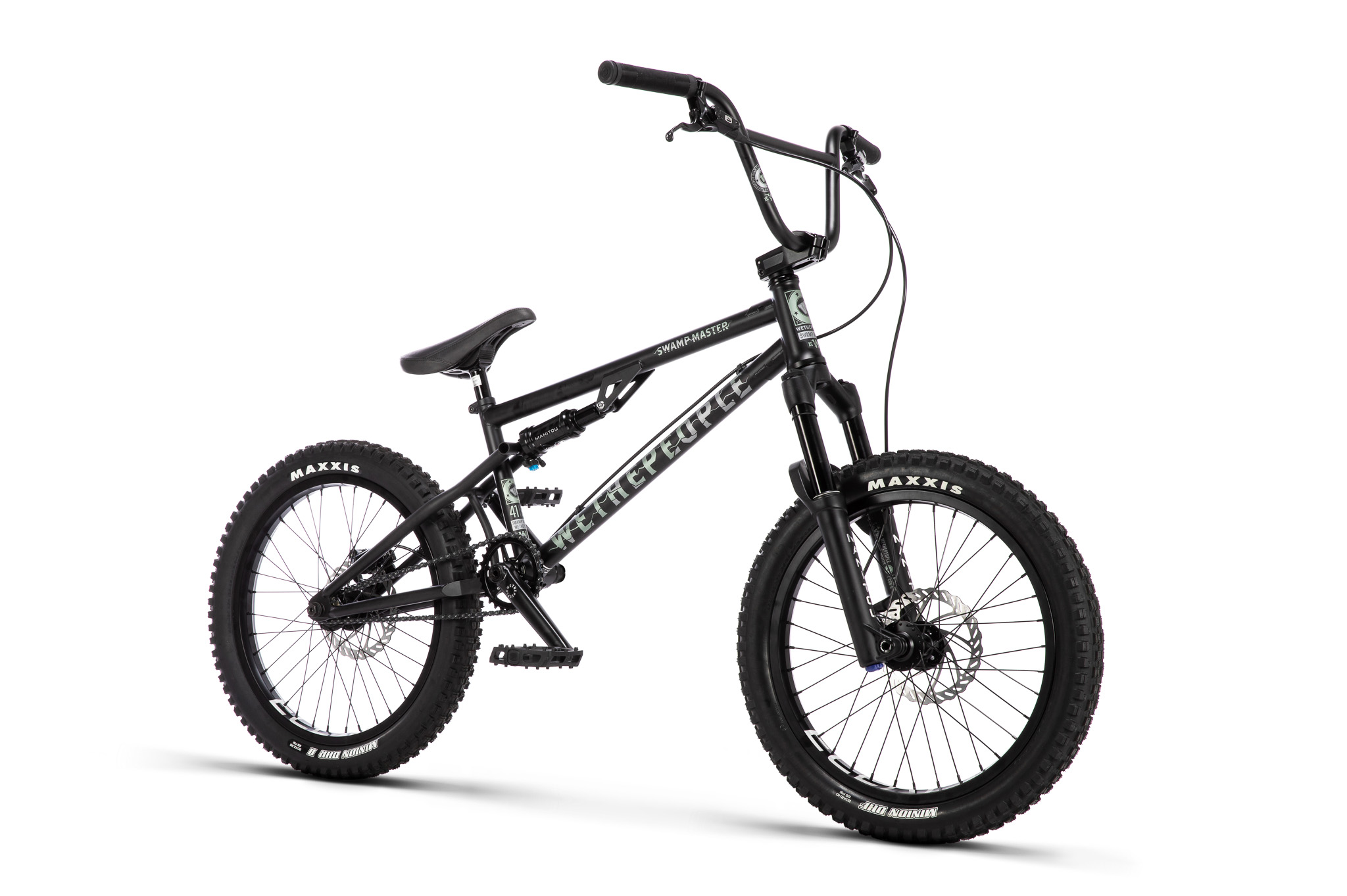

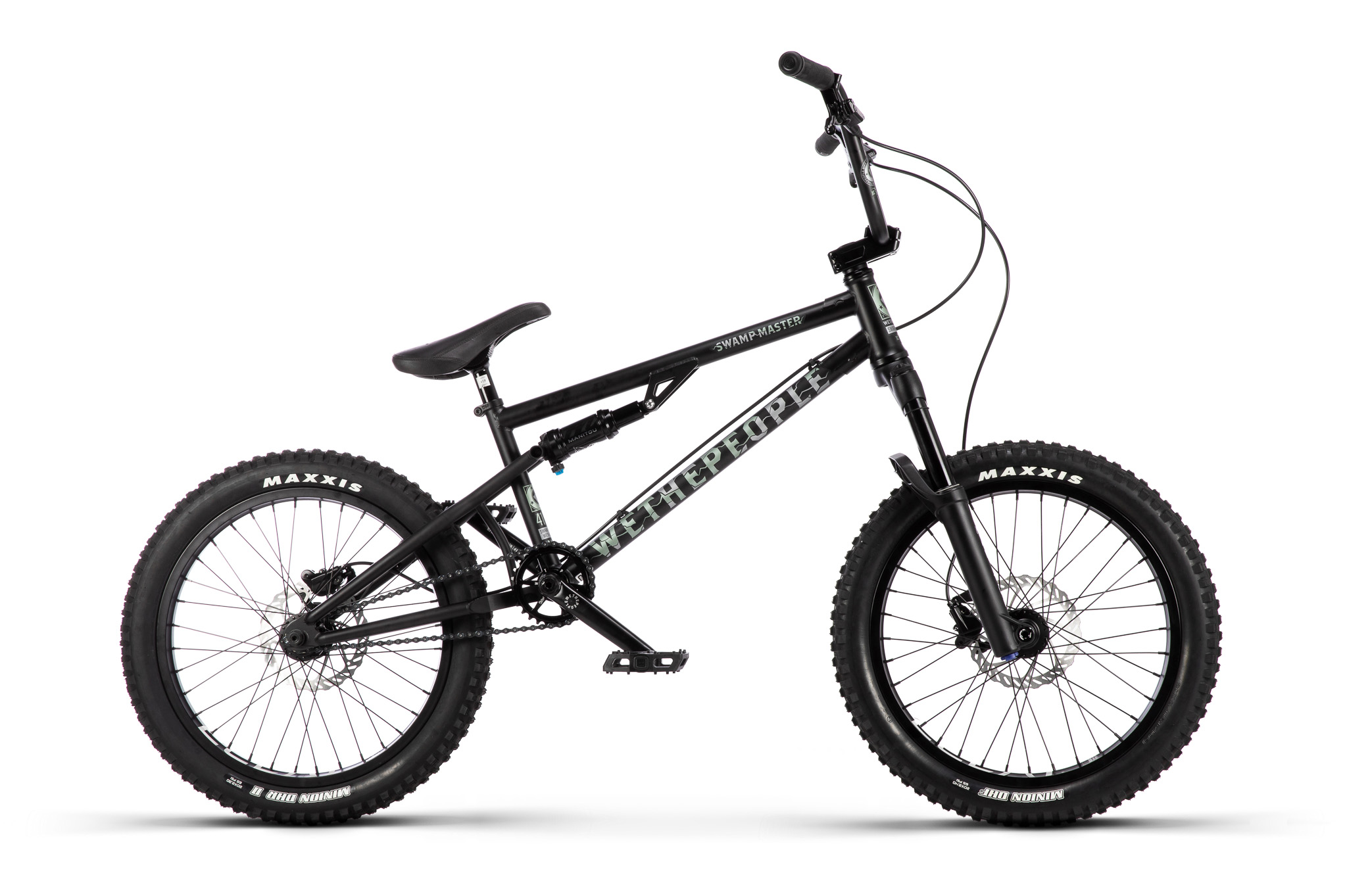

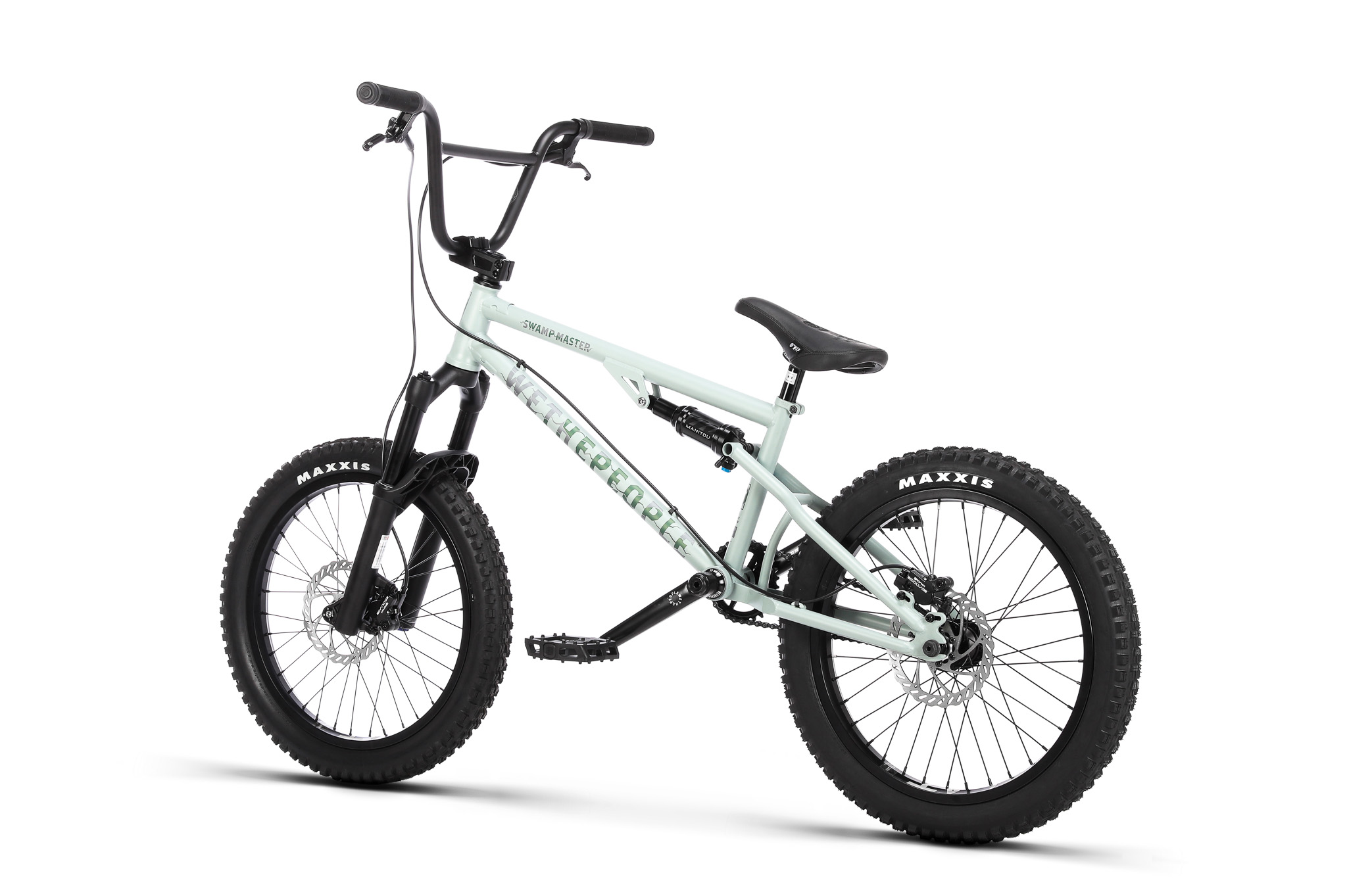

The Swampmaster introduces a completely new direction for Wethepeople as the first full-suspension BMX complete. Drawing inspiration from BMX’s early, more experimental days, it merges MTB capability with BMX simplicity and flow. Designed in Cologne, Germany, it’s made for mixed terrain riding—from bike parks to dirt jumps—while keeping the playful feel that defines BMX. A carefully selected build of Wethepeople aftermarket parts and MTB components from Maxxis and Manitou gives it both durability and versatility. A first of its kind production bike, the Swampmaster signals a new evolution in BMX and MTB crossover design.

arrow-left

SWAMP MASTER

SWAMP MASTER

SWAMP MASTER

SWAMP MASTER

SPECIFICATIONS
plus

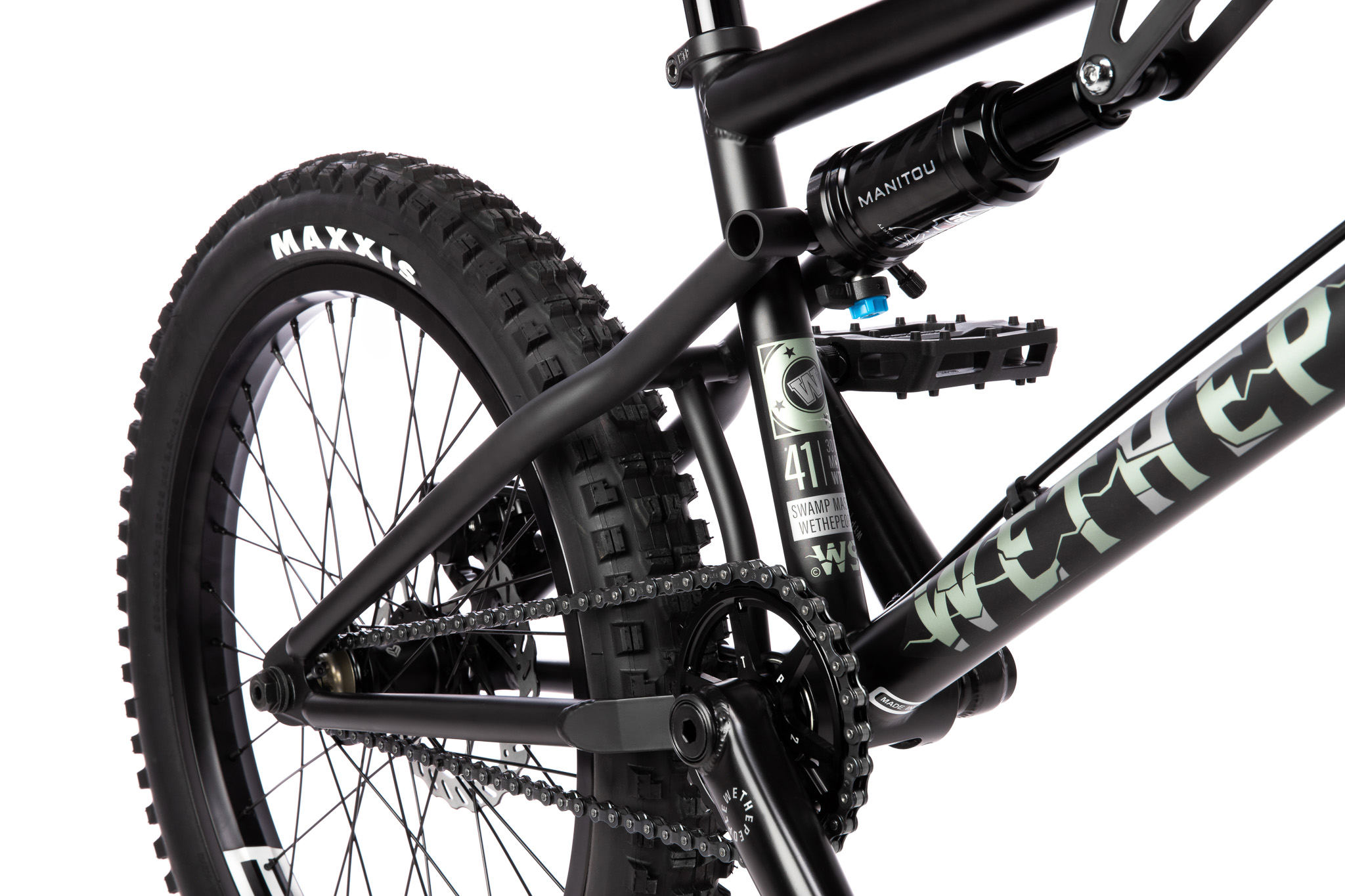

FRAME:

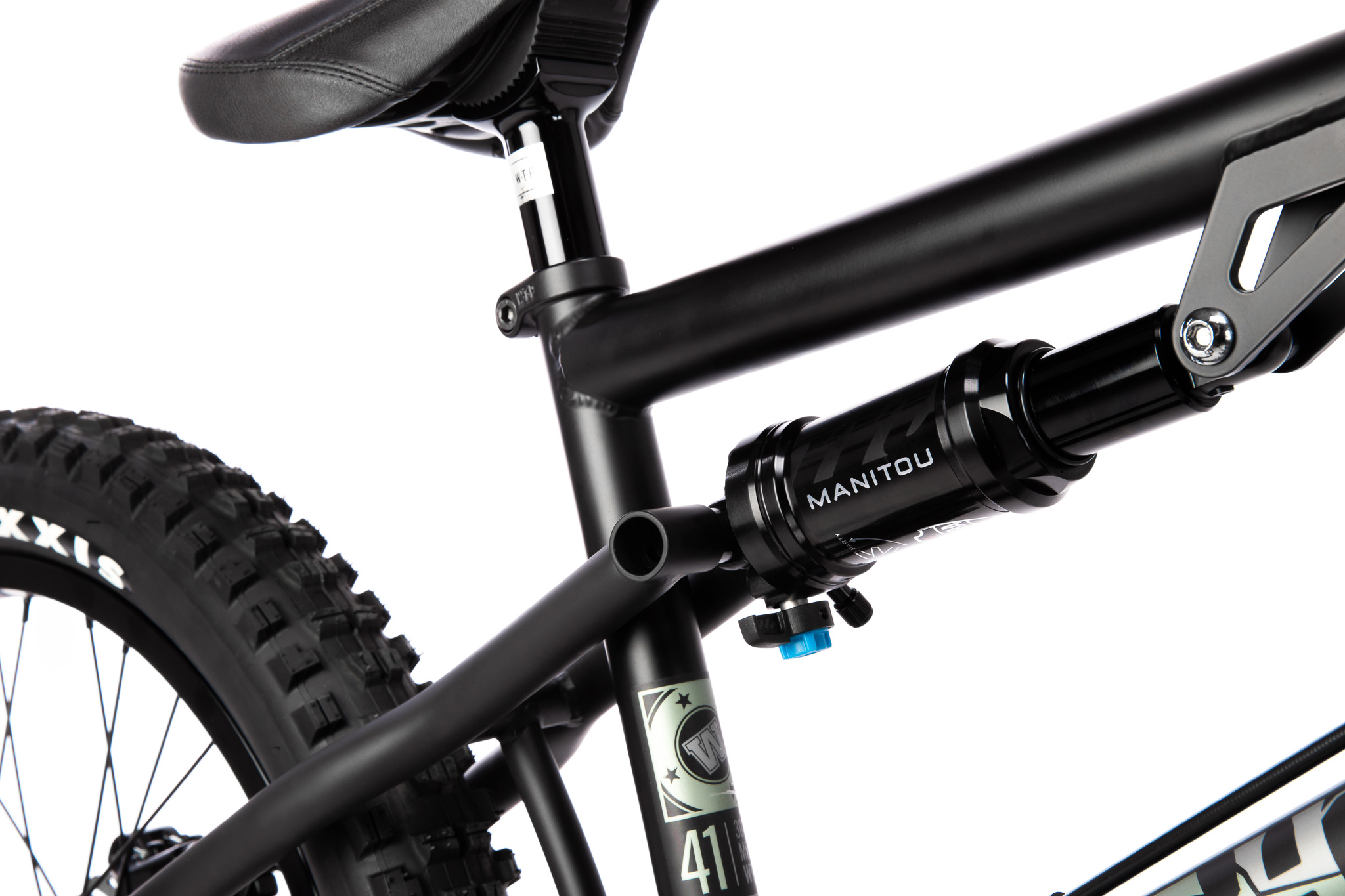

Wethepeople Swamp master frame, 4130 full crmo, Manitou Mara 170x 35mm, Swampmaster custom preset

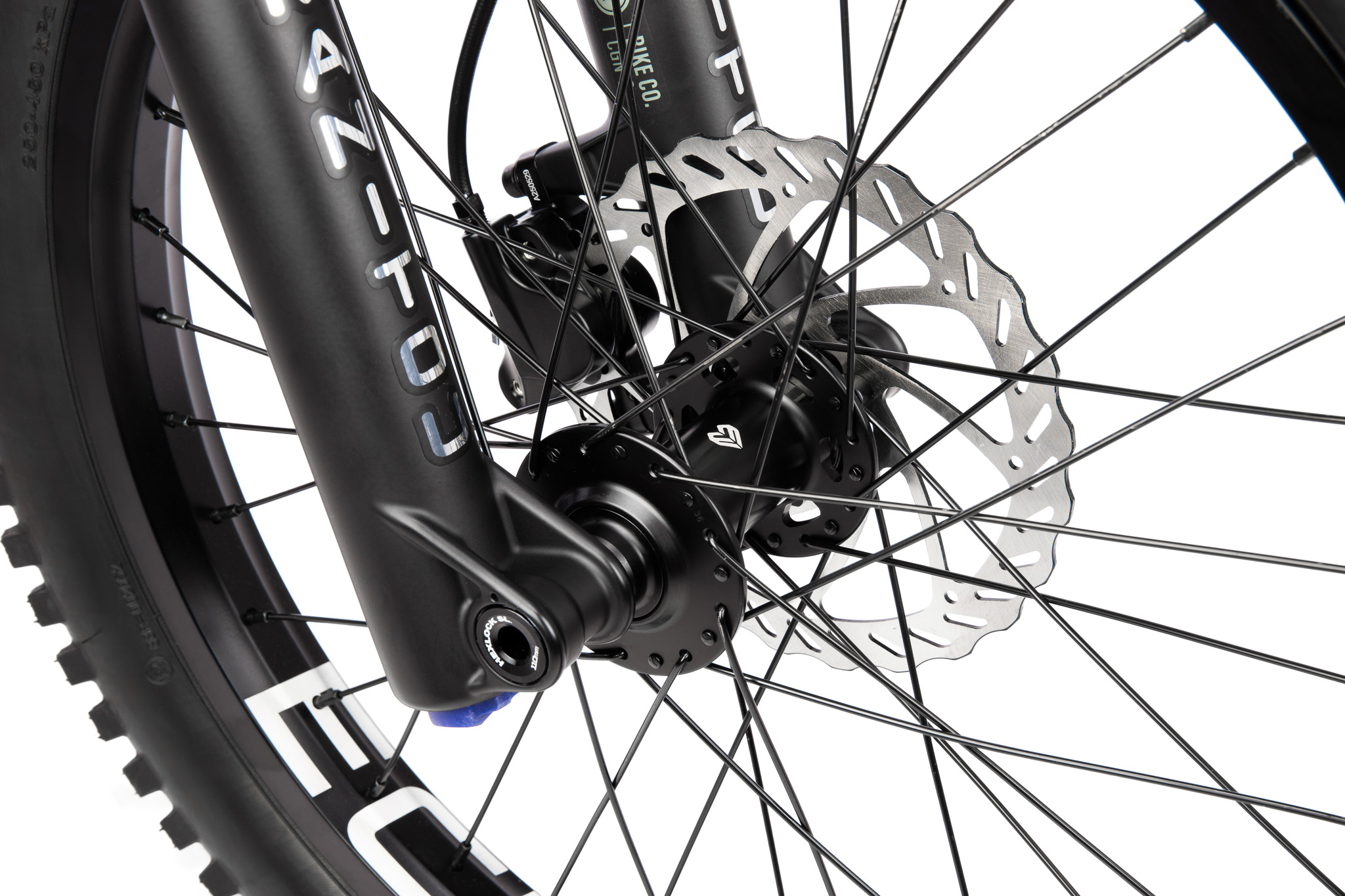

FORK:

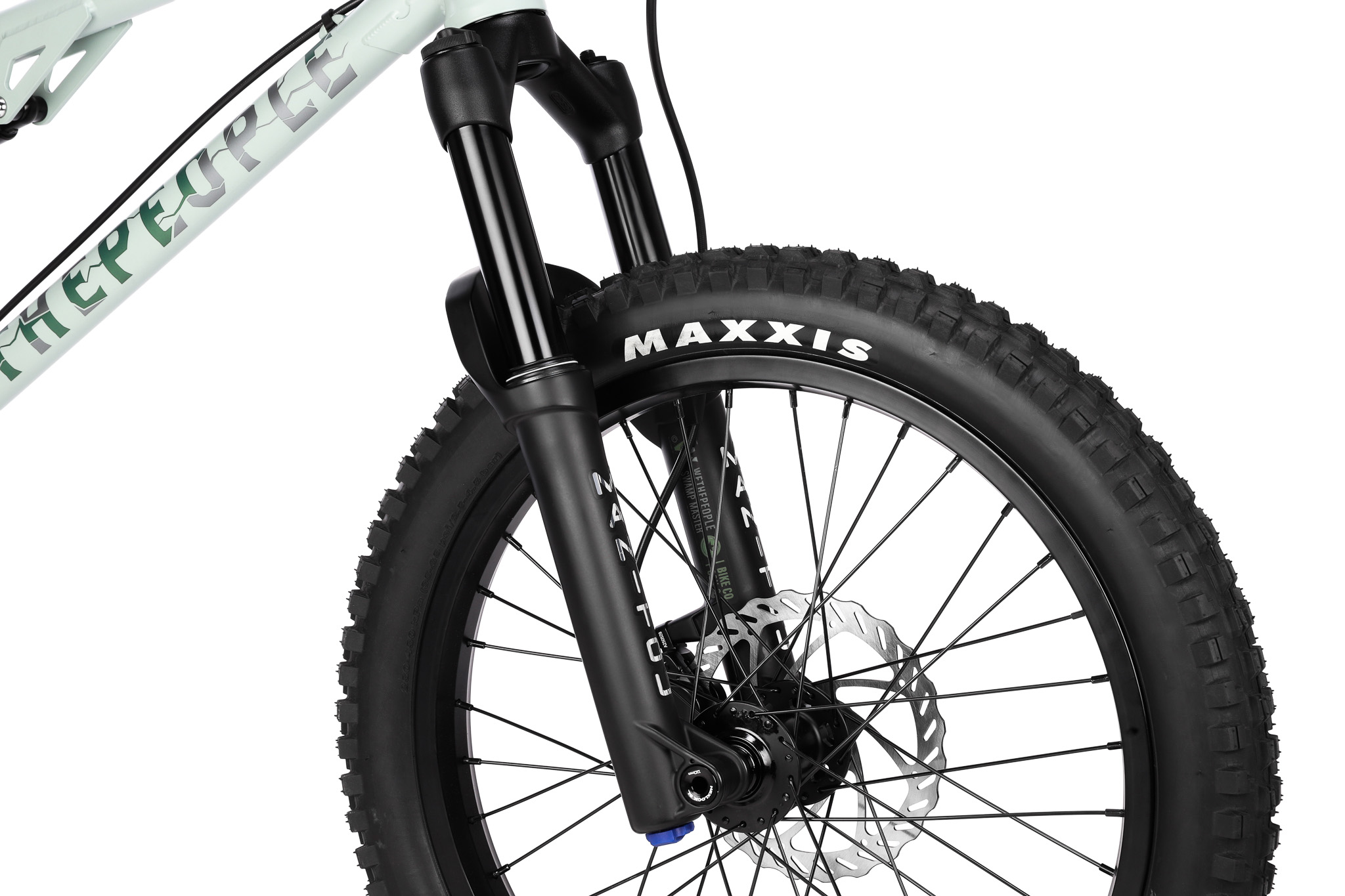

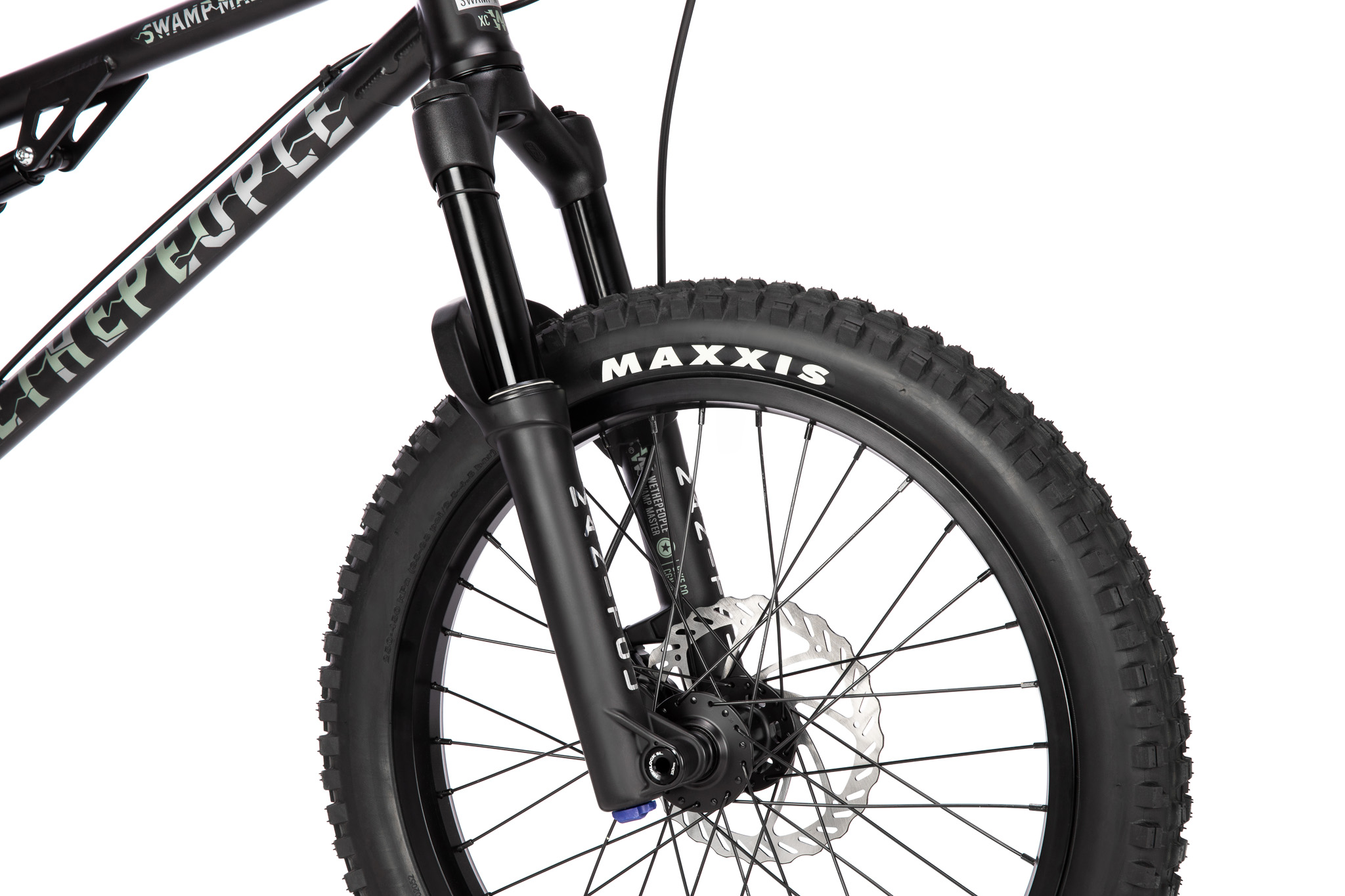

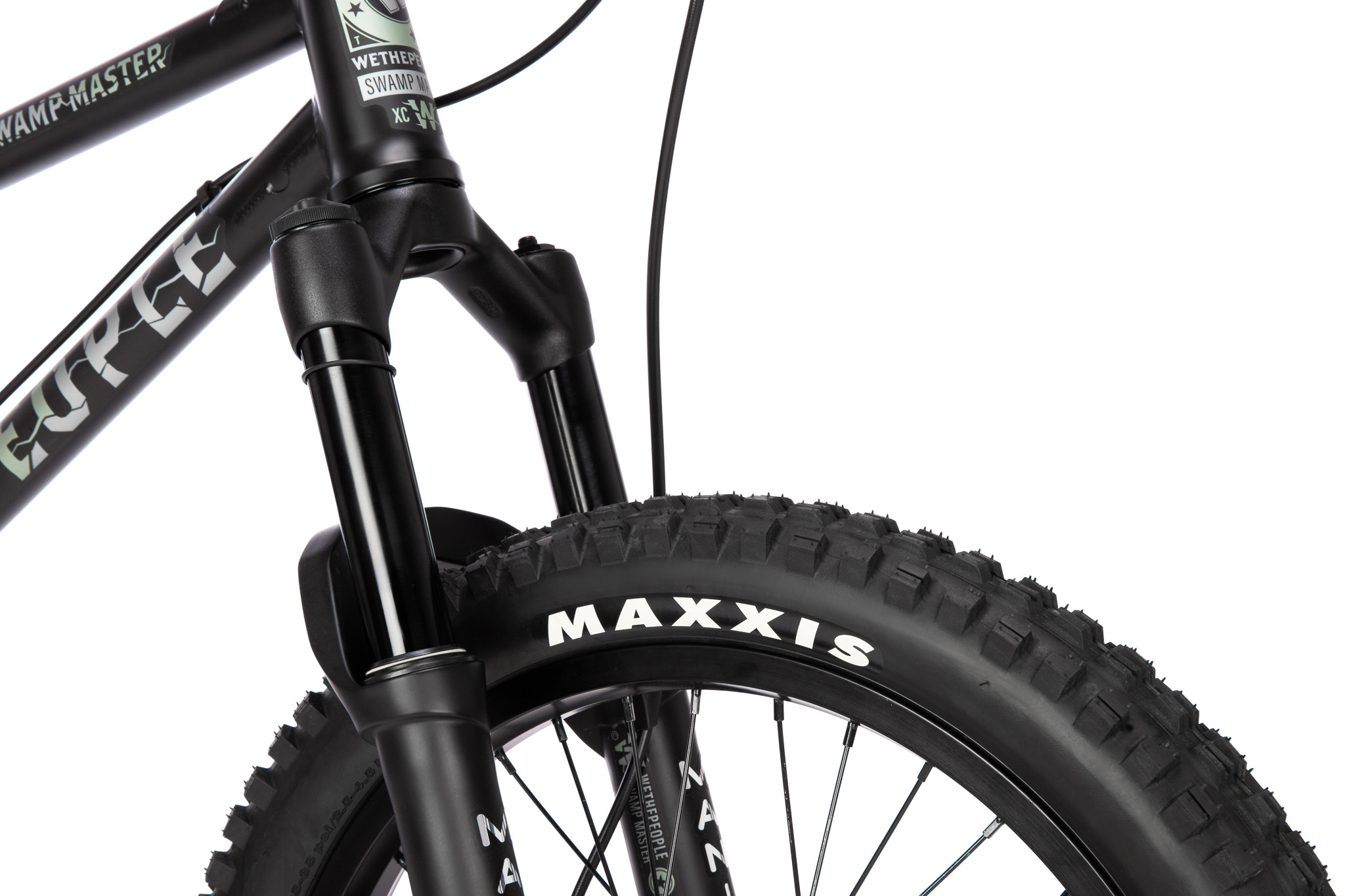

MANITOU "MACHETE J-UNIT COMP" fork, custom tuned, 100mm travel, thru-axle
BARS:

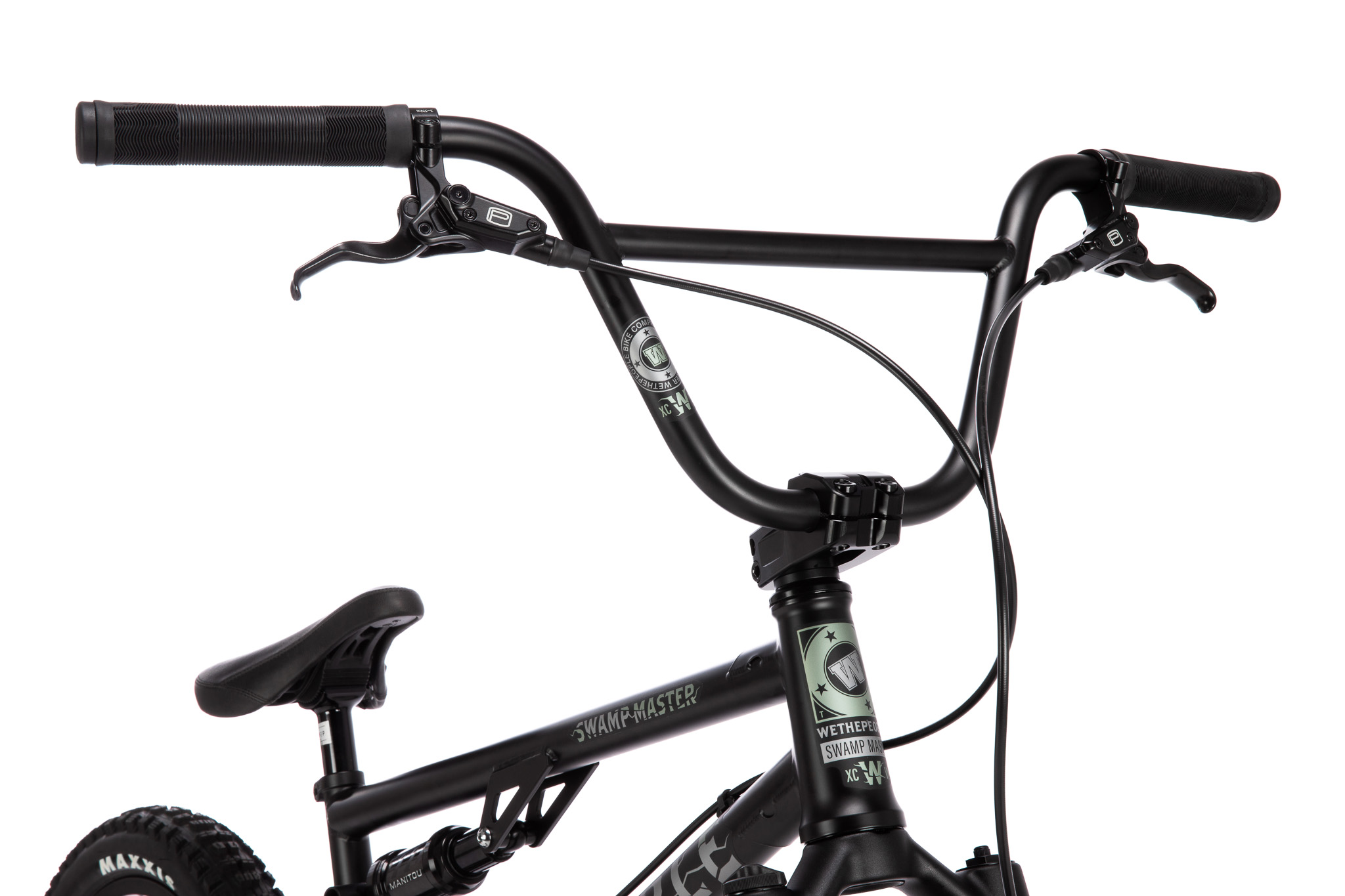

WETHEPEOPLE "SWAMP MASTER" bar, post liquid heat-treated 4130 crmo
Grips:
SALT "EX" grips, 154mm, flangless

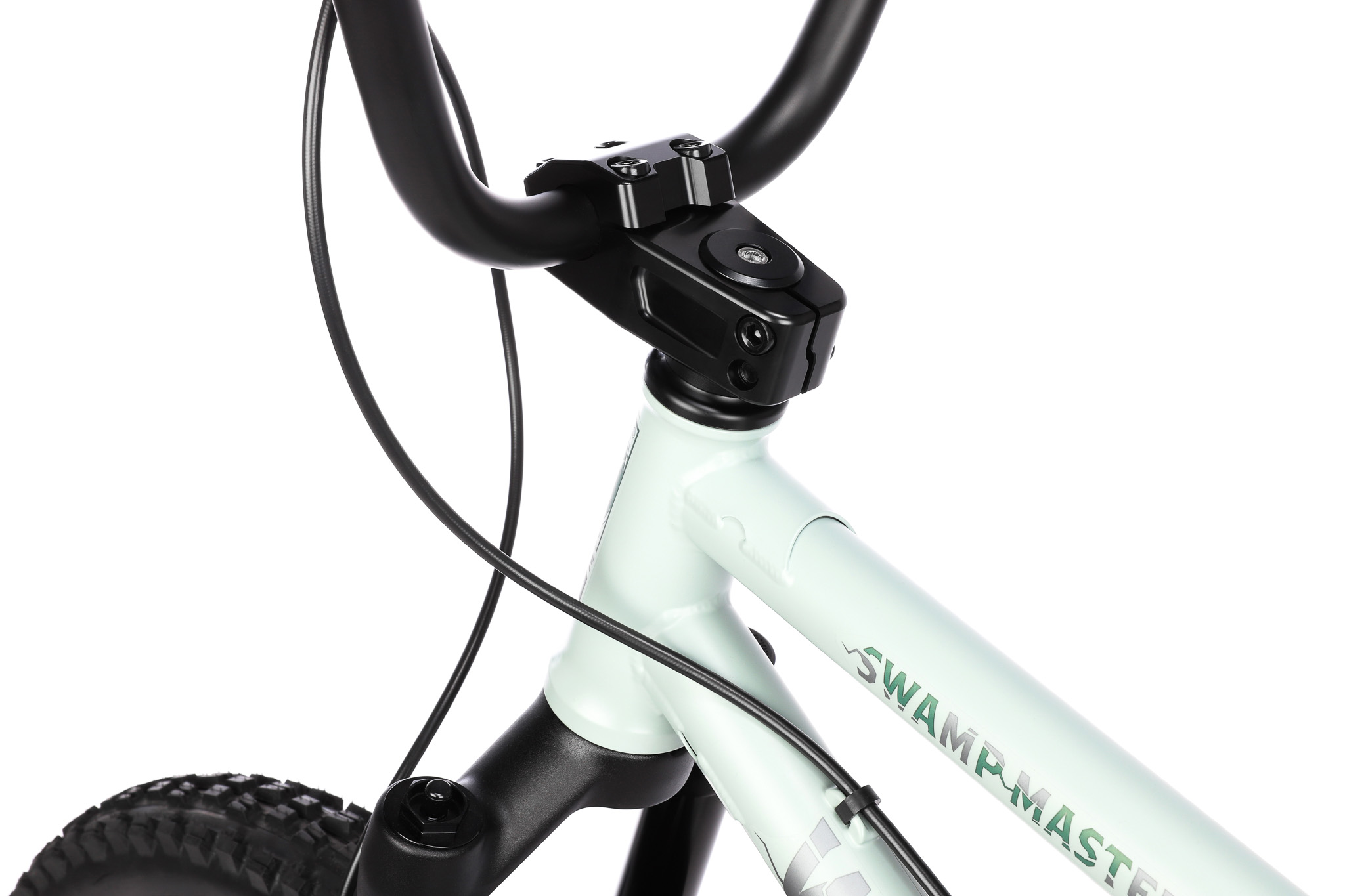

STEM:

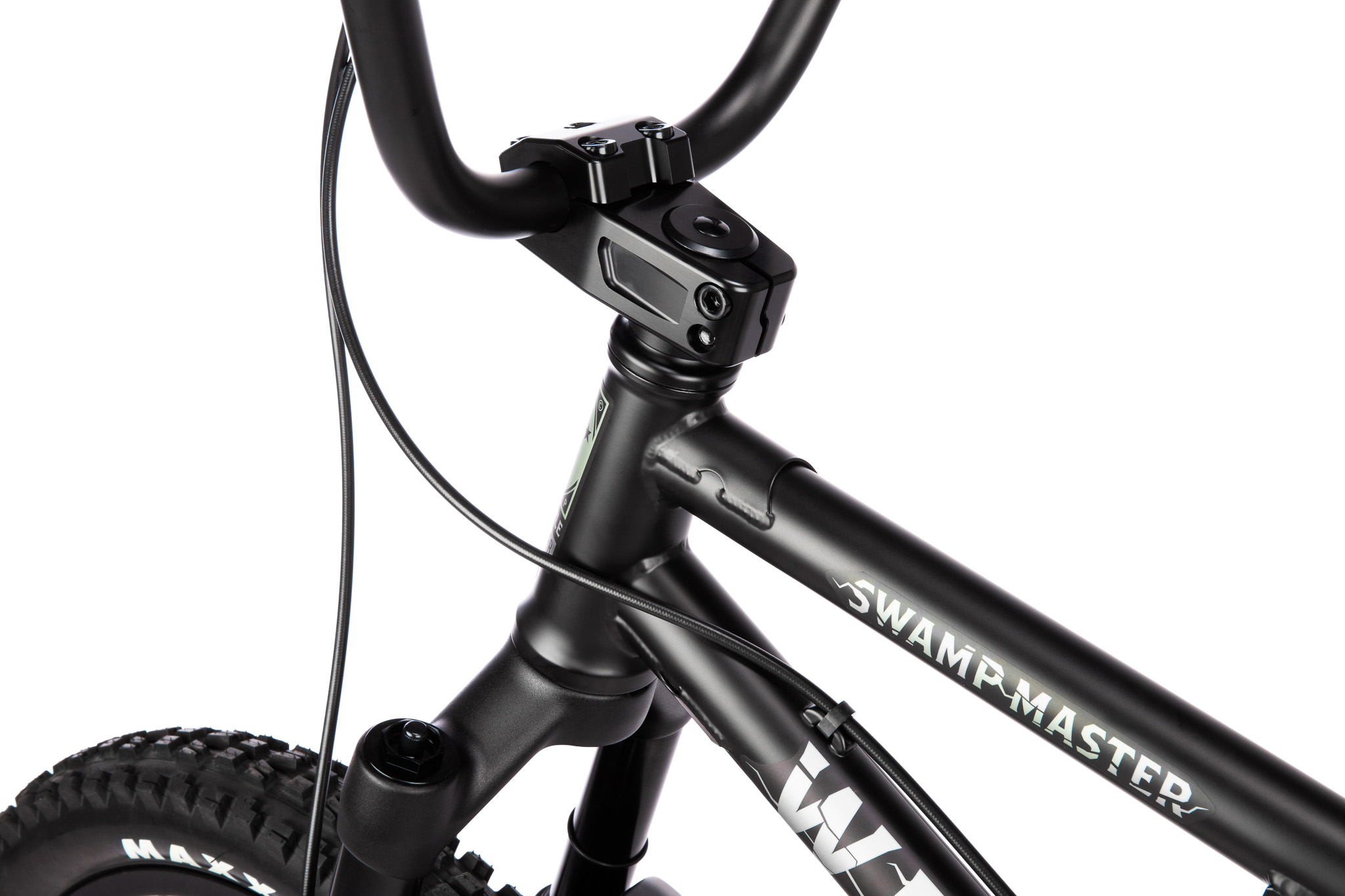

ÉCLAT "BURNS topload stem, cnc alloy, 51mm reach

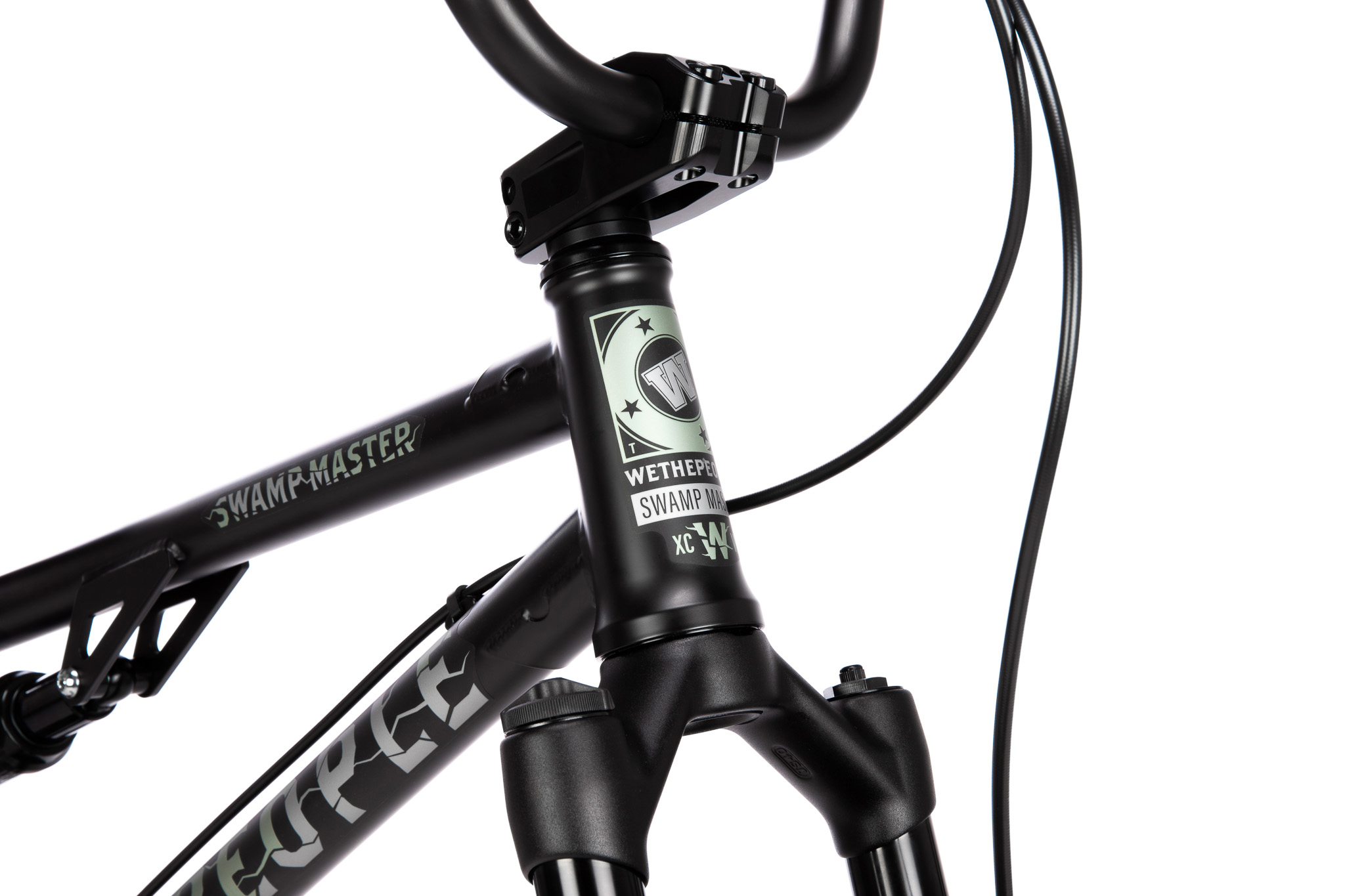

HEADSET:
WETHEPEOPLE "COMPACT" int. headset, sealed bearing
GYRO:
-
LEVER:

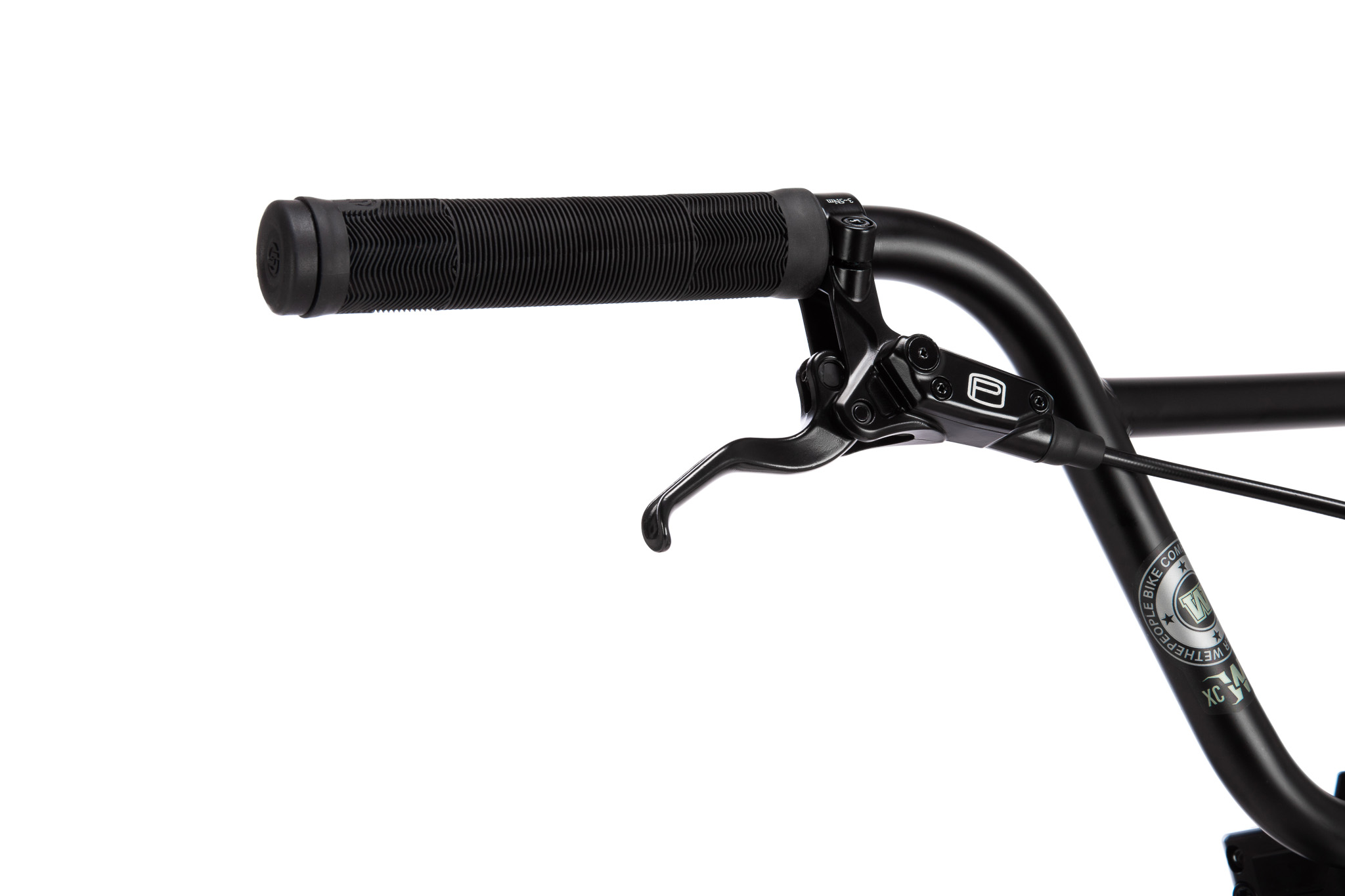

Promax Solve 3 disc brake levers
BRAKES:
Promax Solve 3 hydraulic disc brakes, 160 mm rotors

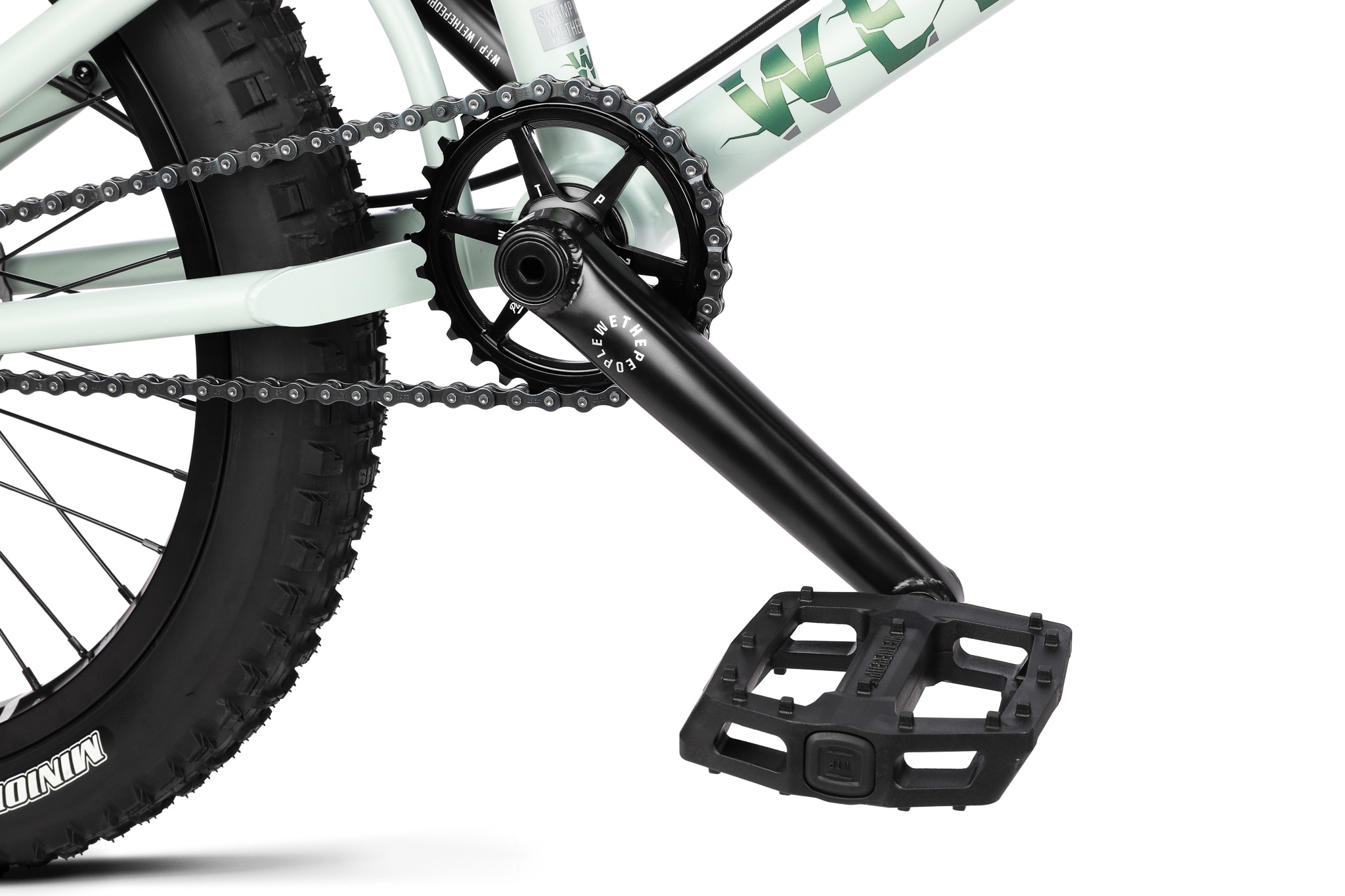

CRANKS

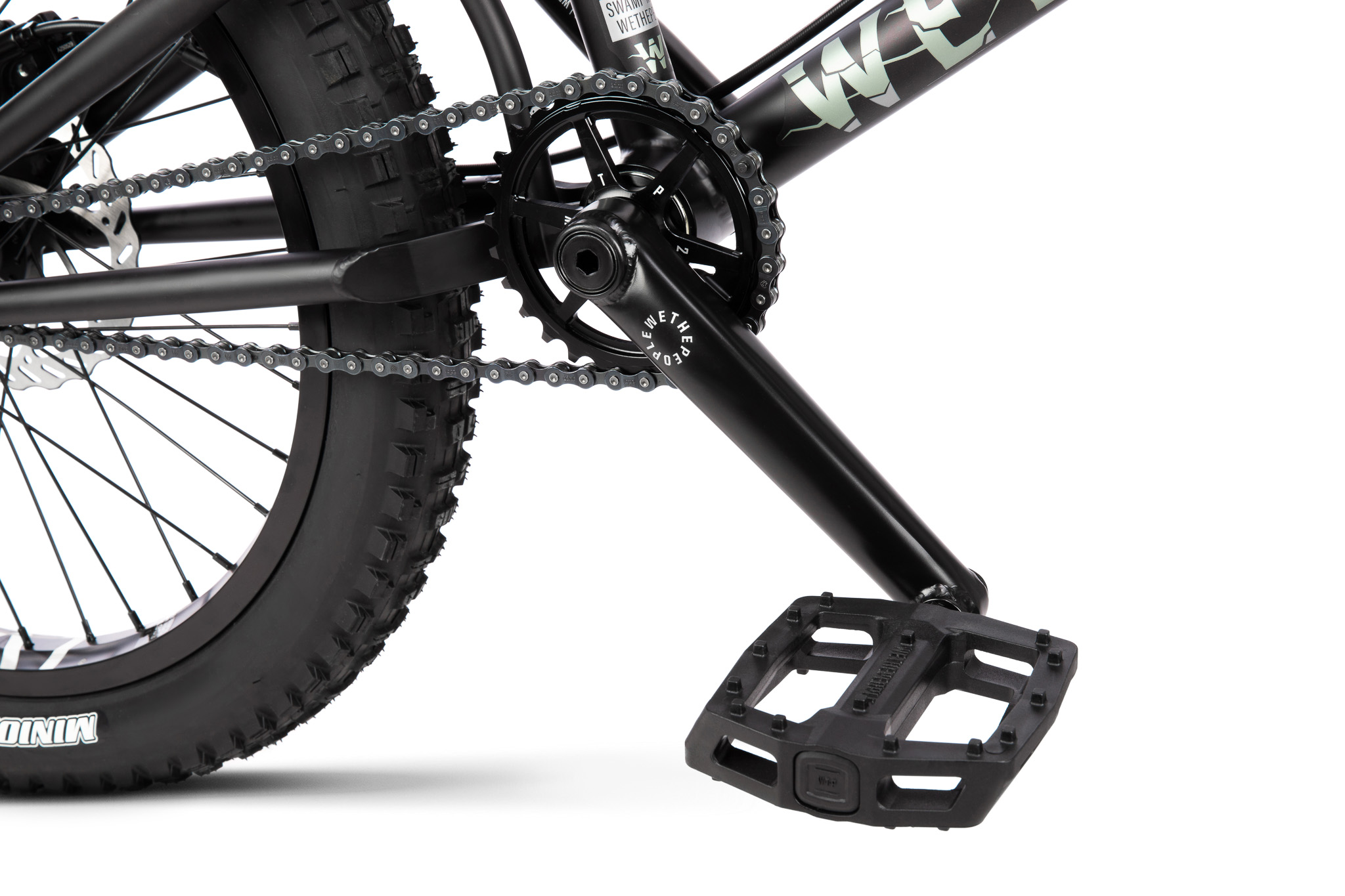

WETHEPEOPLE "LOGIC" tubular 3pc crank, 22mm, crmo, 175mm, 48 spline
BB:
WETHEPEOPLE "COMPACT" bb, 22mm, press fit, sealed bearing
PEDALS:
WETHEPEOPLE "LOGIC" pedals, nylon/fiberglass
CHAIN:
ÉCLAT "DIESEL" chain
SPROCKET:
WETHEPEOPLE "PATROL" sprocket, cnc, 6061-T6 alloy, 28t
DRIVER:
1pc cassette driver, 9t, sealed bearing, 6 pawl, 120 POE
FRONT HUB:

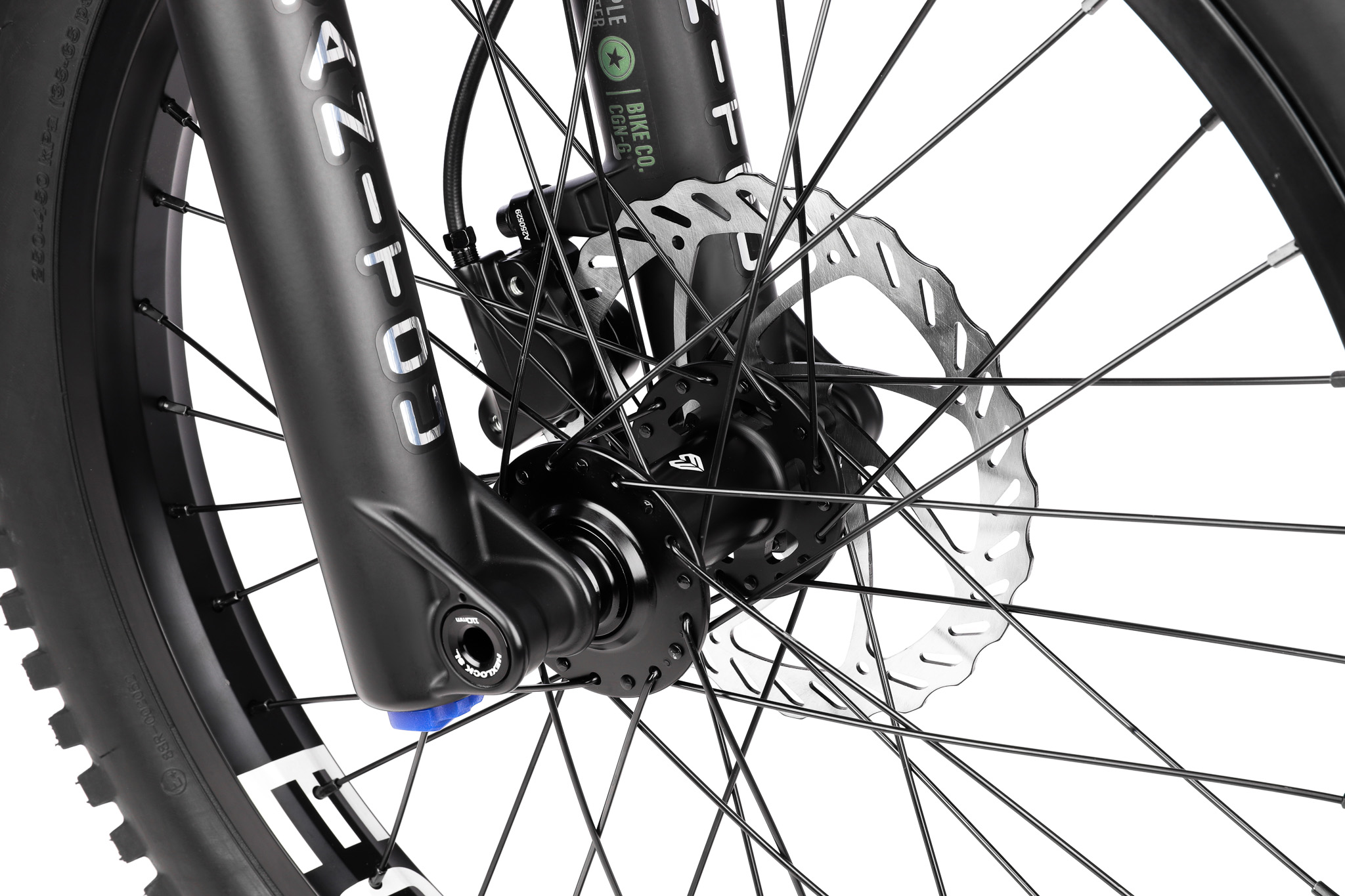

ÉCLAT "EXILE" disc front hub, BOOST 110mm, fully sealed, 15mm thru axle, 36h

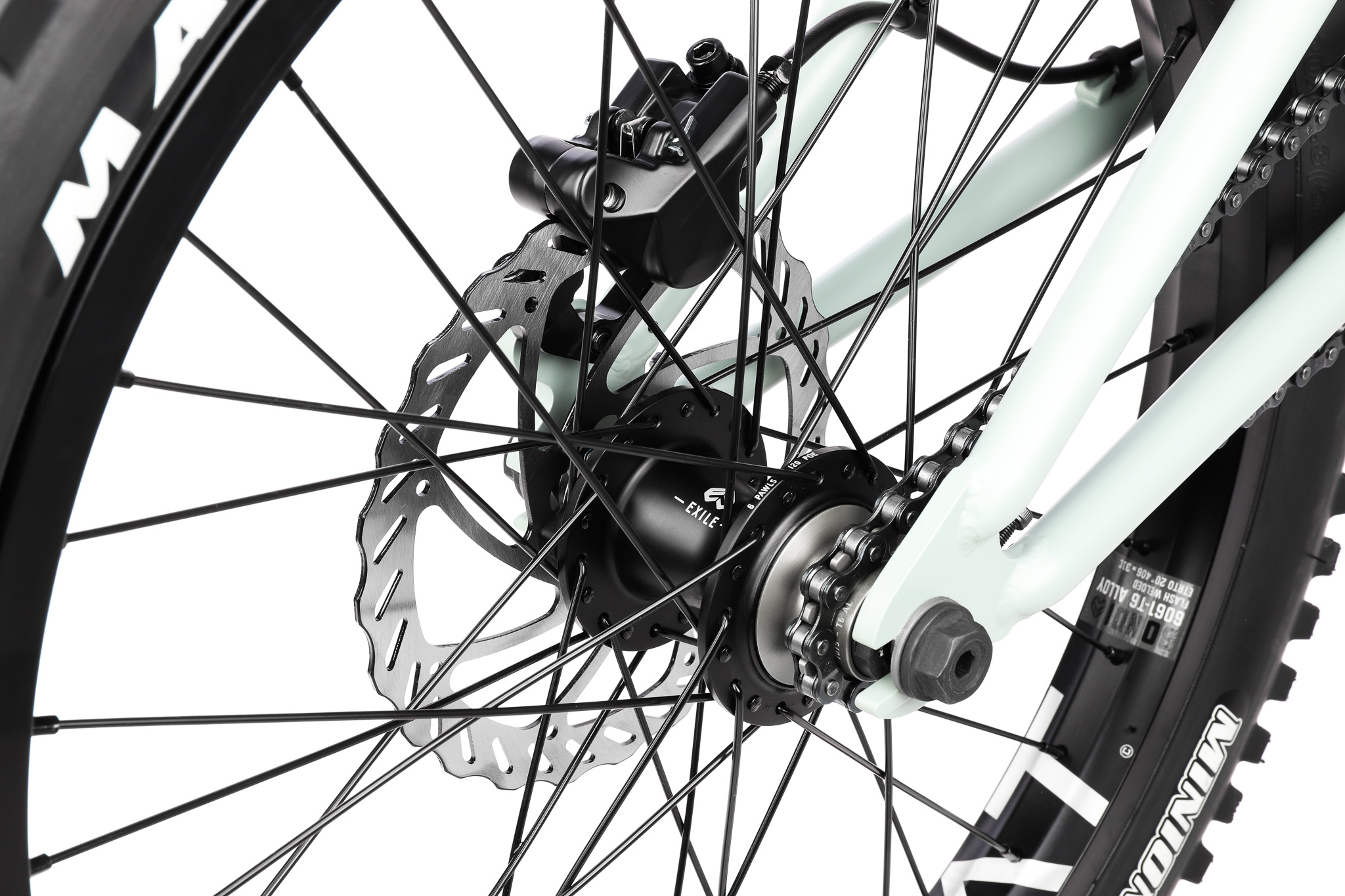

REAR HUB:

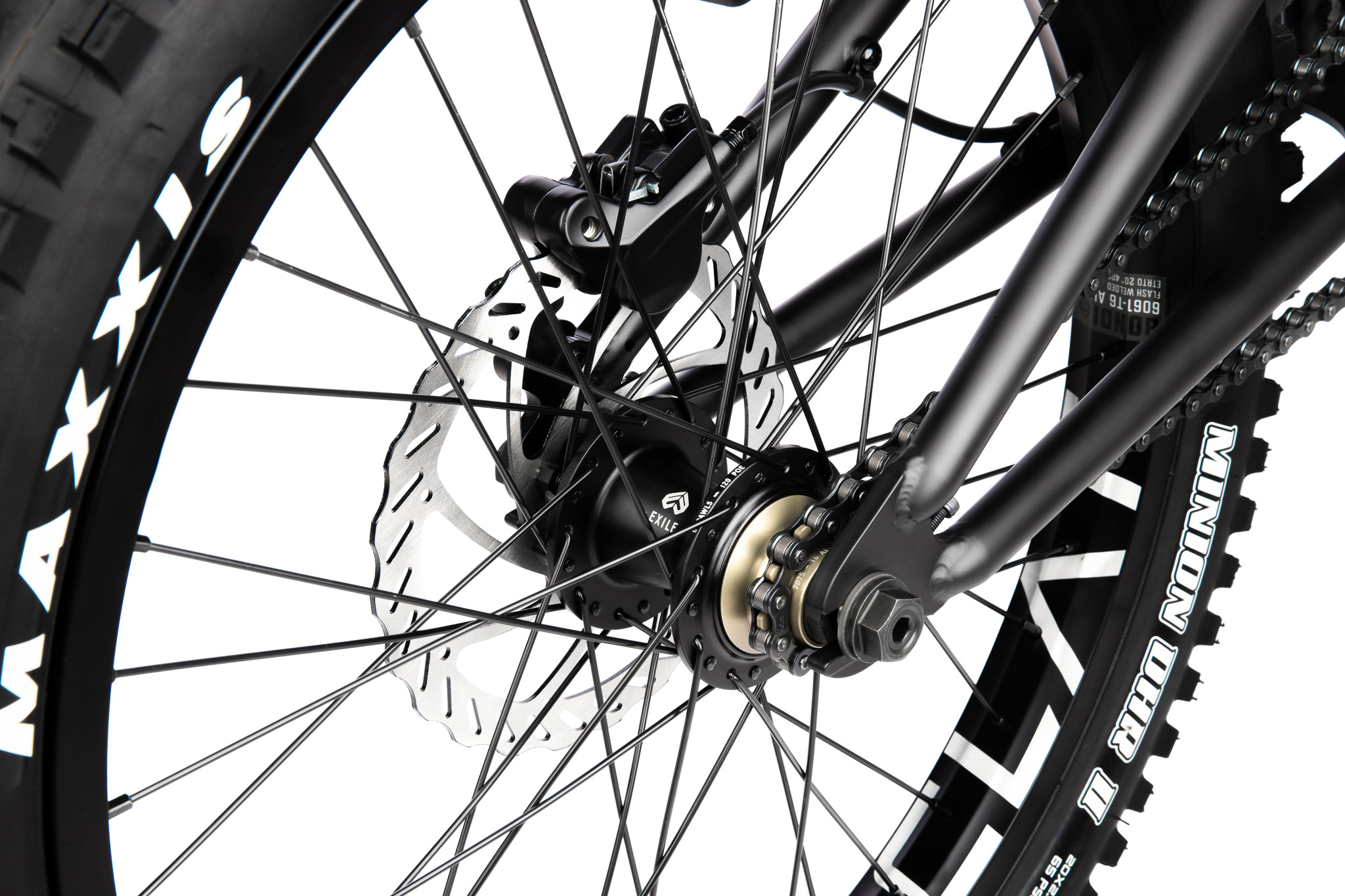

ÉCLAT "EXILE" disc cassette hub, fully sealed, 3/8" female bolts, 36h, 120 POE
HUBGUARDS:
-
FRONT RIM:
ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h
REAR RIM:
ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h

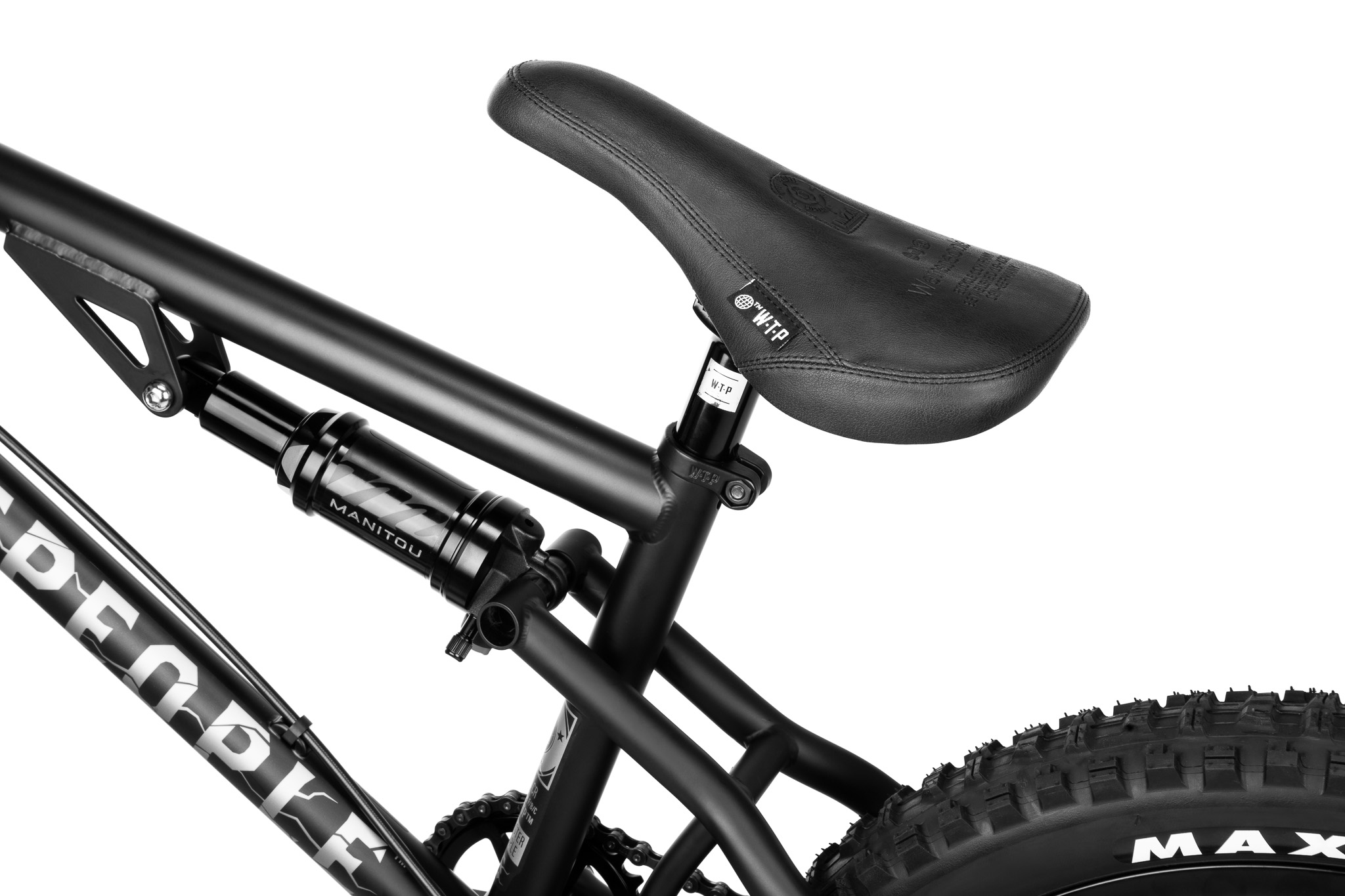

SEAT:

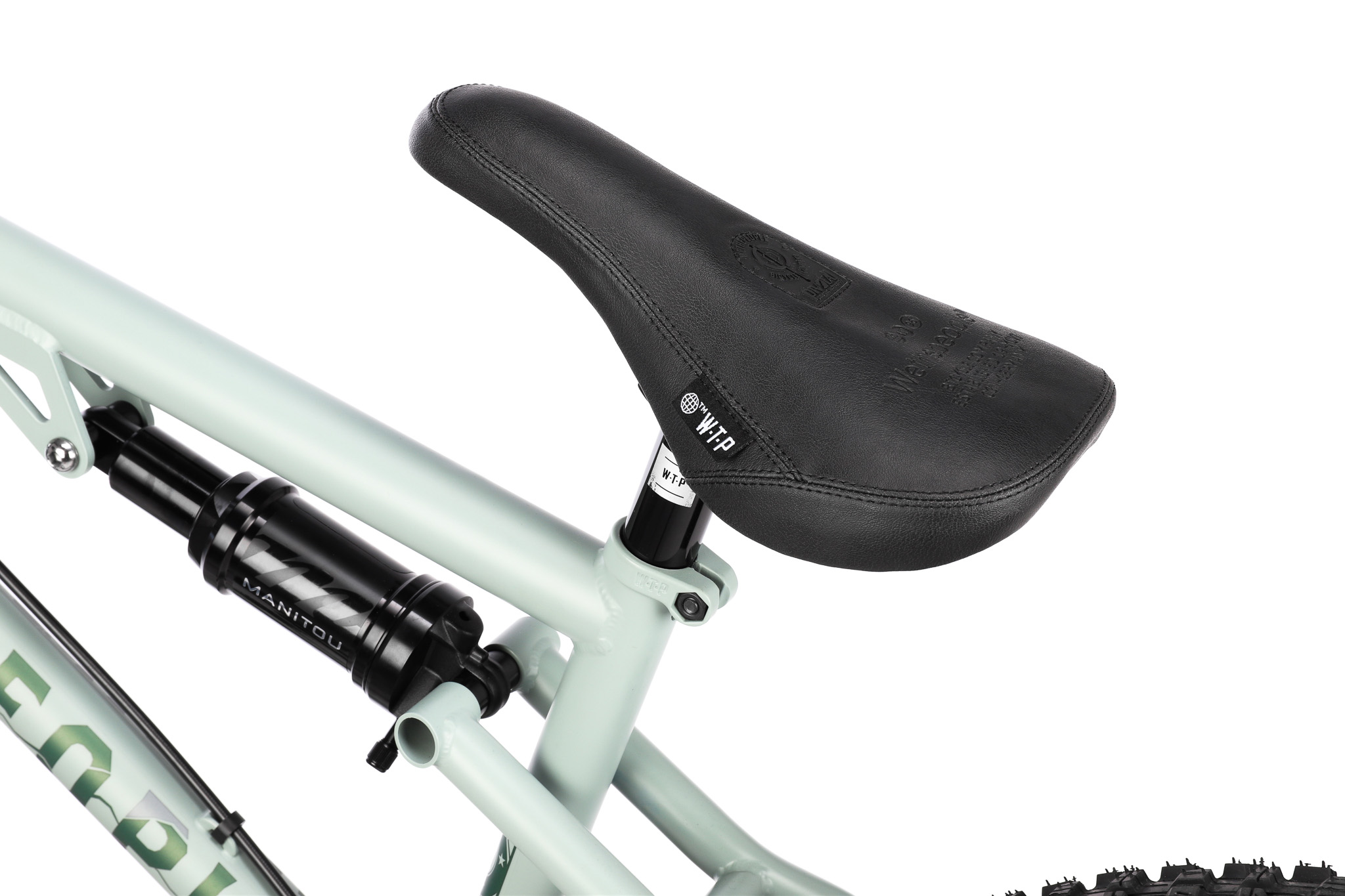

Wethepeople Team pivotal seat, slim padded
SEAT POST:
WETHEPEOPLE "TEAM" pivotal seat post, 200mm long, 6061-T6 alloy
SEAT CLAMP:
integrated seat clamp
TIRES:
MAXXIS "MINION DHF" 20x2.4 front, MAXXIS "MINION DHR II" 20x2.3 tires
PEGS:
-
WEIGHT:
13.9kg / 30.64lbs
COLORS:
matt black
/
matt swamp grey
/
/
/
/
GEOMETRY
plus

FRAME
A - TOP TUBE LENGTH:
21.5"
B - CHAIN STAY LENGTH:
14.1"-14.8"
C - HEAD TUBE ANGLE:
71°
D - SEAT TUBE ANGLE:
70°
E - BB HEIGHT:
12.15"
F - STANDOVER HEIGHT:
9.5"

HANDLE BAR
G - BAR RISE:
8"
H - BAR WIDTH:
29.15"
I - BAR BACK SWEEP:
11°
J - BAR UP SWEEP:
2.5°
