CRYSIS

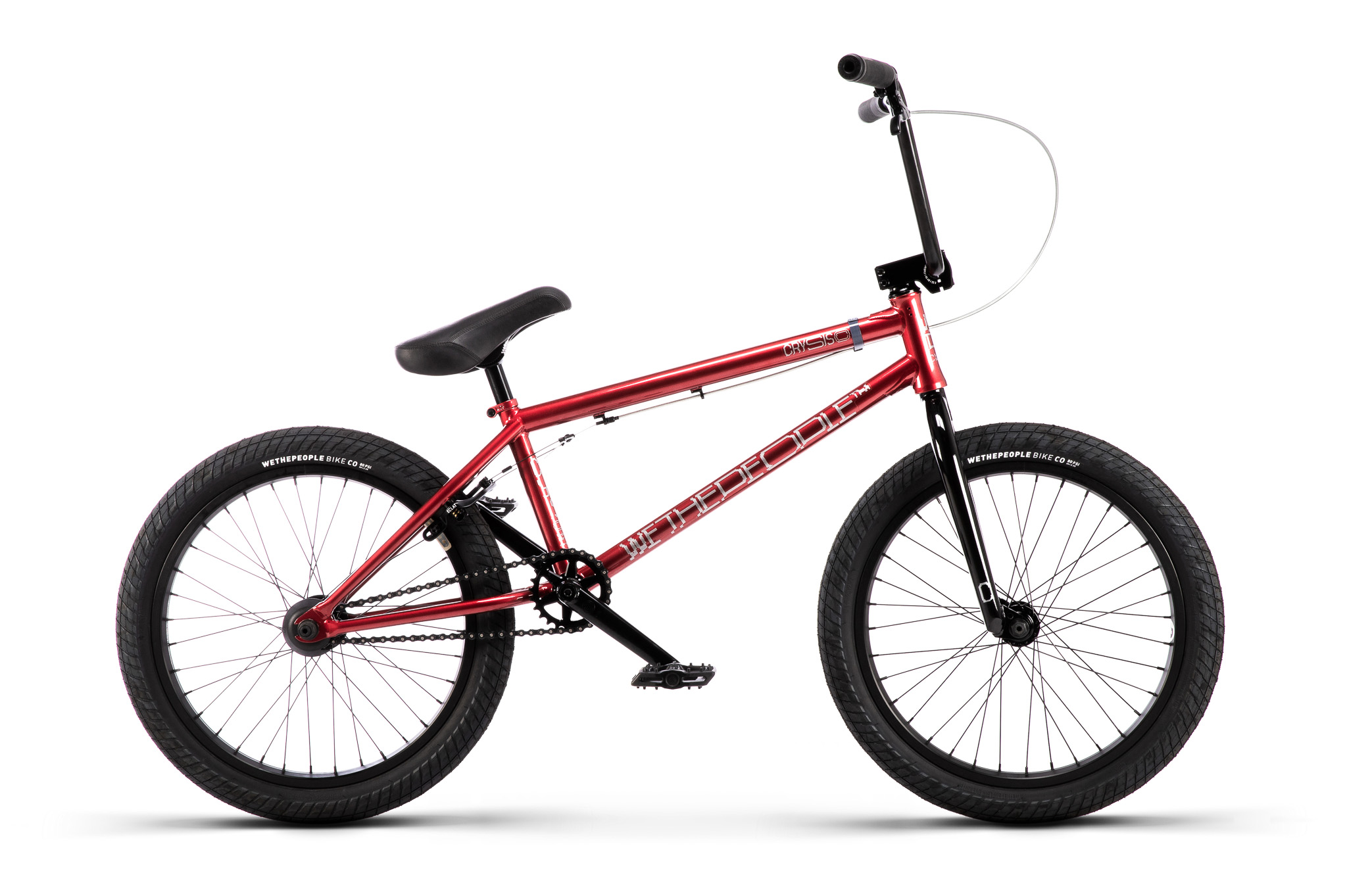

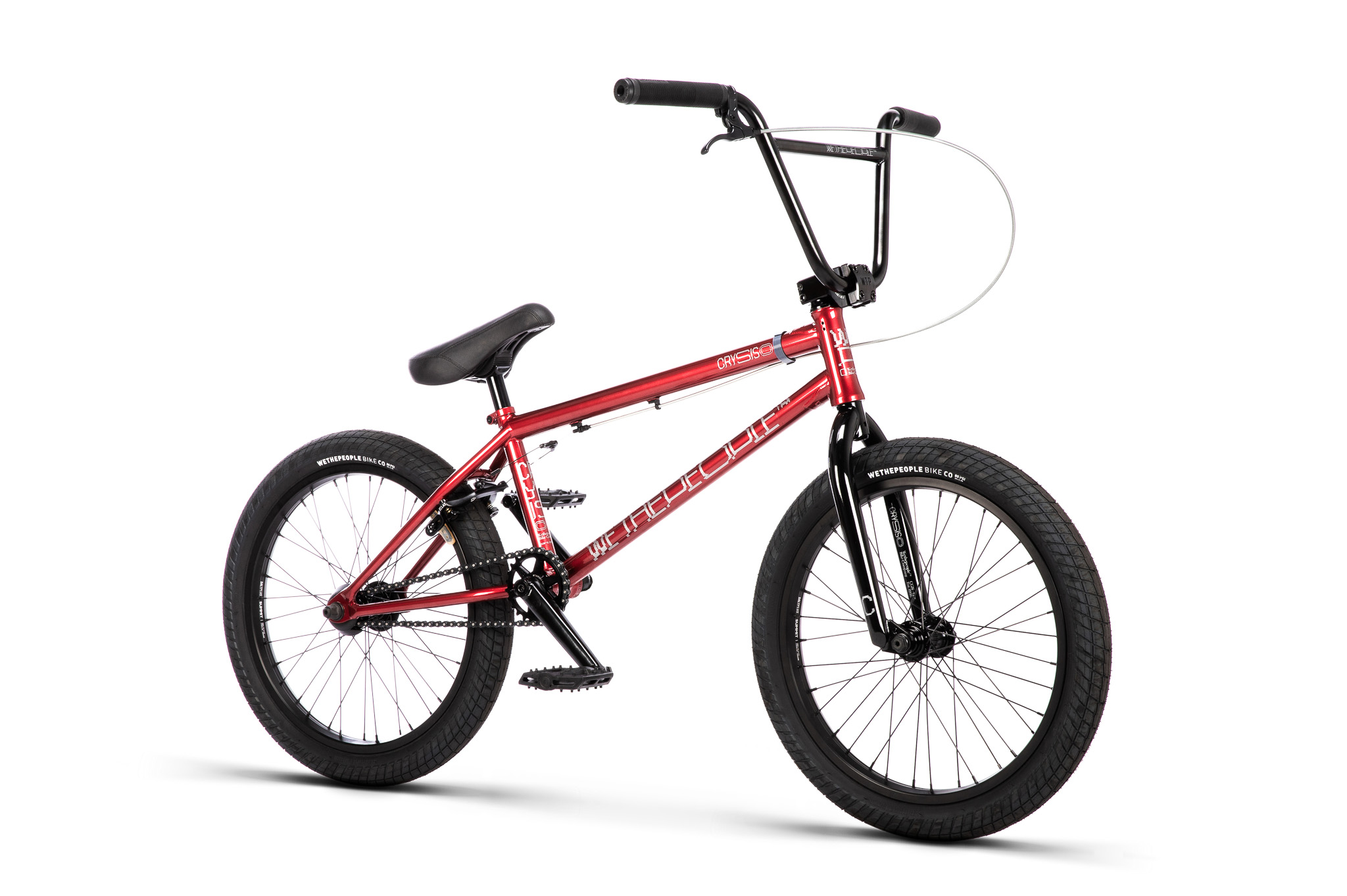

CRYSIS COMPLETE BIKE

The Crysis is a sleek and stealthy bike designed to rip it on all terrains, with a spec that could easily be found on the same bikes the PRO teams are riding on this year. You’ll find a generous helping of WETHEPEOPLE aftermarket parts including the all-terrain 2.35” Overbite tires, Logic sprocket and now the Logic stem. If that wasn’t enough, the Crysis is available in two frame sizes (20.5” or 21”), both of which use our new invest cast wishbone and taller 127mm head tube for a super clean and refined look.


GALLERY

COLORWAY: MATT TRANSLUCENT TEAL

CLICK IMAGE FOR FULL SIZE GALLERY

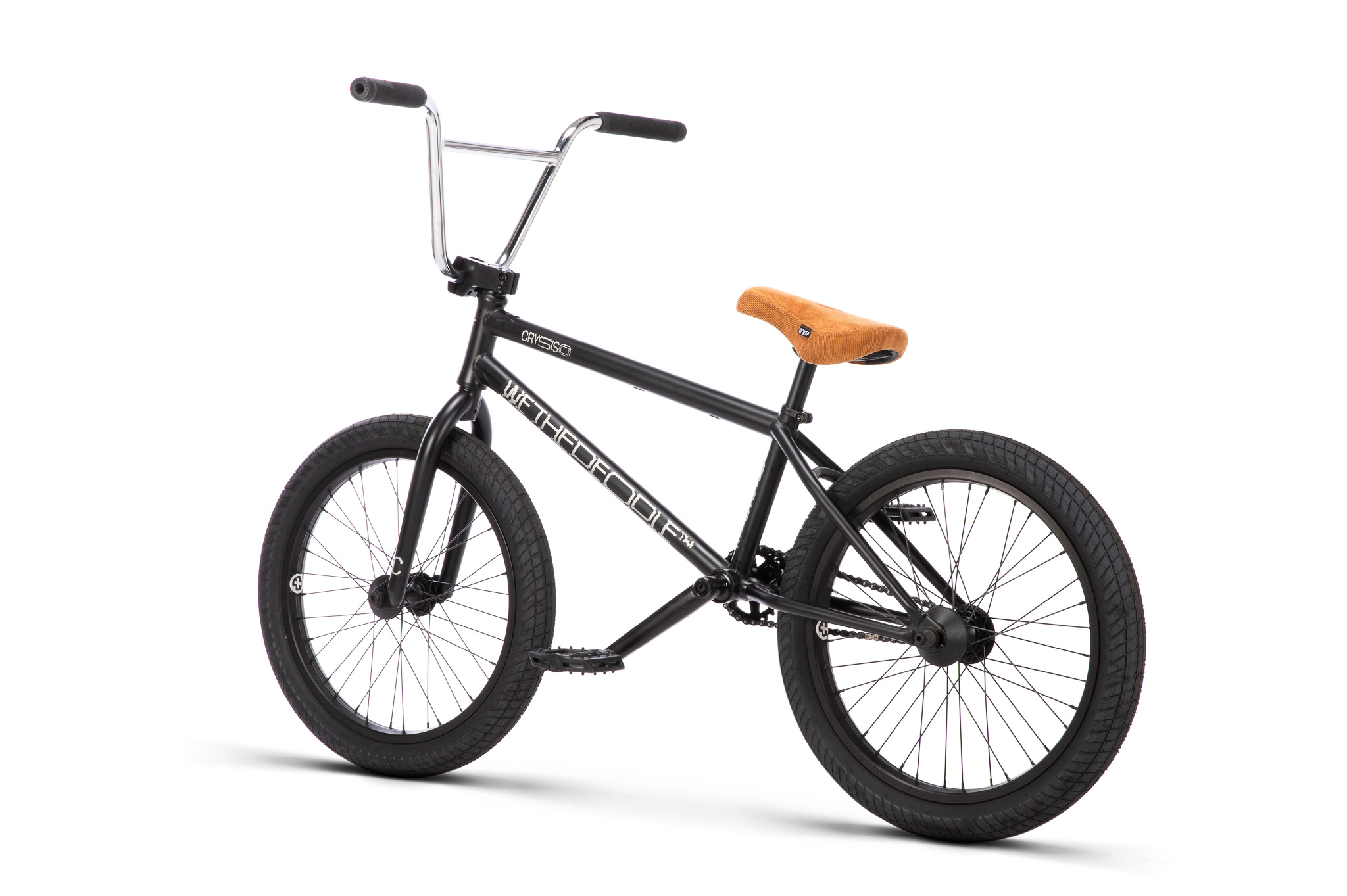

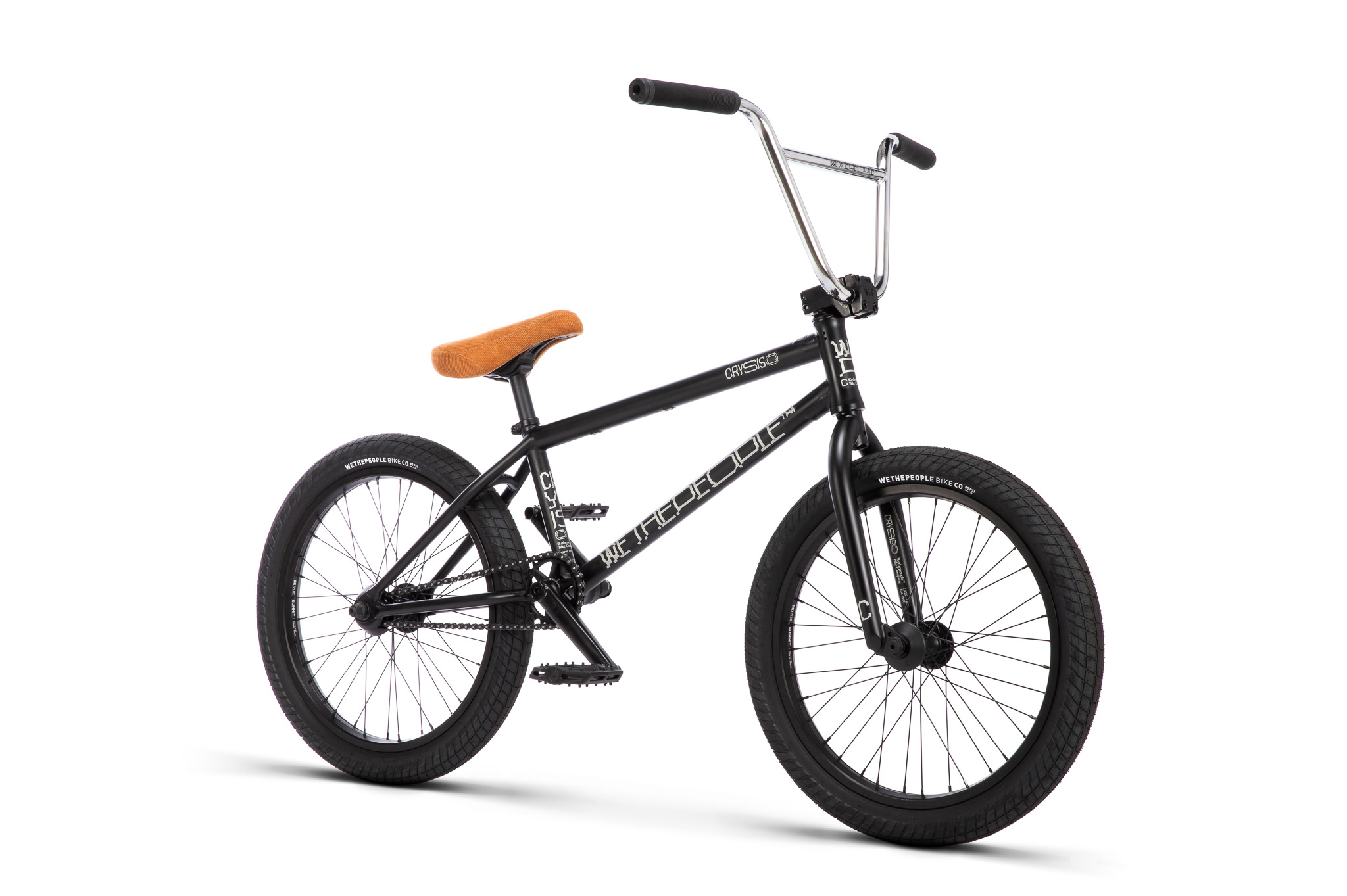

COLORWAY: MATT BLACK

CLICK IMAGE FOR FULL SIZE GALLERY


SPECIFICATIONS

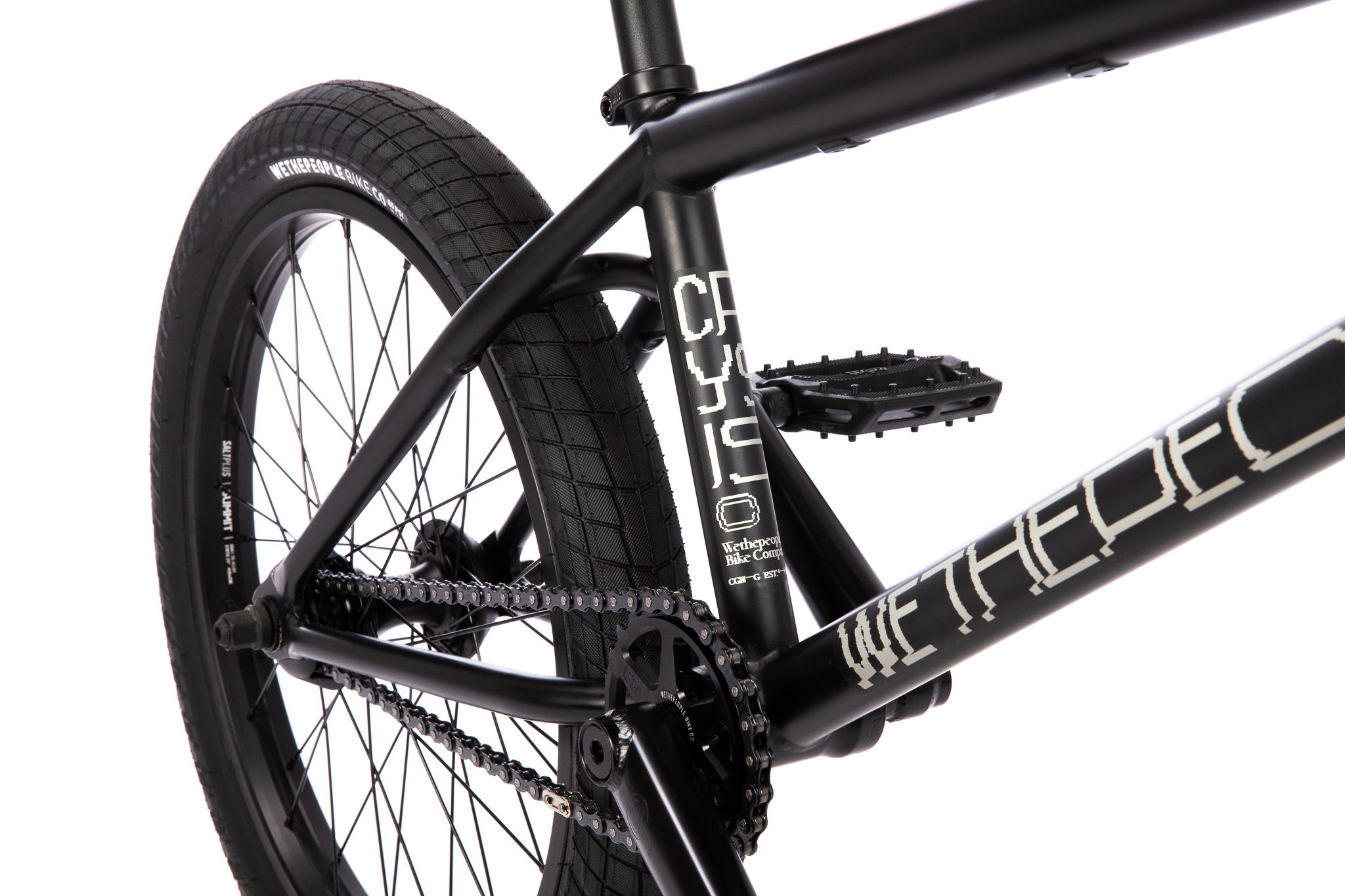

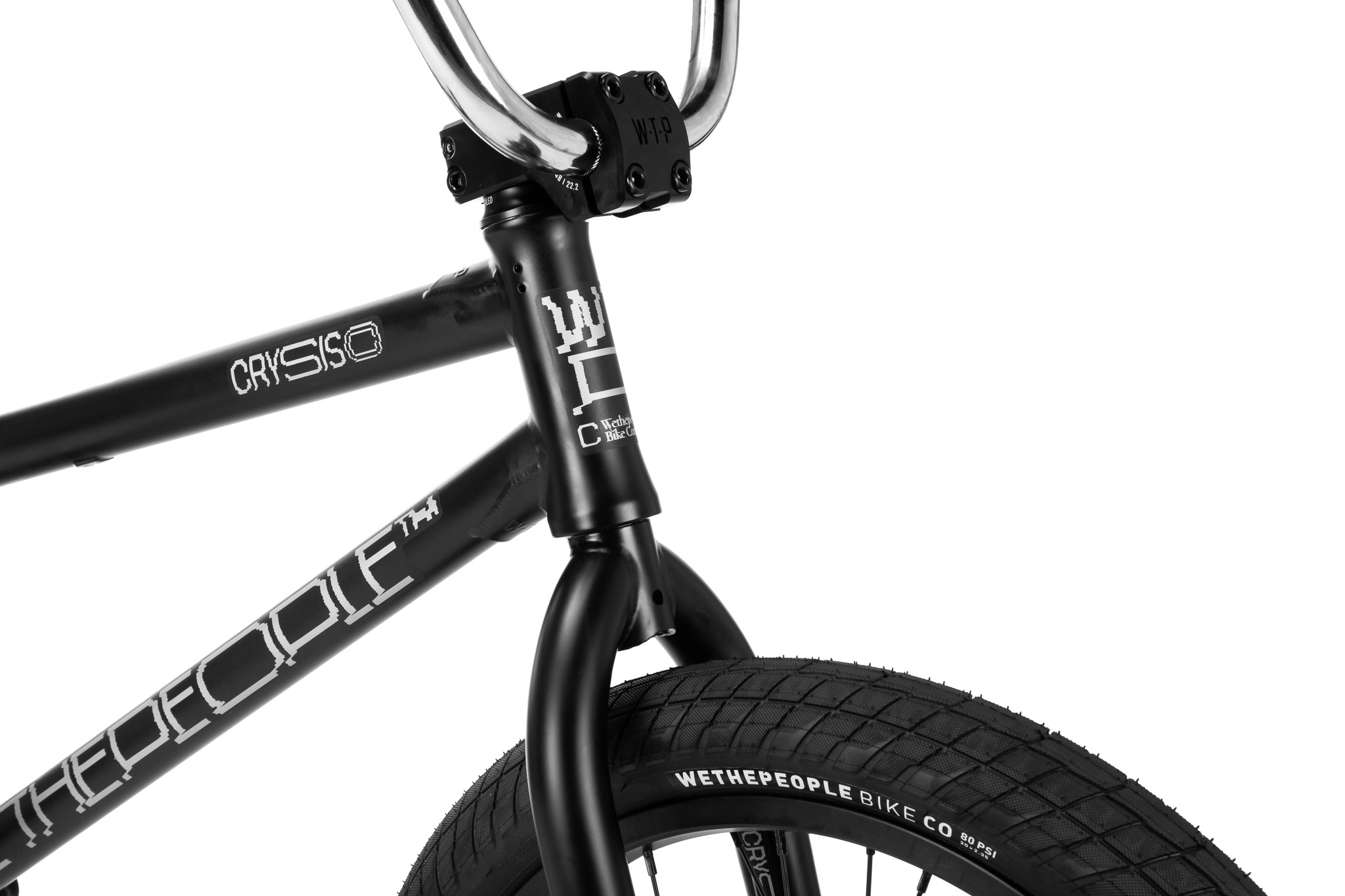

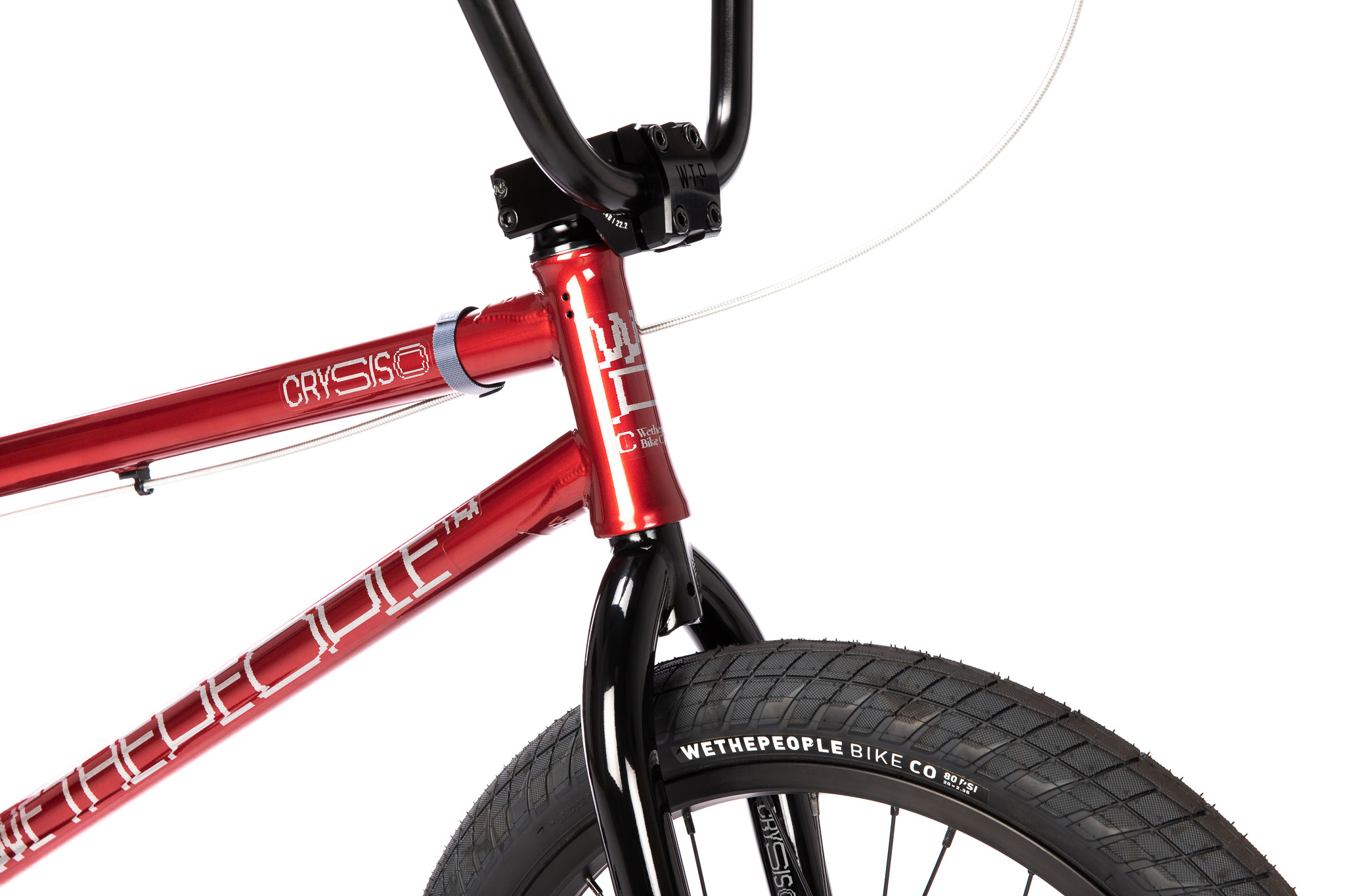

Frame: 4130 full crmo frame, tapered SS & CS removable pivots & guides, 127mm head tube

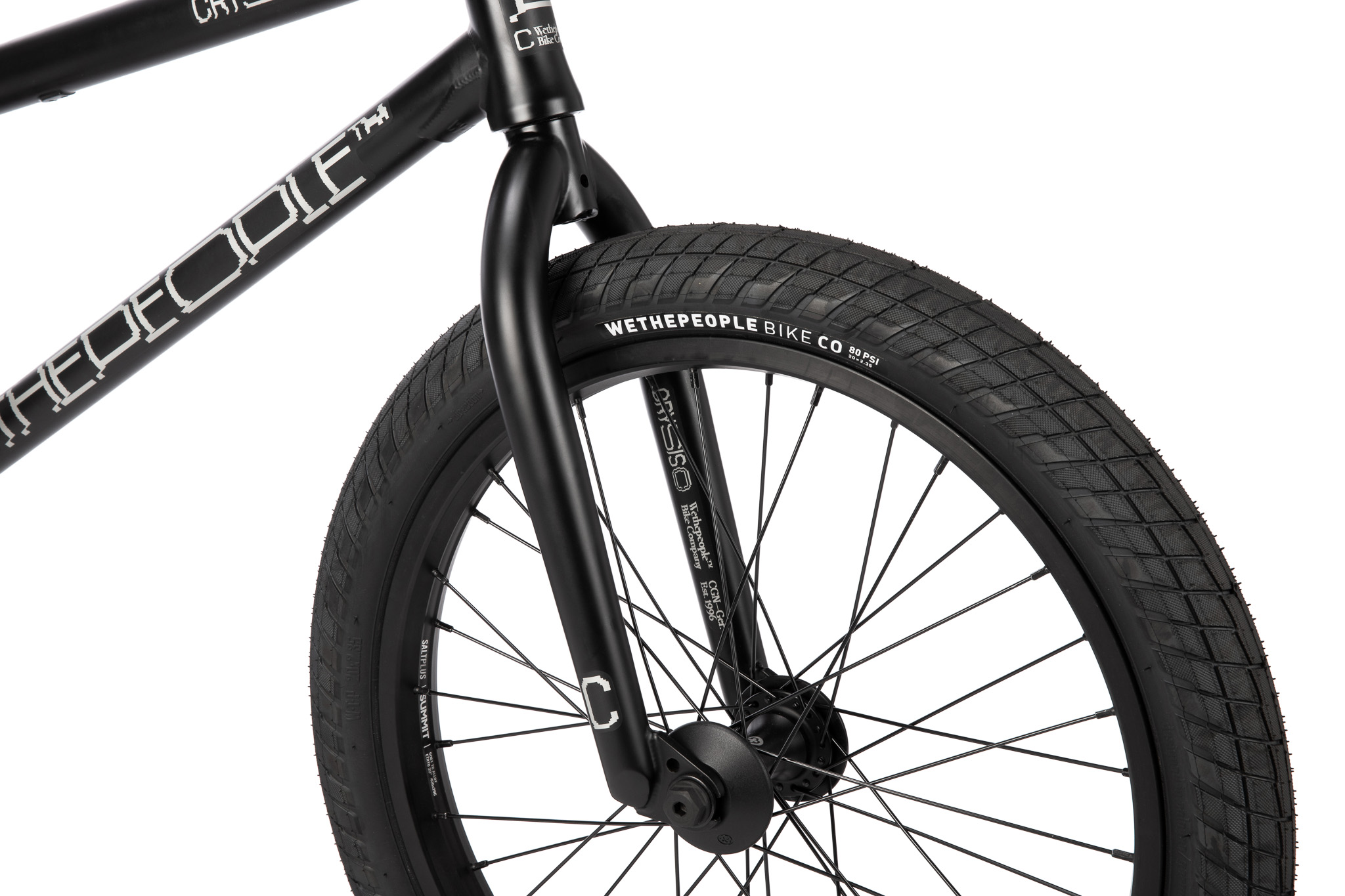

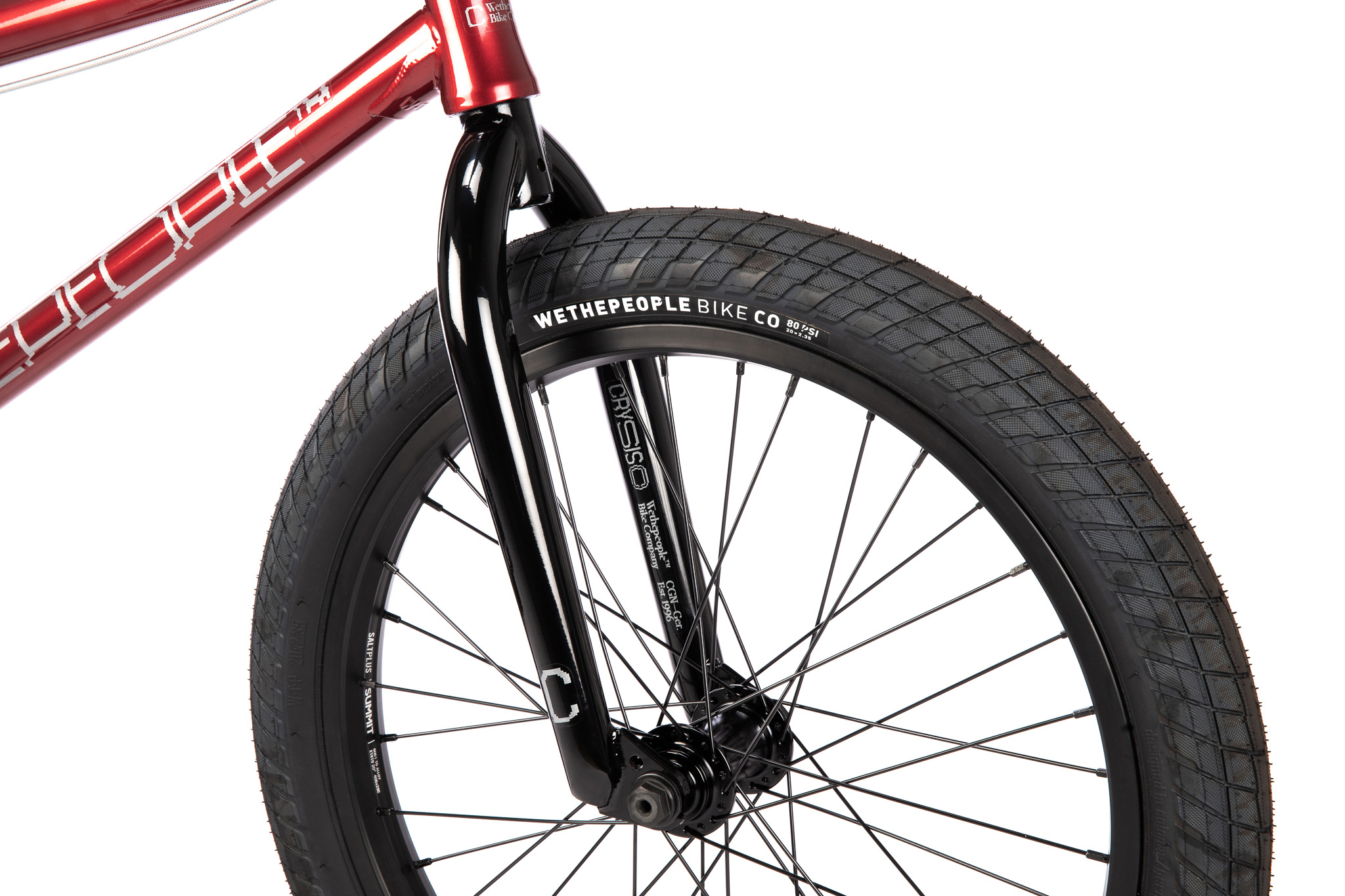

Fork: SALTPLUS “CRYSIS” fork, full 4130 crmo , butted crmo steerer, 28mm offset

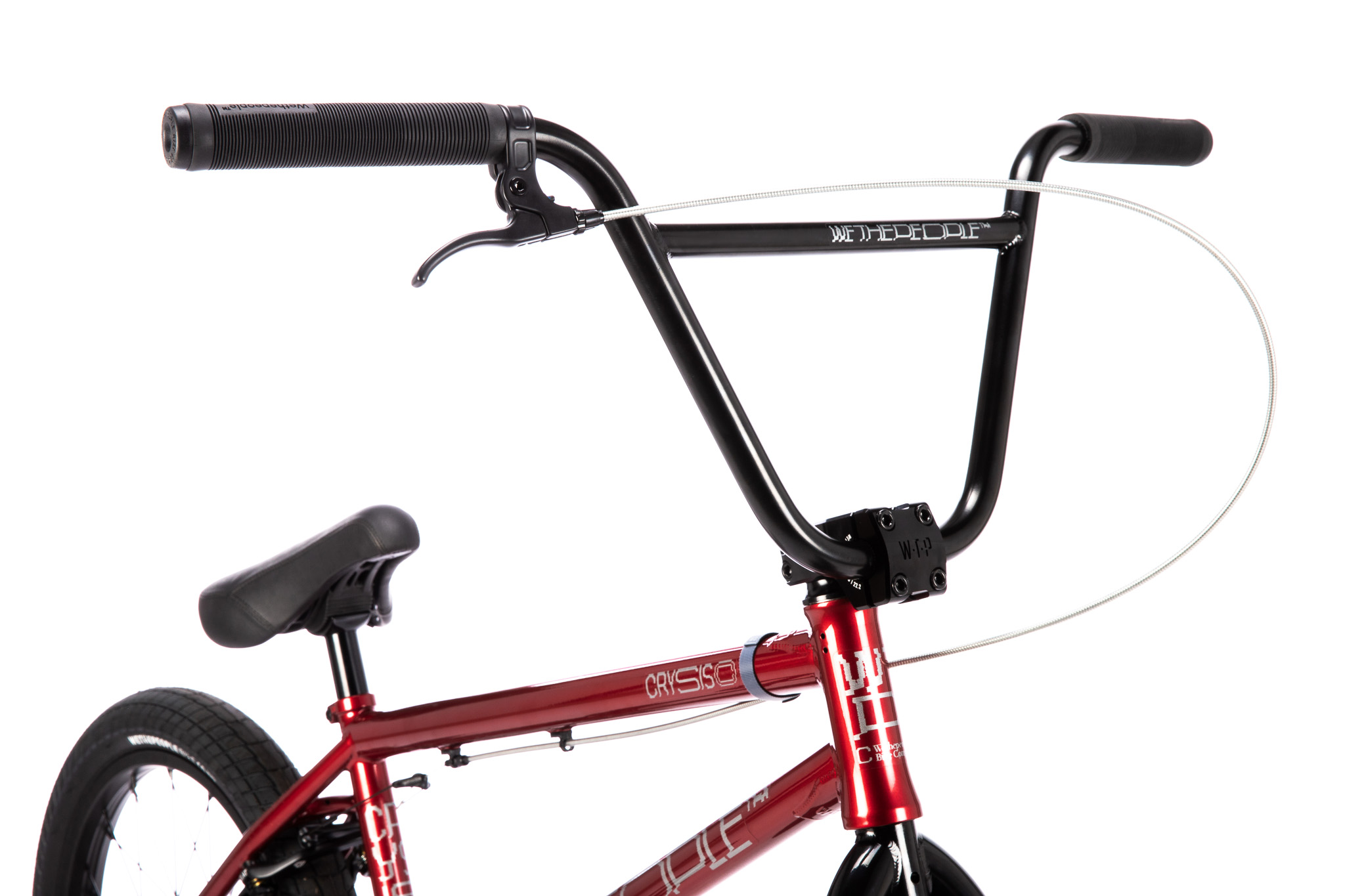

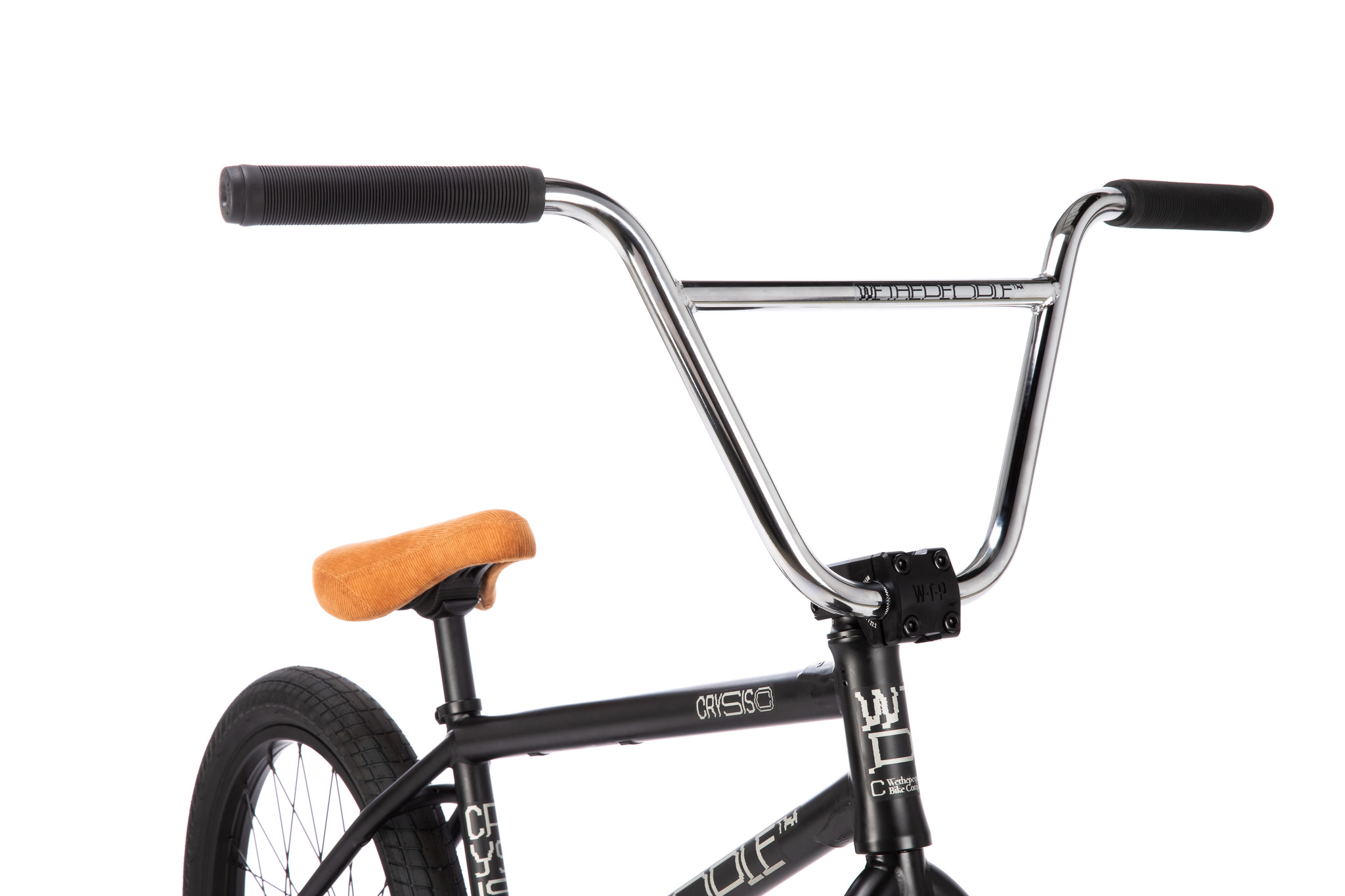

Bars: SALTPLUS "CRYSIS" 2pc bar,  full 4130 crmo

Grips: ÉCLAT “FILTER” flangeless grips

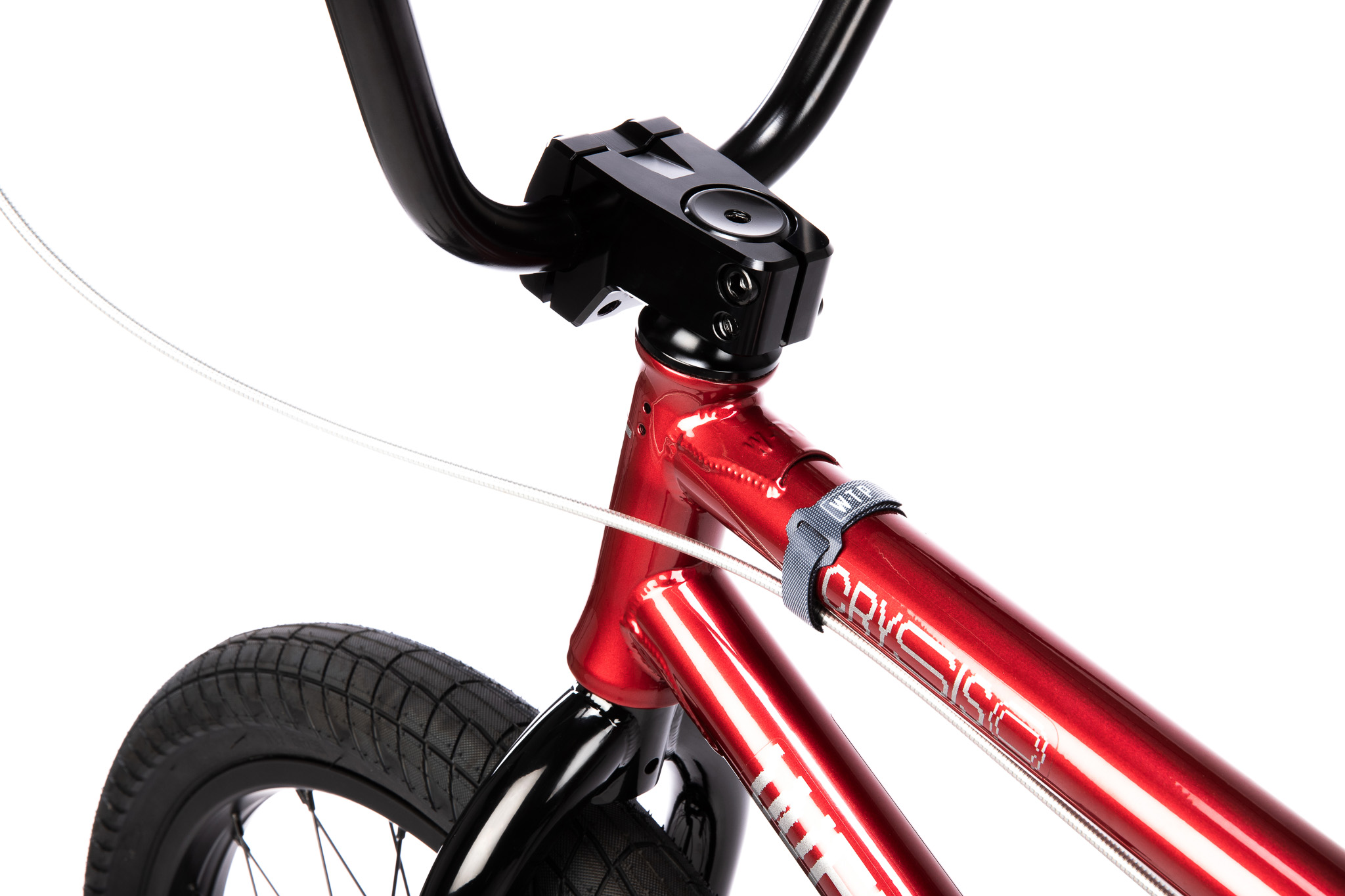

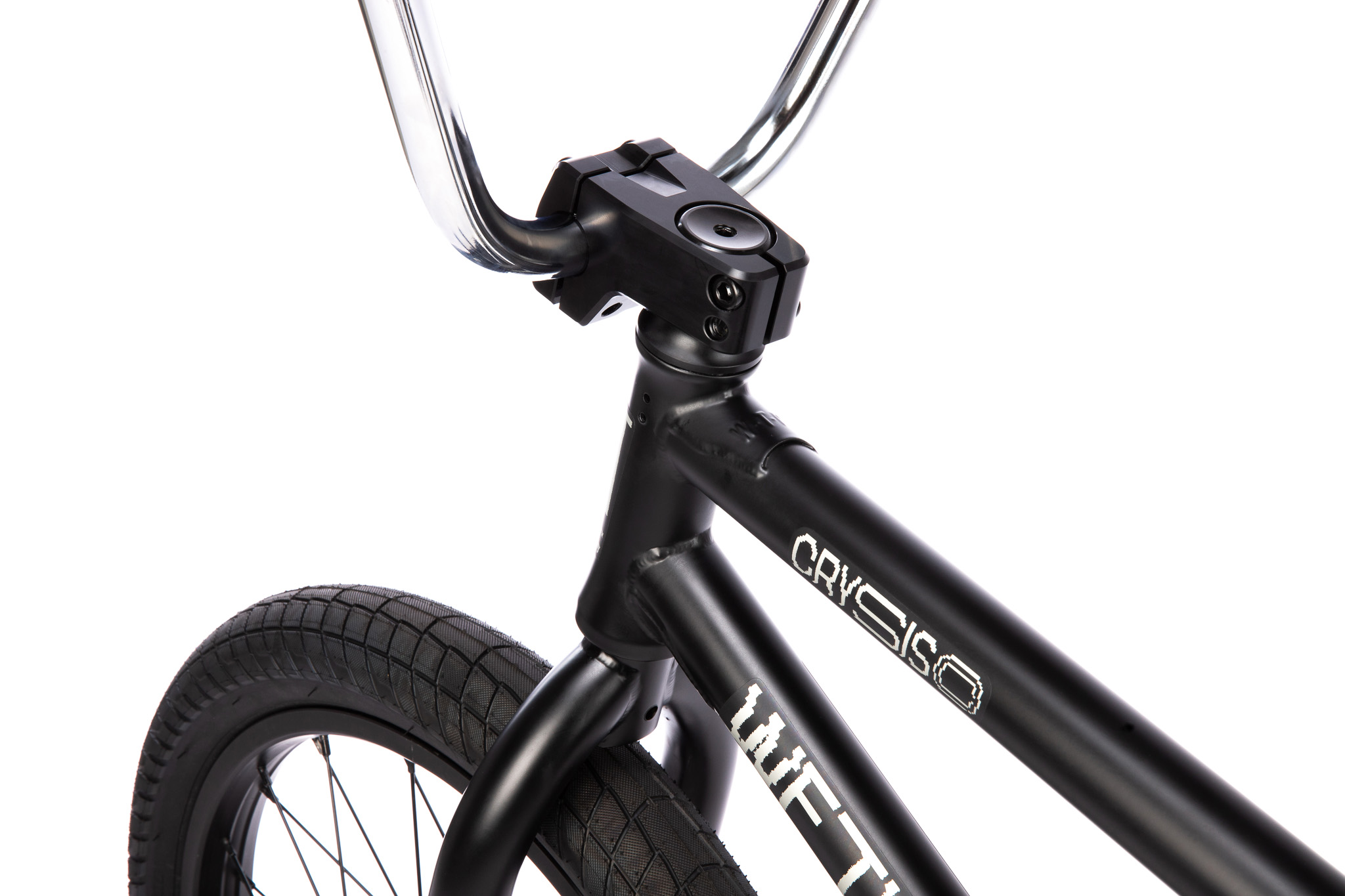

Stem: WETHEPEOPLE “LOGIC” top loading stem, 50mm reach

Headset: SALT “PRO” int. headset, sealed bearing

Gyro: holes for removable gyro tabs

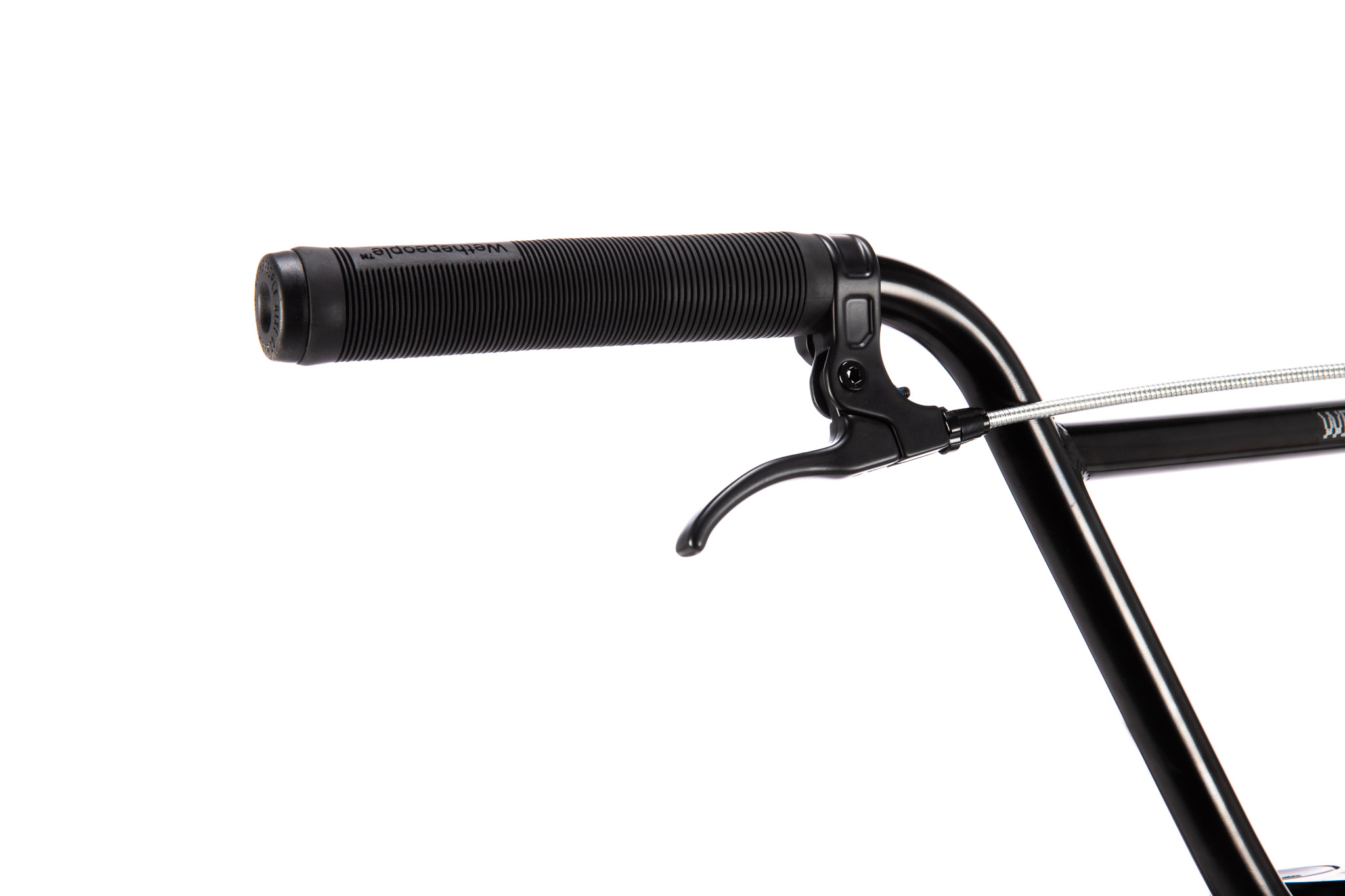

Lever: SALT “MOTO” alloy brake lever

Brakes: ÉCLAT “TALON” alloy u-brake rear

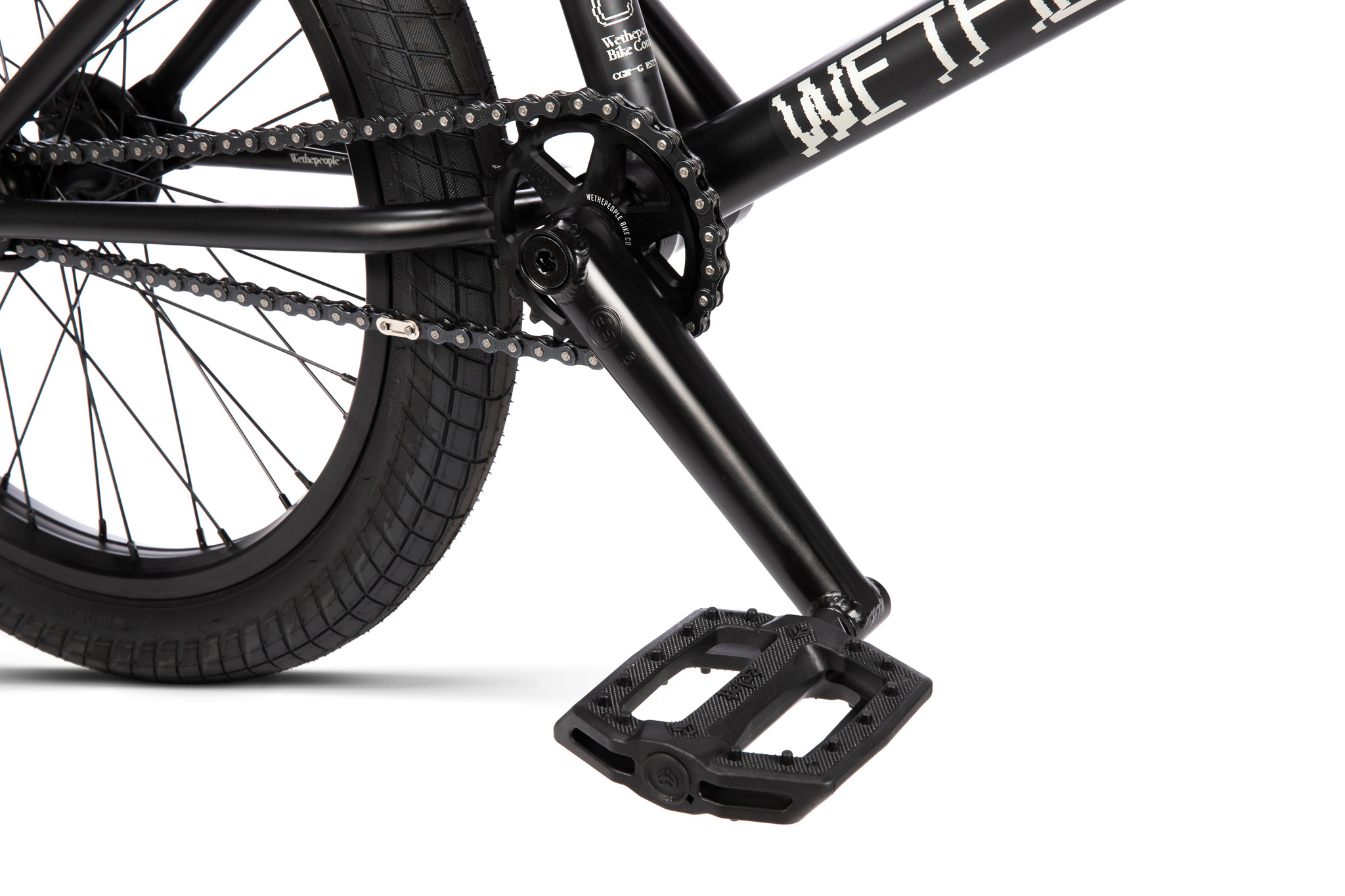

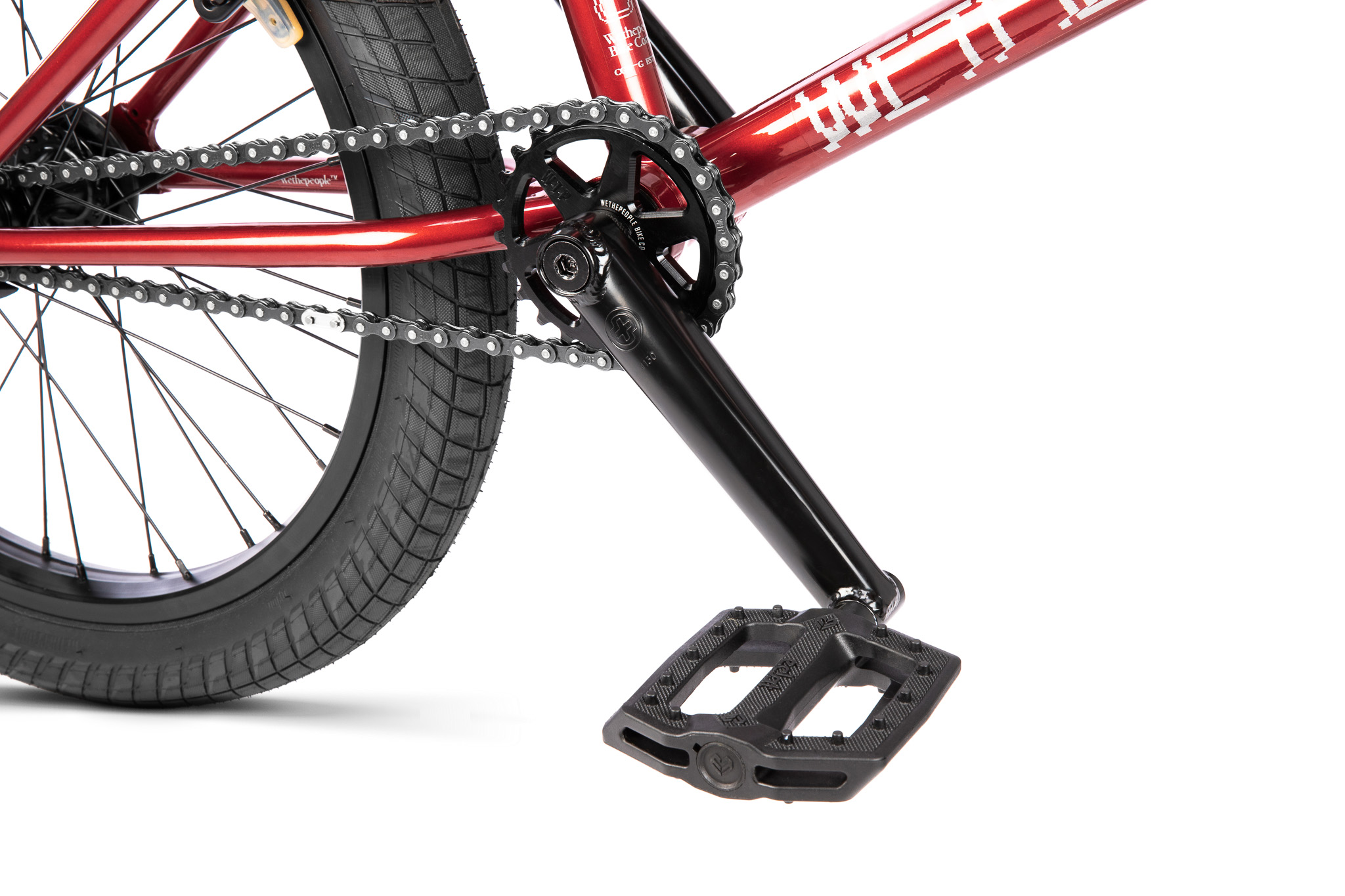

Cranks: SALTPLUS “Ultra” square profile 3pc "TSS" crank crmo 170mm, 8 spline

BB: SALT “MID” 19mm, press fit, sealed bearing

Pedals:  ÉCLAT “SLASH” loose ball, nylon/fiberglass pedals

Chain: WETHEPEOPLE “SUPPLY” chain, Z510HX type

Sprocket WETHEPEOPLE “LOGIC” 6061-T6 alloy, 25t sprocket

Driver: 9t, 1pc cassette driver, sealed bearing

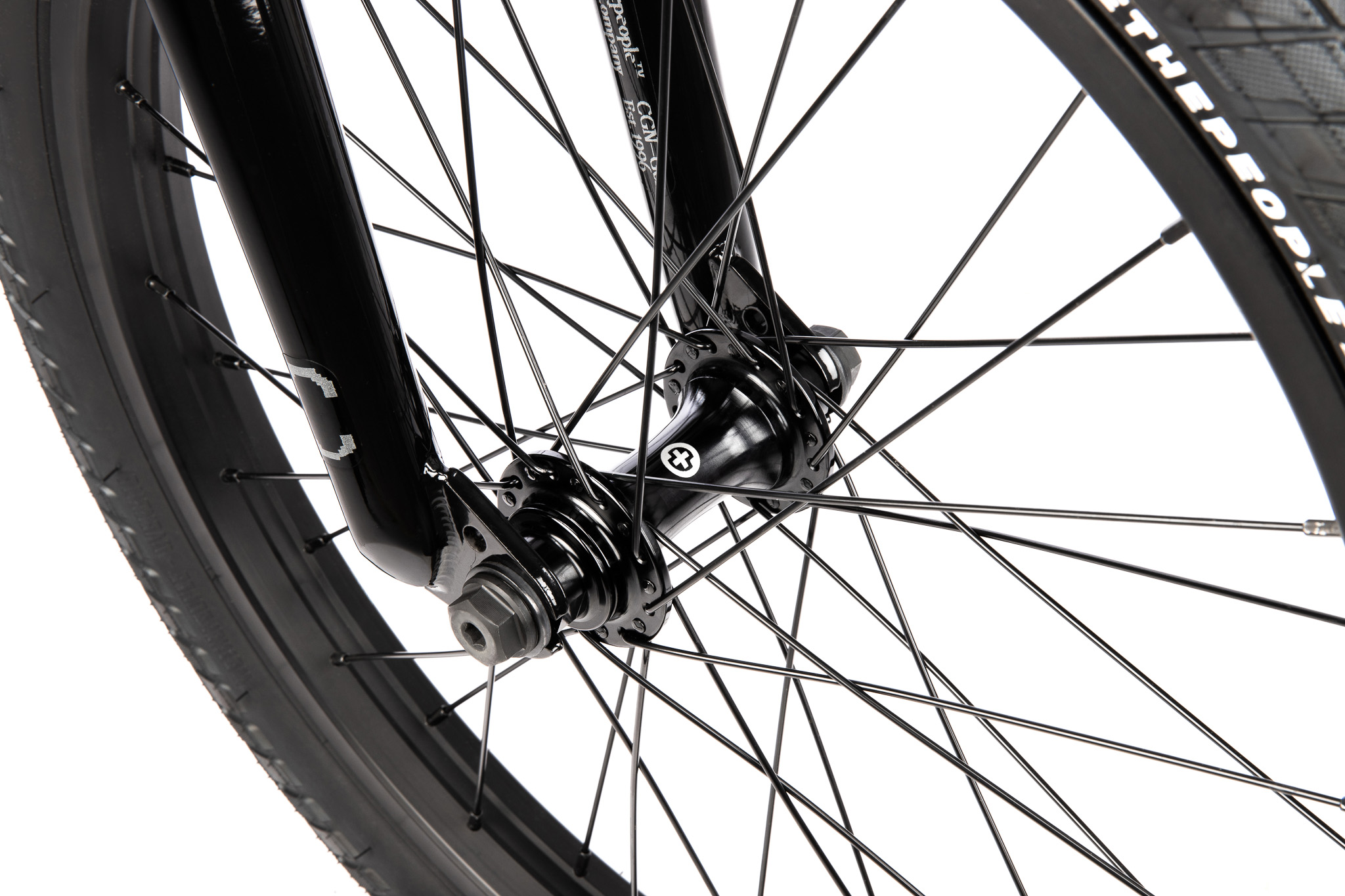

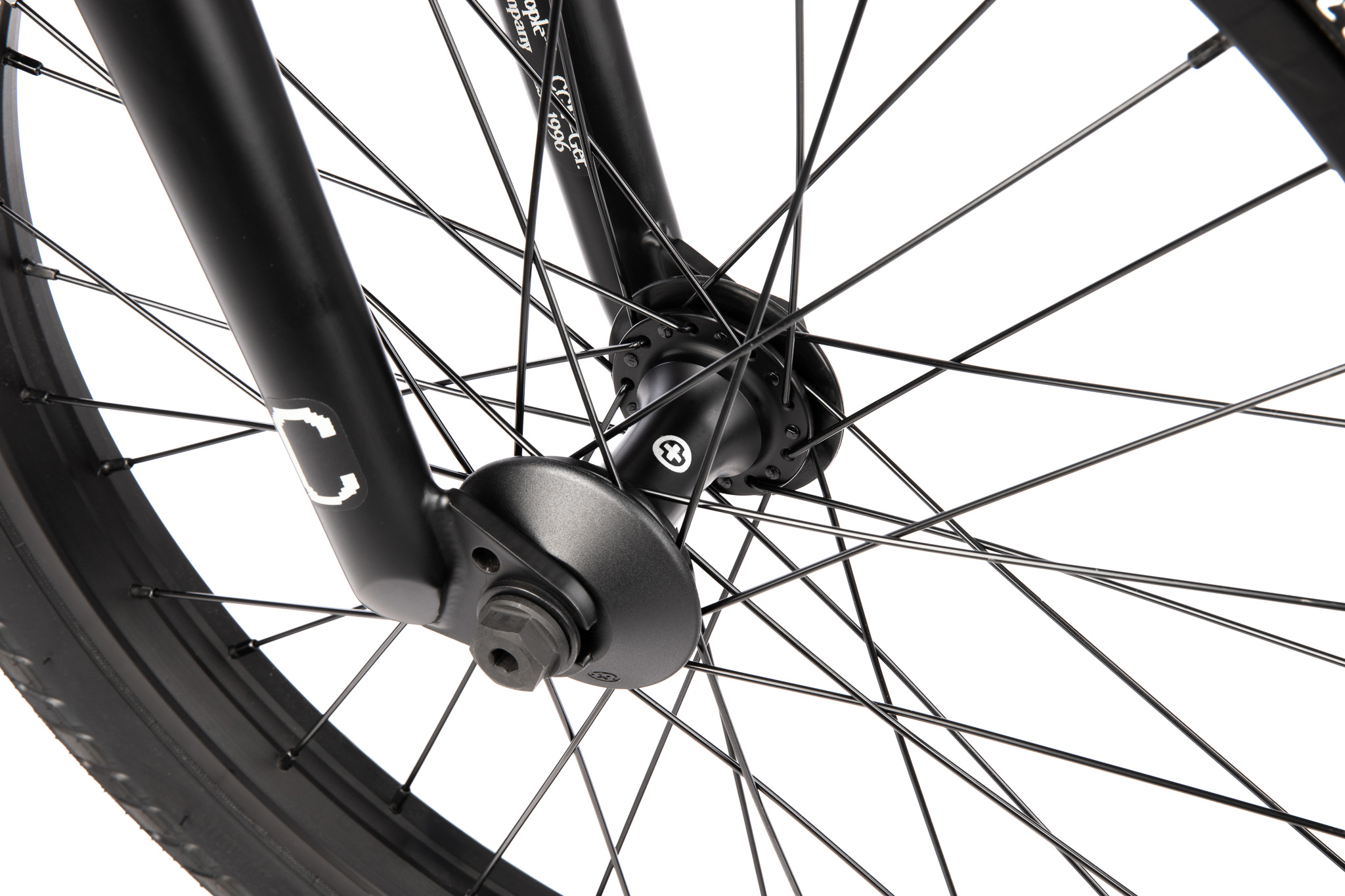

Front Hub: SALTPLUS “PRO” hub, sealed bearing, 3/8”s female bolts, 36h

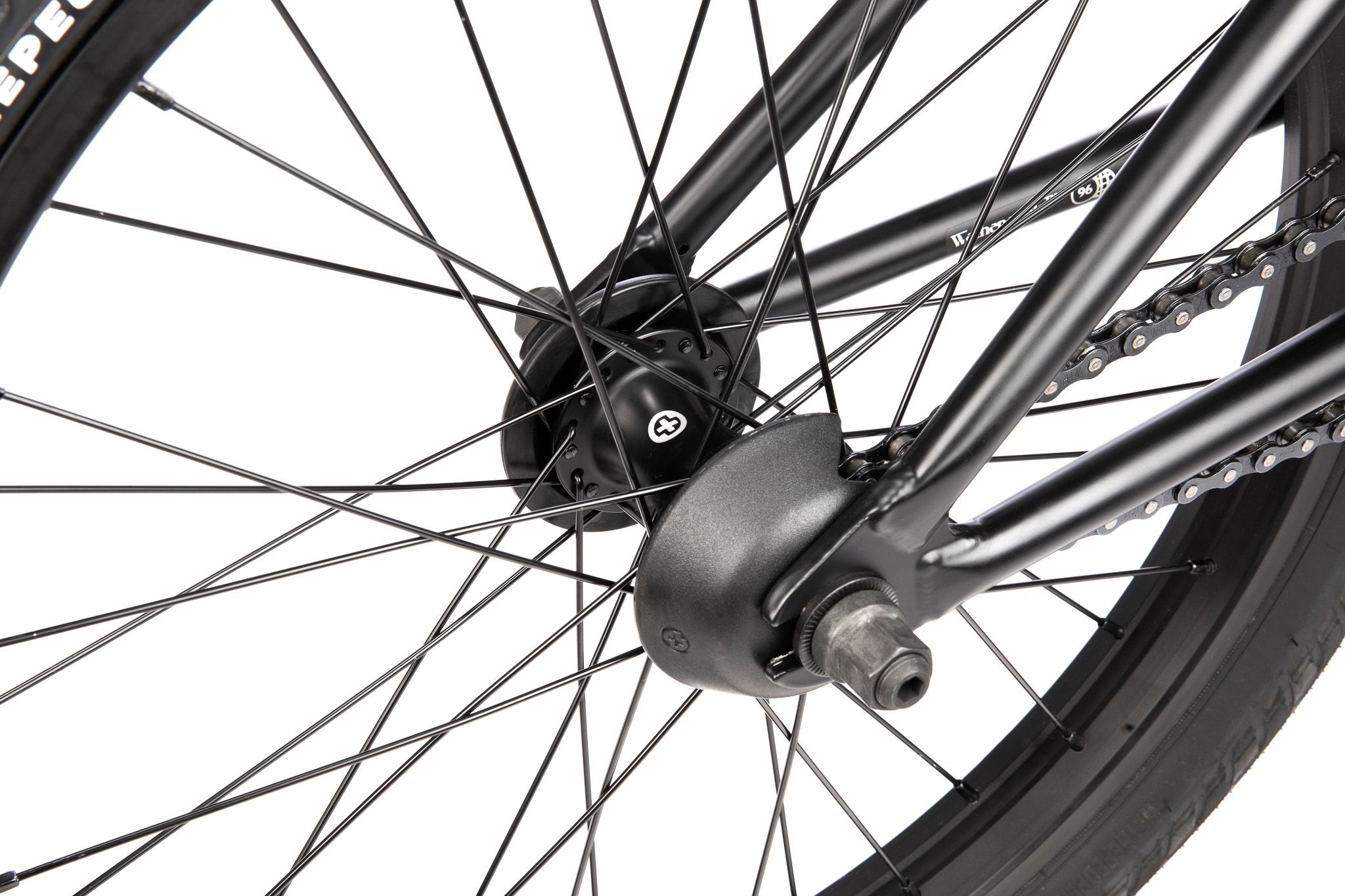

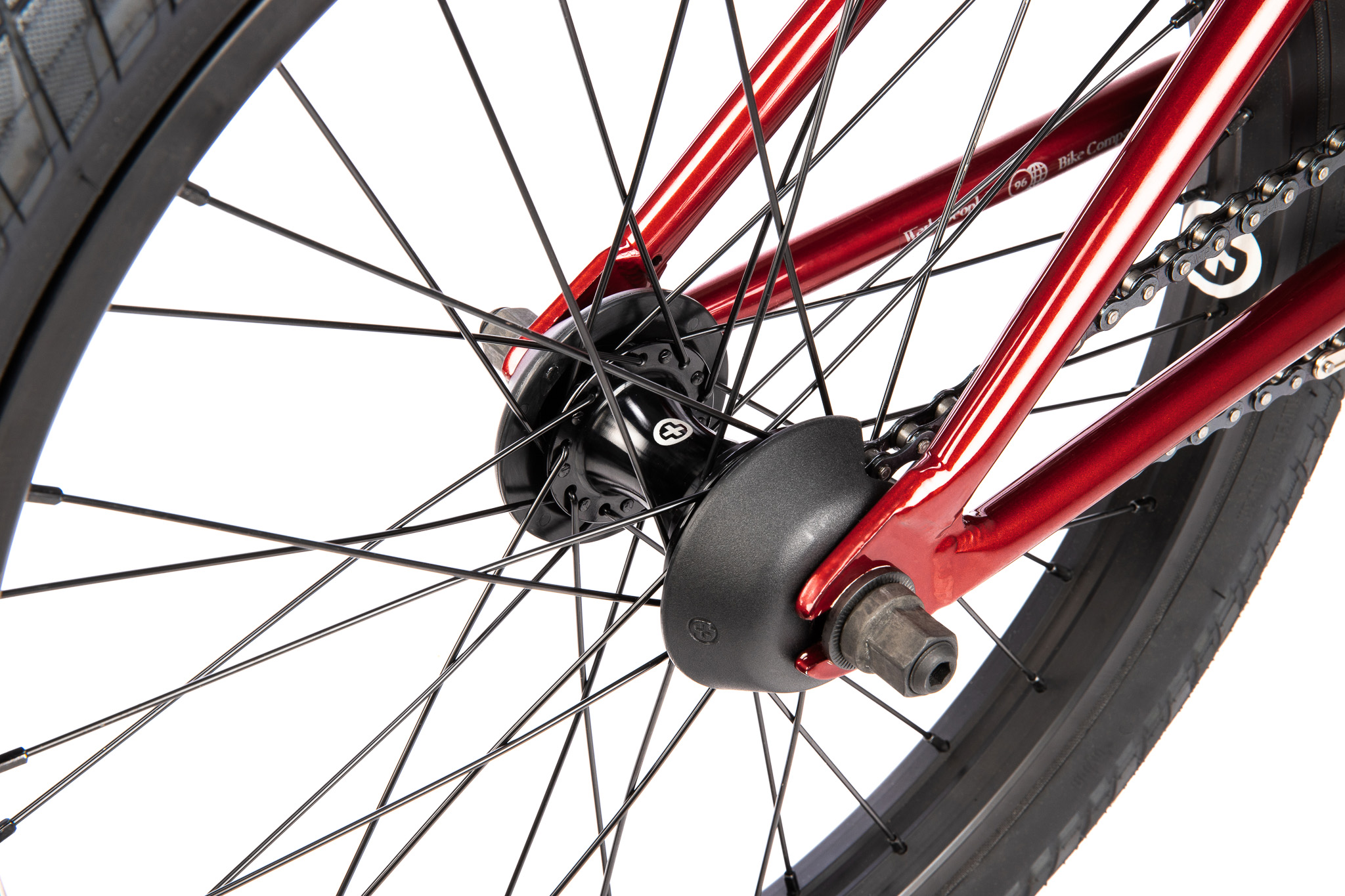

Rear Hub: SALTPLUS “PRO” cassette hub, full sealed, 9t, 14mm axle, 36h

Hubguards: SALTPLUS "PRO" Nylon/Fibreglass front (x2) & rear (x2)

Front Rim:  SALTPLUS "SUMMIT” 36mm double wall rim, 36h

Rear Rim:  SALTPLUS "SUMMIT” 36mm double wall rim, 36h

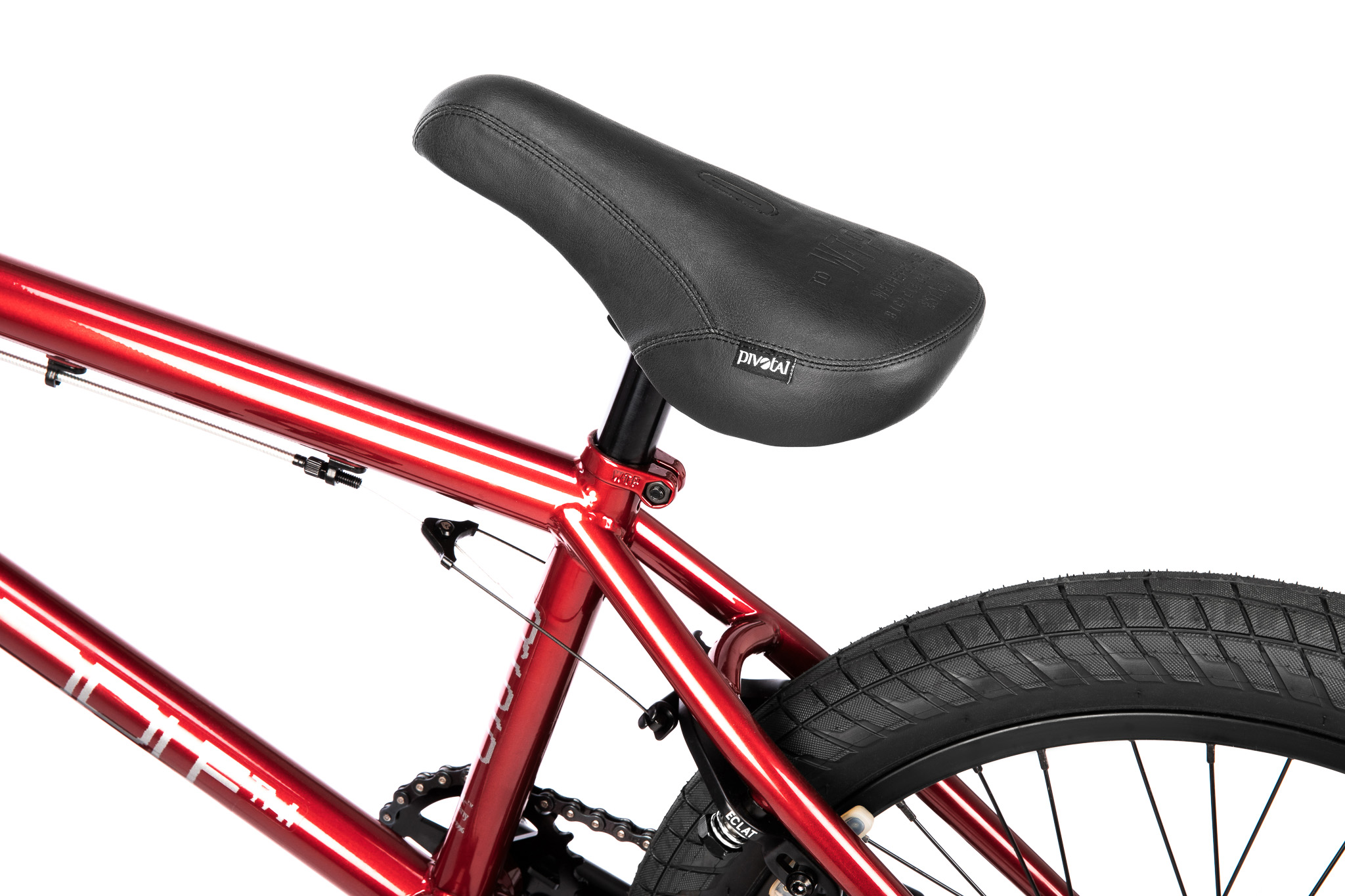

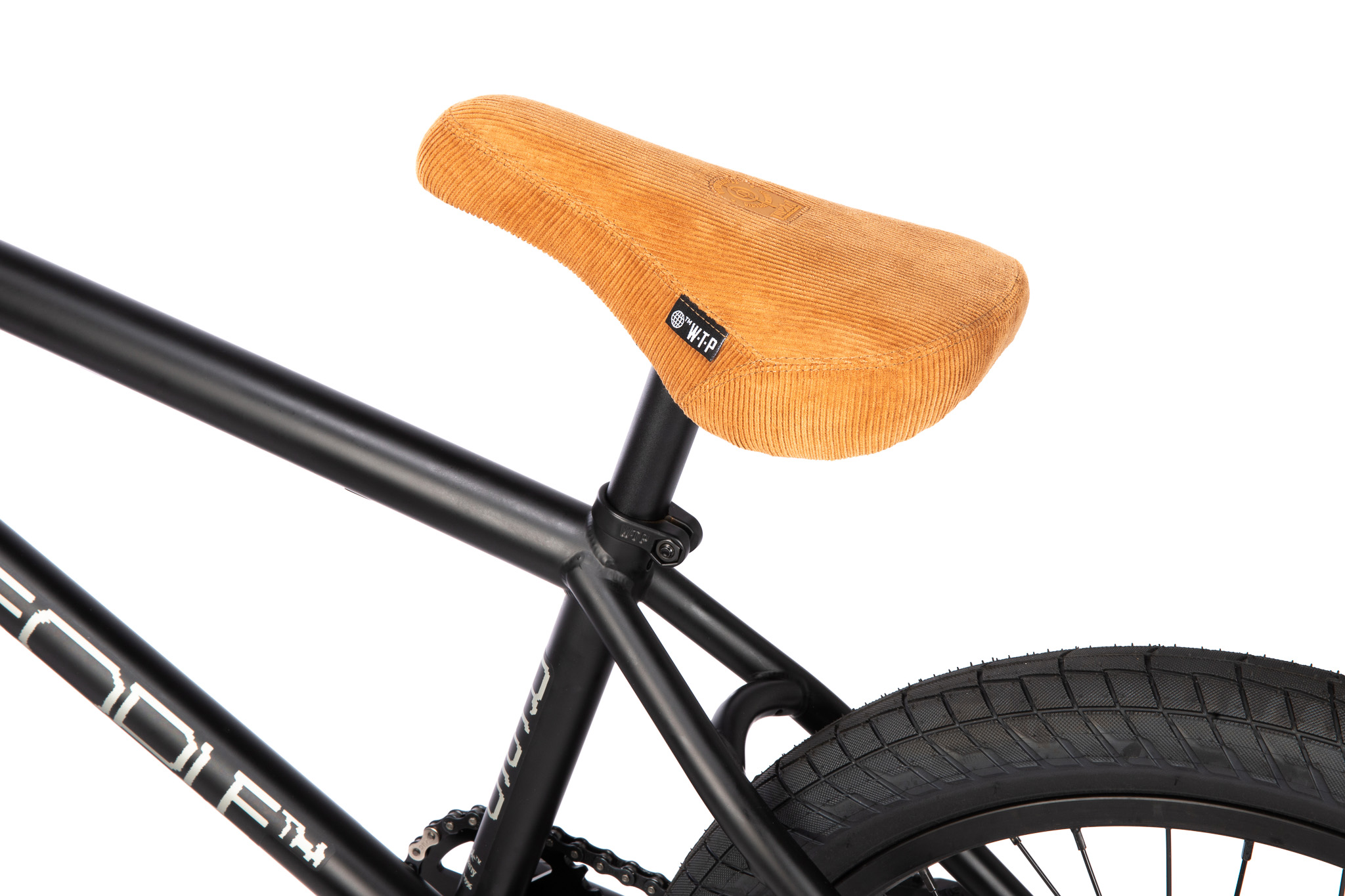

Seat: ÉCLAT "BIOS" fat padded pivotal seat

Seat Post: SALT “AM” pivotal seat post, alloy, 150mm

Seat Clamp: WETHEPEOPLE “LOGIC” seat clamp, 4130 crmo

Tires: WETHEPEOPLE “Overbite” 2.35" front & rear

Pegs: SALT “AM” crmo pegs, 104mm

Weight: 12.09kg / 26.66lbs - without brakes, with pegs


FRAME GEOMETRY

A: Top Tube Length:  20.5” | 21”

B: Chain Stay Length: 13.2”

C: Head Tube Angle: 75°

D: Seat Tube Angle: 71°

E: Bottom Bracket Height: 11.65”

F: Stand Over Height: 8.75” | 9"


BAR GEOMETRY

G: Bar Rise: 9“ | 9.25"

H: Bar Width: 29.5” | 29.75"

I: Bar Back Sweep: 12°

J: Bar Up Sweep:
