ATLAS 24“

A bike with a larger following that we’d ever anticipated, the Atlas is the perfect bike for those times when bigger is better. Our 24” wheeled BMX features a throwback to our racing ancestry. The Glossy White finish is completed with race inspired geometry, a V-brake and even a WETHEPEOPLE Patrol stem and 33t sprocket, allowing you to really put your foot down and get your sprint on. Whether you’re down the trails, at the pump track or just heading into the city, the Atlas is so much fun to ride, you’ll have hard time putting it down.

arrow-left

ATLAS 24“

ATLAS 24“

ATLAS 24“

ATLAS 24“

SPECIFICATIONS
plus
FRAME:
WETHEPEOPLE "ATLAS" frame, 4130 full crmo race inspired frame, tapered CS & SS
FORK:
WETHEPEOPLE "ATLAS" fork, butted crmo tubing, cnc steerer

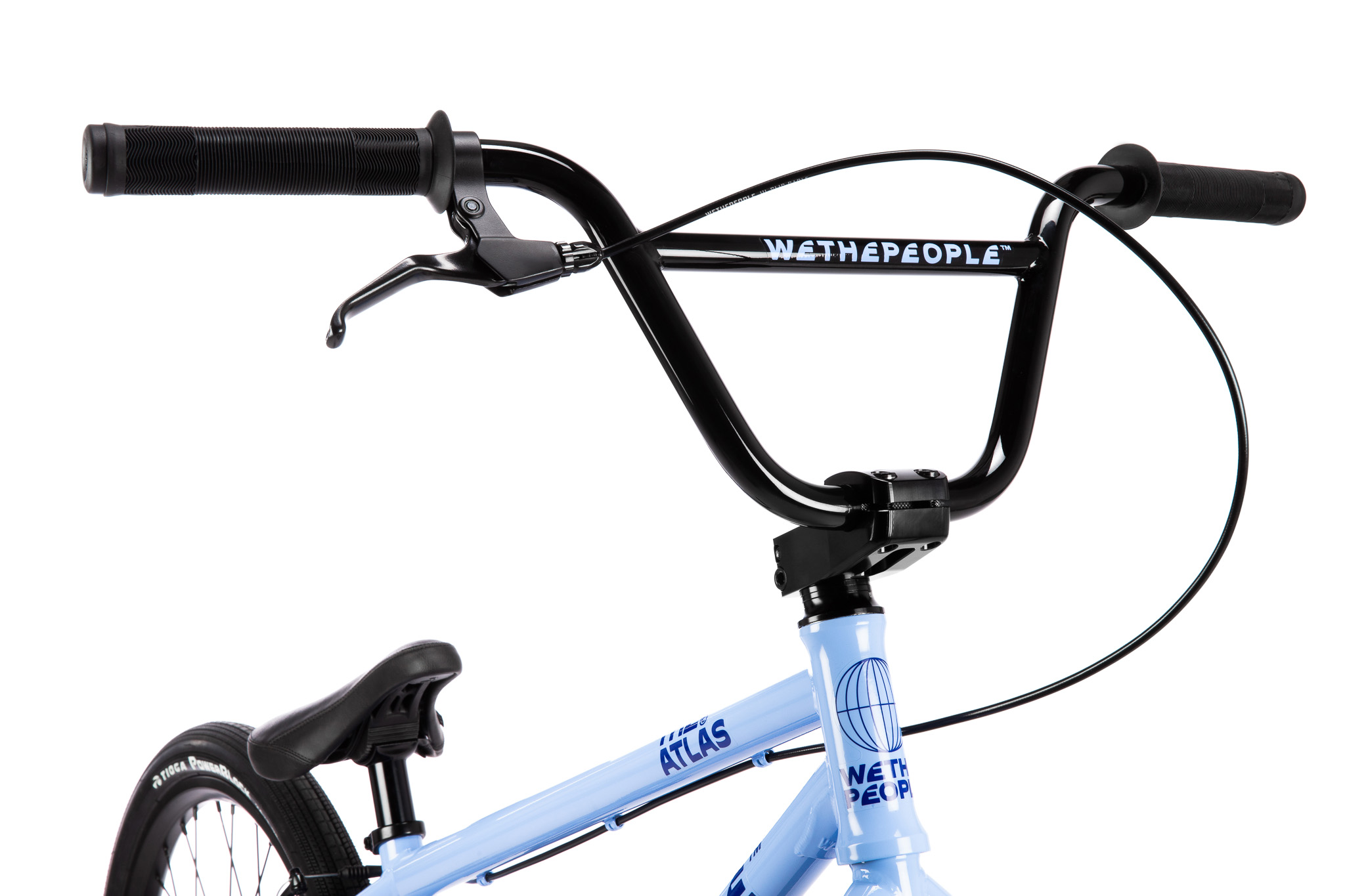

BARS:
WETHEPEOPLE "ATLAS" bar, 4130 full crmo
Grips:

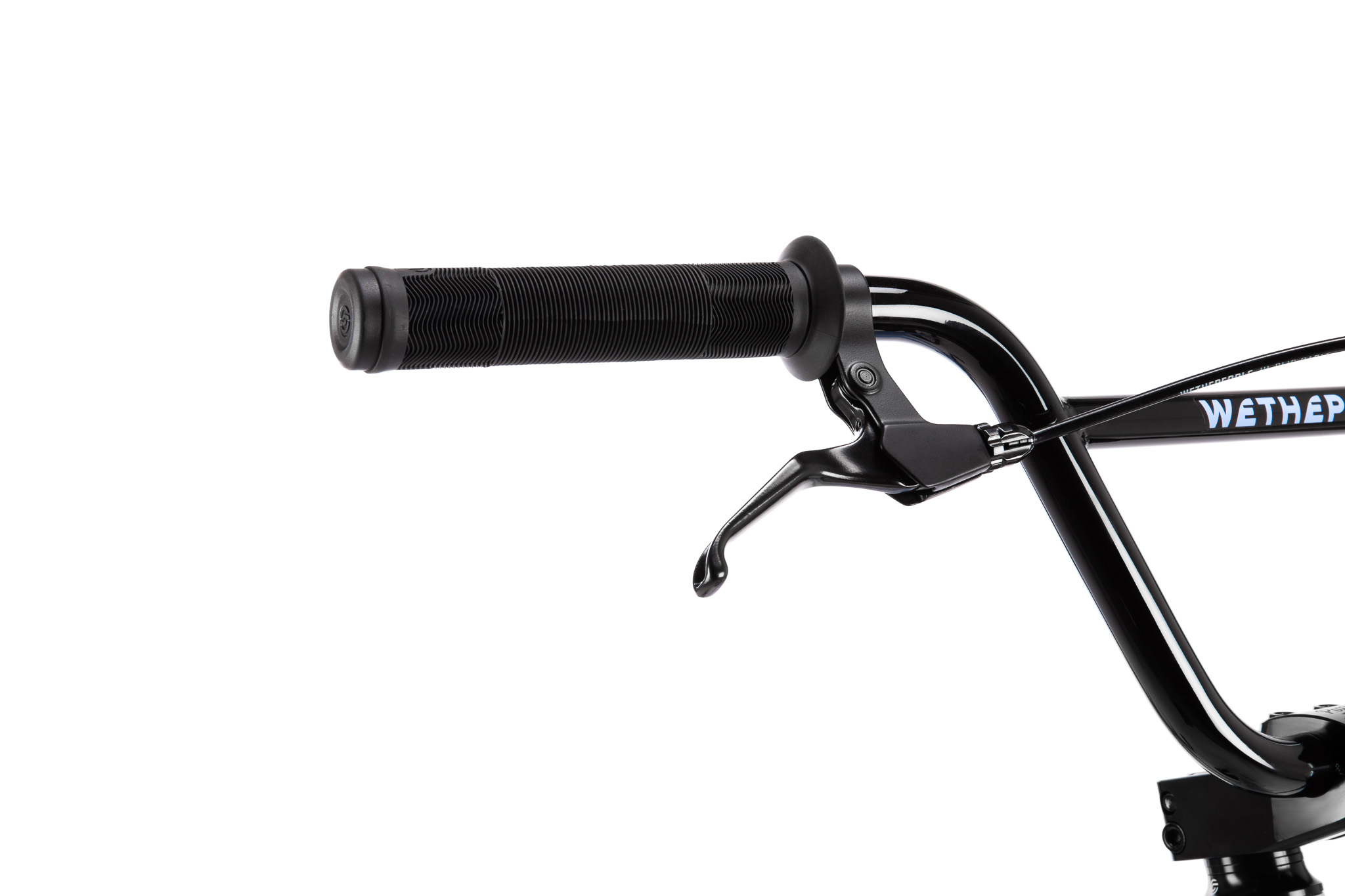

SALT "EX" grips, 155mm, with flange

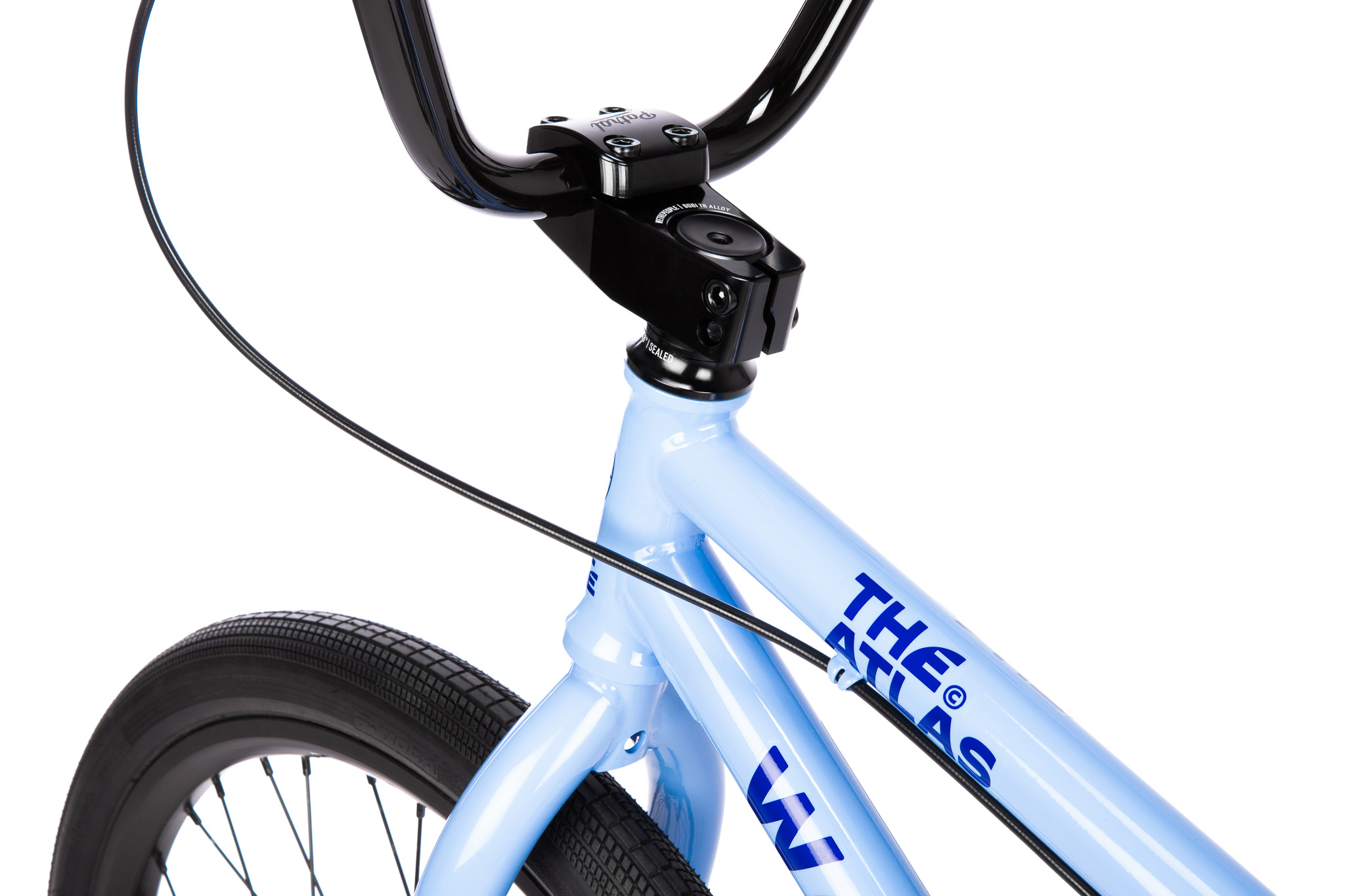

STEM:

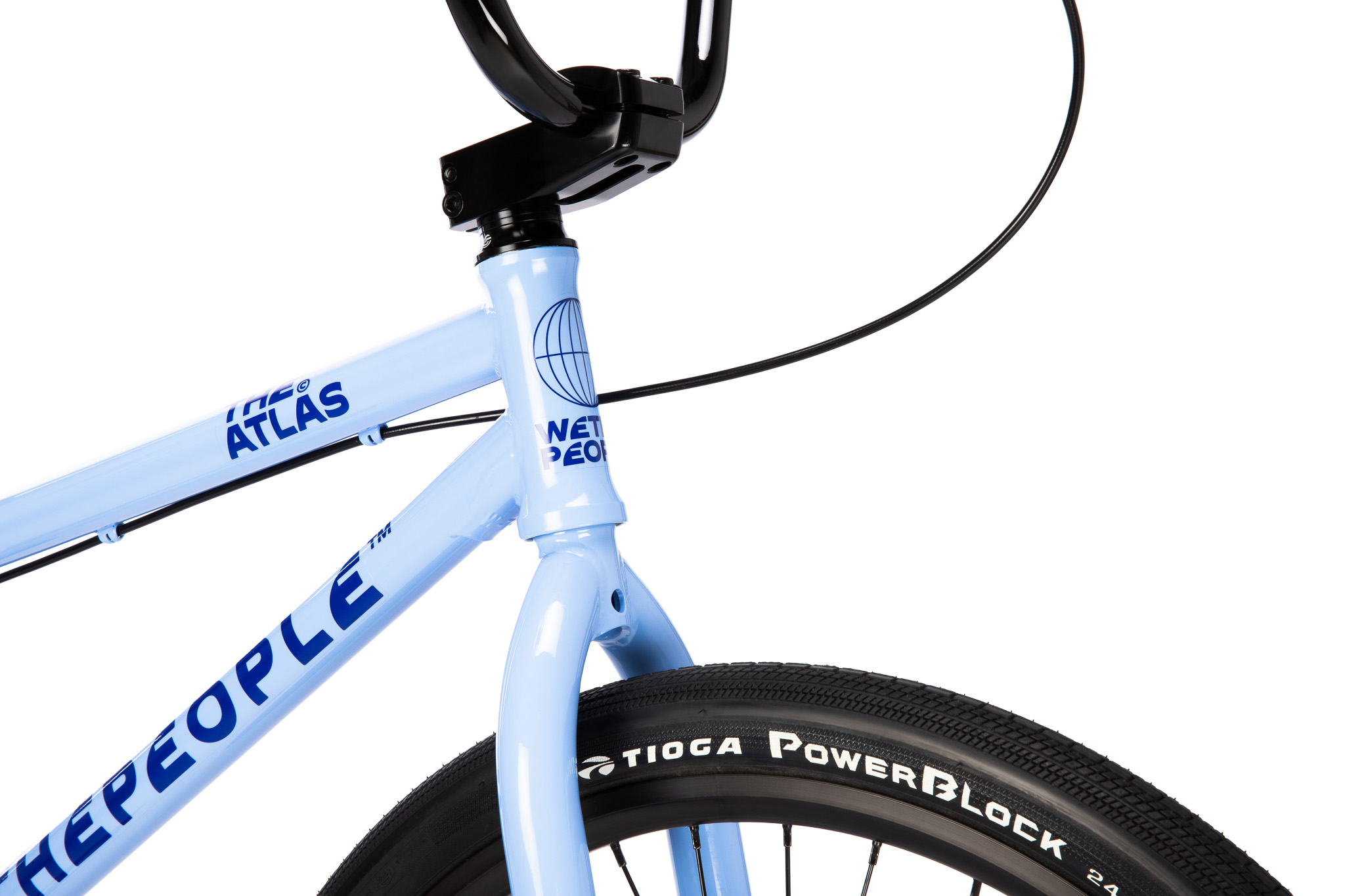

WETHEPEOPLE "PATROL" topload stem, cnc alloy, 28mm rise, 53mm reach
HEADSET:
SALT "PRO" int. headset, sealed bearing
GYRO:
-
LEVER:
SALT "ATLAS" v-brake lever, alloy
BRAKES:
SALT "ATLAS" v-brake, alloy

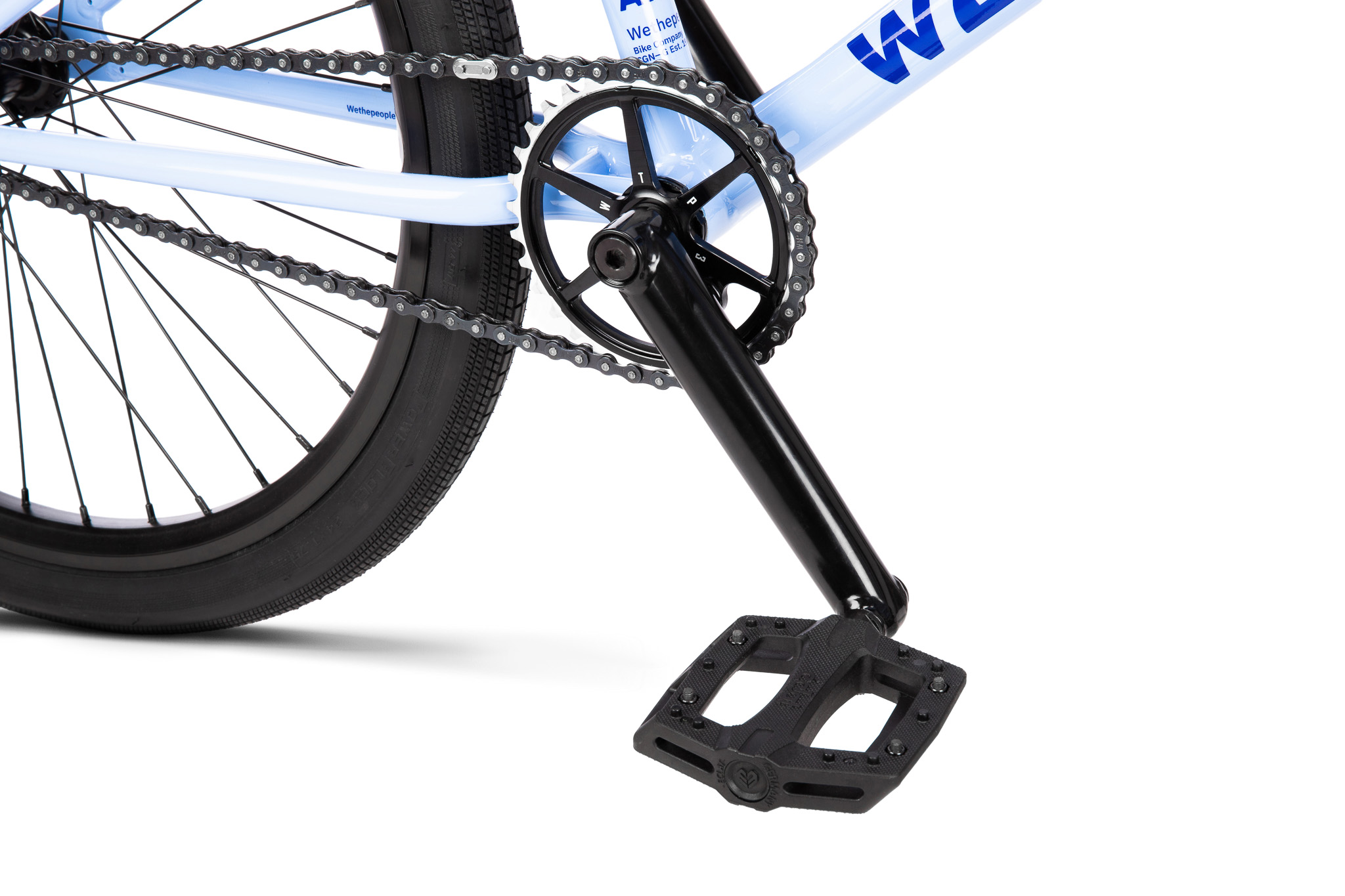

CRANKS
SALTPLUS "PRO48" tubular 3pc crank, crmo, 175mm, 48 spline
BB:
SALTPLUS "EURO" bb, 19mm, euro threaded, sealed bearing
PEDALS:
ÉCLAT "CONTRA" pedals, nylon/fiberglass
CHAIN:
WETHEPEOPLE "SUPPLY" chain, Z510HX type
SPROCKET:

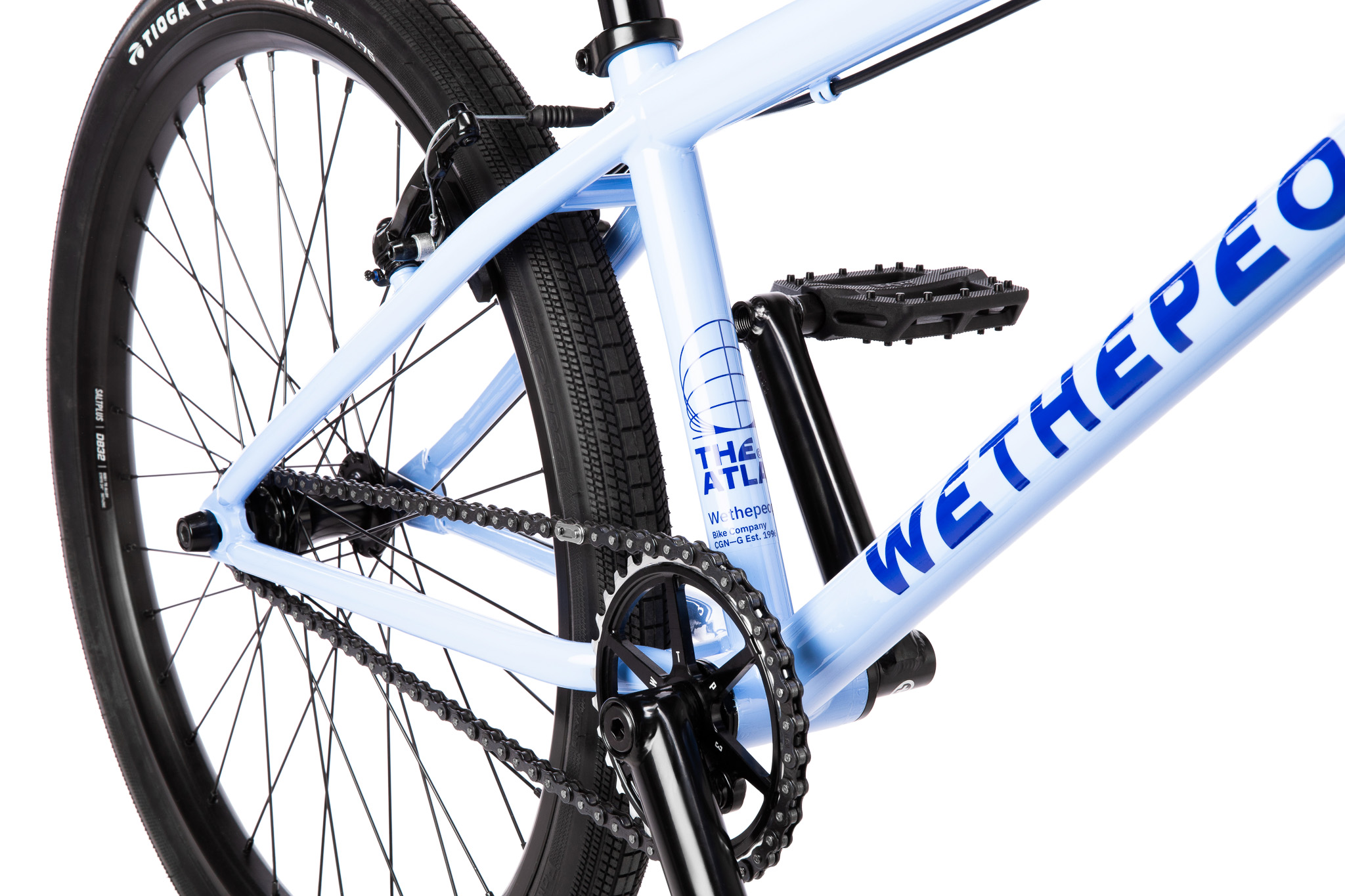

WETHEPEOPLE "PATROL" sprocket, cnc, 6061-T6 alloy, 33t
DRIVER:
cassette driver, 14t cog, sealed bearing

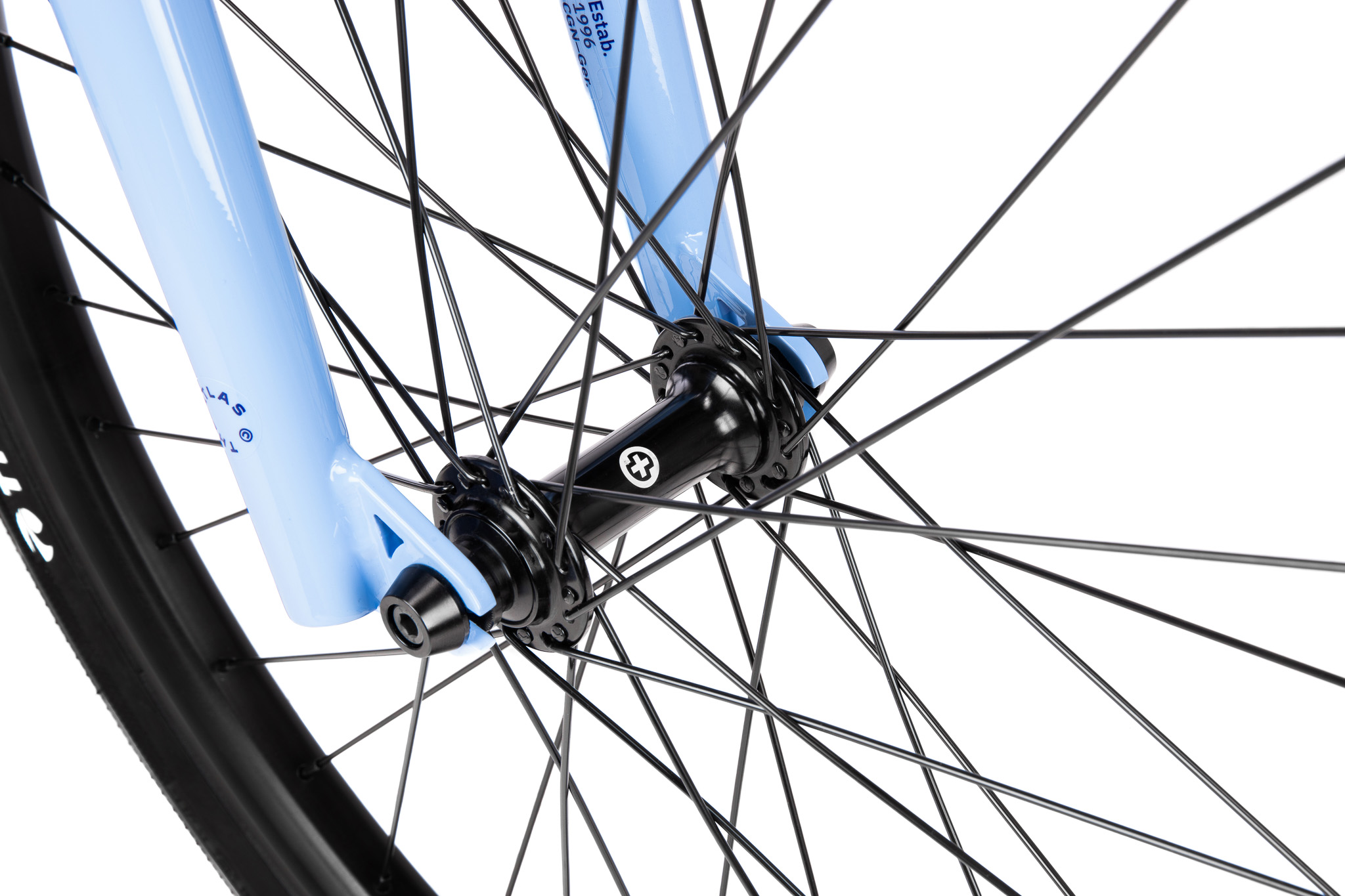

FRONT HUB:
SALTPLUS "PRO" hub, fully sealed, M6 female bolts, 36h

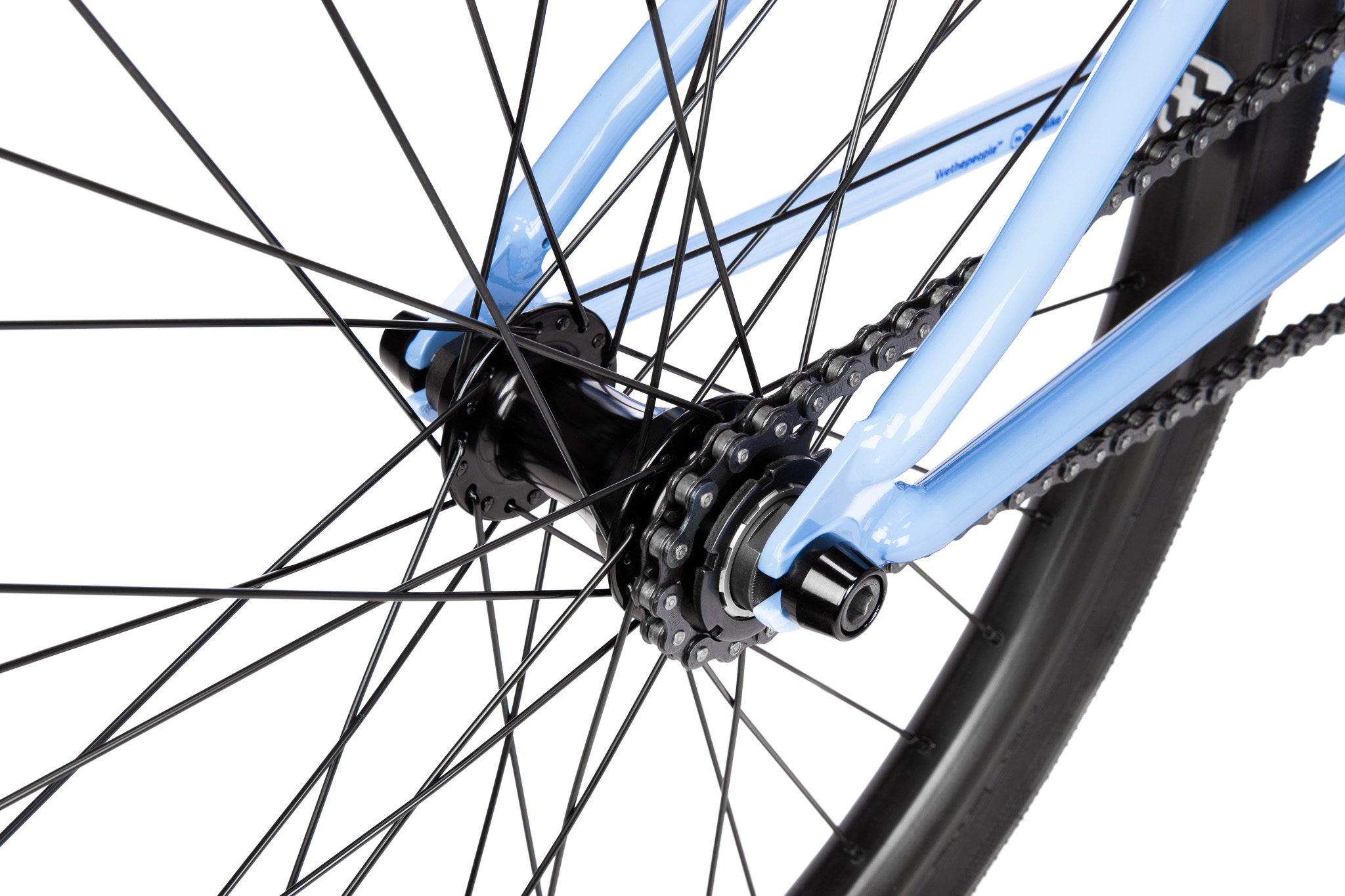

REAR HUB:
SALTPLUS "PRO" cassette hub, fully sealed, M6 female bolts, 36h
HUBGUARDS:
-
FRONT RIM:
SALTPLUS "DB32" aero rim, double wall, 36h
REAR RIM:
SALTPLUS "DB32" aero rim, double wall, 36h
SEAT:

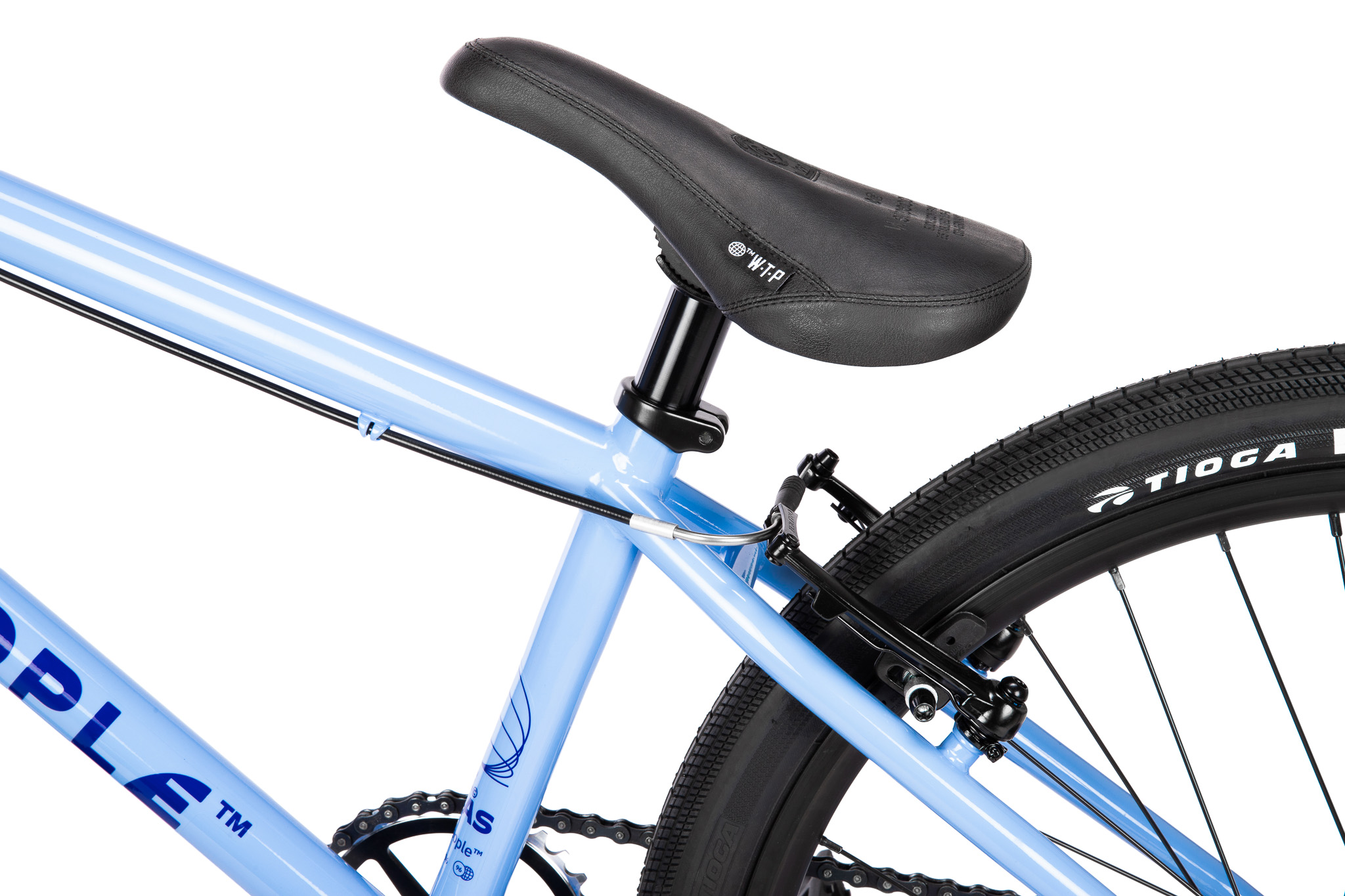

ÉCLAT "BIOS" pivotal seat, slim padded (spec subject to change)
SEAT POST:
SALT "AM" pivotal seat post, 27.2mm, alloy
SEAT CLAMP:
SALT "PRO" seat clamp, alloy

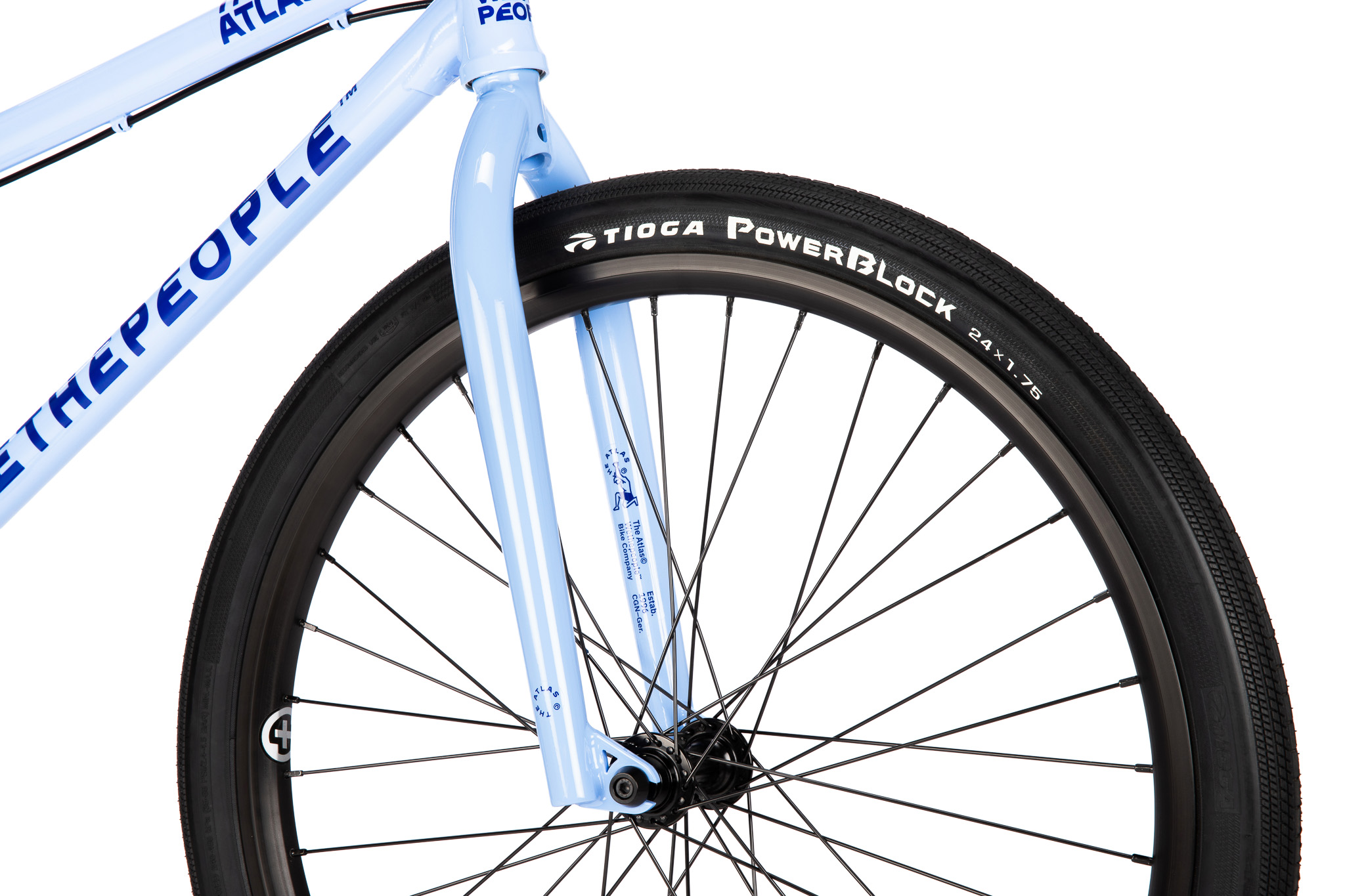

TIRES:
TIOGA "POWER BLOCK" tires, 1.75", front & rear
PEGS:
-
WEIGHT:
12.27kg / 27.06lbs
COLORS:
white
/
-
/
-
GEOMETRY
plus

FRAME
A - TOP TUBE LENGTH:
21.75"
B - CHAIN STAY LENGTH:
15"
C - HEAD TUBE ANGLE:
74°
D - SEAT TUBE ANGLE:
72.25°
E - BB HEIGHT:
12.25"
F - STANDOVER HEIGHT:
9.5"

HANDLE BAR
G - BAR RISE:
7.1"
H - BAR WIDTH:
28"
I - BAR BACK SWEEP:
12°
J - BAR UP SWEEP:
