ATLAS DISC 24“

Heading

ATLAS DISC 24“

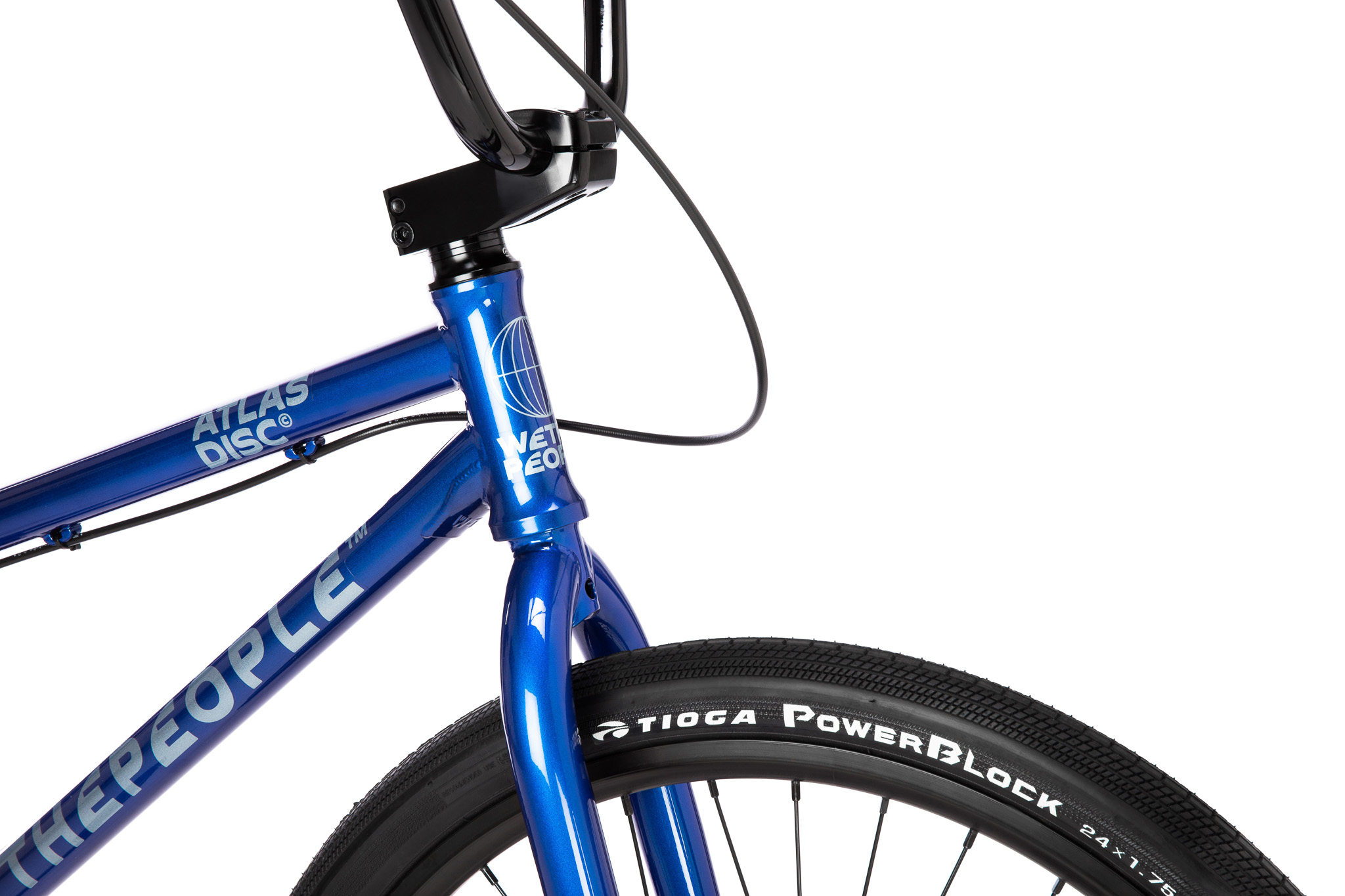

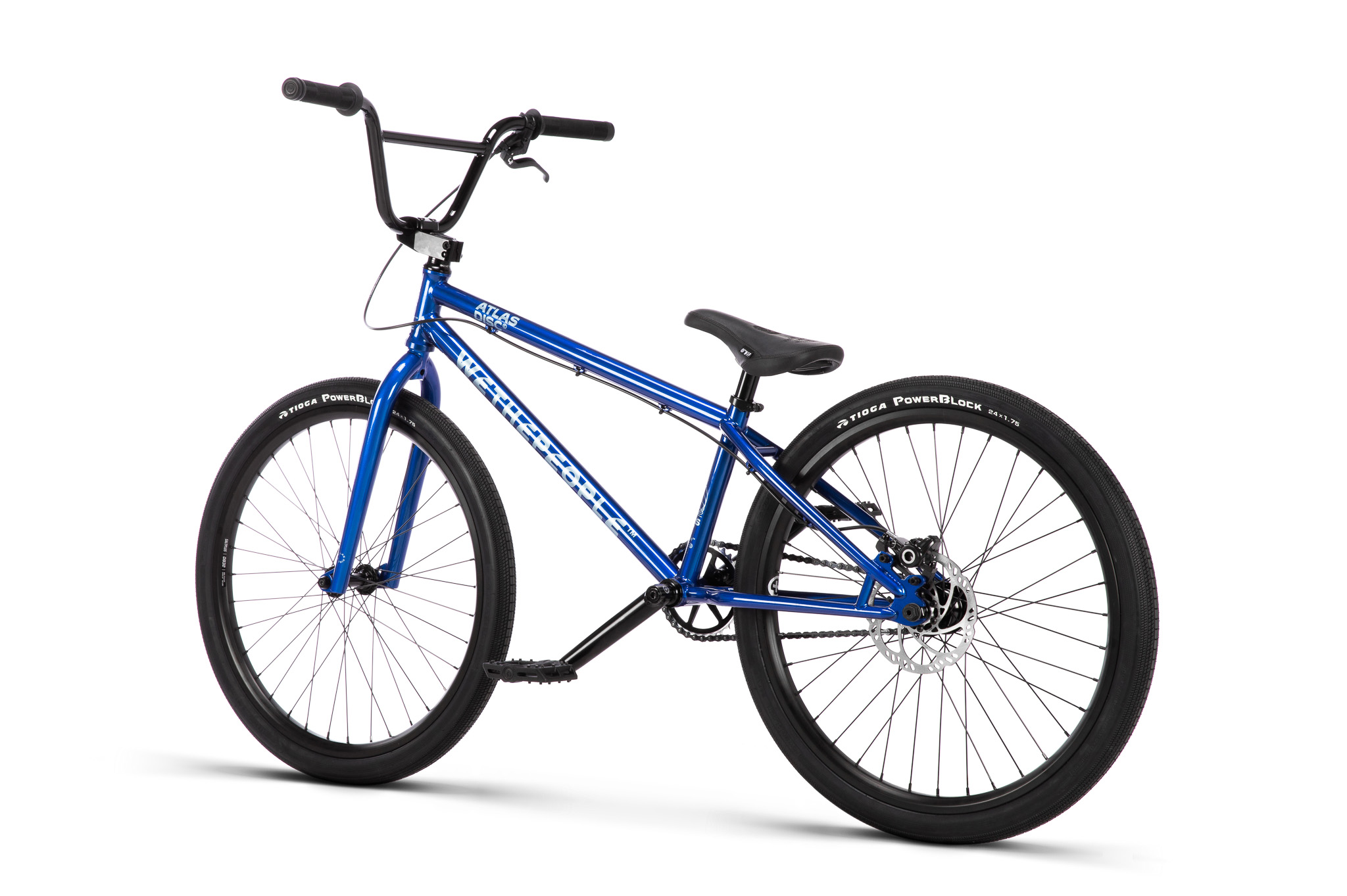

The Atlas Disc evolves the original 24” Atlas by introducing the added precision and reliability of a disc brake system. It’s designed for riders who want more control across every environment—trails, pump tracks, and city streets alike. Retaining its race-inspired geometry and full 24” wheel setup, the Atlas Disc also features components like the Wethepeople Patrol stem and 33t sprocket, tying back to its racing heritage while embracing modern functionality. The Glossy Blue finish keeps the look clean and minimal, while the braking upgrade enhances real-world performance. A bike built for versatility, speed, and repeat rides—the Atlas Disc is hard to walk away from once you’ve tried it.

arrow-left

ATLAS DISC 24“

ATLAS DISC 24“

ATLAS DISC 24“

ATLAS DISC 24“

SPECIFICATIONS
plus
FRAME:
WETHEPEOPLE "ATLAS" frame, 4130 full crmo race inspired frame, tapered CS & SS
FORK:
WETHEPEOPLE "ATLAS" fork, butted crmo tubing, cnc steerer
BARS:
WETHEPEOPLE "ATLAS" bar, 4130 full crmo
Grips:
SALT "EX" grips, 155mm, with flange
STEM:
WETHEPEOPLE "PATROL" topload stem, cnc alloy, 28mm rise, 53mm reach
HEADSET:
SALT "PRO" int. headset, sealed bearing
GYRO:
-
LEVER:
MAGURA MT 4 hydraulic disc brake brake lever
BRAKES:
MAGURA MT 4 hydraulic disc brake, 140mm rotor
CRANKS
SALTPLUS "PRO48" tubular 3pc crank, crmo, 175mm, 48 spline
BB:
SALTPLUS "EURO" bb, 19mm, euro threaded, sealed bearing
PEDALS:
ÉCLAT "CONTRA" pedals, nylon/fiberglass
CHAIN:
WETHEPEOPLE "SUPPLY" chain, Z510HX type
SPROCKET:
WETHEPEOPLE "PATROL" sprocket, cnc, 6061-T6 alloy, 33t
DRIVER:
cassette driver, 14t cog, sealed bearing
FRONT HUB:
SALTPLUS "PRO" hub, fully sealed, M6 female bolts, 36h
REAR HUB:
Salt+ Pro Disc cassette hub, fully sealed, M6 female bolts, 36h
HUBGUARDS:
-
FRONT RIM:
SALTPLUS "DB32" aero rim, double wall, 36h
REAR RIM:
SALTPLUS "DB32" aero rim, double wall, 36h
SEAT:
Wethepeople Team pivotal seat, slim padded
SEAT POST:
SALT "AM" pivotal seat post, 27.2mm, alloy
SEAT CLAMP:
SALT "PRO" seat clamp, alloy
TIRES:
TIOGA "POWER BLOCK" tires, 1.75", front & rear
PEGS:
-
WEIGHT:
11.55kg / 25.46lbs
COLORS:
Glossy blue focus
/
-
/
-
/
/
/
GEOMETRY
plus

FRAME
A - TOP TUBE LENGTH:
21.75"
B - CHAIN STAY LENGTH:
15"
C - HEAD TUBE ANGLE:
74°
D - SEAT TUBE ANGLE:
72.25°
E - BB HEIGHT:
12.25"
F - STANDOVER HEIGHT:
9.5"

HANDLE BAR
G - BAR RISE:
7.1"
H - BAR WIDTH:
28"
I - BAR BACK SWEEP:
12°
J - BAR UP SWEEP:
