CRS



CRS COMPLETE BIKE

One the most anticipated bikes in BMX, the CRS is a bike we are proud to have the WETHEPEOPLE stamp of approval on. Featuring a ECLAT aftermarket parts injection including the "Bios" Pivotal seat and “Pure” seat clamp, the CRS also packs plenty of aftermarket goodness from SALT including a fully sealed Salt (AM) cassette hub, the new Salt (Fraction) rims.

The geometry of the CRS has been tailored specifically to allow younger riders to be able to progress quicker, including short 12.75” chainstays, 26mm offset fork and 165mm cranks, giving the CRS a responsive and snappy ride. One of the most well engineered entry level bikes on the market, the CRS is a bike built with vision.


GALLERY

COLORWAY: METALLIC PURPLE

CLICK IMAGE FOR FULL SIZE GALLERY

COLORWAY: BLACK

CLICK IMAGE FOR FULL SIZE GALLERY


SPECIFICATIONS

Frame: 4130 crmo down tube, 1020 hi-ten

Fork: SALT “AM 20” fork, 1020 hi-ten , 4130 crmo steerer, 26mm offset

Bars: SALT "CRS 20" bar, 1020 hi-ten

Grips: SALT "EX" 154mm flangeless grips

Stem: SALT “PRO” top load stem, 50mm reach

Headset: SALT “PRO” int. headset, sealed bearing

Gyro: no / holes for removable gyro tabs

Lever: SALT “AM” alloy brake lever

Brakes: SALTPLUS “Geo XL” alloy u-brake rear

Cranks: SALT “ROOKIE” tubular 3pc crank crmo 165mm, 8 Spline

BB: SALT “MID” 19mm, press fit, sealed bearing

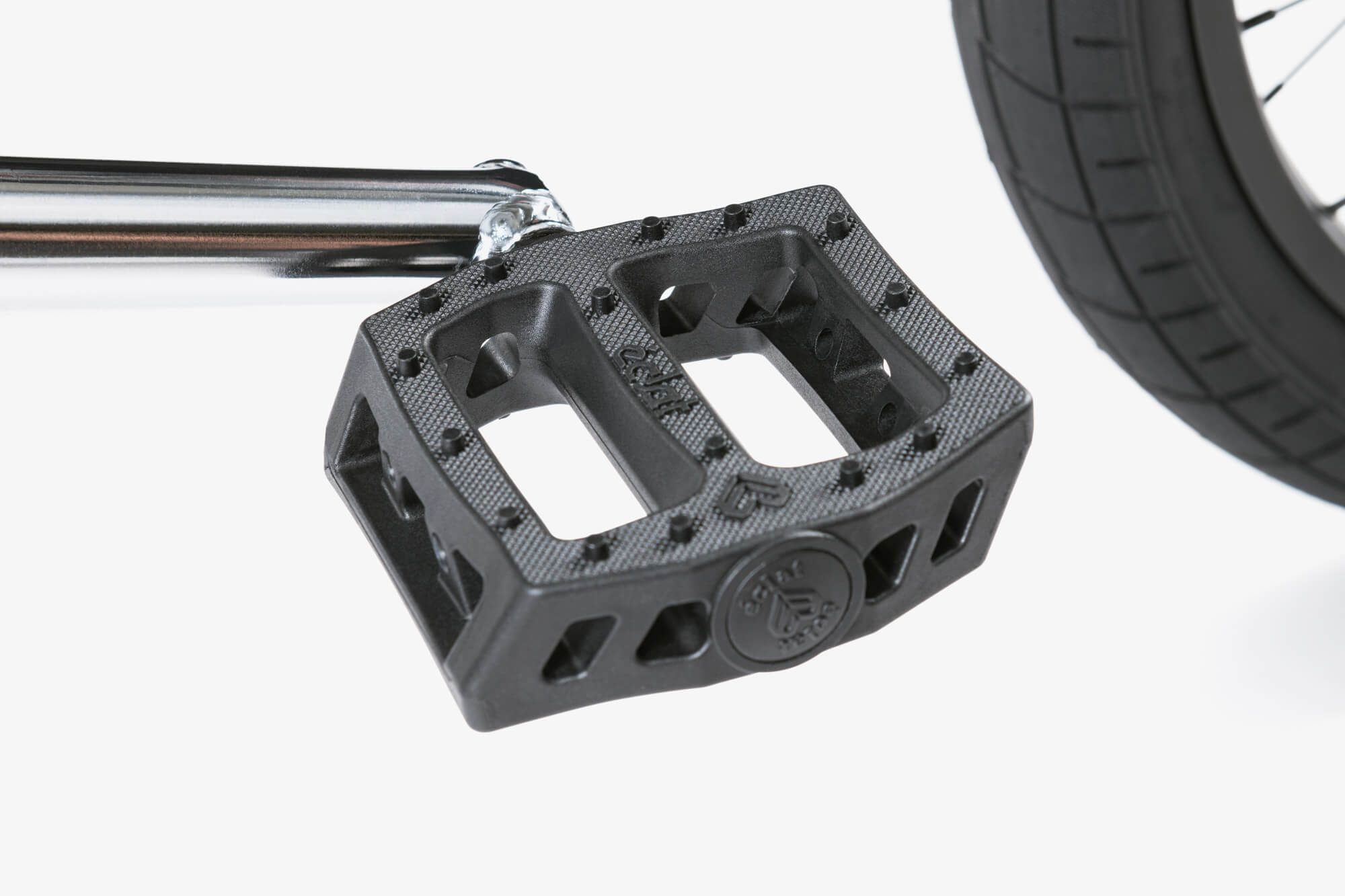

Pedals:  ÉCLAT “SURGE” nylon/fiberglass pedals

Chain: SALT “AM” chain, Z1 type

Sprocket SALT “GATEWAY” steel 25t sprocket

Driver: 9t, 1pc cassette driver, sealed bearing

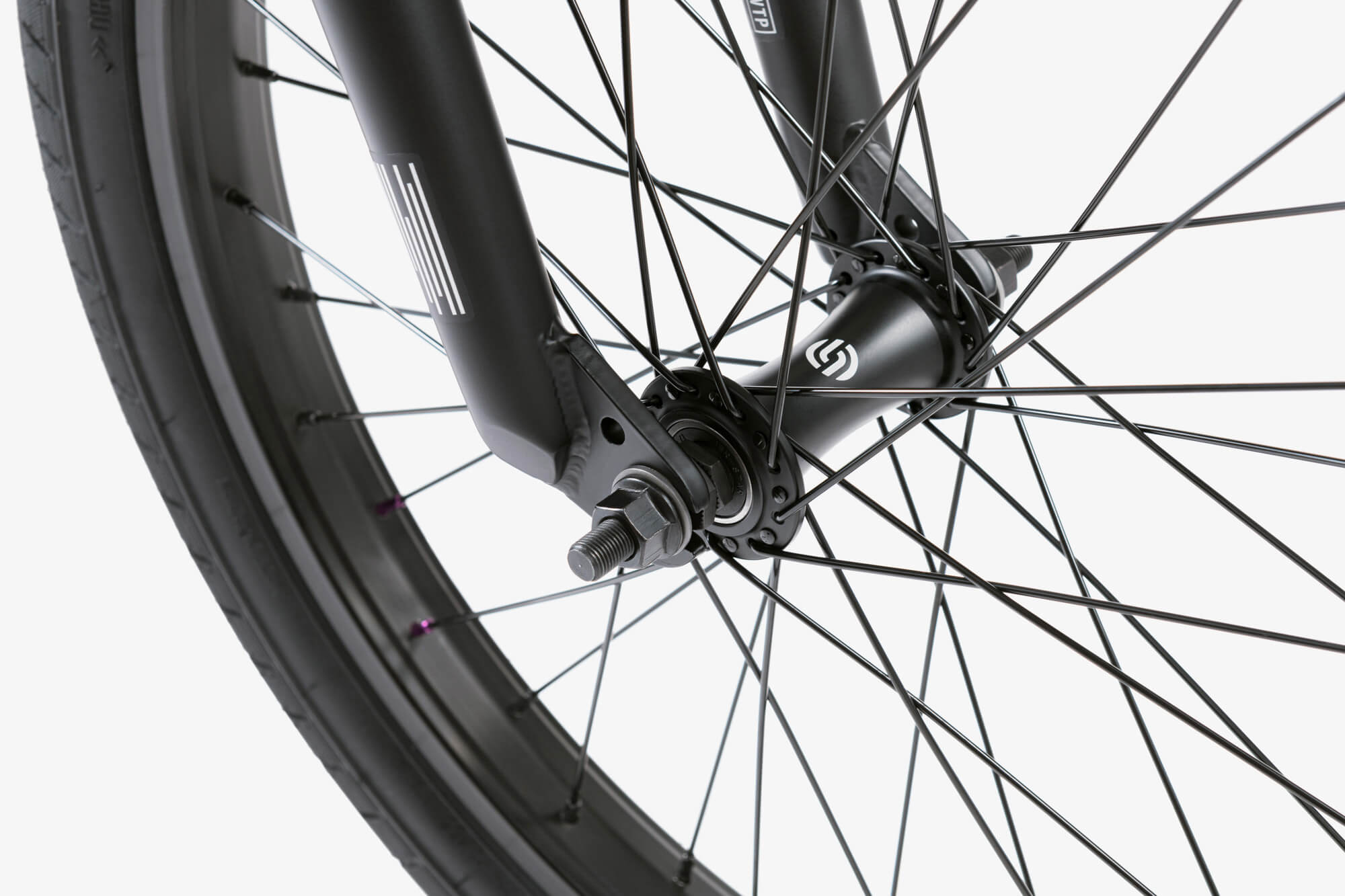

Front Hub: SALT “AM” alloy hub, loose ball 3/8”s axle, 36h

Rear Hub: SALT “AM” cassette hub, full sealed, 9t, 14mm axle, 36h

Hubguards: -

Front Rim: SALT “FRACTION” rim, straight single wall, 36h

Rear Rim: SALT “FRACTION” rim, straight single wall, 36h

Seat: ECLAT “BIOS” Mid padded pivotal seat

Seat Post: SALT "AM" pivotal seat post

Seat Clamp: ÉCLAT “PURGE” 6061-T6 forged alloy seat clamp

Tires: SALT “TRACER” 2.35" front & rear

Pegs: -

Weight: 12.00kg / 26.45lbs


FRAME GEOMETRY

A: Top Tube Length:  20.25”

B: Chain Stay Length: 12.75”

C: Head Tube Angle: 75°

D: Seat Tube Angle: 71.5°

E: Bottom Bracket Height: 11.75”

F: Stand Over Height: 8.4”


BAR GEOMETRY

G: Bar Rise: 8.8“

H: Bar Width: 29.1”

I: Bar Back Sweep: 11°

J: Bar Up Sweep:
