AUDIO 22"



AUDIO 22" COMPLETE BIKE

There is no denying the momentum of the 22” movement; the larger diameter wheel provides a more stable ride without sacrificing the classic BMX look and feel. Perfect for the die-hard trail dogs, just or taller riders looking for bike more fitting to their size, without having to ride a bike that simply isn’t a BMX.

Our 22” Audio complete bike is back for 2020 with an increidble Matt Translucent Blue paint finish and an upgraded parts package including our new LOGIC stem and SUPPLY chain. Using the full chromoly aftermarket spec frame, we designed the fork to give it an even sturdier and bombproof steertube/crown area allowing you to push this thing as hard you you can. We spent an incredibly long time dialing in the geometry on the Audio, as well as developing our own range of 22” specific parts like the Logic rim and Overbite tire.

The 22” revolution is here, and the Audio is leading the pack.


GALLERY

COLORWAY: MATT TRANSLUCENT BLUE

CLICK IMAGE FOR FULL SIZE GALLERY


SPECIFICATIONS

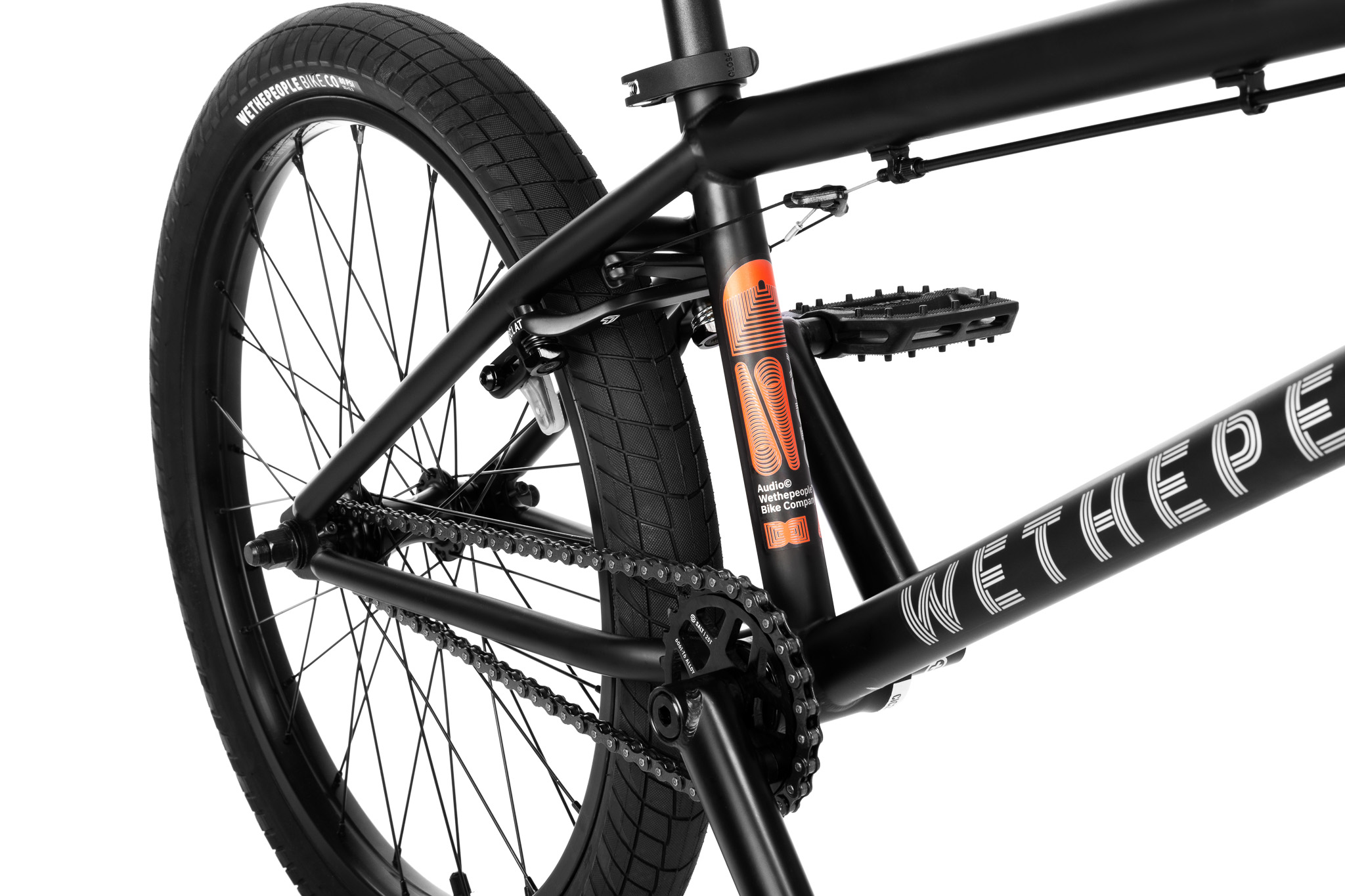

Frame: WETHEPEOPLE “AUDIO” frame, 4130 full sanko, tapered CS and SS, removable pivots & guides, invest cast dropouts

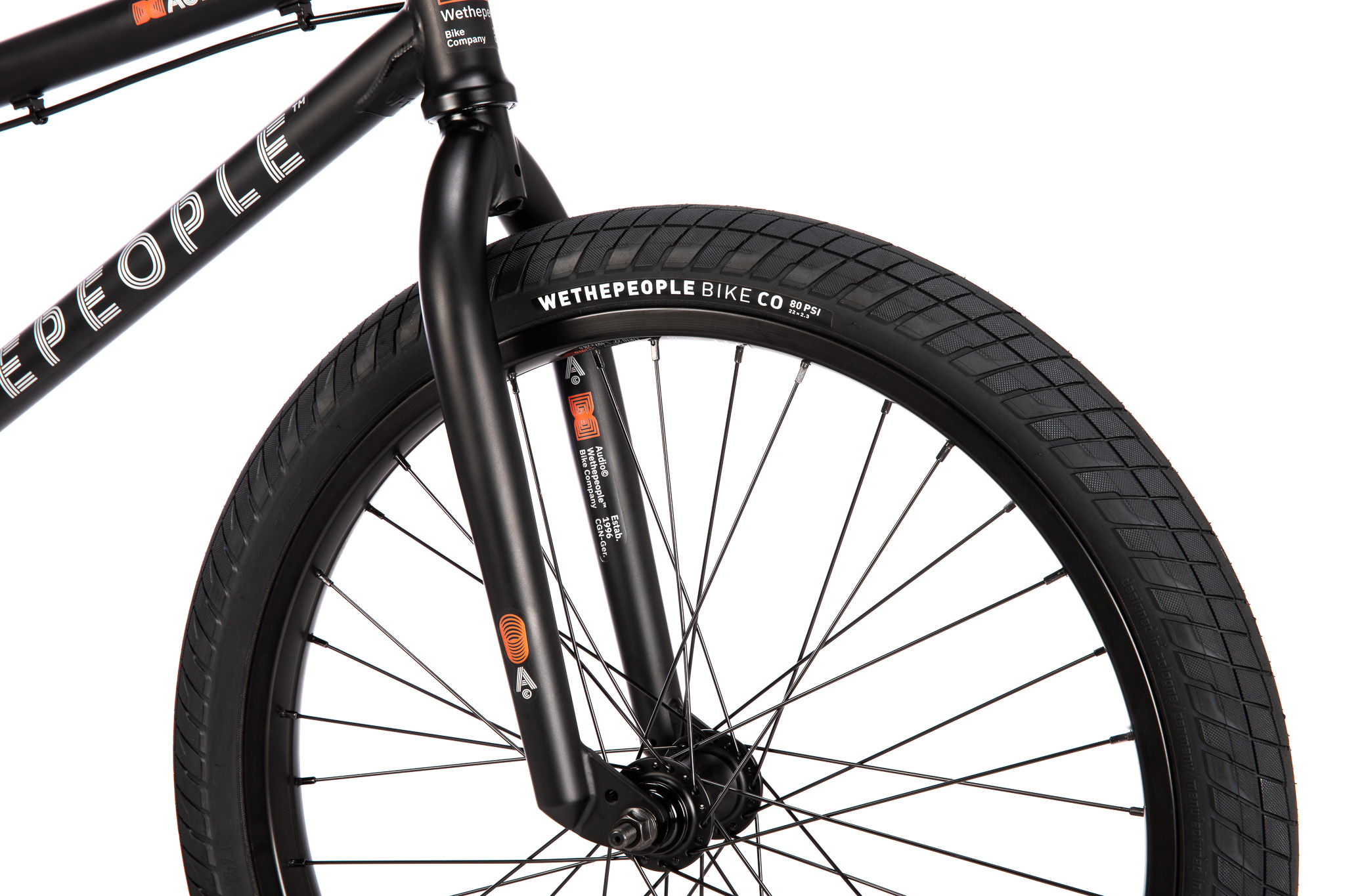

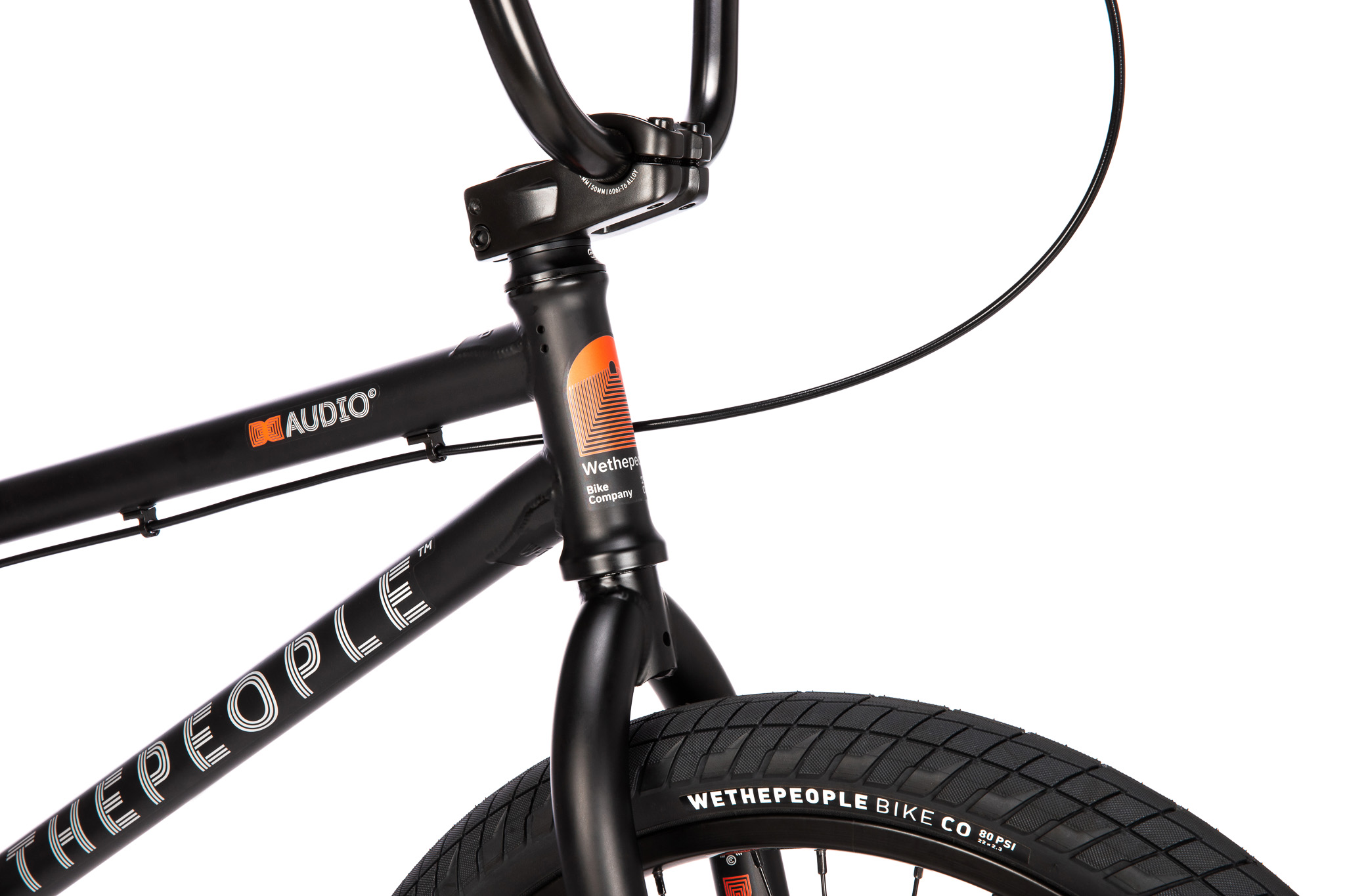

Fork: WETHEPEOPLE "AUDIO" fork, butted crmo tubing, increased thickness steerer tube, 32mm offset

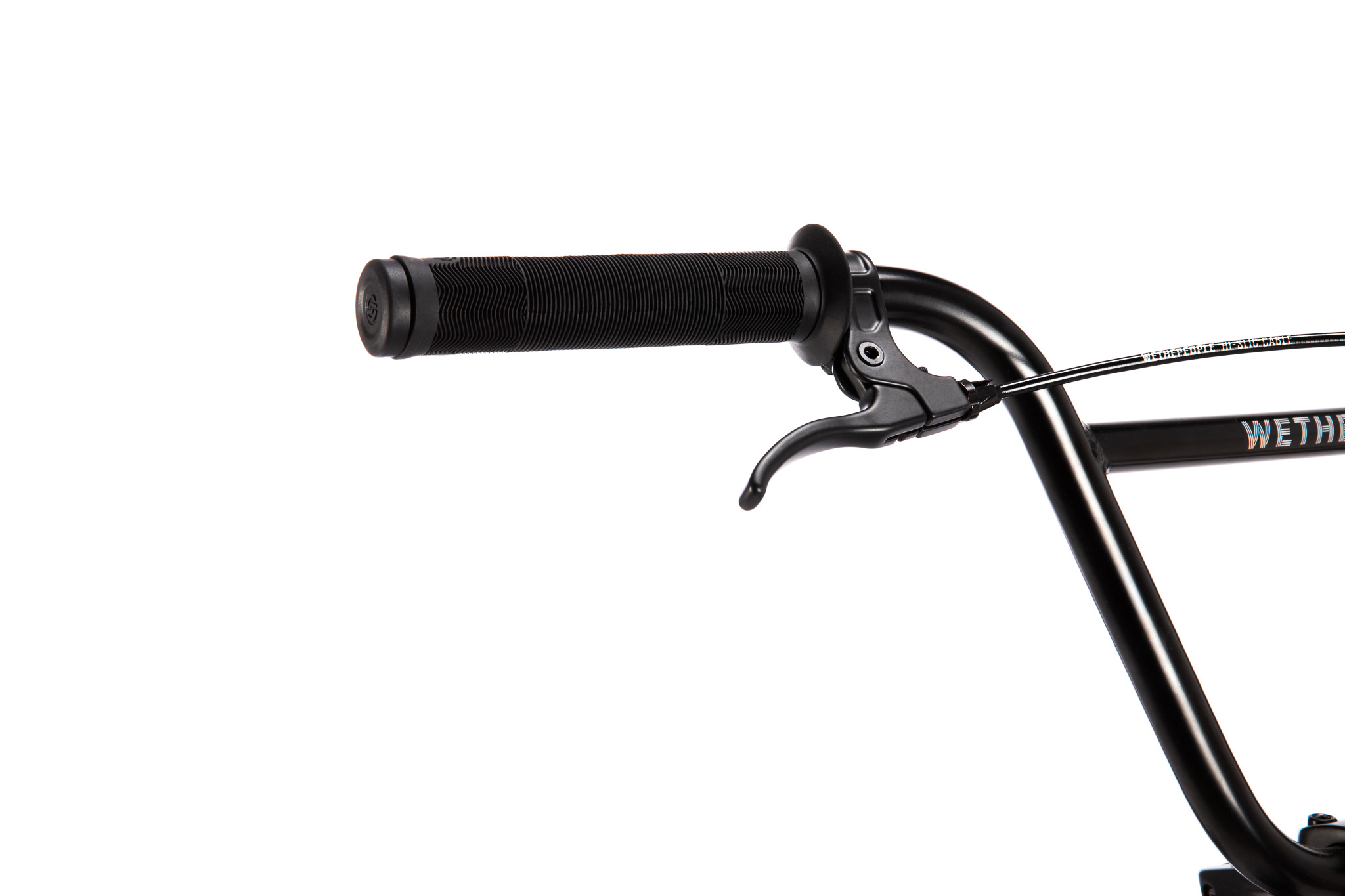

Bars: WETHEPEOPLE "AUDIO" bar, full 4130 crmo

Grips: SALT "EX" grips

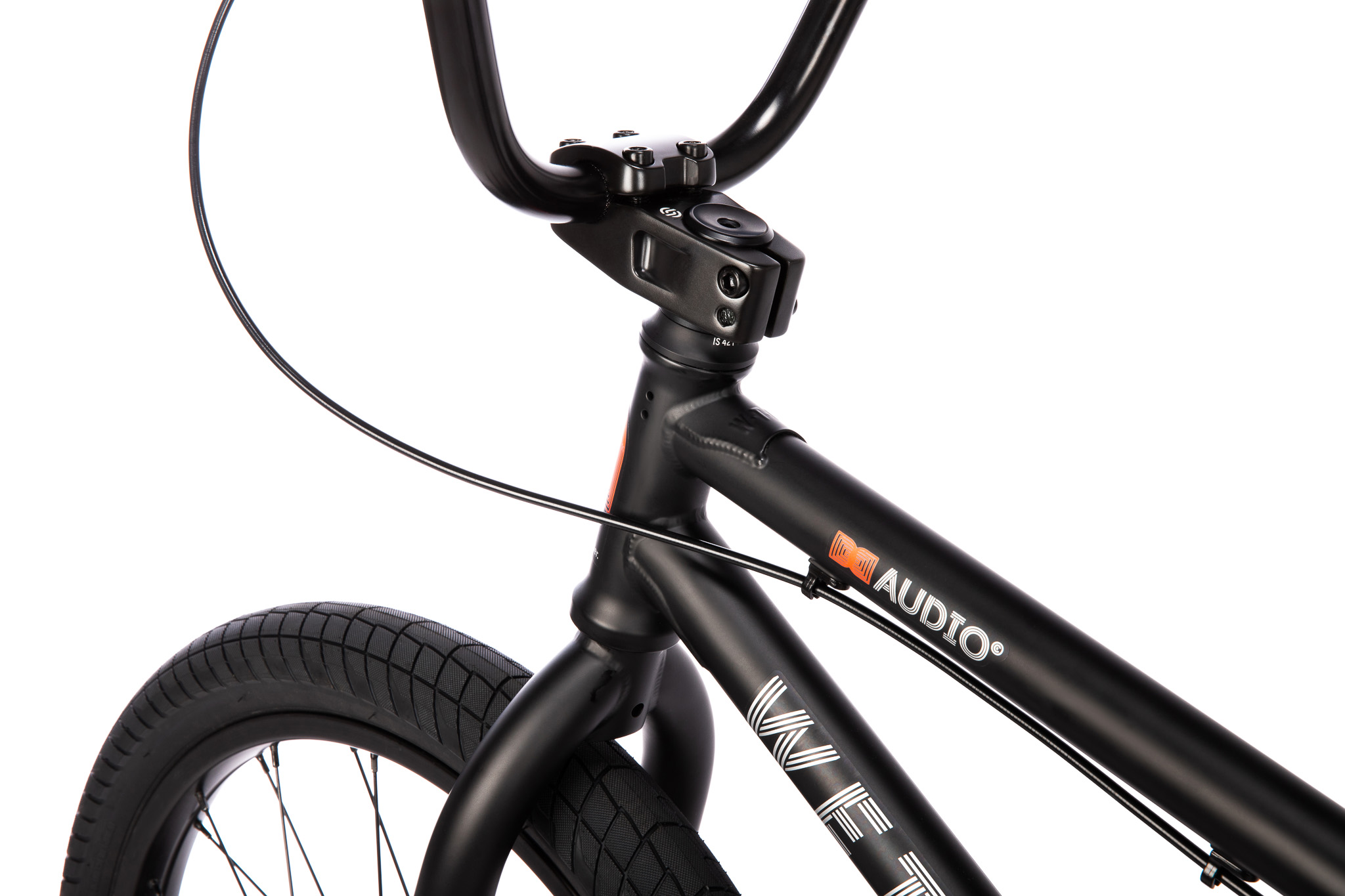

Stem: WETHEPEOPLE “LOGIC” cnc alloy top loading stem, 50mm reach

Headset: SALT “PRO” int. headset, sealed bearing

Gyro: holes for removable gyro tabs

Lever: SALT “MOTO” alloy brake lever

Brakes: ÉCLAT “TALON” alloy u-brake rear, SALTPLUS “PROPELLER” clear brake pads

Cranks: SALTPLUS “PRO48” tubular 3pc crank crmo 175mm, 48 spline

BB: SALT “MID” 19mm, press fit, sealed bearing

Pedals:  ÉCLAT “SLASH” nylon/fiberglass pedals

Chain: WETHEPEOPLE “SUPPLY” chain, Z510HX type

Sprocket WETHEPEOPLE “LOGIC” 6061-T6 alloy, 25t sprocket

Driver: 9t, 1pc cassette driver, sealed bearing

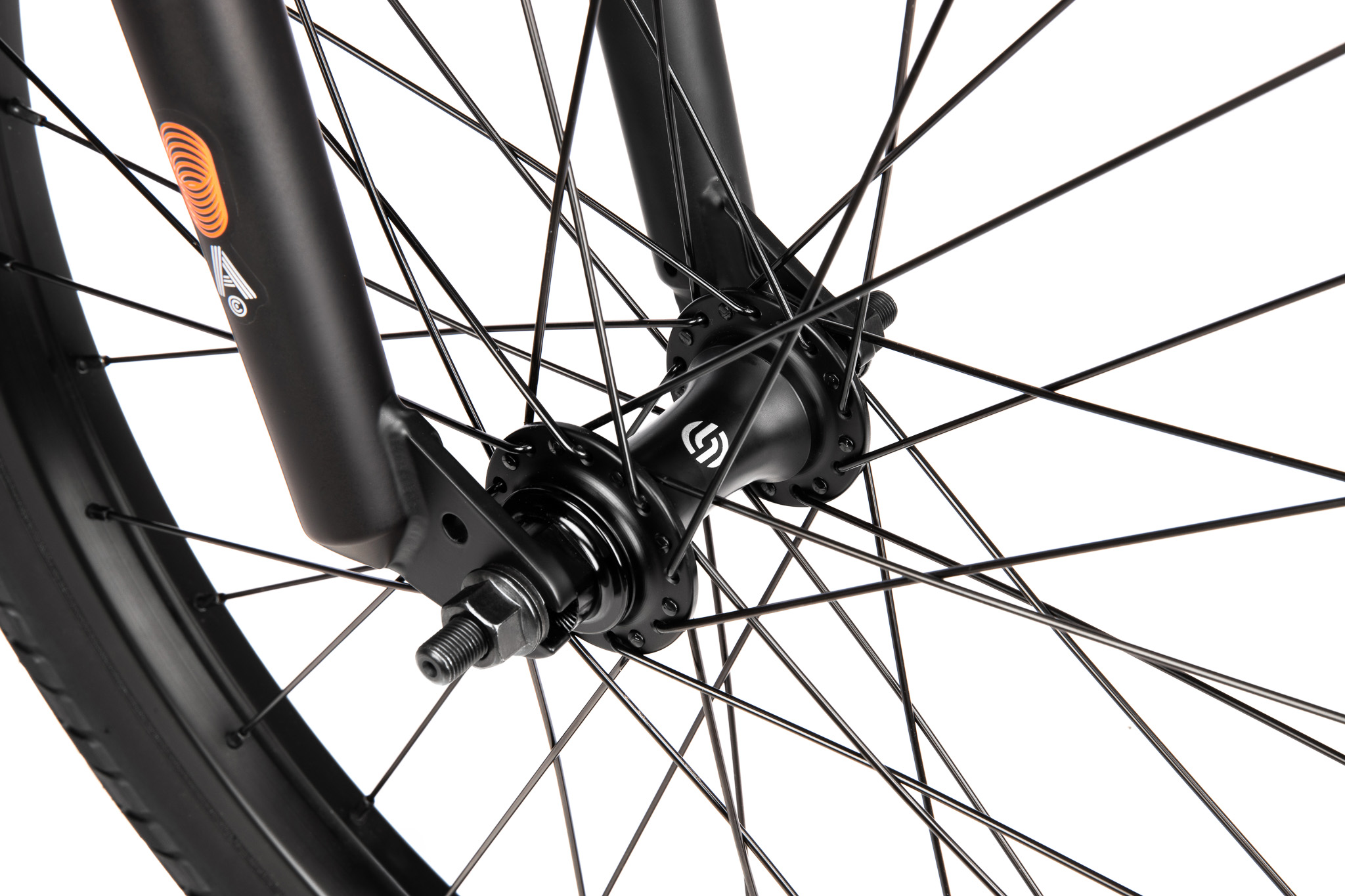

Front Hub: SALT “EX” hub, sb, 3/8”s male axle, 36h

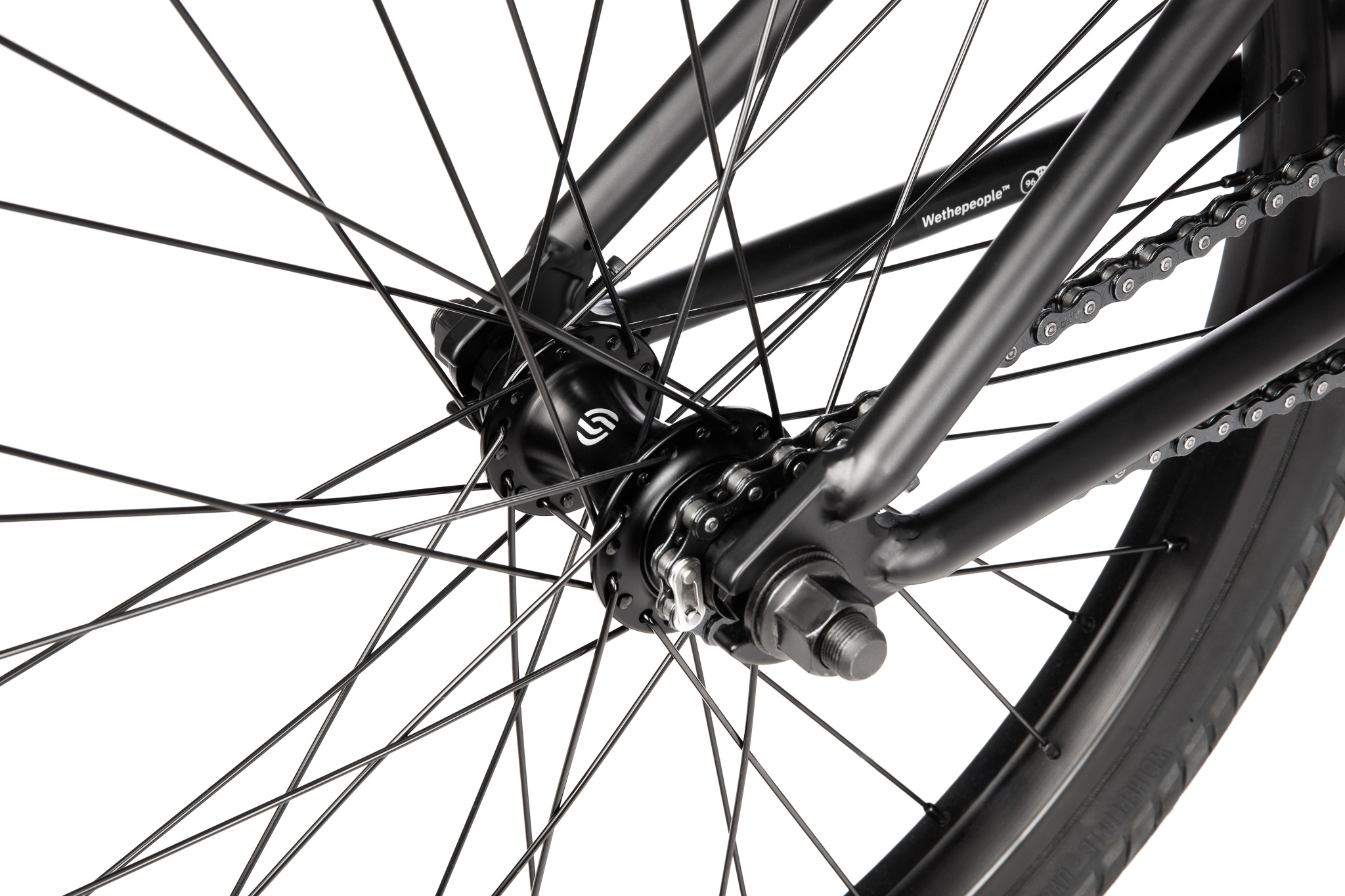

Rear Hub: SALT “EX” cassette hub, sb, 9t, 14mm axle, 36h

Hubguards: compatible with SALTPLUS "PRO" nylon hubguards

Front Rim:  WETHEPEOPLE “LOGIC” double wall sleeved rim, 36h

Rear Rim:  WETHEPEOPLE “LOGIC” double wall sleeved rim, 36h

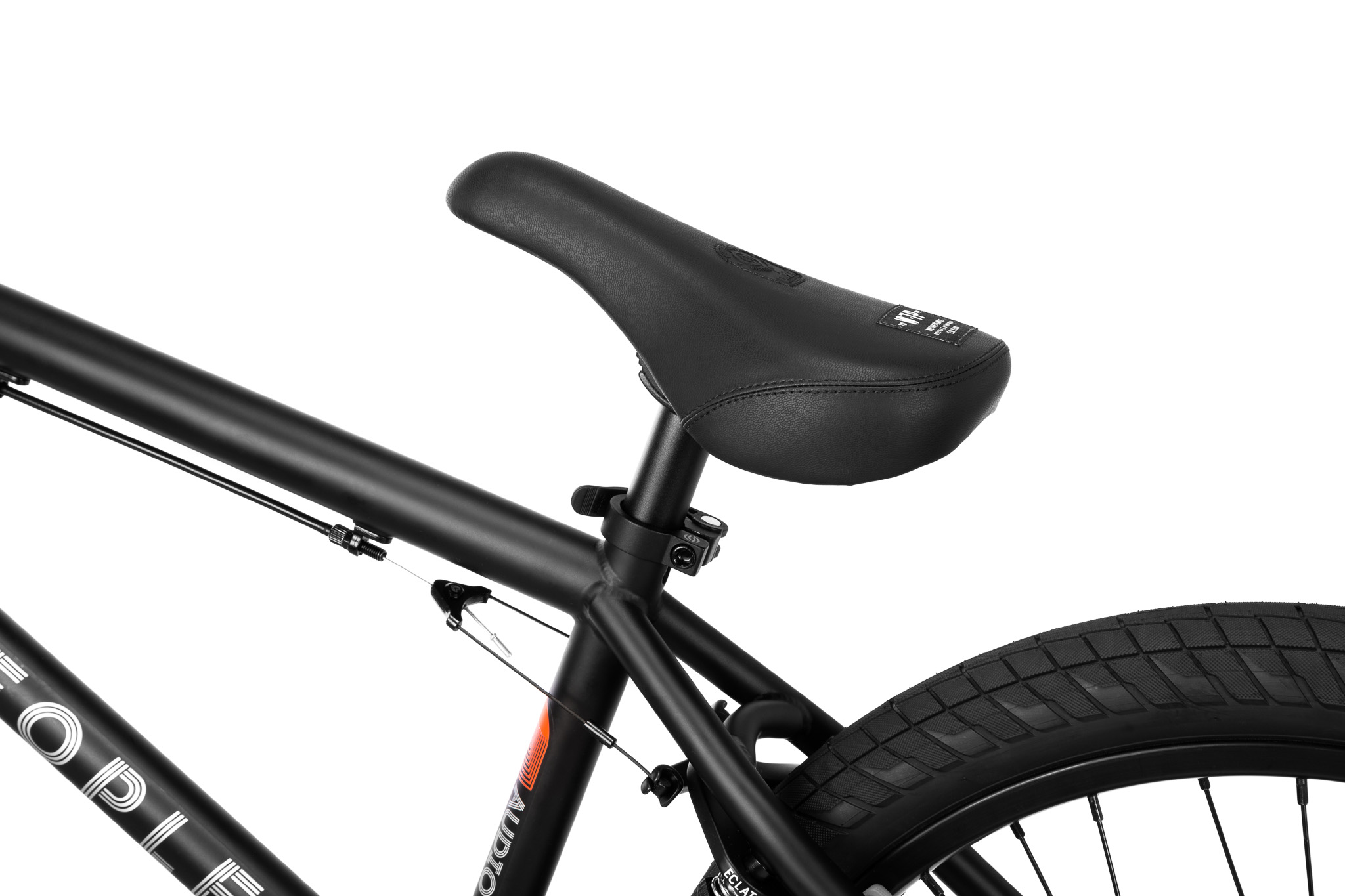

Seat: ECLAT “BIOS” mid padded pivotal seat

Seat Post: SALT “AM” pivotal seat post, alloy, 150mm

Seat Clamp: integrated seat clamp

Tires: WETHEPEOPLE "Overbite” 22" tires 2.3" front & rear

Pegs: -

Weight: 11.73kg / 25.86lbs

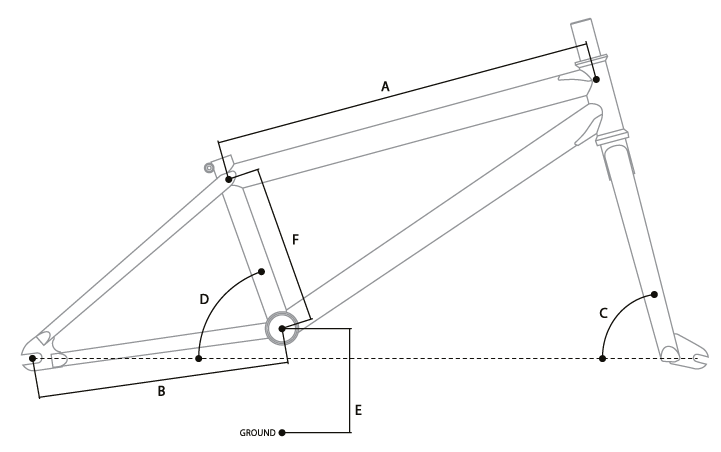

FRAME GEOMETRY

A: Top Tube Length:  21.9"

B: Chain Stay Length: 14.2”

C: Head Tube Angle: 74.5°

D: Seat Tube Angle: 71°

E: Bottom Bracket Height: 12.4”

F: Stand Over Height: 9.15”

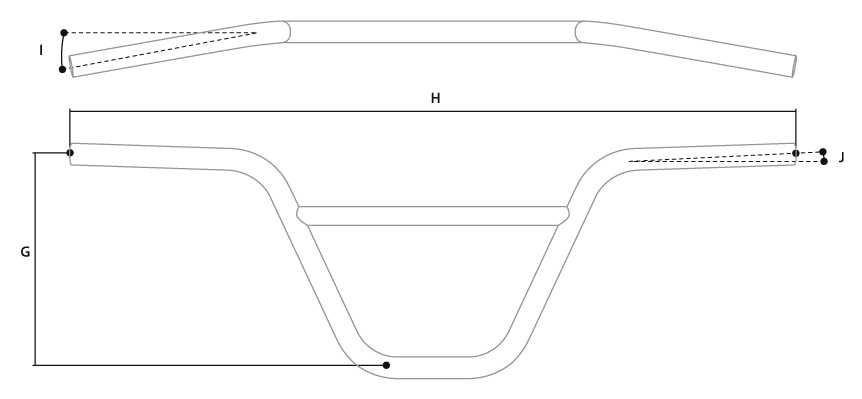

BAR GEOMETRY

G: Bar Rise: 9“

H: Bar Width: 29.5”

I: Bar Back Sweep: 12°

J: Bar Up Sweep:
