TYSON JONES-PENI SIGNATURE FRAME - 22.25"

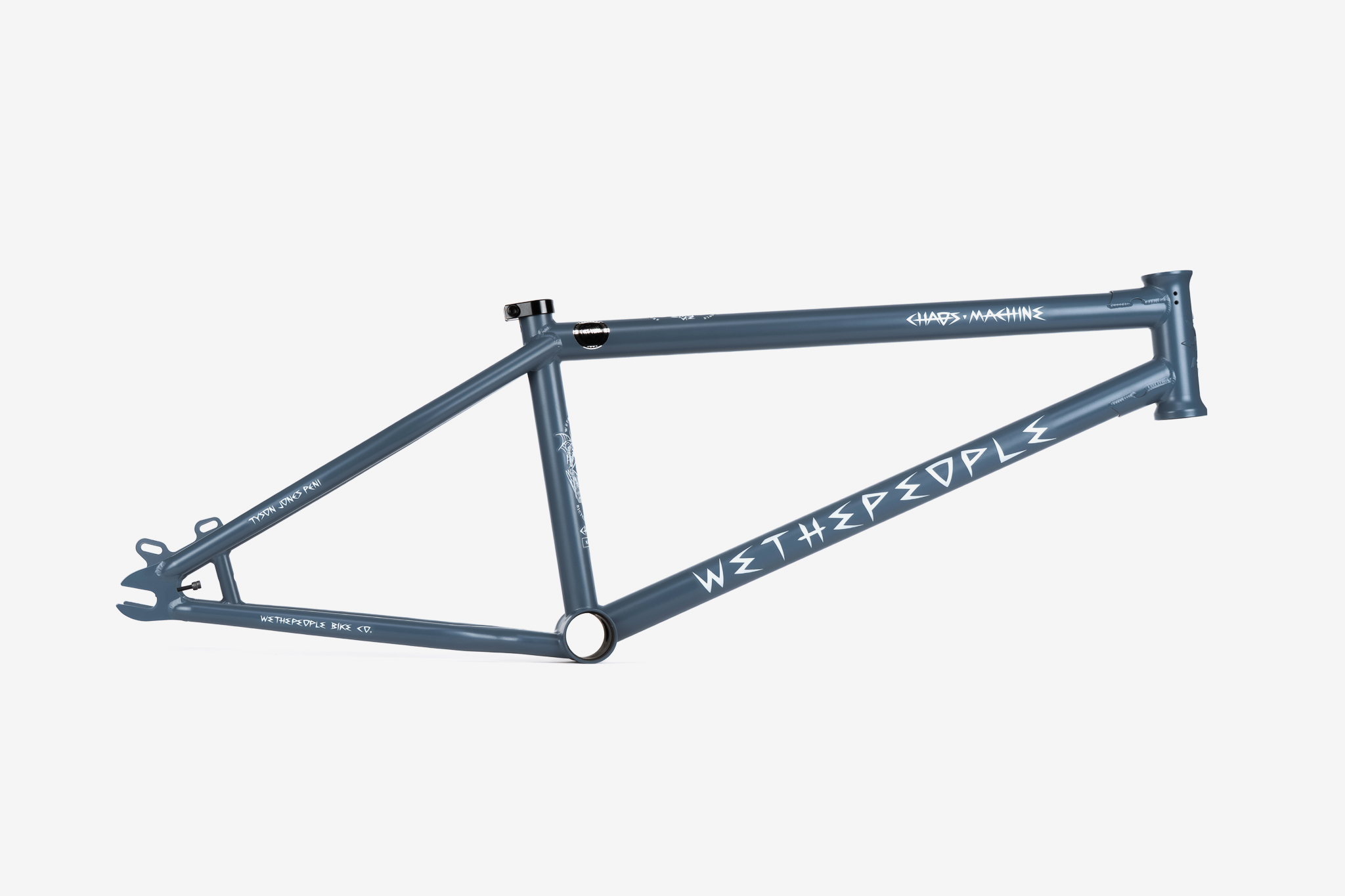

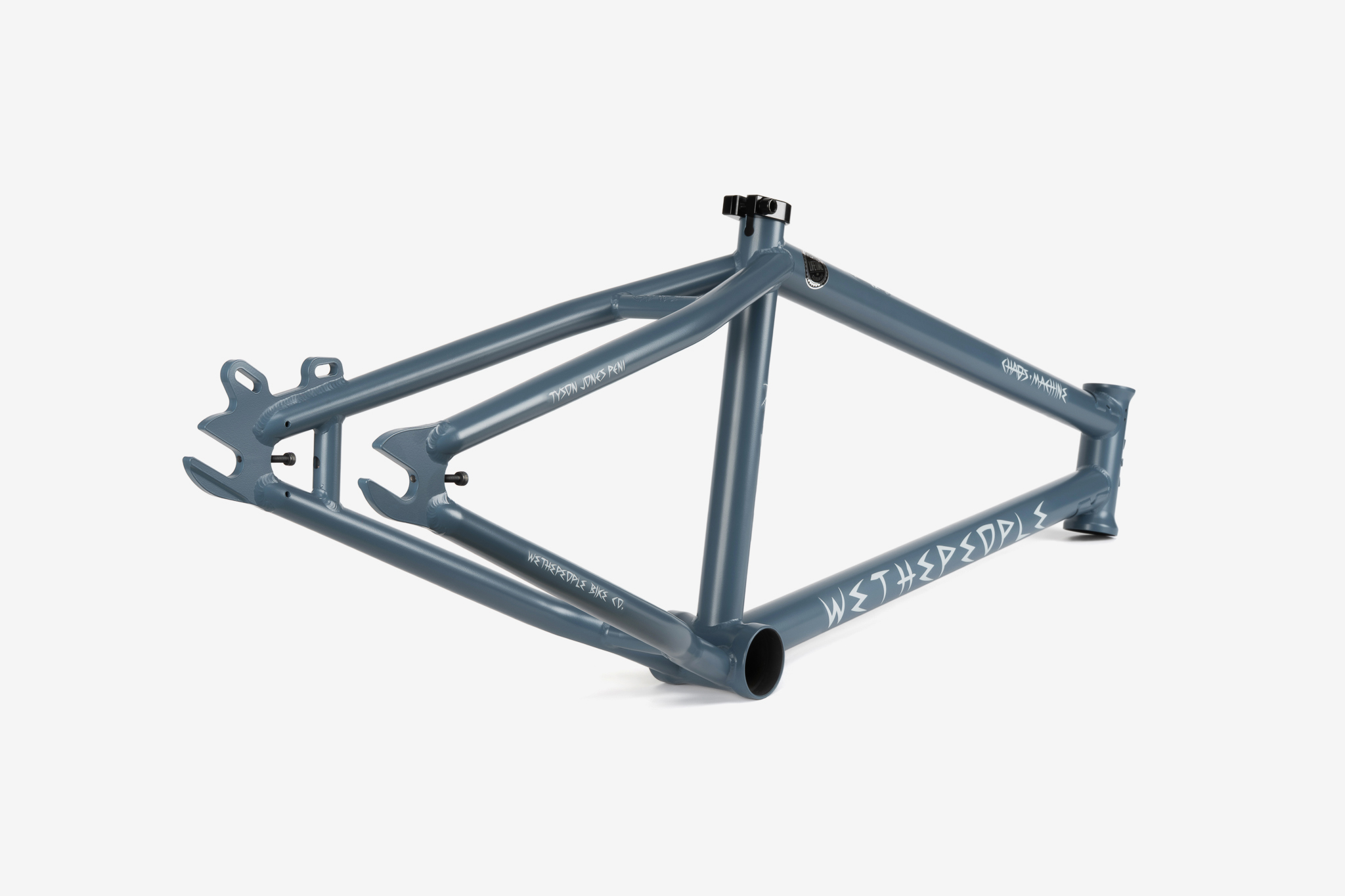

CHAOS MACHINE 22"

colors:

Matt Moss Green

Glossy Raw

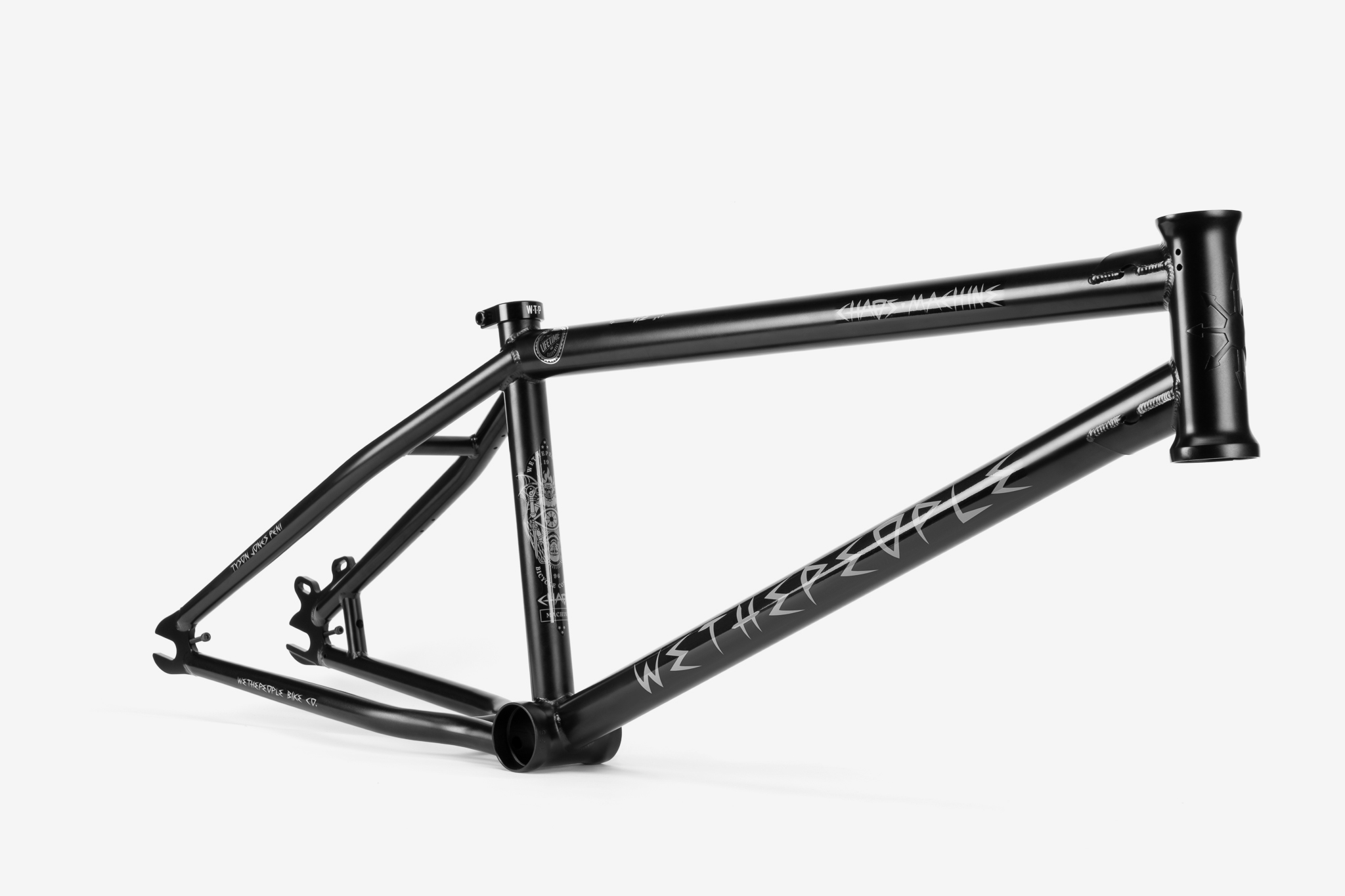

Black

Bigger is better! New 22" wheeled version of Tyson's game changing disc-brake equipped trail beast! We worked with Aussie trail boss and BMX lifer Tyson Jones-Peni on an all-out trail and bowl roasting machine. The Wethepeople Chaos Machine Frame features long and stable geometry, combined with Wethepeople’s legendary frame-building technology making it one of the meanest and toughest rigs in the game. Tyson isn’t scared to go fast and hit the mainline with some serious speed so we equipped his signature steed with mounts for a disc brake (and a regular u-brake) making it the first frame of its kind and perfect for riders needing some upgraded stopping power. From the super long 14"+ chainstay to the unique detailing on the seat stay bridge and head tube, the Chaos Machine frame is one of the most “signature” frames we’ve ever made. PLEASE NOTE: This frame is designed for 22" wheels and will require 22" specific forks, wheels and tire. 20" wheels will fit but will alter geometry. See NOTES for more.

NOTE ON GEOMETRY

Although the Chaos Machine 22” frame was designed for 22” wheels, you can run 20” wheels on this frame for a longer, lower BB and taller rider area 20” frame. Details on geometry changes are listed bellow.

GEOMETRY (with 22" wheels) 12.25" bottom bracket height/ 74.25 degree head tube angle/ 71 degree head tube angle

GEOMETRY (with 20" wheels and 22" fork) 11.25" bottom bracket height / 74.25 degree head tube angle / 71 degree head tube angle

GEOMETRY (with 20" wheels and 20" fork) 10.9" bottom bracket height / 75.5 degree head tube angle/ 72.3 degree head tube angle

‍

TYSON JONES-PENI SIGNATURE FRAME

CHAOS MACHINE 22"

No items found.

SPECIFICATIONS

TUBING:

butted, Japanese seamless 4130 crmo tubing

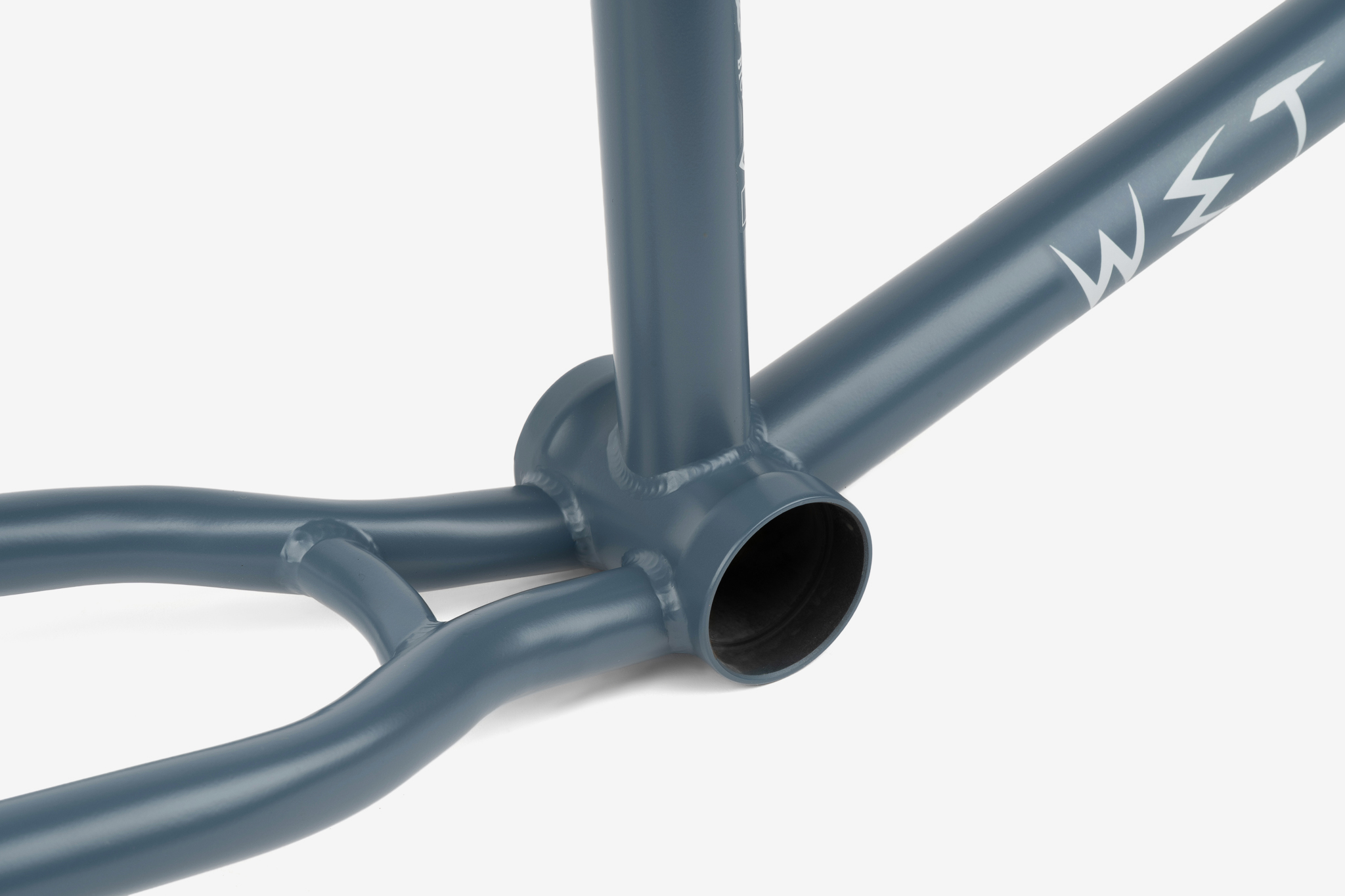

BOTTOM BRACKET:

74mm mid size

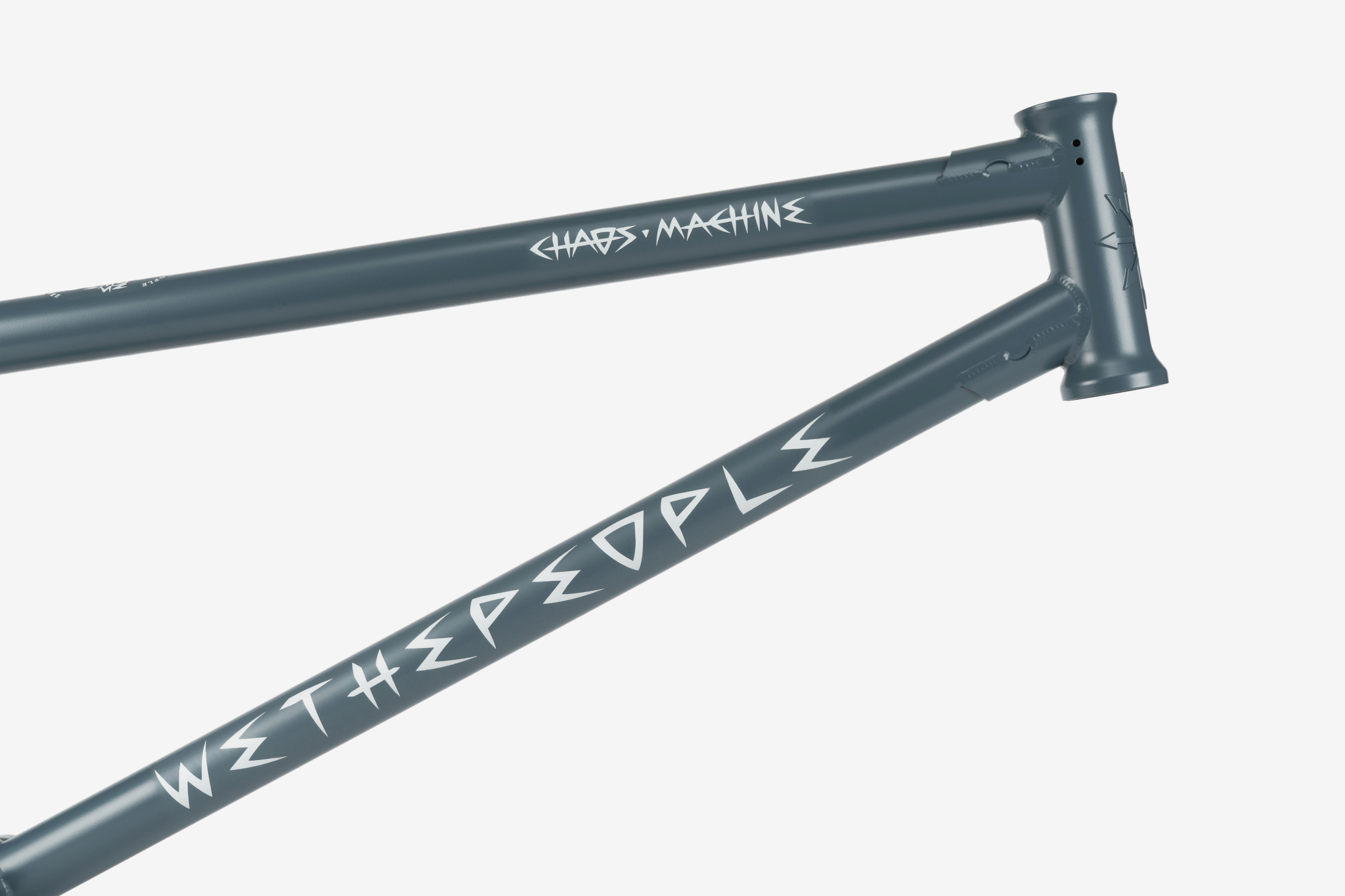

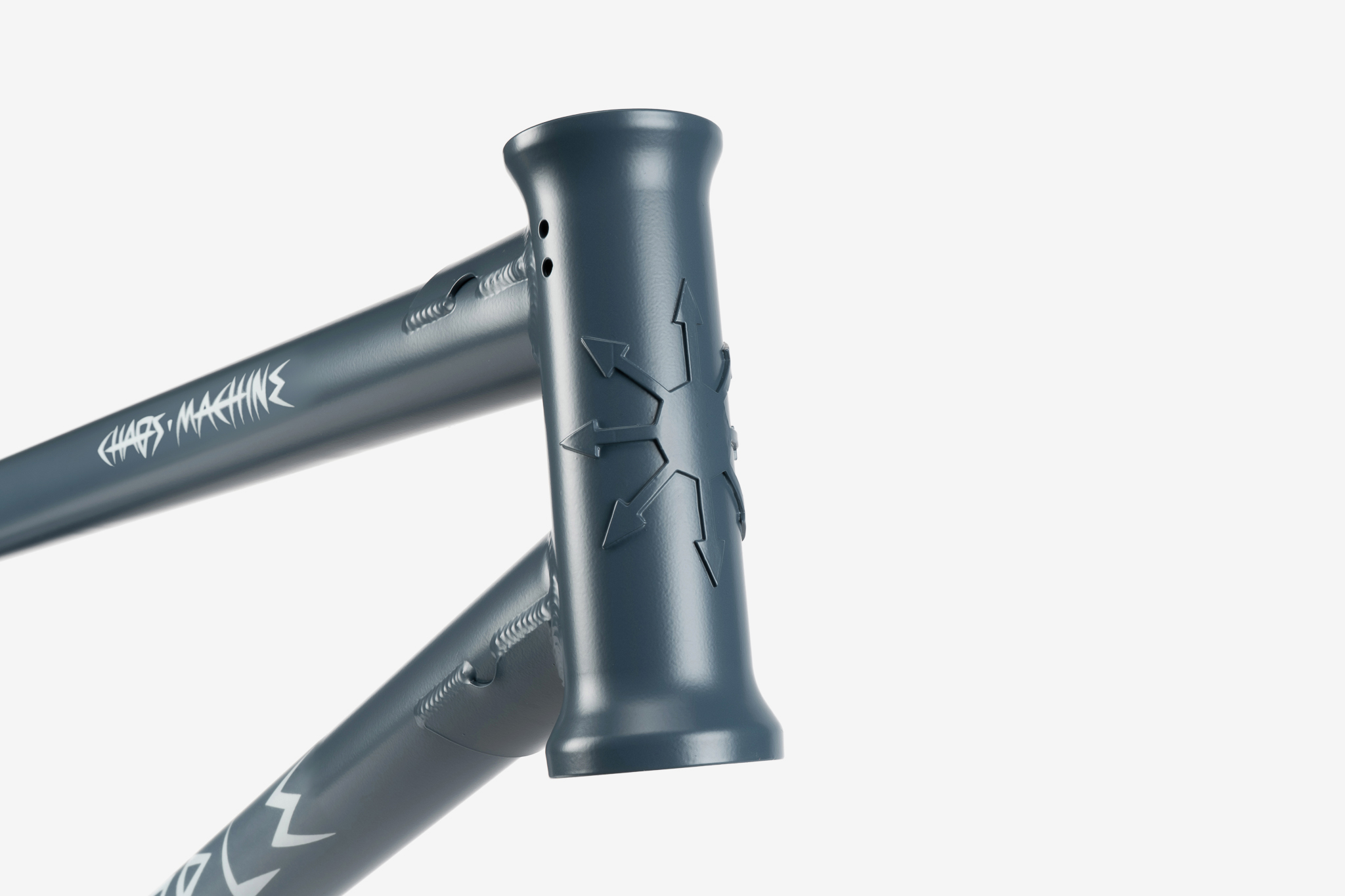

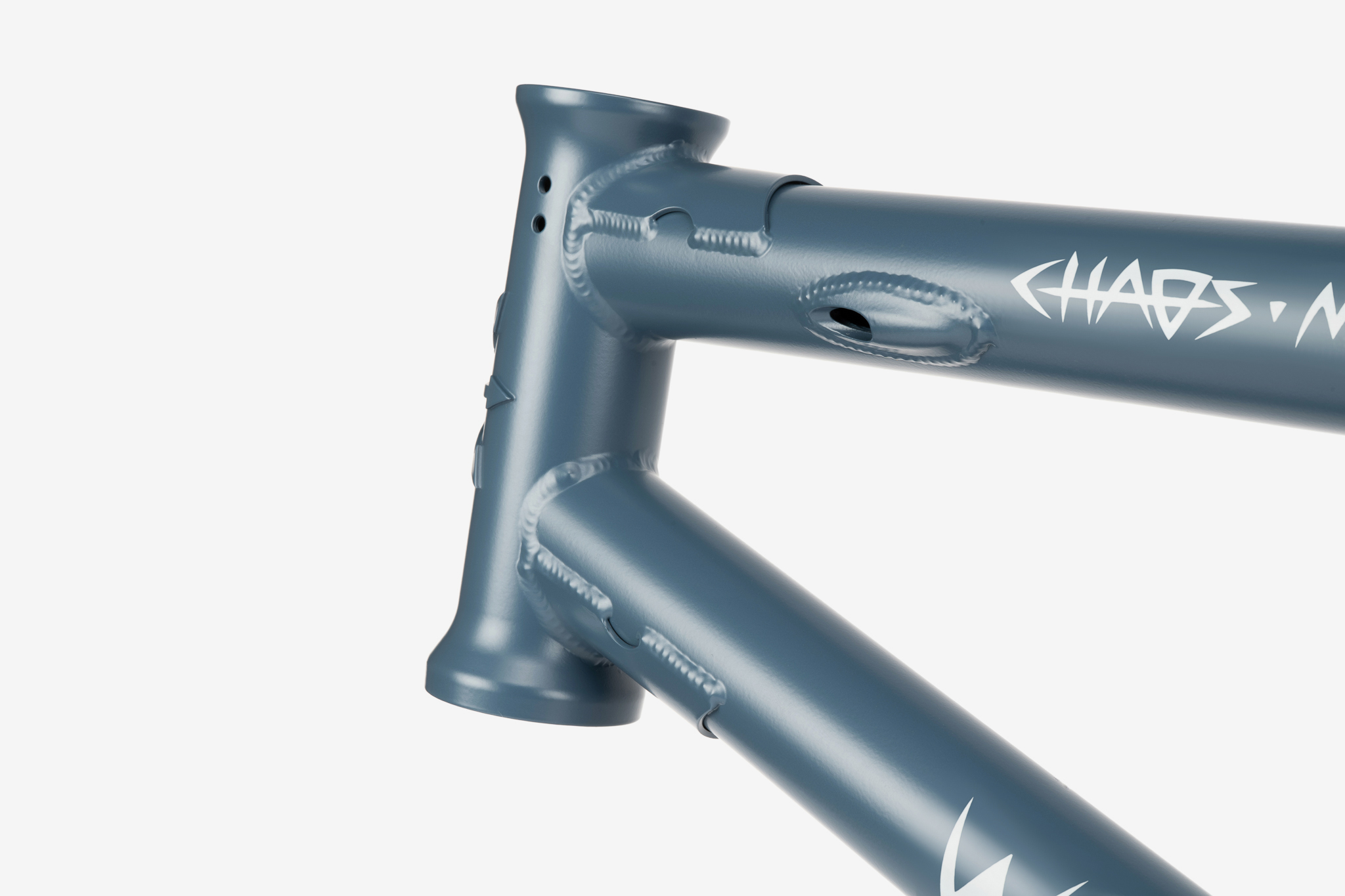

HEAD TUBE:

127mm cnc machined and heat-treated, integ. h/set, brazed on badge

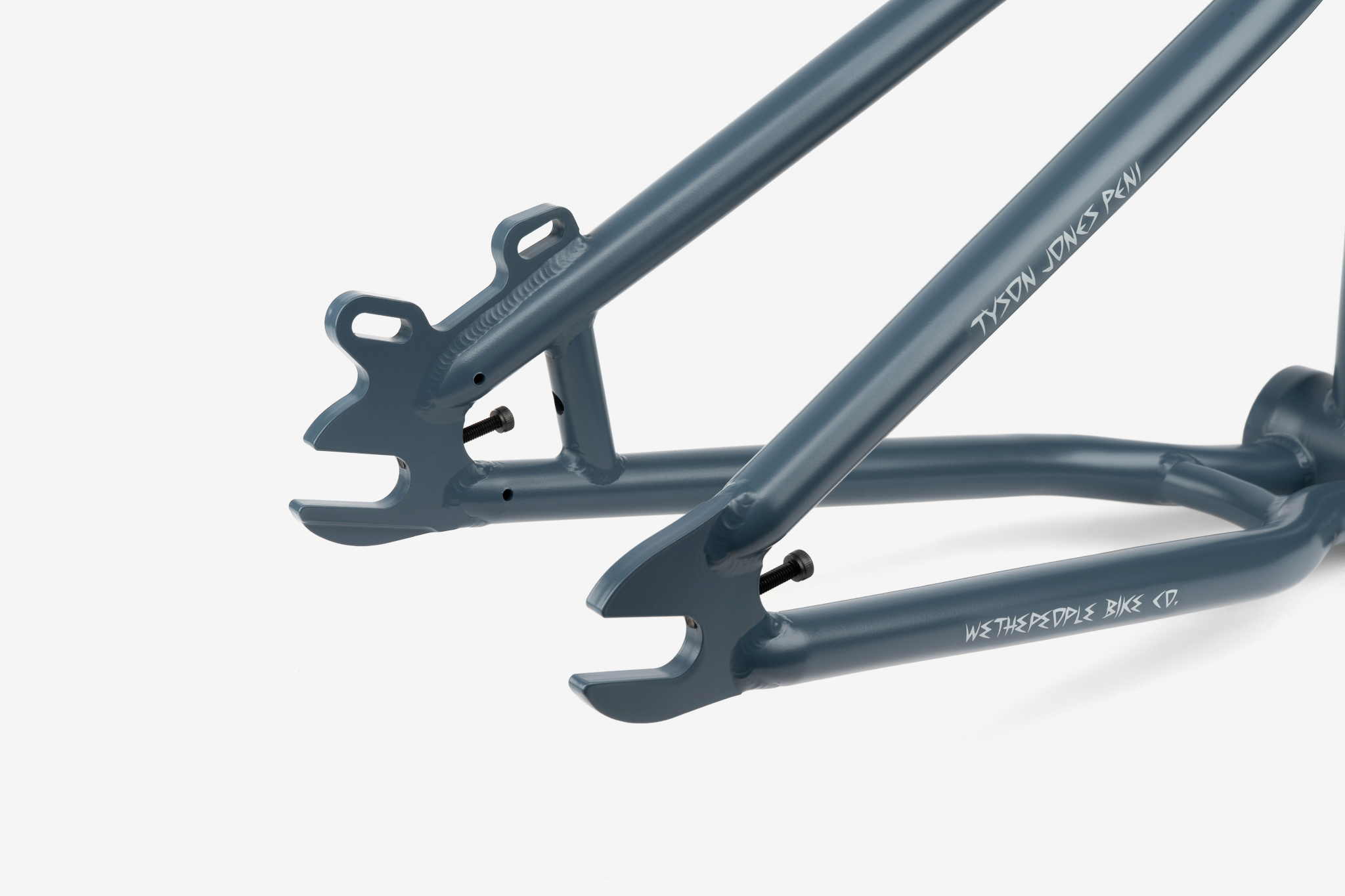

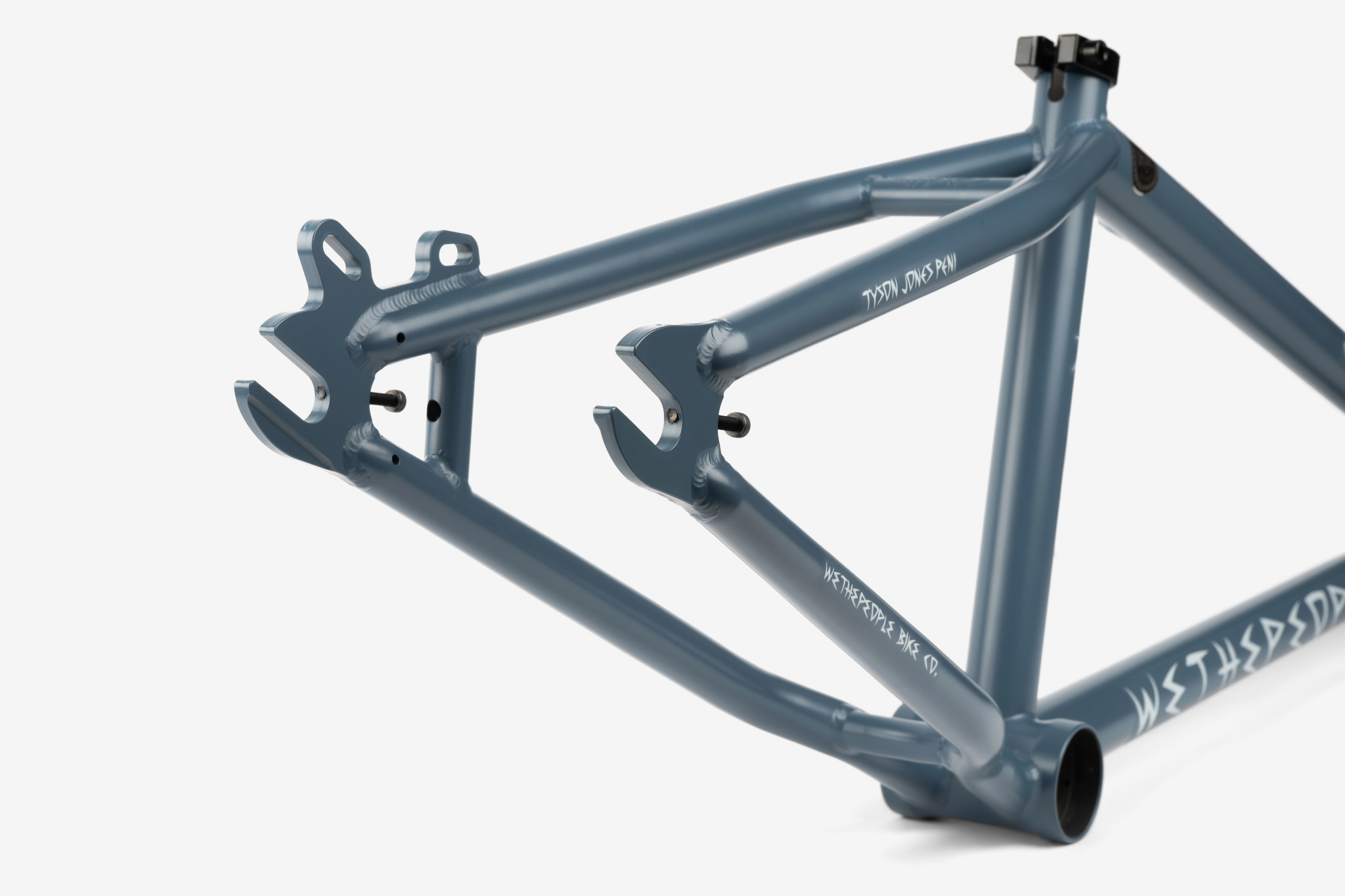

DROPOUTS:

Minimal size, not suitable for pegs, 6mm cnc machined heat-treated crmo, integrated chain tensioners

BRAKES:

disc mount for 140-160mm rotor AND u-brake mounts, frame comes with repl. brake hardware

SPECIAL FEATURES:

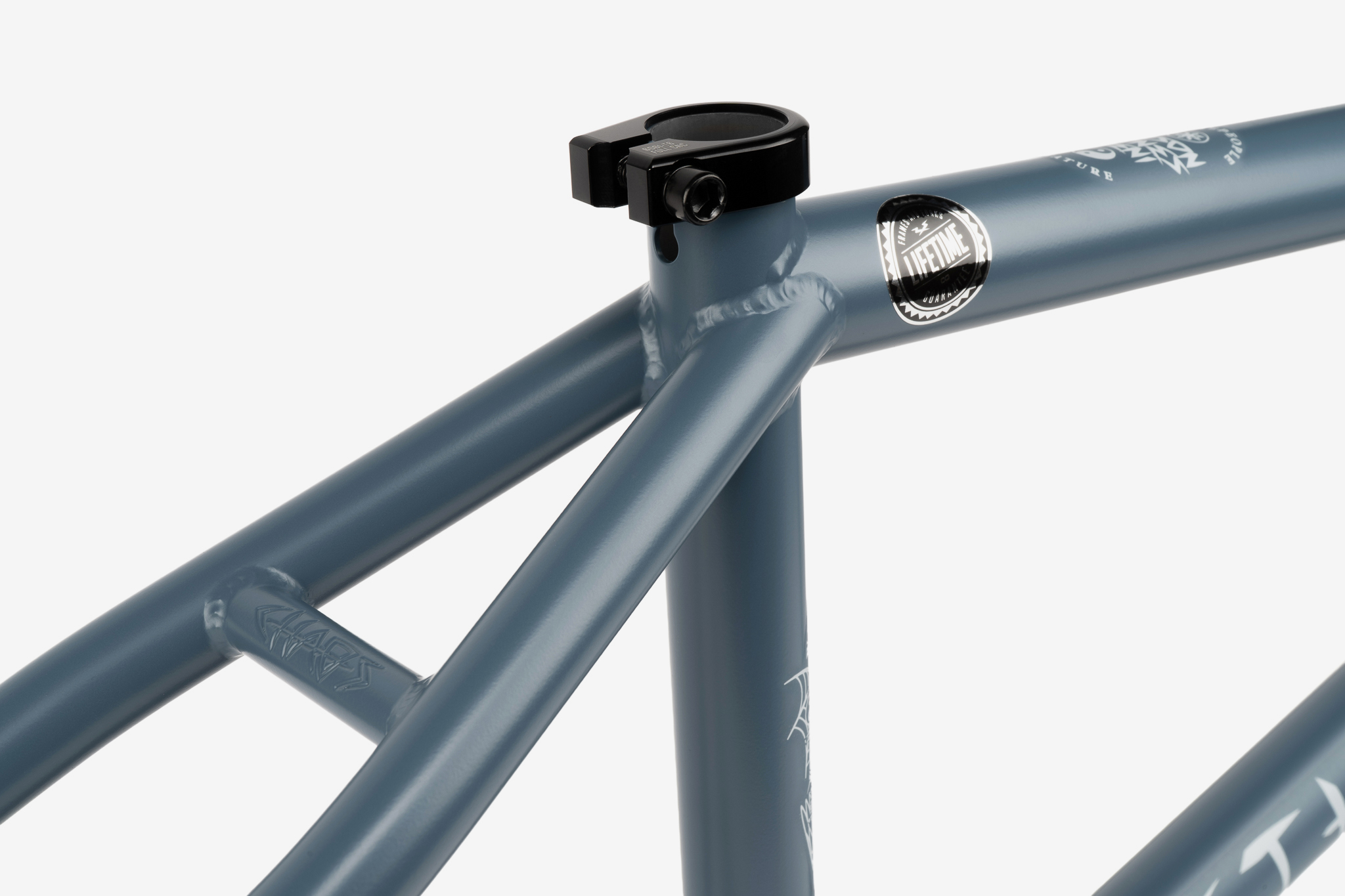

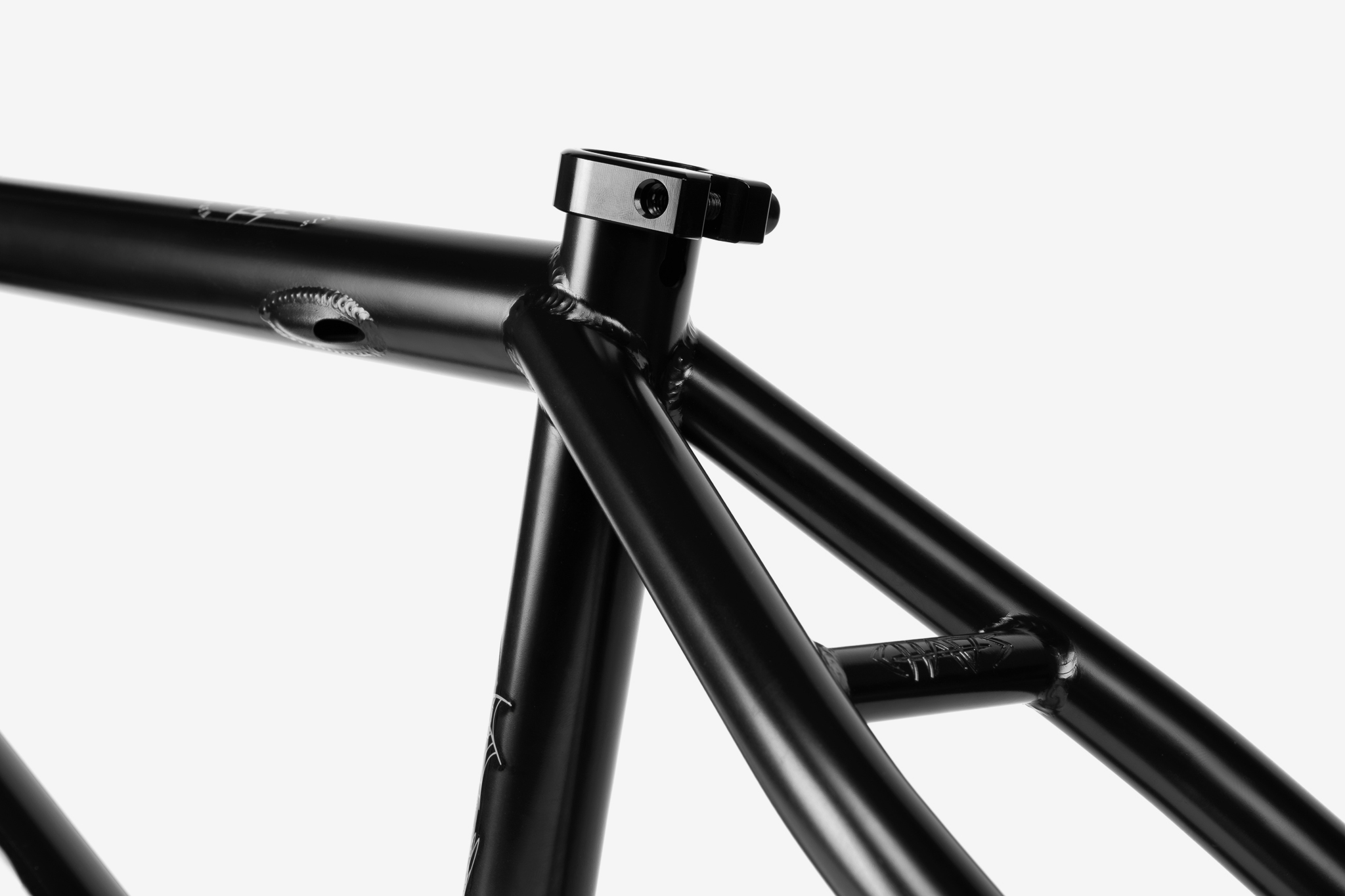

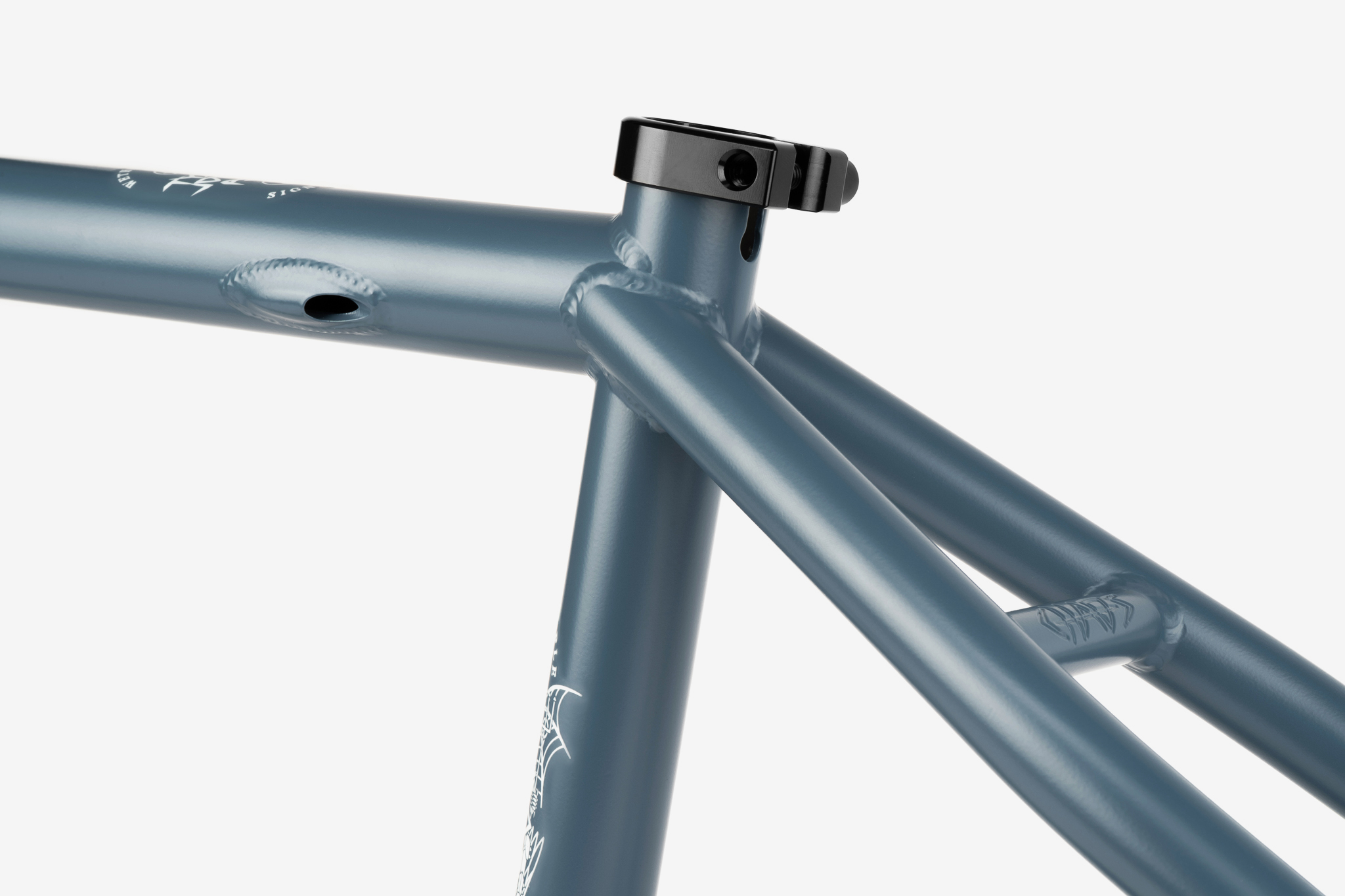

• 22inch wheel frame! • Tyson Jones-Peni signature trail/transition frame • Long and stable trail geometry (same chainstay length as the 20" Chaos Machine) • IS disc mount for 140mm-160mm rotors & removable u-brake mounts • unique disc brake mount works in multiple chain stay positions • 127mm tall head tube for less spacers with an uncut fork • larger radius stay tubing for a stiffer and stronger back end • cnc machined seat stay bridge • disc brace on stays for extra braking stiffness • larger 1.8mm welding at head tube • includes Wethepeople Supreme alloy seat clamp • wider rear triangle allows clearance for a 2.4" tire • WTP top tube and down tube gusset • designed for 22 inch forks, wheels and tires (will also work with 20" wheels but will change geometry. See NOTES for details.

COLORS:

Matt Moss Green

Glossy Raw

Black

WEIGHT:

2.54kg (5.6lbs)
