BATTLESHIP



BATTLESHIP COMPLETE BIKE

A bike which made waves when we released it last year, the BATTLESHIP complete is back for 2020. Taking one of the most popular technical street frames on the market and adding a full aftermarket PRO parts package, the Battleship is the greatest street bike ever made. With some of the latest cutting edge parts from ECLAT including a wheelset using the new Bondi 38mm rims and WETHEPEOPLE Helix hubs with x4 Nylon hub guards, the Battleship is a PRO level bike in a box.

A bike made of 100% aftermarket parts, including the WETHEPEOPLE Battleship 24mm offset fork and the ECLAT Strangler 25.4mm OS handlebar, this incredible bike is as custom as it gets. Available in two amazing colourways in either RSD or LSD, this freecoasting beast has everything you could need to go to war with the streets.

INCLUDES LIFETIME GUARANTEE ON THE FRAME & FORK


GALLERY

COLORWAY: CORAL RED (LSD)

CLICK IMAGE FOR FULL SIZE GALLERY

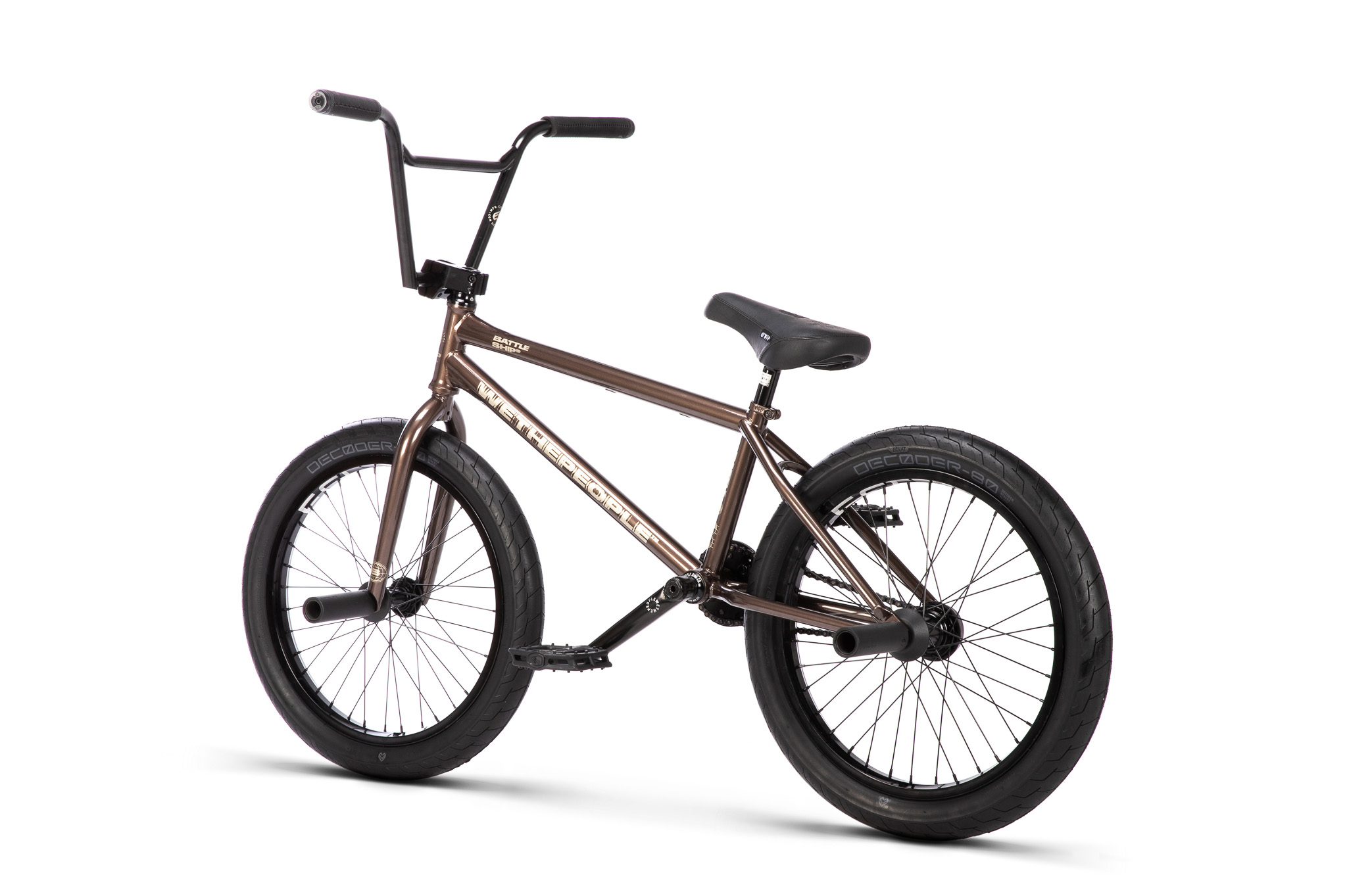

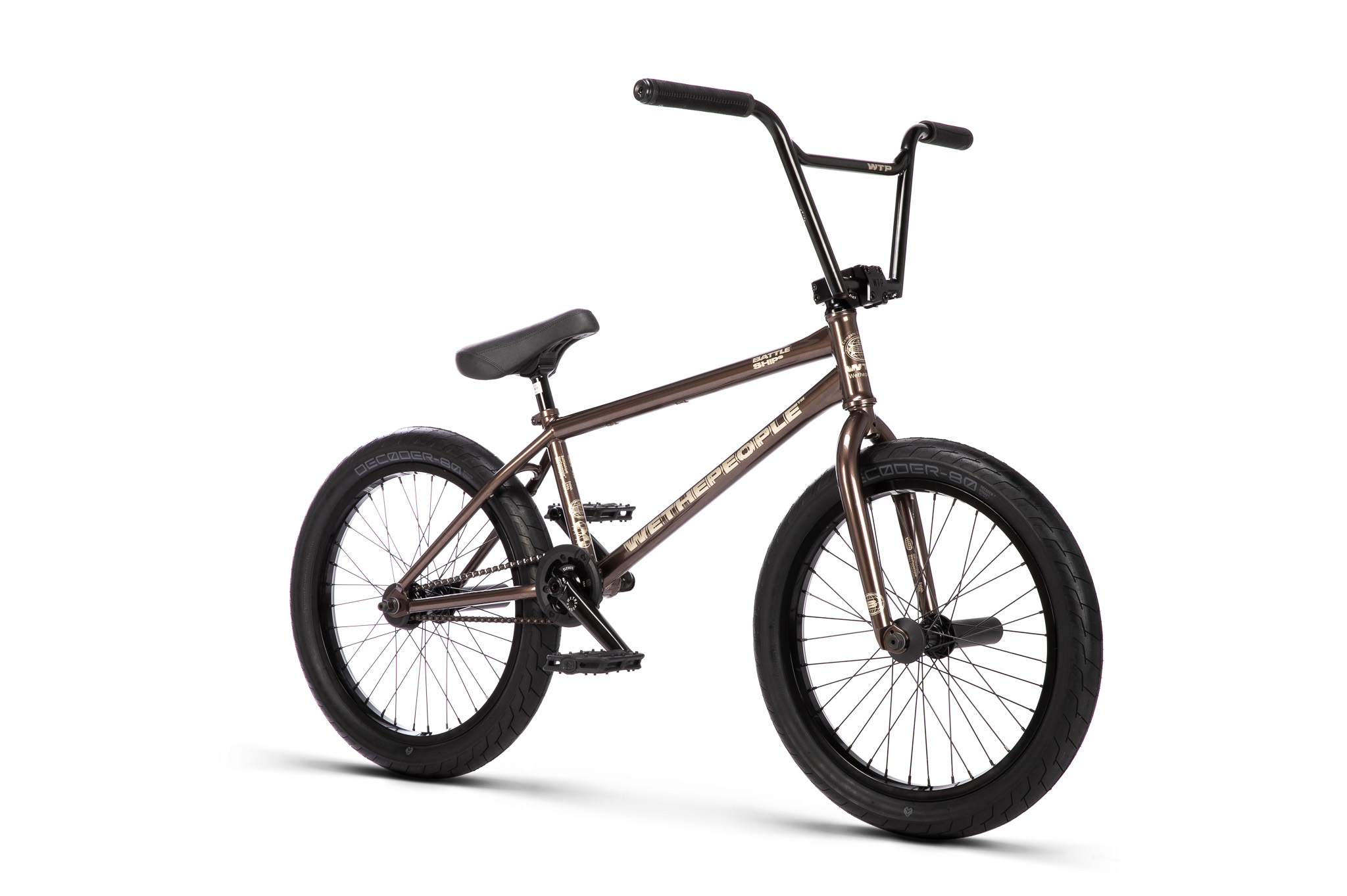

COLORWAY: RAW (RSD)

CLICK IMAGE FOR FULL SIZE GALLERY


SPECIFICATIONS

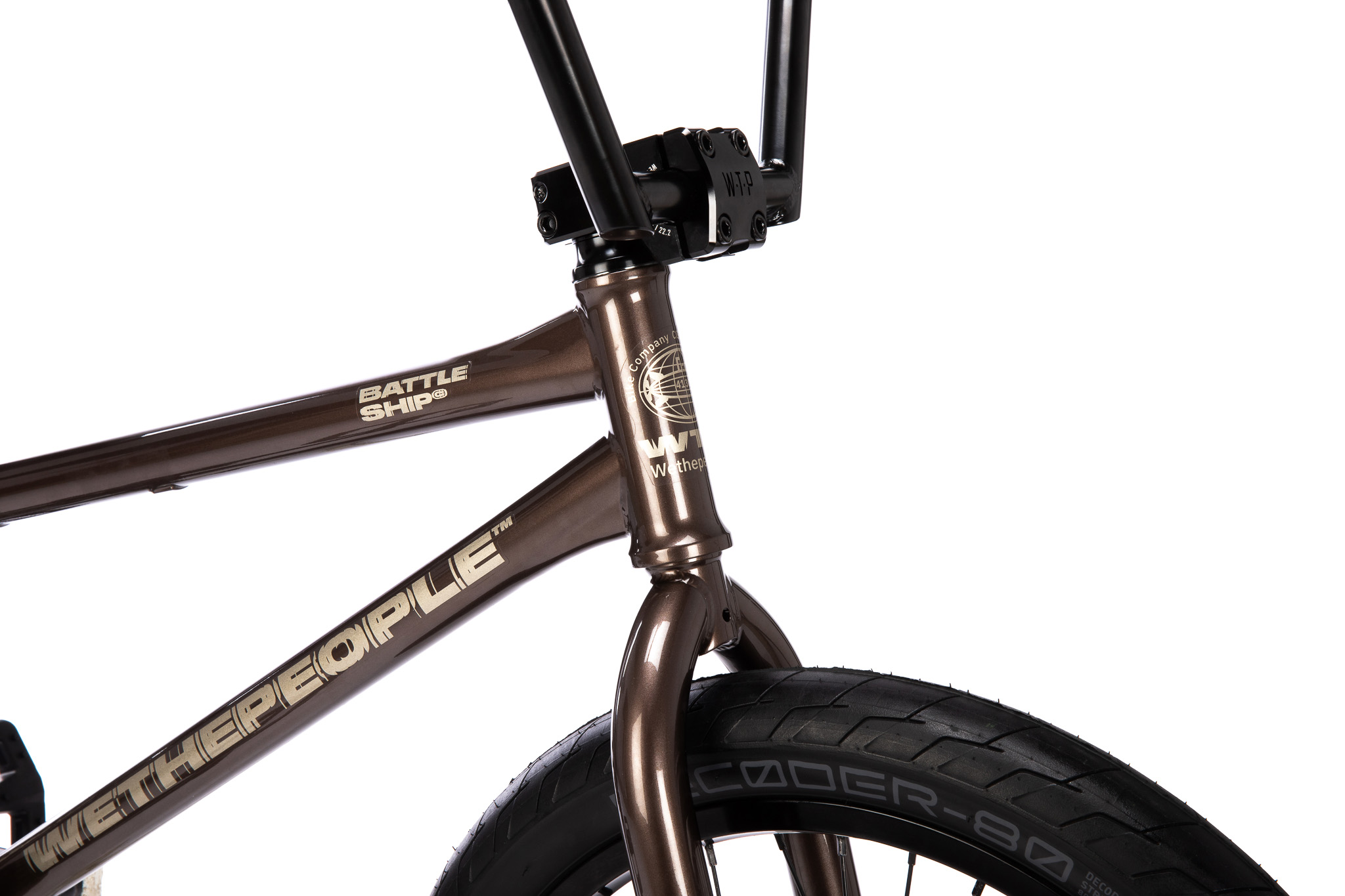

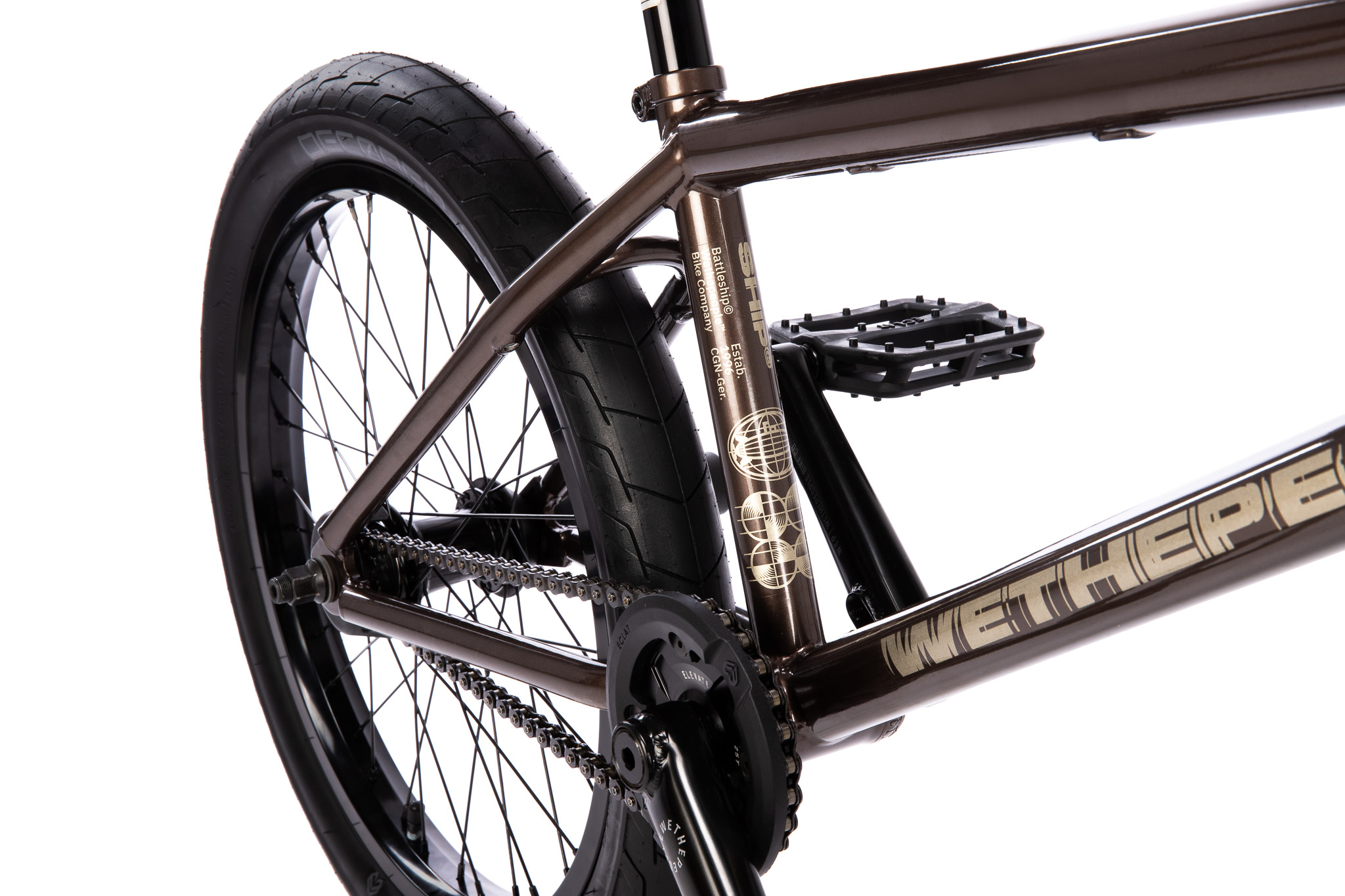

Frame: WETHEPEOPLE "BATTLESHIP" frame, 4130 full crmo, hydroformed gussets, removable pivots & guides

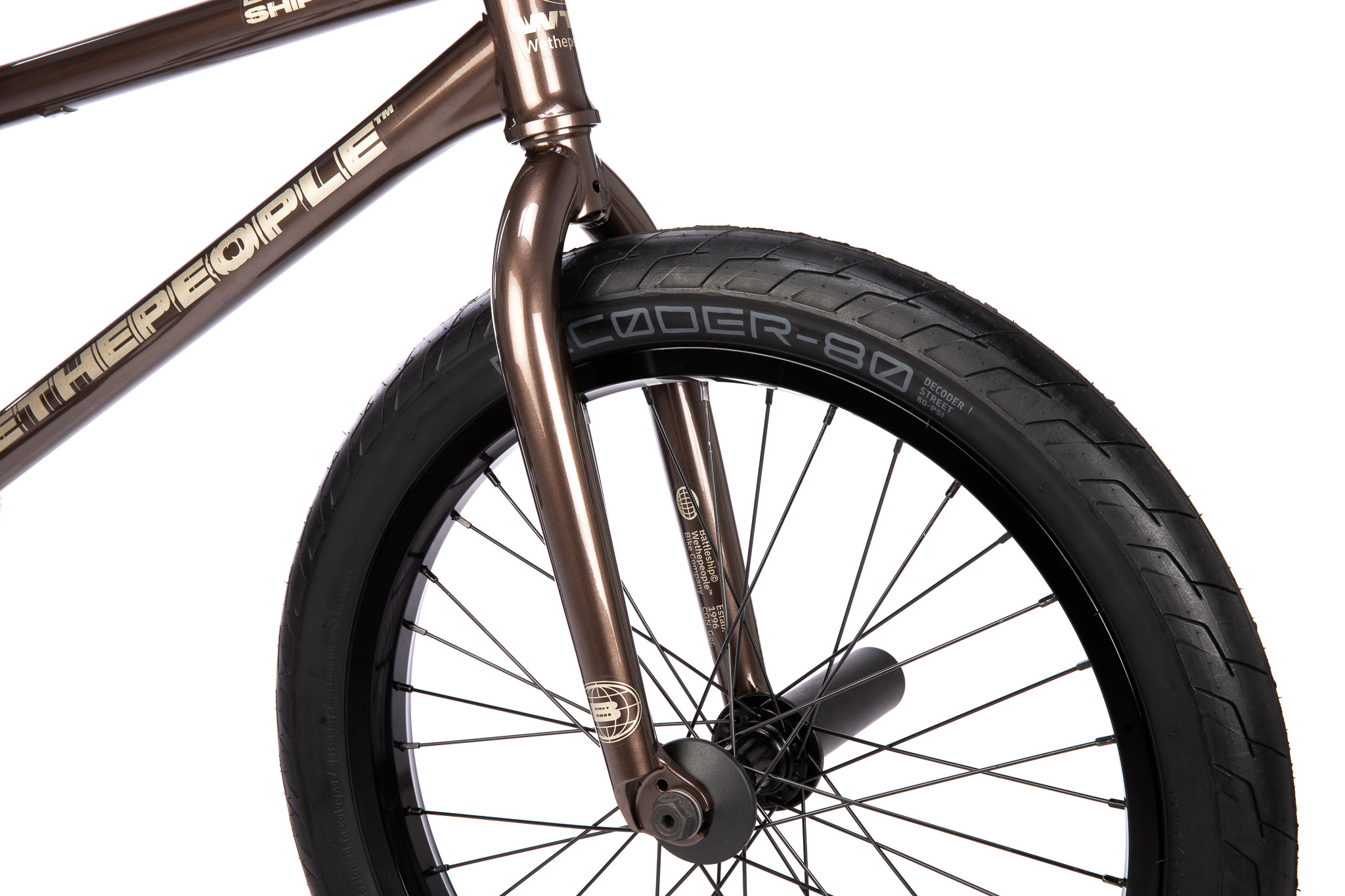

Fork: WETHEPEOPLE  "BATTLESHIP" fork, post liquid heat-treated butted sanko tubing, 1pc cnc steerer, 24mm offset

Bars: ÉCLAT "STRANGLER" 4pc bar,  post liquid heat-treated 4130 crmo, 25.4mm clamping

Grips: ÉCLAT “SHOGUN” flangeless grips, ÉCLAT "Tech-Bolt" barends

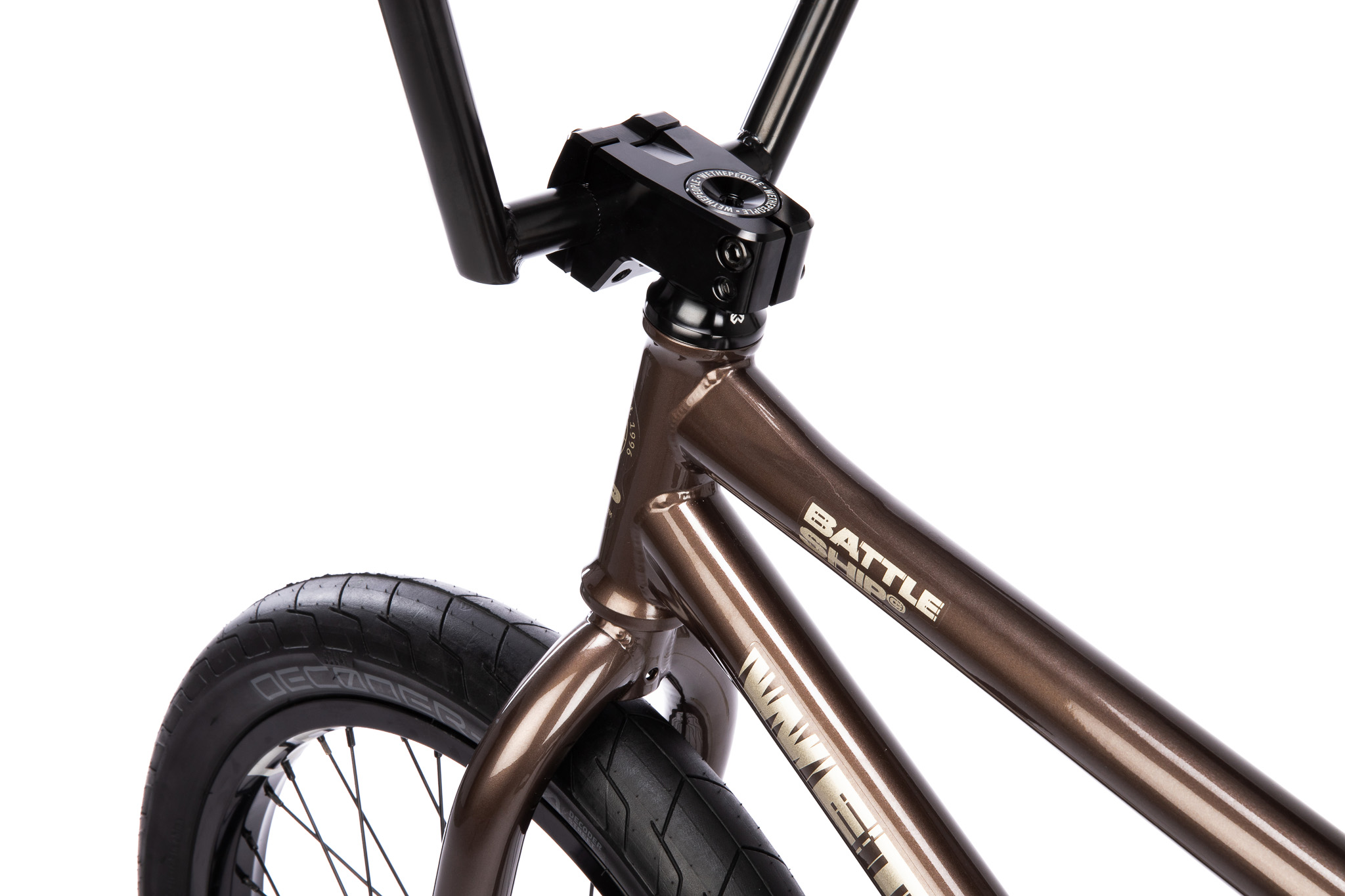

Stem: ÉCLAT "DOMAIN", cnc alloy top loading stem, 48mm reach, 25.4mm clamping

Headset: ÉCLAT “Wave” int. headset, sealed bearing

Gyro: n/a

Lever: SALT “MOTO” alloy brake lever

Brakes: ÉCLAT "TALON" alloy u-brake rear

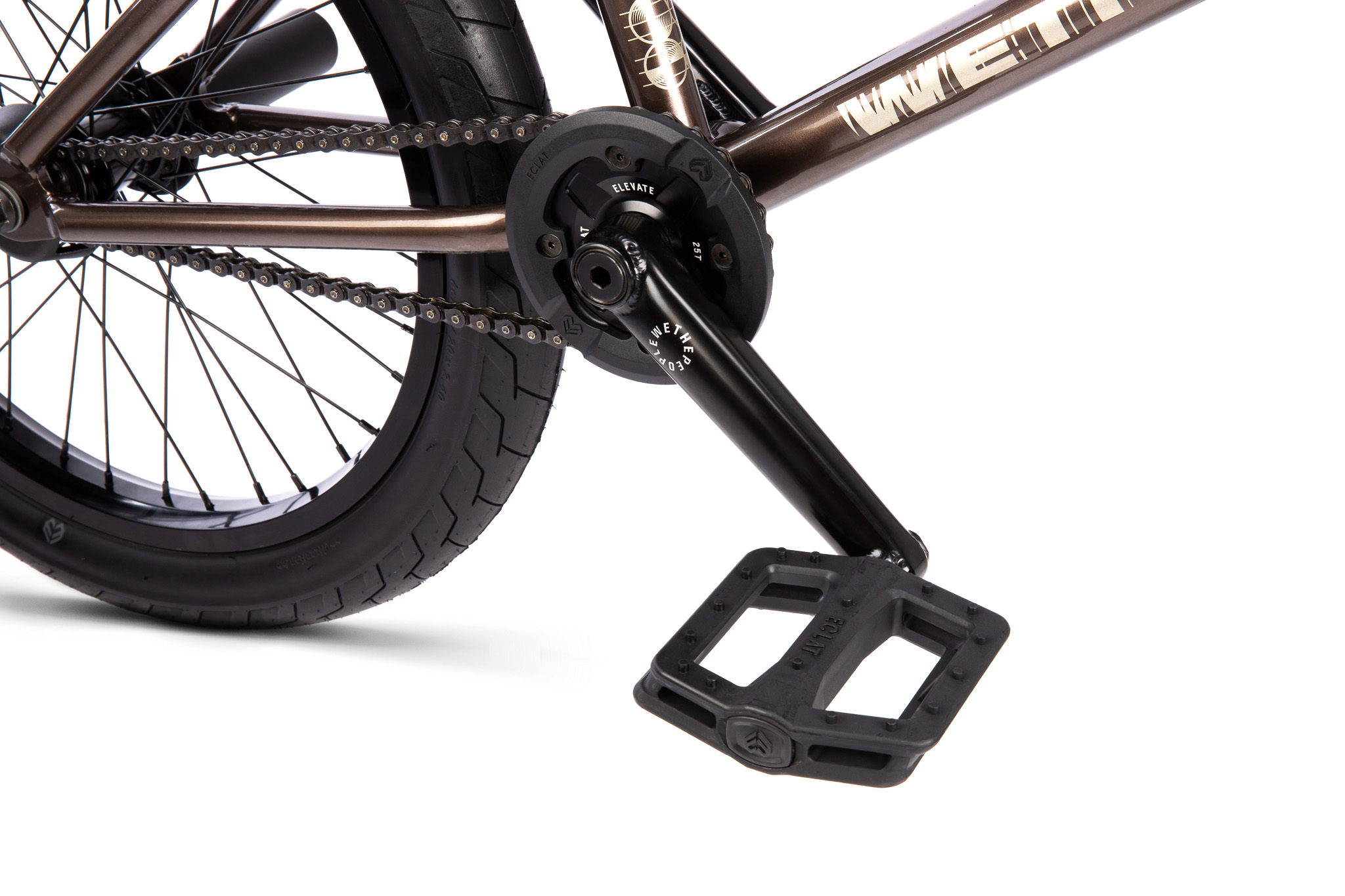

Cranks: WETHEPEOPLE “Logic” 22mm tubular 3pc crank crmo, 165mm, 48 spline

BB: WETHEPEOPLE “Compact” 22mm, press fit, sealed bearing

Pedals:  WETHEPEOPLE “LOGIC” nylon/fiberglass pedals

Chain: SALTPLUS “WARLOCK” half-link chain

Sprocket ÉCLAT "ELEVATE" 6061-T6 alloy, 25t sprocket & Nylon guard

Driver: 9t, 1pc freecoaster driver, sealed bearing

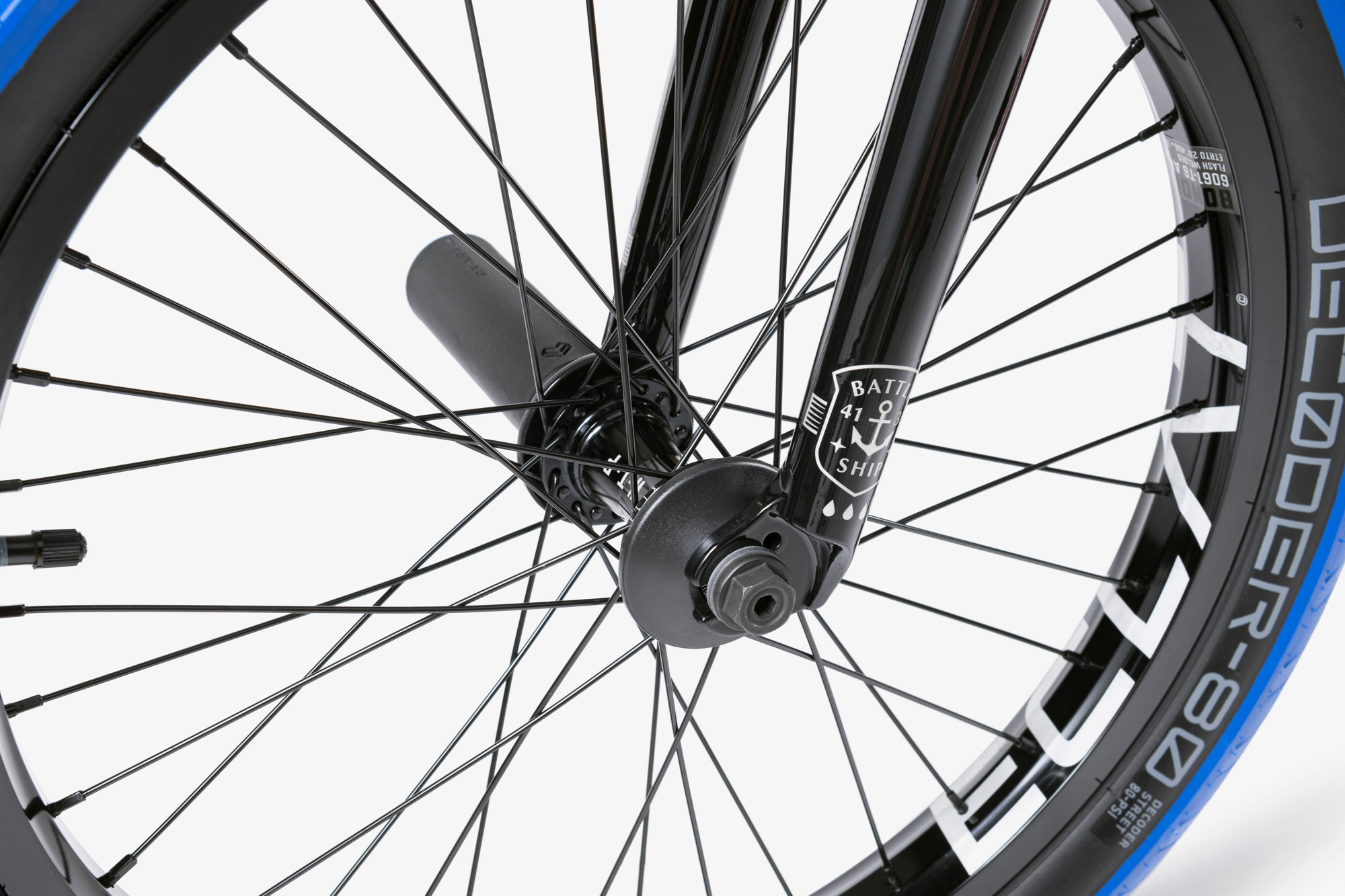

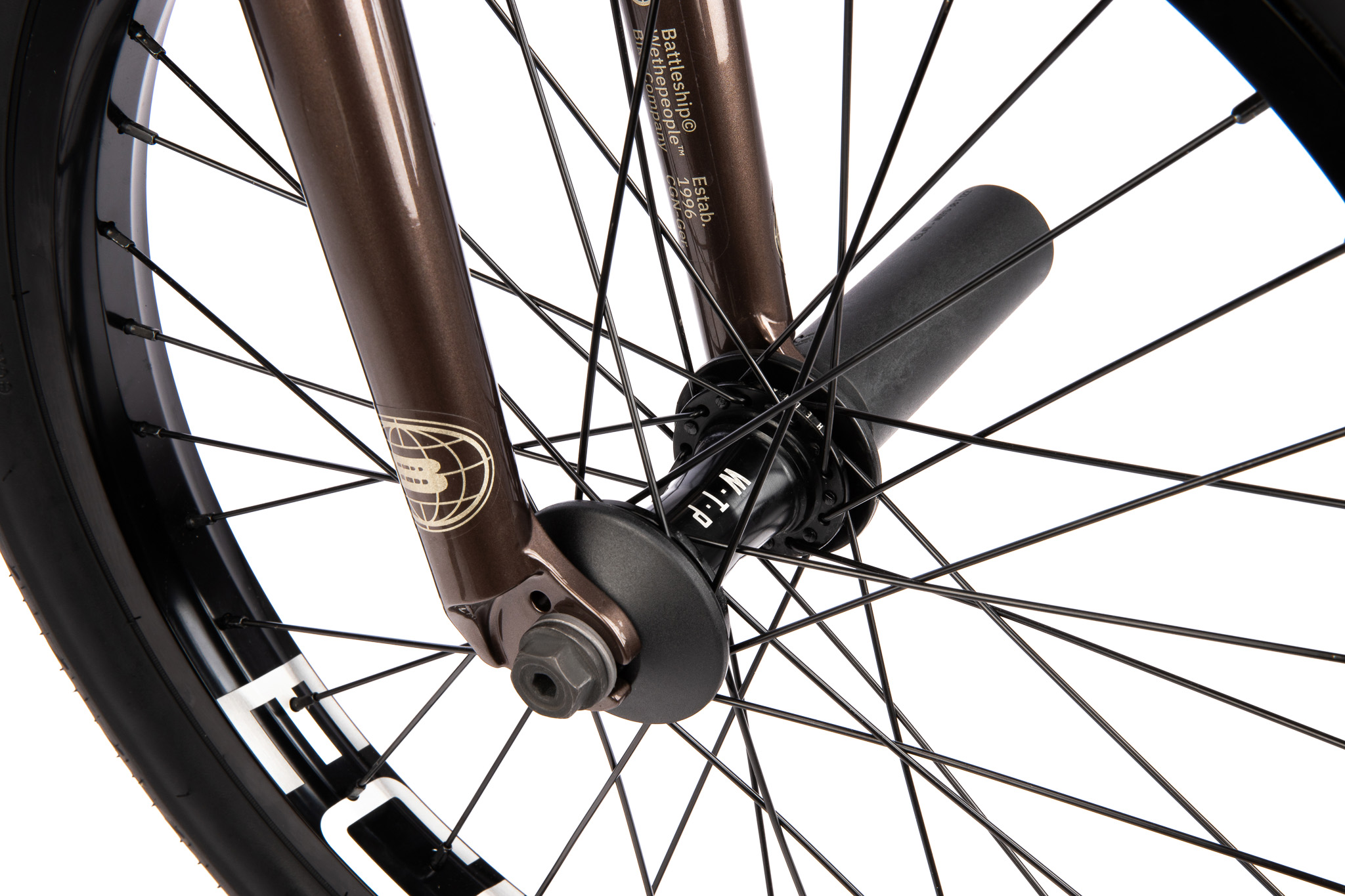

Front Hub: WETHEPEOPLE “HELIX” hub, sb, 3/8"'s female bolts, 36h

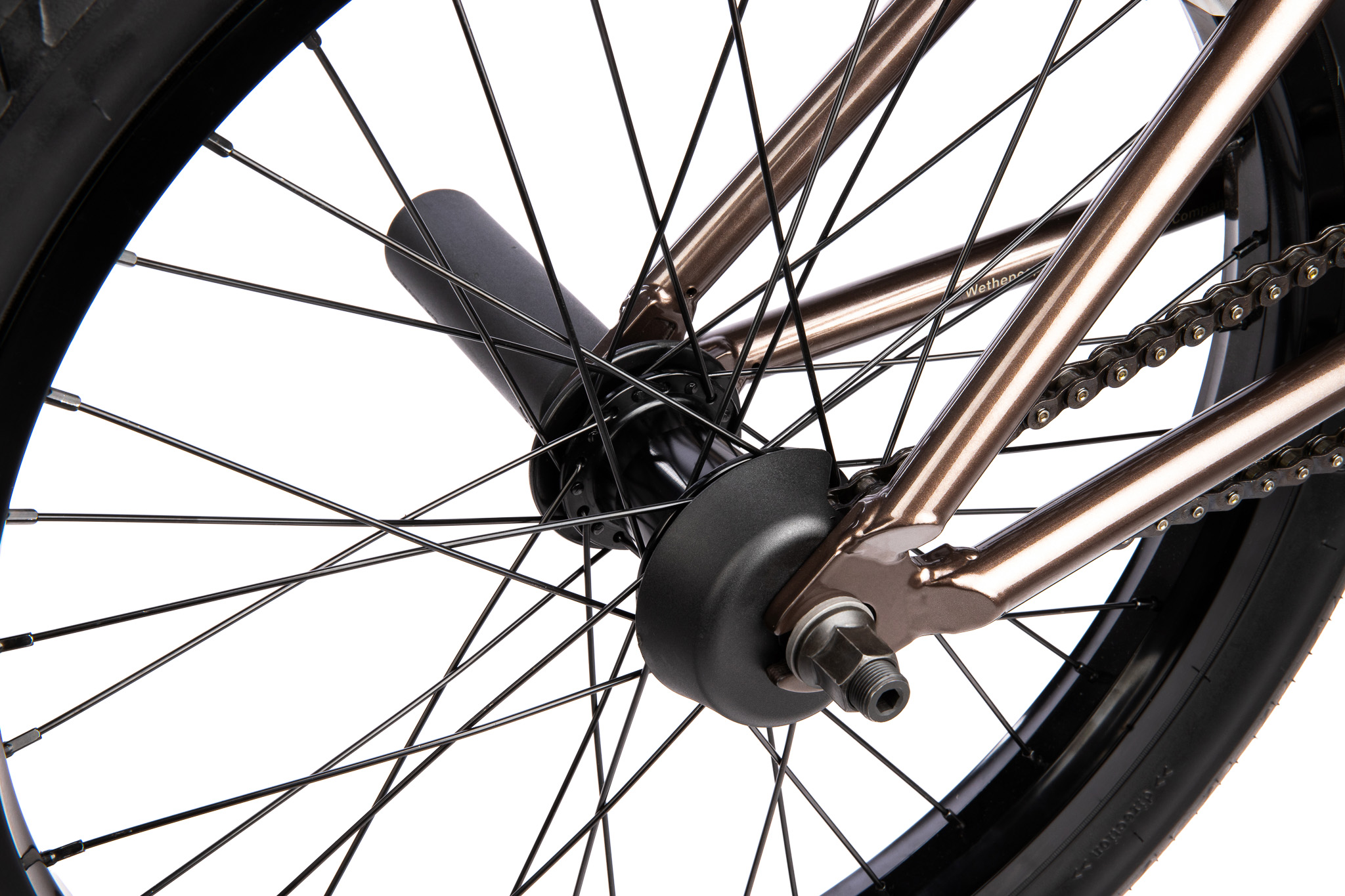

Rear Hub: WETHEPEOPLE “HELIX" freecoaster hub, full sealed, 9t, 14mm axle, 36h

Hubguards: WETHEPEOPLE "HELIX" Nylon/Fiberglass (x2) front & (x2) rear hub guards

Front Rim:  ÉCLAT “BONDI" 38mm wide, flash welded double wall rim, 36h

Rear Rim:  ÉCLAT “BONDI" 38mm wide, flash welded double wall rim, 36h

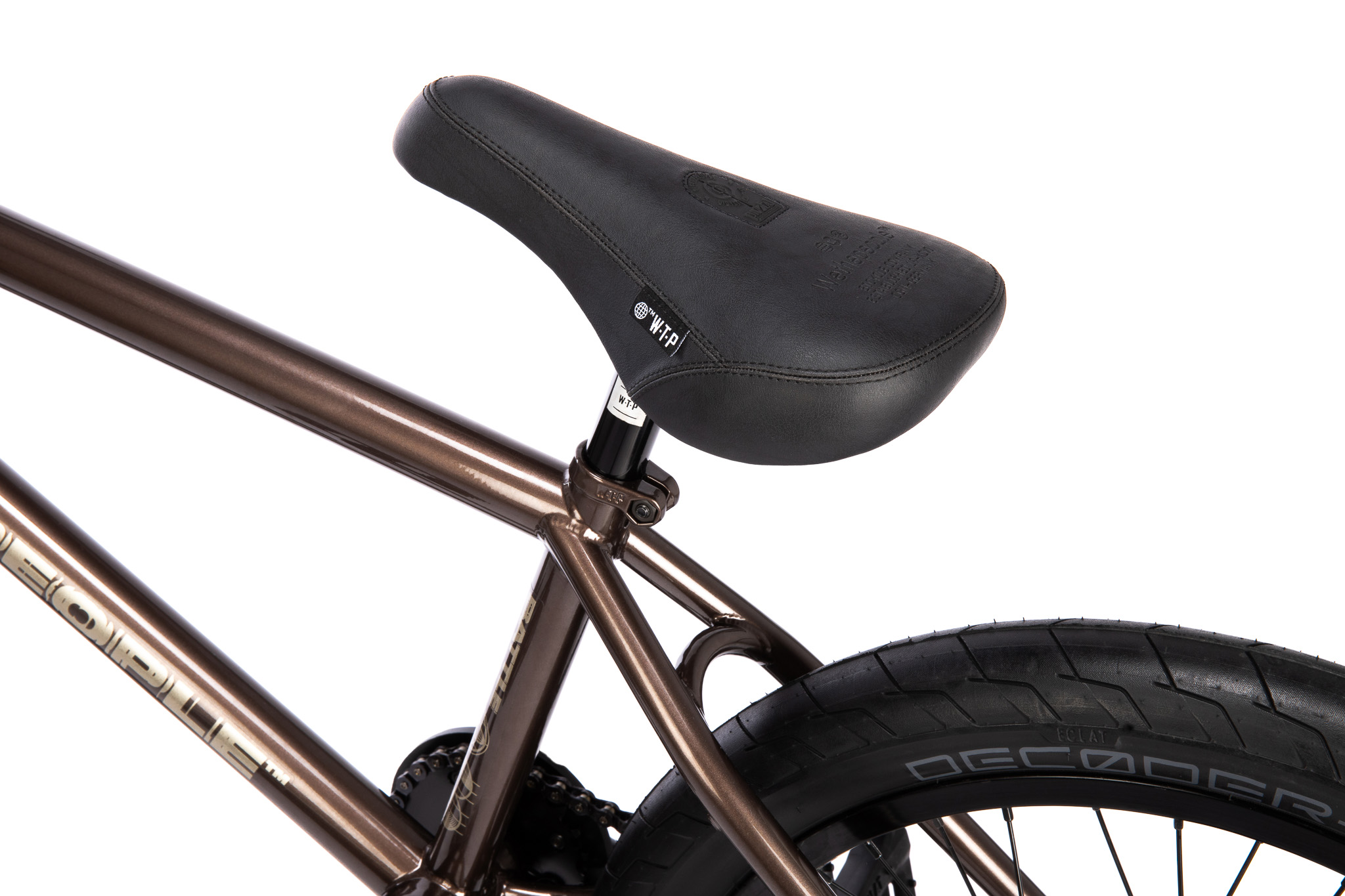

Seat: ÉCLAT “BIOS” fat padded pivotal seat

Seat Post: WETHEPEOPLE “TEAM” pivotal seat post, 606-T6 alloy, 200mm long

Seat Clamp: WETHEPEOPLE “LOGIC” 4130 crmo seat clamp

Tires:  ÉCLAT “Predator” 2.30" front & rear

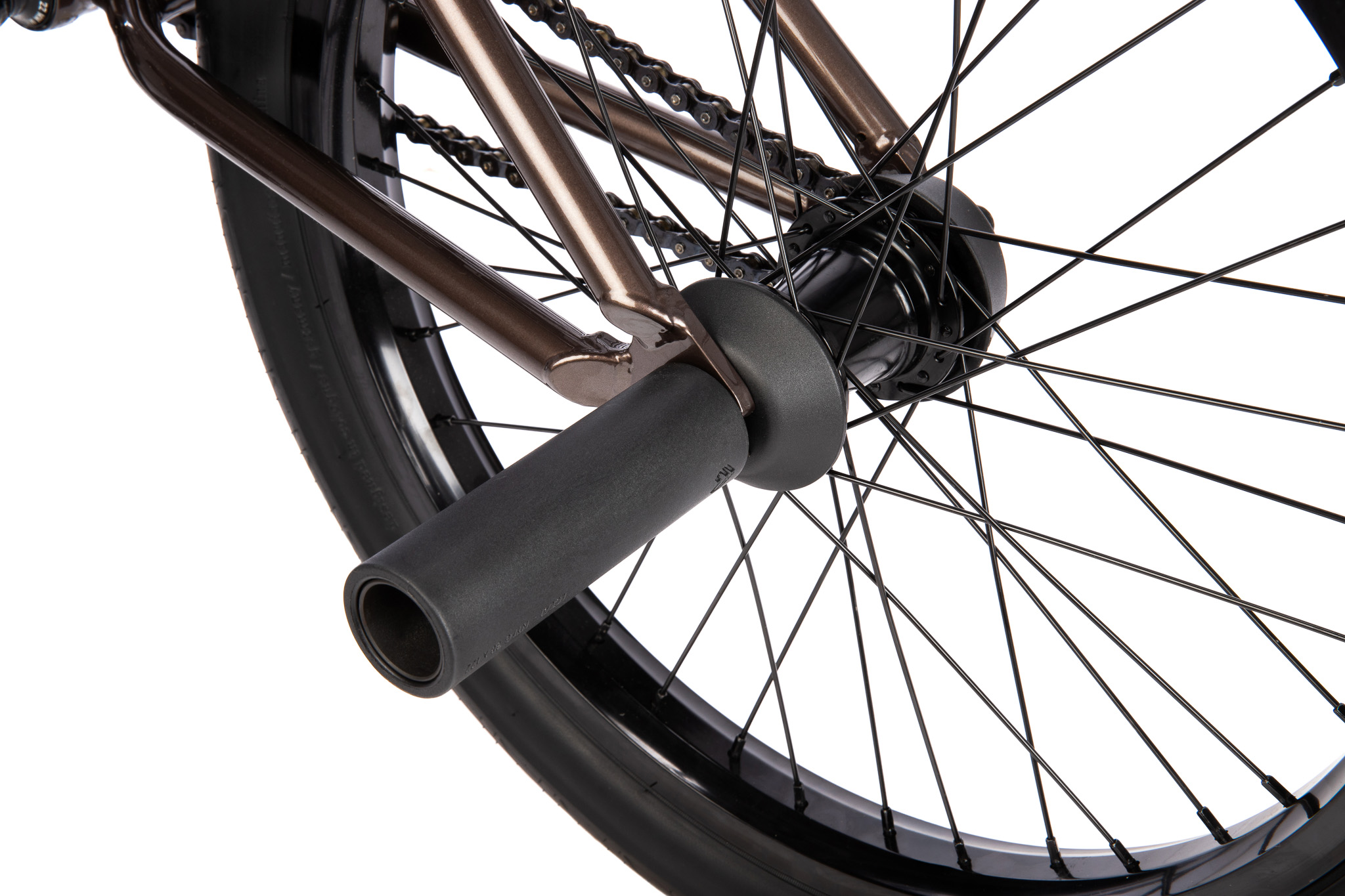

Pegs: ÉCLAT "Venom" 4.8", nylon-fibreglass x2

Weight: 12.57kg / 27.81lbs - without brakes, with pegs


FRAME GEOMETRY

A: Top Tube Length:  20.75”

B: Chain Stay Length: 13" (12.7"-13.2")

C: Head Tube Angle: 75.5°

D: Seat Tube Angle: 71°

E: Bottom Bracket Height: 11.7”

F: Stand Over Height: 9”


BAR GEOMETRY

G: Bar Rise: 9.1“

H: Bar Width: 29”

I: Bar Back Sweep: 11.5°

J: Bar Up Sweep: 2.5°
