TRAIL/TRANSITION FORK - 32MM

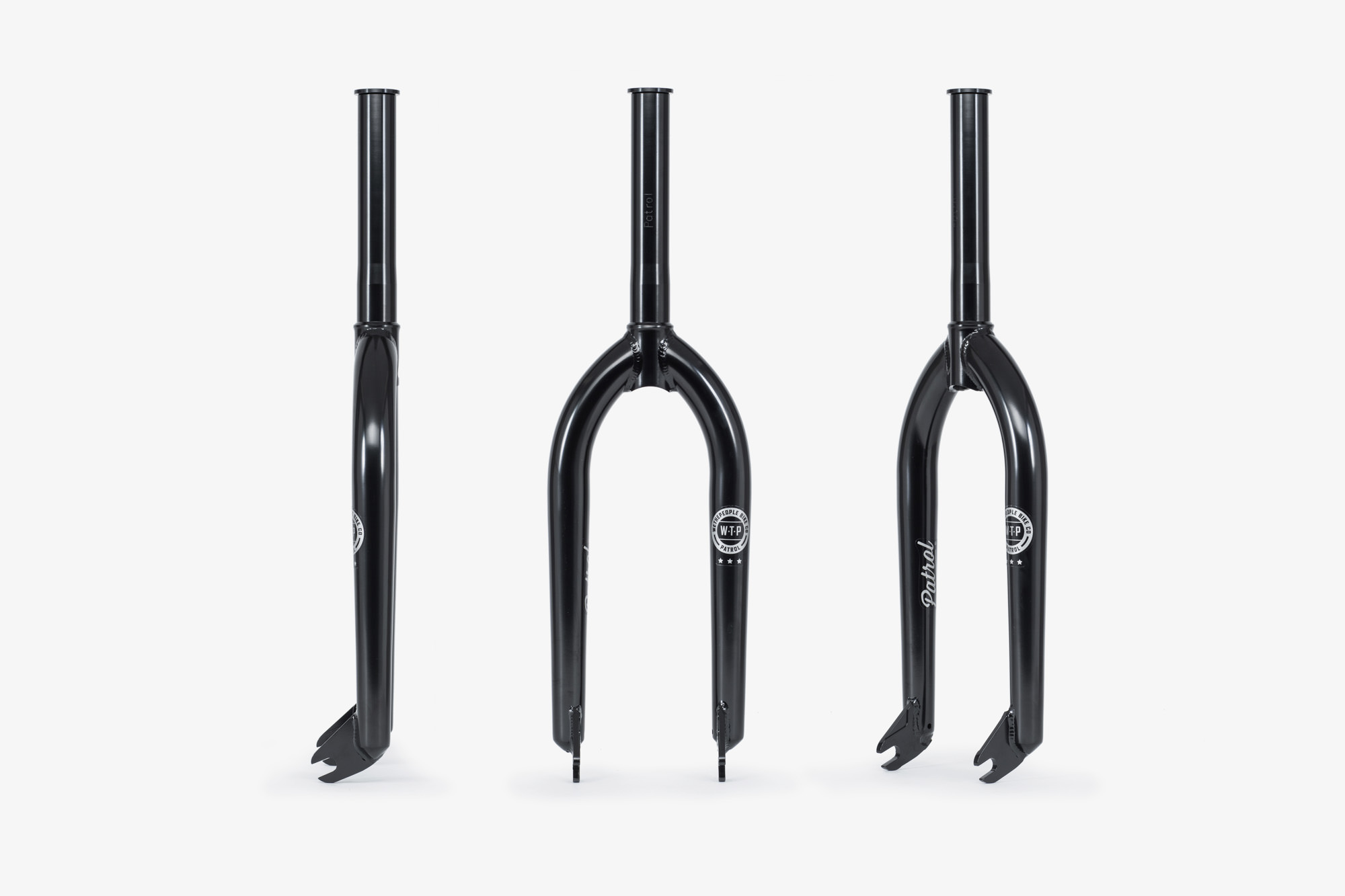

PATROL Fork

Black

C.P.

colors:

Built to go fast and high, the Patrol Fork uses our famous 4130 "M2" crmo tubing and features cnc machined micro dropouts that match perfectly with the dropouts on the patrol frame. Rounded off with it's own 6061 alloy topcap, if you're looking for a strong, dependable fork with classic styling, look no further... Includes lifetime guarantee.

PATROL Fork

No items found.

SPECIFICATIONS

MATERIAL:

full liquid post heat-treatment on 4130 “M2“ crmo

SIZE:

1 1/8"

WEIGHT:

fork: 1045g (36.95oz : 2.31lbs) top bolt: 33g (1.12oz : 0.07lbs)

COLORS:

Black

C.P.

MATERIAL:

full liquid post heat-treatment on 4130 “M2“ crmo

TOP BOLT:

Patrol 6061-T6 alloy top bolt, M24 thread

STEERER LENGTH:

170mm

OFFSET:

32mm

DROPOUTS:

5mm heat treated crmo, laser cut and cnc machined cutouts, small but peg compatible, for 3/8''(10mm) axle

SPECIAL FEATURES:

• 32mm offset dirt/transition forks • fully cnc’d steerer • internally and externally butted • integrated crown race designed to work with integrated headsets with a 45° bearing • triple butted fork blades • domed fork end caps • cnc dropout detail • includes LIFETIME GUARANTEE

WEIGHT:

fork: 1045g (36.95oz : 2.31lbs) top bolt: 33g (1.12oz : 0.07lbs)

COLORS:

Black

C.P.
